| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LGU2P152MELCCAP ALUM 1500UF 20% 220V SNAP |
5,035 | 8.92 |
RFQ |
Datasheet |
Bulk | LGU | Active | 1500 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3 A @ 120 Hz | 4.5 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
UHW1K271MPDCAP ALUM 270UF 20% 80V RADIAL |
9,652 | 1.74 |
RFQ |
Datasheet |
Bulk | UHW | Not For New Designs | 270 µF | ±20% | 80 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 875 mA @ 120 Hz | 1.75 A @ 100 kHz | 63 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
LGL2G391MELZ50CAP ALUM 390UF 20% 400V SNAP |
8,158 | 8.99 |
RFQ |
Datasheet |
Bulk | LGL | Active | 390 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.23 A @ 120 Hz | 1.7589 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
LGL2W271MELA40CAP ALUM 270UF 20% 450V SNAP |
6,834 | 9.01 |
RFQ |
Datasheet |
Bulk | LGL | Active | 270 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 930 mA @ 120 Hz | 1.3299 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.654 (42.00mm) | - | Through Hole |
|

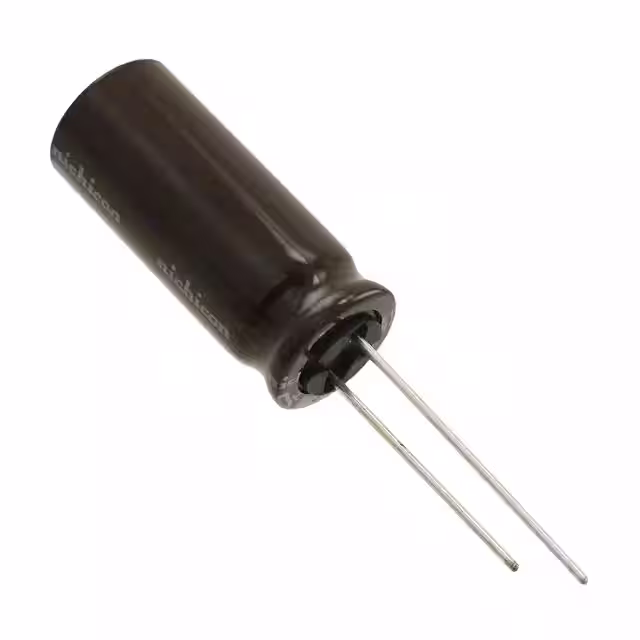

UPM2A181MHDCAP ALUM 180UF 20% 100V RADIAL |
9,697 | 1.75 |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 180 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.27 A @ 10 kHz | 98 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.319 (33.50mm) | - | Through Hole |
|
LGR2G271MELB45CAP ALUM 270UF 20% 400V SNAP |
7,982 | 9.07 |
RFQ |
Datasheet |
Bulk | LGR | Active | 270 µF | ±20% | 400 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.573 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.850 (47.00mm) | - | Through Hole |
|

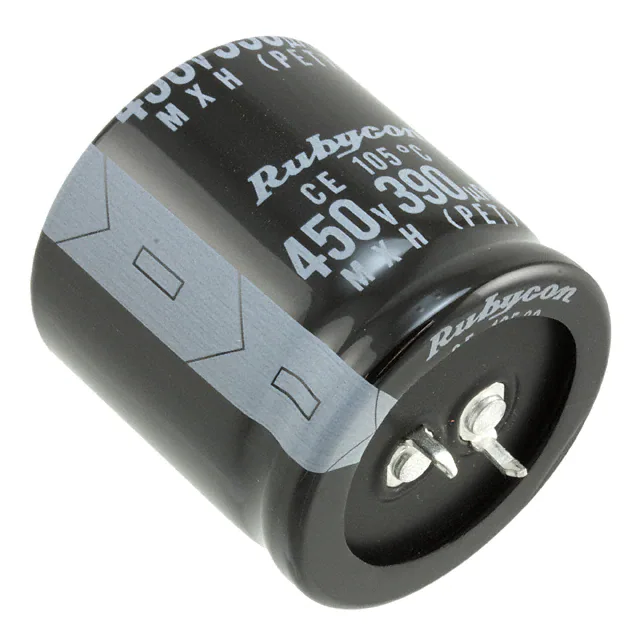

450MXH390MEFCSN35X35CAP ALUM 390UF 20% 450V SNAP |
5,819 | 9.15 |
RFQ |
Datasheet |
Bulk | MXH | Active | 390 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.76 A @ 120 Hz | 2.464 A @ 10 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
860160480034CAP ALUM 2200UF 20% 25V RADIAL |
5,149 | 2.37 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATLL | Active | 2200 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 2.712 A @ 100 kHz | 50 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
25ZLJ1800M12.5X25CAP ALUM 1800UF 20% 25V RADIAL |
8,289 | 1.77 |
RFQ |
Datasheet |
Bulk | ZLJ | Active | 1800 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.92 A @ 120 Hz | 3.2 A @ 100 kHz | 19 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|

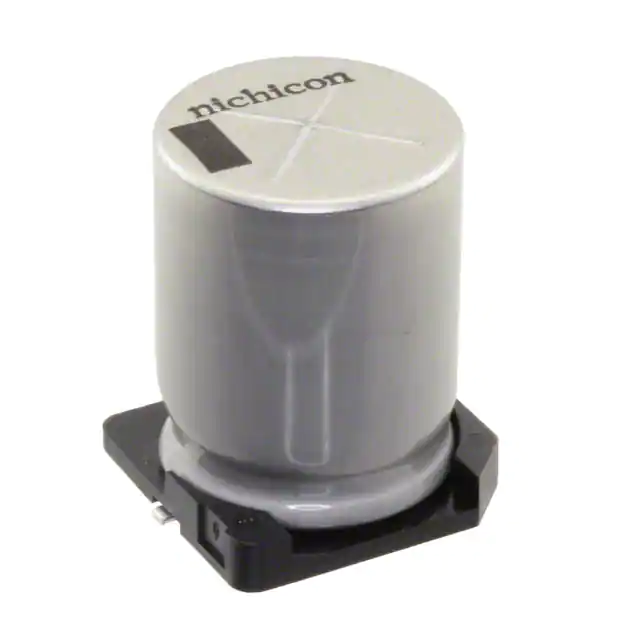

UCZ1K391MNQ1MSCAP ALUM 390UF 20% 80V SMD |
5,999 | 2.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCZ | Not For New Designs | 390 µF | ±20% | 80 V | 120mOhm @ 100kHz | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 800 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.630 Dia (16.00mm) | 0.886 (22.50mm) | 0.673 L x 0.673 W (17.10mm x 17.10mm) | Surface Mount |
|
UPA1C682MHD1TNCAP ALUM 6800UF 20% 16V RADIAL |
5,130 | 3.37 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPA | Active | 6800 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.423 A @ 120 Hz | 2.85 A @ 100 kHz | 18 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
450USG390MEFCSN30X40CAP ALUM 390UF 20% 450V SNAP |
7,651 | 9.31 |
RFQ |
Datasheet |
Bulk | USG | Active | 390 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.32 A @ 120 Hz | 3.248 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
LGX2W391MELB50CAP ALUM 390UF 20% 450V SNAP |
7,865 | 9.33 |
RFQ |
Datasheet |
Bulk | LGX | Active | 390 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.67 A @ 120 Hz | 2.3881 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
LQS2G391MELB40CAP ALUM 390UF 20% 400V SNAP |
6,374 | 9.36 |
RFQ |
Datasheet |
Bulk | LQS | Active | 390 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 1.859 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
UCX1V821MNQ1MSCAP ALUM 820UF 20% 35V SMD |
8,273 | 2.90 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCX | Not For New Designs | 820 µF | ±20% | 35 V | 50mOhm | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | General Purpose | 600 mA @ 120 Hz | 1.2 A @ 100 kHz | - | - | 0.630 Dia (16.00mm) | 0.689 (17.50mm) | 0.673 L x 0.673 W (17.10mm x 17.10mm) | Surface Mount |
|
UPM1H681MHDCAP ALUM 680UF 20% 50V RADIAL |
7,247 | 1.80 |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 680 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.58 A @ 120 Hz | 1.9 A @ 10 kHz | 36 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.476 (37.50mm) | - | Through Hole |
|

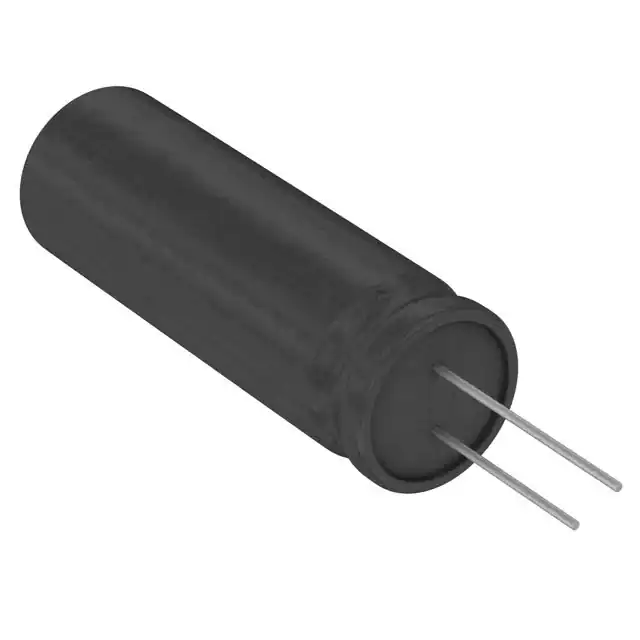

10ZLS5600MEFC12.5X35CAP ALUM 5600UF 20% 10V RADIAL |
6,413 | 1.80 |
RFQ |
Datasheet |
Bulk | ZLS | Active | 5600 µF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.499 A @ 120 Hz | 3.57 A @ 100 kHz | 12 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.457 (37.00mm) | - | Through Hole |
|
UBX2D100MPLCAP ALUM 10UF 20% 200V RADIAL |
5,326 | 1.81 |
RFQ |
Datasheet |
Bulk | UBX | Active | 10 µF | ±20% | 200 V | - | 1000 Hrs @ 150°C | -40°C ~ 150°C | Polar | - | Automotive | 83 mA @ 120 Hz | 149.4 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
EGXF250ELL182MK20SCAP ALUM 1800UF 20% 25V RAD TH |
7,392 | 1.81 |
RFQ |
Datasheet |
Bulk | GXF | Active | 1800 µF | ±20% | 25 V | 38mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 954 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.846 (21.50mm) | - | Through Hole |
|
|
UCX1E152MNQ1MSCAP ALUM 1500UF 20% 25V SMD |
5,984 | 2.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCX | Not For New Designs | 1500 µF | ±20% | 25 V | 50mOhm | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | General Purpose | 600 mA @ 120 Hz | 1.2 A @ 100 kHz | - | - | 0.630 Dia (16.00mm) | 0.689 (17.50mm) | 0.673 L x 0.673 W (17.10mm x 17.10mm) | Surface Mount |
