| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPJ1K391MHDCAP ALUM 390UF 20% 80V RADIAL |
9,760 | 2.07 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 390 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 822 mA @ 120 Hz | 1.06 A @ 10 kHz | 78 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.634 (41.50mm) | - | Through Hole |
|
350MXG470MEFCSN35X30CAP ALUM 470UF 20% 350V SNAP |
1,723 | 10.75 |
RFQ |
Datasheet |
Bulk | MXG | Active | 470 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.66 A @ 120 Hz | 2.324 A @ 10 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
UCA2D101MHD6CAP ALUM 100UF 20% 200V RADIAL |
8,554 | 2.08 |
RFQ |
Datasheet |
Bulk | UCA | Not For New Designs | 100 µF | ±20% | 200 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 590 mA @ 120 Hz | 1.18 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
|
UCA2W220MHD6CAP ALUM 22UF 20% 450V RADIAL |
8,489 | 2.08 |
RFQ |
Datasheet |
Bulk | UCA | Not For New Designs | 22 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 280 mA @ 120 Hz | 560 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.846 (21.50mm) | - | Through Hole |
|

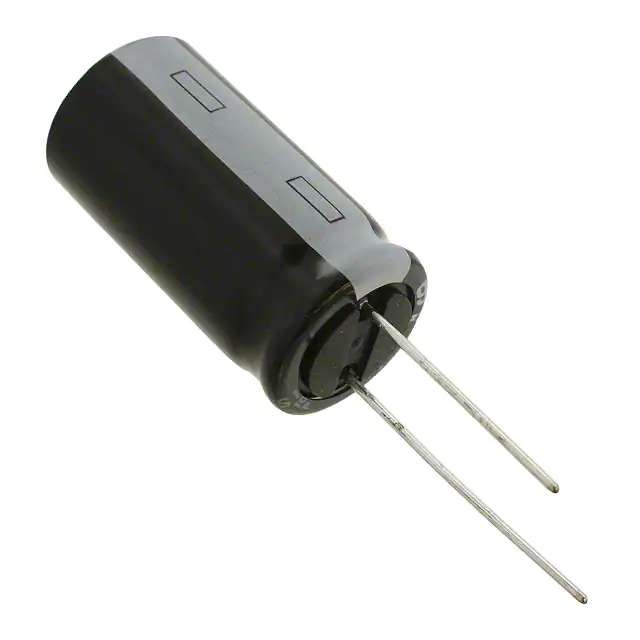

16YXG4700MEFC16X31.5CAP ALUM 4700UF 20% 16V RADIAL |
6,782 | 2.10 |
RFQ |
Datasheet |
Bulk | YXG | Active | 4700 µF | ±20% | 16 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.415 A @ 120 Hz | 3.45 A @ 100 kHz | 17 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
UBX1K470MPLCAP ALUM 47UF 20% 80V RADIAL |
8,445 | 2.11 |
RFQ |
Datasheet |
Bulk | UBX | Active | 47 µF | ±20% | 80 V | - | 1000 Hrs @ 150°C | -55°C ~ 150°C | Polar | - | Automotive | 275 mA @ 120 Hz | 550 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
UCS2E820MHDCAP ALUM 82UF 20% 250V RADIAL |
6,879 | 2.11 |
RFQ |
Datasheet |
Bulk | UCS | Active | 82 µF | ±20% | 250 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 690 mA @ 120 Hz | 1.38 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
EGXF401ELL240MJ35SCAP ALUM 24UF 20% 400V RADIAL TH |
9,063 | 2.11 |
RFQ |
Datasheet |
Bulk | GXF | Active | 24 µF | ±20% | 400 V | - | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 246 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.437 (36.50mm) | - | Through Hole |
|
LQS2G471MELC35CAP ALUM 470UF 20% 400V SNAP |
2,352 | 10.96 |
RFQ |
Datasheet |
Bulk | LQS | Active | 470 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.68 A @ 120 Hz | 2.002 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
UBT1K331MHDCAP ALUM 330UF 20% 80V RADIAL |
9,675 | 2.12 |
RFQ |
Datasheet |
Bulk | UBT | Active | 330 µF | ±20% | 80 V | - | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 695 mA @ 120 Hz | 1.39 A @ 100 kHz | 160 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.319 (33.50mm) | - | Through Hole |
|
UBY2A161MHLCAP ALUM 160UF 20% 100V RADIAL |
6,189 | 2.12 |
RFQ |
Datasheet |
Bulk | UBY | Active | 160 µF | ±20% | 100 V | 74mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | Automotive | 656 mA @ 120 Hz | 1.64 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.846 (21.50mm) | - | Through Hole |
|
EEE-TP1V132MCAP ALUM 1300UF 20% 35V SMD |
6,921 | 3.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TP | Active | 1300 µF | ±20% | 35 V | 47mOhm @ 100kHz | 3000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.8 A @ 120 Hz | 2.4 A @ 100 kHz | - | - | 0.630 Dia (16.00mm) | 0.669 (17.00mm) | 0.669 L x 0.669 W (17.00mm x 17.00mm) | Surface Mount |
|
|
EEE-TP1H751MCAP ALUM 750UF 20% 50V SMD |
6,038 | 3.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TP | Active | 750 µF | ±20% | 50 V | 80mOhm @ 100kHz | 3000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.5 A @ 120 Hz | 2 A @ 100 kHz | - | - | 0.630 Dia (16.00mm) | 0.669 (17.00mm) | 0.669 L x 0.669 W (17.00mm x 17.00mm) | Surface Mount |
|
|
EEE-TP1J561MCAP ALUM 560UF 20% 63V SMD |
9,426 | 3.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TP | Active | 560 µF | ±20% | 63 V | 100mOhm @ 100kHz | 3000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.425 A @ 120 Hz | 1.9 A @ 100 kHz | - | - | 0.630 Dia (16.00mm) | 0.669 (17.00mm) | 0.669 L x 0.669 W (17.00mm x 17.00mm) | Surface Mount |
|
LLS2W561MELCCAP ALUM 560UF 20% 450V SNAP |
1,593 | 10.99 |
RFQ |
Datasheet |
Bulk | LLS | Active | 560 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.88 A @ 120 Hz | 4.1184 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
LGL2W331MELB35CAP ALUM 330UF 20% 450V SNAP |
3,909 | 11.01 |
RFQ |
Datasheet |
Bulk | LGL | Active | 330 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.12 A @ 120 Hz | 1.6016 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
UBX1E221MHLCAP ALUM 220UF 20% 25V RADIAL |
9,018 | 2.14 |
RFQ |
Datasheet |
Bulk | UBX | Active | 220 µF | ±20% | 25 V | - | 1000 Hrs @ 150°C | -55°C ~ 150°C | Polar | - | Automotive | 250 mA @ 120 Hz | 500 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.846 (21.50mm) | - | Through Hole |
|
UHD1V152MHDCAP ALUM 1500UF 20% 35V RADIAL |
6,812 | 2.14 |
RFQ |
Datasheet |
Bulk | UHD | Not For New Designs | 1500 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.72 A @ 120 Hz | 3.4 A @ 100 kHz | 15 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.476 (37.50mm) | - | Through Hole |
|
UPT2W330MHDCAP ALUM 33UF 20% 450V RADIAL |
7,007 | 2.14 |
RFQ |
Datasheet |
Bulk | UPT | Active | 33 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | 280 mA @ 120 Hz | 448 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.457 (37.00mm) | - | Through Hole |
|
16USG47000MEFCSN30X45CAP ALUM 47000UF 20% 16V SNAP |
1,765 | 11.06 |
RFQ |
Datasheet |
Bulk | USG | Active | 47000 µF | ±20% | 16 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.8 A @ 120 Hz | 7.82 A @ 100 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.850 (47.00mm) | - | Through Hole |
