| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LGU1K392MELCCAP ALUM 3900UF 20% 80V SNAP |
6,406 | 5.46 |
RFQ |
Datasheet |
Bulk | LGU | Active | 3900 µF | ±20% | 80 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.07 A @ 120 Hz | 3.5305 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.260 (32.00mm) | - | Through Hole |
|

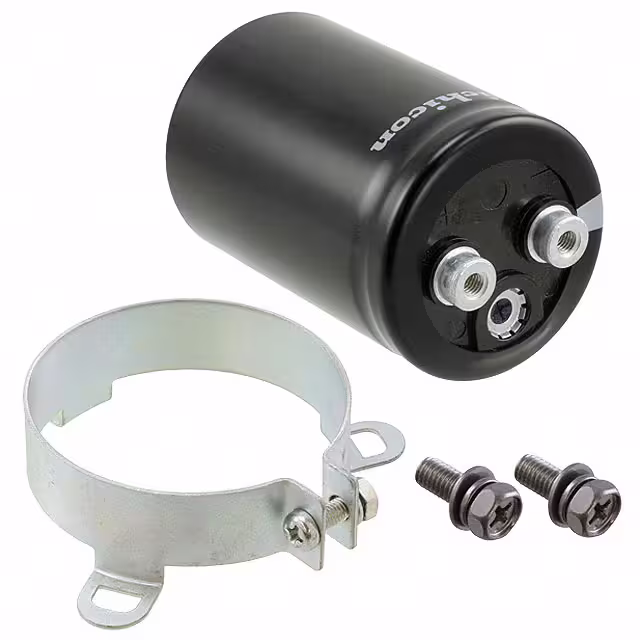

LNU2H681MSEFCAP ALUM 680UF 20% 500V SCREW |
3,219 | 39.24 |
RFQ |
Datasheet |
Bulk | LNU | Active | 680 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4 A @ 120 Hz | 5.6 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 3.031 (77.00mm) | - | Chassis Mount |
|
381LQ121M450H032CAP ALUM 120UF 20% 450V SNAP |
6,078 | 3.93 |
RFQ |
Datasheet |
Bulk,Bulk | 381LQ | Active | 120 µF | ±20% | 450 V | 1.52Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 700 mA @ 120 Hz | 1 A @ 20 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
LAR2G271MELZ50CAP ALUM 270UF 20% 400V SNAP |
6,171 | 5.48 |
RFQ |
Datasheet |
Bulk | LAR | Active | 270 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.22 A @ 120 Hz | 1.7446 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
ESMR401VSN331MP45SCAP ALUM 330UF 20% 400V SNAP |
7,622 | 5.50 |
RFQ |
Datasheet |
Bulk | SMR | Active | 330 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.15 A @ 120 Hz | 3.0745 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.870 (47.50mm) | - | Through Hole |
|
420MXK180MEFCSN22X30CAP ALUM 180UF 20% 420V SNAP |
9,598 | 5.51 |
RFQ |
Datasheet |
Tray | MXK | Active | 180 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.68 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
LGU1V123MELCCAP ALUM 12000UF 20% 35V SNAP |
5,126 | 5.52 |
RFQ |
Datasheet |
Bulk | LGU | Active | 12000 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.2 A @ 120 Hz | 3.68 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
B41456B7689M000CAP ALUM 68000UF 20% 40V SCREW |
2,880 | 40.39 |
RFQ |
Datasheet |
Bulk | B41456 | Active | 68000 µF | ±20% | 40 V | 10mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16 A @ 100 Hz | - | 8.4 mOhms | 0.874 (22.20mm) | 2.032 Dia (51.60mm) | 4.201 (106.70mm) | - | Chassis Mount |
|

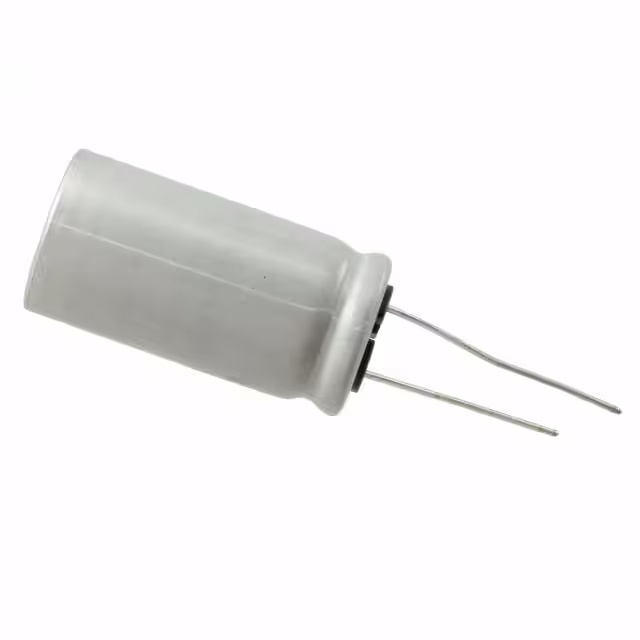

UBY1V622MHLCAP ALUM 6200UF 20% 35V RADIAL |
6,835 | 5.54 |
RFQ |
Datasheet |
Bulk | UBY | Active | 6200 µF | ±20% | 35 V | 19mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | Automotive | 3.188 A @ 120 Hz | 3.75 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
LGG2E681MELA40CAP ALUM 680UF 20% 250V SNAP |
8,798 | 5.55 |
RFQ |
Datasheet |
Bulk | LGG | Active | 680 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.55 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
450MXK180MEFCSN22X35CAP ALUM 180UF 20% 450V SNAP |
8,485 | 5.56 |
RFQ |
Datasheet |
Tray | MXK | Active | 180 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.27 A @ 120 Hz | 1.778 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
CGS172U100R3CCAP ALUM 1700UF 100V SCREW |
3,743 | 41.62 |
RFQ |
Datasheet |
Bulk | CGS | Active | 1700 µF | -10%, +75% | 100 V | 69mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.8 A @ 120 Hz | 4.94 A @ 10 kHz | - | 0.500 (12.70mm) | 1.375 Dia (34.93mm) | 3.125 (79.38mm) | - | Chassis Mount |
|
LNR1C224MSECAP ALUM 220000UF 20% 16V SCREW |
1,075 | 37.62 |
RFQ |
Datasheet |
Bulk | LNR | Active | 220000 µF | ±20% | 16 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.6 A @ 120 Hz | 17.94 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 4.843 (123.00mm) | - | Chassis Mount |
|
ALS80A162KF500CAP ALUM 1600UF 20% 500V SCREW |
1,146 | 42.37 |
RFQ |
Datasheet |
Bulk | ALS80 | Active | 1600 µF | ±20% | 500 V | 142mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6.8 A @ 100 Hz | 12.8 A @ 10 kHz | 106 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
|
CGS222U075R2CCAP ALUM 2200UF 75V SCREW |
1,508 | 42.45 |
RFQ |
Datasheet |
Bulk | CGS | Active | 2200 µF | -10%, +75% | 75 V | 41mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.2 A @ 120 Hz | 5.46 A @ 10 kHz | - | - | 1.375 Dia (34.93mm) | 2.125 (53.98mm) | - | Chassis Mount |
|

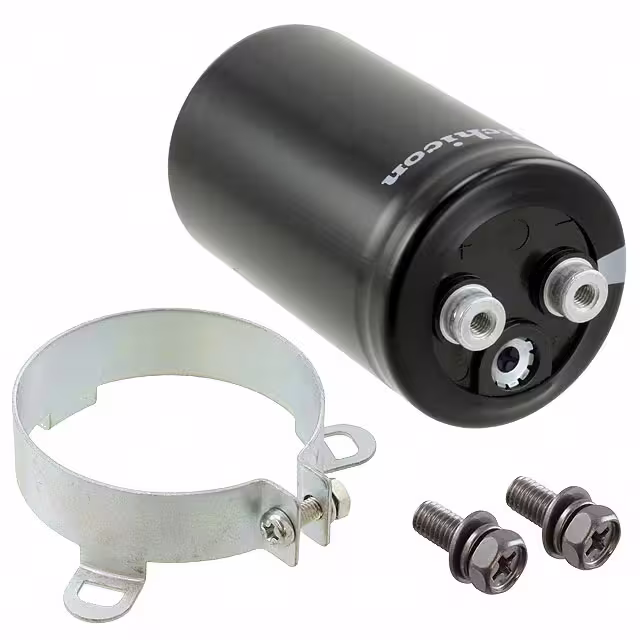

LNUN7681MSEFCAP ALUM 680UF 20% 525V SCREW |
3,103 | 42.70 |
RFQ |
Datasheet |
Bulk | LNU | Active | 680 µF | ±20% | 525 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.4 A @ 120 Hz | 6.16 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 3.346 (85.00mm) | - | Chassis Mount |
|

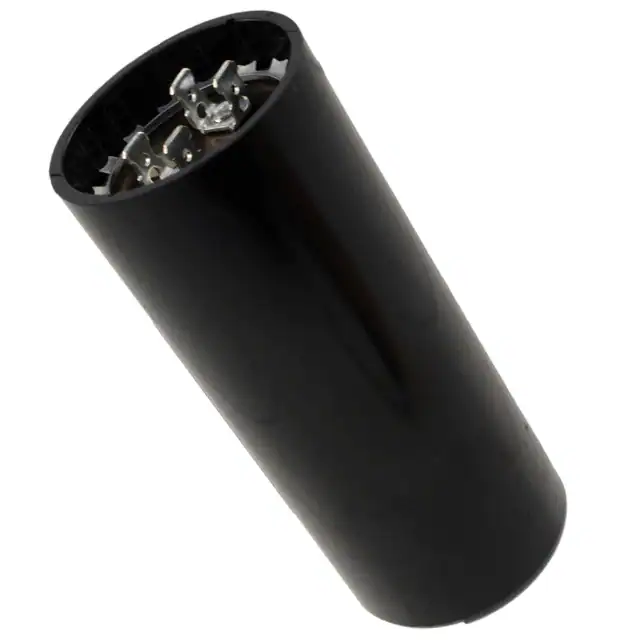

PSU14535CAP ALUM 145UF 250V QC TERM |
1,989 | 47.40 |
RFQ |
Datasheet |
Bulk | PSU | Active | 145 µF | 0%, +20% | 250 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | - | 1.813 Dia (46.05mm) | 4.435 (112.65mm) | - | Chassis Mount |
|
B41580A7689M000CAP ALUM 68000UF 20% 40V SCREW |
3,636 | 43.88 |
RFQ |
Datasheet |
Bulk | B41580 | Active | 68000 µF | ±20% | 40 V | 9mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15 A @ 100 Hz | - | 8.4 mOhms | 0.874 (22.20mm) | 2.032 Dia (51.60mm) | 4.201 (106.70mm) | - | Chassis Mount |
|
B41560A7689M000CAP ALUM 68000UF 20% 40V SCREW |
3,215 | 43.88 |
RFQ |
Datasheet |
Bulk | B41560 | Active | 68000 µF | ±20% | 40 V | 9mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15 A @ 100 Hz | - | 8.4 mOhms | 0.874 (22.20mm) | 2.032 Dia (51.60mm) | 4.201 (106.70mm) | - | Chassis Mount |
|
|
CGS152U075R3CCAP ALUM 1500UF 75V SCREW |
4,168 | 40.34 |
RFQ |
Datasheet |
Bulk,Bulk | CGS | Active | 1500 µF | -10%, +75% | 75 V | 41mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.9 A @ 120 Hz | 6.37 A @ 10 kHz | - | - | 1.375 Dia (34.93mm) | 3.125 (79.38mm) | - | Chassis Mount |
