| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCP2G181MHDCAP ALUM 180UF 20% 400V RADIAL |
7,125 | 5.81 |
RFQ |
Datasheet |
Bulk | UCP | Active | 180 µF | ±20% | 400 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.06 A @ 120 Hz | 1.59 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
159LBB035M2CHCAP ALUM 15000UF 20% 35V SNAP |
6,322 | 5.82 |
RFQ |
Datasheet |
Bulk | LBB | Active | 15000 µF | ±20% | 35 V | 27.63mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.54 A @ 120 Hz | 5.675 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
LGN2H181MELC30CAP ALUM 180UF 20% 500V SNAP |
5,237 | 5.83 |
RFQ |
Datasheet |
Bulk | LGN | Active | 180 µF | ±20% | 500 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.287 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
LGN2V331MELZ45CAP ALUM 330UF 20% 350V SNAP |
7,217 | 5.84 |
RFQ |
Datasheet |
Bulk | LGN | Active | 330 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.716 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
UBY2A951MHLCAP ALUM 950UF 20% 100V RADIAL |
5,377 | 5.84 |
RFQ |
Datasheet |
Bulk | UBY | Active | 950 µF | ±20% | 100 V | 21mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | Automotive | 3.396 A @ 120 Hz | 5.66 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.634 (41.50mm) | - | Through Hole |
|
|
LGN2W181MELZ45CAP ALUM 180UF 20% 450V SNAP |
5,234 | 5.85 |
RFQ |
Datasheet |
Bulk | LGN | Active | 180 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 870 mA @ 120 Hz | 1.2441 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
|
UPHW6121MHD6CAP ALUM 120UF 20% 420V RADIAL |
5,038 | 5.86 |
RFQ |
Datasheet |
Bulk | UPH | Active | 120 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 120 Hz | 1.2 A @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
PEH200PO5220MU2CAP ALUM 22000UF 20% 100V SCREW |
1,113 | 99.38 |
RFQ |
Datasheet |
Bulk | PEH200 | Active | 22000 µF | ±20% | 100 V | 15mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.3 A @ 100 Hz | - | 18 mOhms | 1.122 (28.50mm) | 2.622 Dia (66.60mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
LNR1C684MSECAP ALUM 680000UF 20% 16V SCREW |
615 | 100.50 |
RFQ |
Datasheet |
Bulk | LNR | Active | 680000 µF | ±20% | 16 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 33 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.811 (173.00mm) | - | Chassis Mount |
|
B41458B7220M000CAP ALUM 220000UF 20% 40V SCREW |
731 | 101.63 |
RFQ |
Datasheet |
Bulk | B41458 | Active | 220000 µF | ±20% | 40 V | 5mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 25 A @ 100 Hz | - | 5.4 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.677 (144.20mm) | - | Chassis Mount |
|
UBY1E103MHLCAP ALUM 10000UF 20% 25V RADIAL |
9,491 | 5.89 |
RFQ |
Datasheet |
Bulk | UBY | Active | 10000 µF | ±20% | 25 V | 19mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | Automotive | 3.188 A @ 120 Hz | 3.75 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
LNR2D223MSECAP ALUM 22000UF 20% 200V SCREW |
809 | 104.77 |
RFQ |
Datasheet |
Bulk | LNR | Active | 22000 µF | ±20% | 200 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 15.9 A @ 120 Hz | 19.08 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 5.630 (143.00mm) | - | Chassis Mount |
|
LNUN7222MSEGCAP ALUM 2200UF 20% 525V SCREW |
4,196 | 89.19 |
RFQ |
Datasheet |
Bulk | LNU | Active | 2200 µF | ±20% | 525 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 9.2 A @ 120 Hz | 12.88 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 5.433 (138.00mm) | - | Chassis Mount |
|

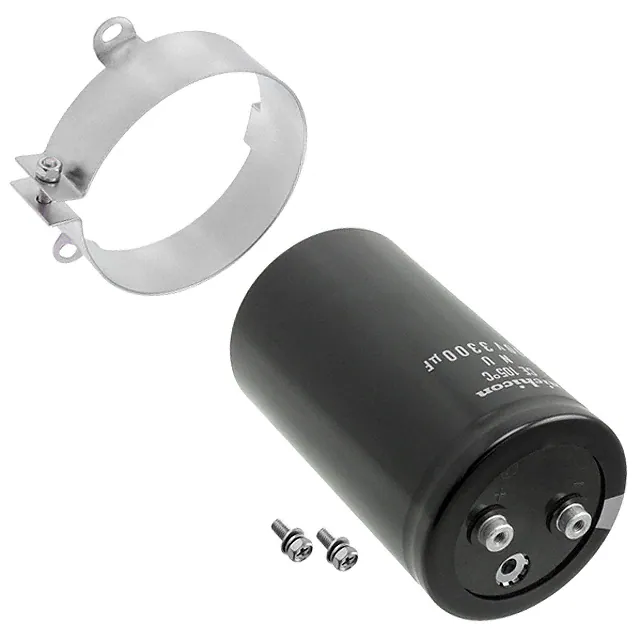

LNU2H332MSEHCAP ALUM 3300UF 20% 500V SCREW |
853 | 106.37 |
RFQ |
Datasheet |
Bulk | LNU | Active | 3300 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 10.9 A @ 120 Hz | 15.26 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 5.236 (133.00mm) | - | Chassis Mount |
|
|
LNR2A104MSECAP ALUM 100000UF 20% 100V SCREW |
840 | 107.58 |
RFQ |
Datasheet |
Bulk | LNR | Active | 100000 µF | ±20% | 100 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 22.1 A @ 120 Hz | 25.415 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.811 (173.00mm) | - | Chassis Mount |
|

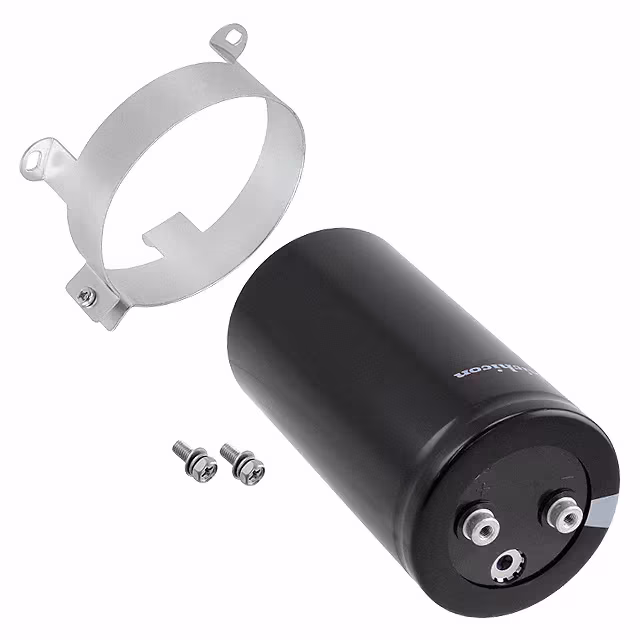

LNU2H392MSEHCAP ALUM 3900UF 20% 500V SCREW |
640 | 107.64 |
RFQ |
Datasheet |
Bulk | LNU | Active | 3900 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 12.4 A @ 120 Hz | 17.36 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 5.827 (148.00mm) | - | Chassis Mount |
|

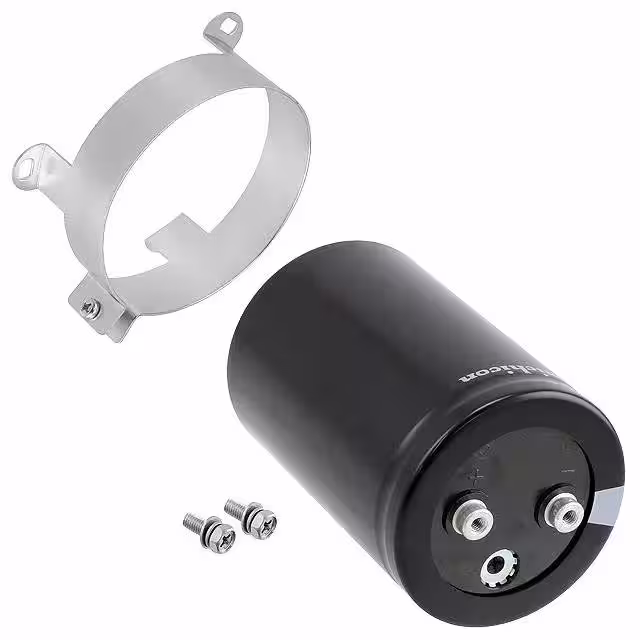

LNUN7272MSEHCAP ALUM 2700UF 20% 525V SCREW |
380 | 107.70 |
RFQ |
Datasheet |
Bulk | LNU | Active | 2700 µF | ±20% | 525 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 10.6 A @ 120 Hz | 14.84 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 4.646 (118.00mm) | - | Chassis Mount |
|

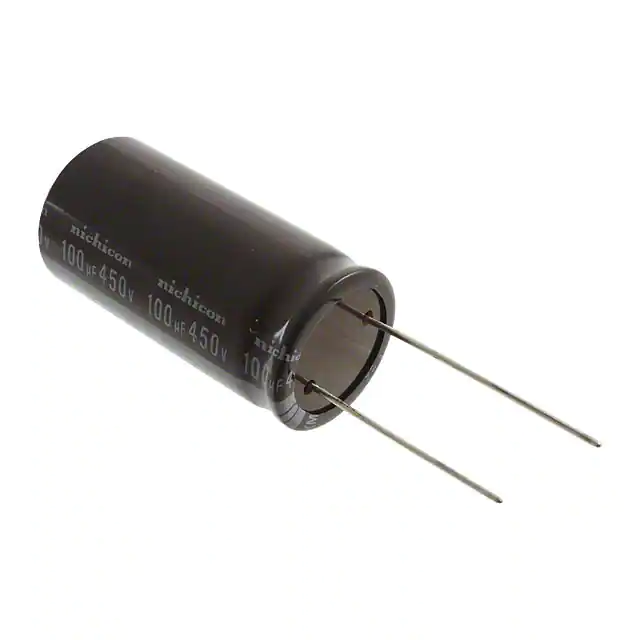

UPS2W101MRDCAP ALUM 100UF 20% 450V RADIAL |
7,342 | 5.91 |
RFQ |
Datasheet |
Bulk | UPS | Not For New Designs | 100 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 350 mA @ 120 Hz | - | - | 0.492 (12.50mm) | 0.984 Dia (25.00mm) | 2.047 (52.00mm) | - | Through Hole |
|

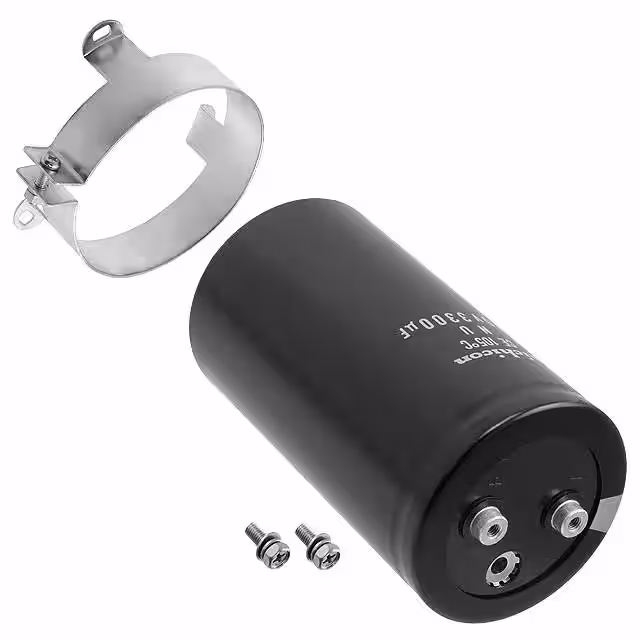

LNUN7332MSEHCAP ALUM 3300UF 20% 525V SCREW |
379 | 113.69 |
RFQ |
Datasheet |
Bulk | LNU | Active | 3300 µF | ±20% | 525 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 12.1 A @ 120 Hz | 16.94 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 5.630 (143.00mm) | - | Chassis Mount |
|
ALS70A134QS100CAP ALUM 130000UF 20% 100V SCREW |
458 | 113.75 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 130000 µF | ±20% | 100 V | 6mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 40 A @ 100 Hz | 42.2 A @ 10 kHz | 8 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
