| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL202117472E3CAP ALUM 4700UF 20% 40V AXIAL |
9,899 | 6.99 |
RFQ |
Datasheet |
Bulk | 021 ASM | Active | 4700 µF | ±20% | 40 V | 72mOhm | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 2.522 A @ 10 kHz | 35 mOhms | - | 0.827 Dia x 1.496 L (21.00mm x 38.00mm) | - | - | Through Hole |
|
100ZLJ390M12.5X40CAP ALUM 390UF 20% 100V RADIAL |
7,447 | 2.46 |
RFQ |
Datasheet |
Bulk | ZLJ | Active | 390 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.573 A @ 120 Hz | 2.86 A @ 100 kHz | 32 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.654 (42.00mm) | - | Through Hole |
|
EEU-HD1E222CAP ALUM 2200UF 20% 25V RADIAL |
7,539 | 2.46 |
RFQ |
Datasheet |
Bulk | HD | Active | 2200 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.09 A @ 120 Hz | 1.254 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
25USG33000MEFCSN30X45CAP ALUM 33000UF 20% 25V SNAP |
5,356 | 6.75 |
RFQ |
Datasheet |
Bulk | USG | Active | 33000 µF | ±20% | 25 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.75 A @ 120 Hz | 7.763 A @ 100 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
477TTA050MCAP ALUM 470UF 20% 50V AXIAL |
9,161 | 2.46 |
RFQ |
Datasheet |
Bulk | TTA | Active | 470 µF | ±20% | 50 V | 423.3mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 740 mA @ 120 Hz | 1.0212 A @ 50 kHz | - | - | 0.512 Dia x 1.024 L (13.00mm x 26.00mm) | - | - | Through Hole |
|
|
476TTA160MCAP ALUM 47UF 20% 160V AXIAL |
9,737 | 2.47 |
RFQ |
Datasheet |
Bulk | TTA | Active | 47 µF | ±20% | 160 V | 7.055Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 225 mA @ 120 Hz | 344.25 mA @ 50 kHz | - | - | 0.512 Dia x 1.220 L (13.00mm x 31.00mm) | - | - | Through Hole |
|
EKMQ451VSN561MA50SCAP ALUM 560UF 20% 450V SNAP |
6,201 | 6.81 |
RFQ |
Datasheet |
Bulk | KMQ | Active | 560 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.717 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
63MXG10000MEFCSN35X40CAP ALUM 10000UF 20% 63V SNAP |
6,798 | 6.82 |
RFQ |
Datasheet |
Bulk | MXG | Active | 10000 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.48 A @ 120 Hz | 5.152 A @ 10 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.654 (42.00mm) | - | Through Hole |
|

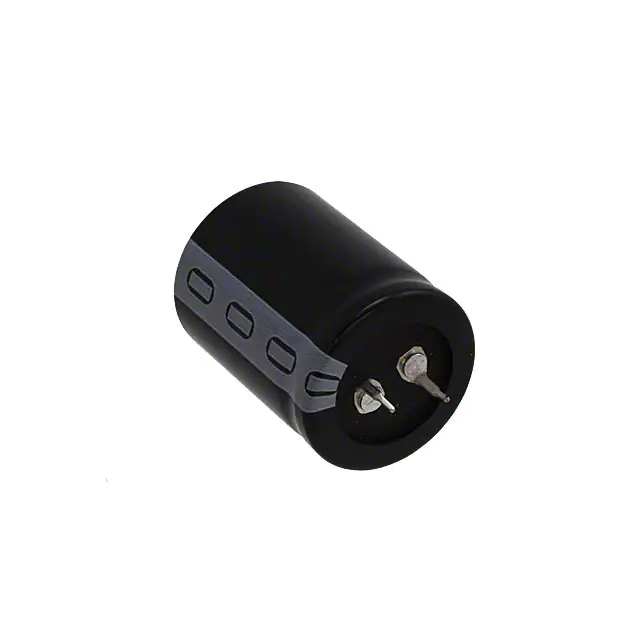

B41505A7109M000CAP ALUM 10000UF 20% 35V SNAP |
5,387 | 6.83 |
RFQ |
Datasheet |
Bulk | B41505 | Active | 10000 µF | ±20% | 35 V | 26mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.9 A @ 100 Hz | - | 28 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
|
MAL202119102E3CAP ALUM 1000UF 20% 100V AXIAL |
6,539 | 7.21 |
RFQ |
Datasheet |
Bulk | 021 ASM | Active | 1000 µF | ±20% | 100 V | 160mOhm | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 2.058 A @ 10 kHz | 150 mOhms | - | 0.827 Dia x 1.496 L (21.00mm x 38.00mm) | - | - | Through Hole |
|

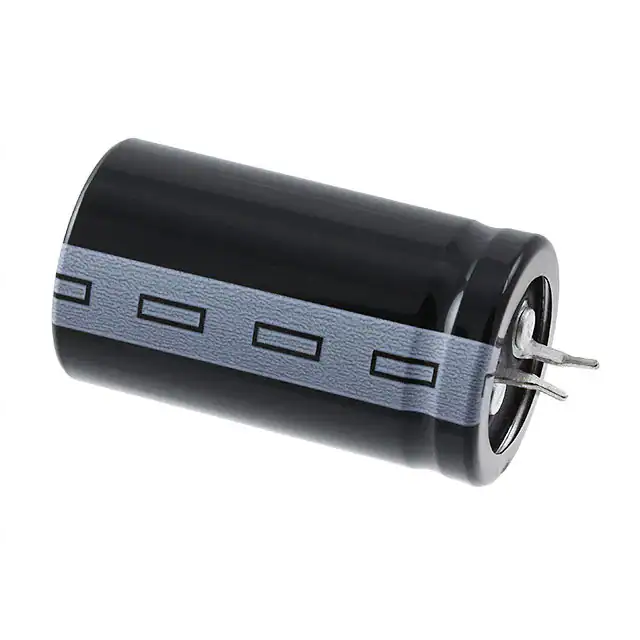

B43504A9227M000CAP ALUM 220UF 20% 400V SNAP |
6,535 | 6.97 |
RFQ |
Datasheet |
Bulk | B43504 | Not For New Designs | 220 µF | ±20% | 400 V | 400mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.12 A @ 100 Hz | - | 500 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
MAL213818152E3CAP ALUM 1500UF 20% 63V AXIAL |
8,059 | 7.65 |
RFQ |
Datasheet |
Bulk | 138 AML | Active | 1500 µF | ±20% | 63 V | 100mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 1.68 A @ 100 Hz | 2.352 A @ 10 kHz | 72 mOhms | - | 0.827 Dia x 1.496 L (21.00mm x 38.00mm) | - | - | Through Hole |
|
UVR1J682MRDCAP ALUM 6800UF 20% 63V RADIAL |
5,692 | 7.34 |
RFQ |
Datasheet |
Bulk | UVR | Not For New Designs | 6800 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.9 A @ 120 Hz | 4.485 A @ 10 kHz | - | 0.492 (12.50mm) | 0.984 Dia (25.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
UCZ1V222MNQ1MSCAP ALUM 2200UF 20% 35V SMD |
9,282 | 3.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCZ | Not For New Designs | 2200 µF | ±20% | 35 V | 32mOhm @ 100kHz | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 1.625 A @ 120 Hz | 3.25 A @ 100 kHz | - | - | 0.709 Dia (18.00mm) | 0.886 (22.50mm) | 0.752 L x 0.752 W (19.10mm x 19.10mm) | Surface Mount |
|
|
MAL213828471E3CAP ALUM 470UF 20% 63V AXIAL |
9,336 | 4.95 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 138 AML | Active | 470 µF | ±20% | 63 V | 260mOhm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 860 mA @ 100 Hz | - | 160 mOhms | - | 0.591 Dia x 1.181 L (15.00mm x 30.00mm) | - | - | Through Hole |
|
LGU2E102MELCCAP ALUM 1000UF 20% 250V SNAP |
8,834 | 7.08 |
RFQ |
Datasheet |
Bulk | LGU | Active | 1000 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.47 A @ 120 Hz | 3.705 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.575 (40.00mm) | - | Through Hole |
|

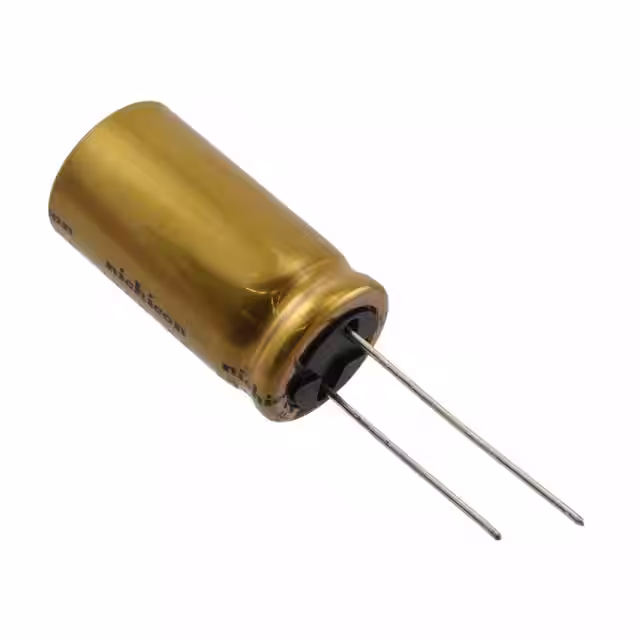

UFW1E472MHDCAP ALUM 4700UF 20% 25V RADIAL |
6,164 | 2.58 |
RFQ |
Datasheet |
Bulk | UFW | Not For New Designs | 4700 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.36 A @ 120 Hz | 2.714 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.240 (31.50mm) | - | Through Hole |
|

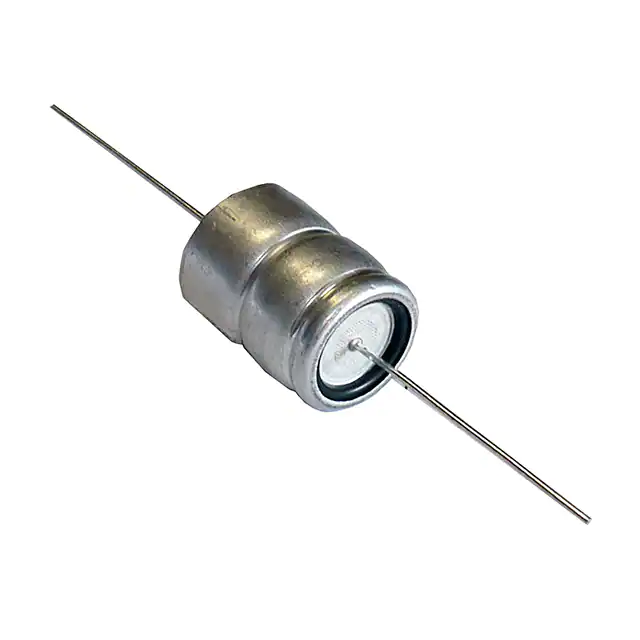

AXLH152P040EDCAP ALUM 1500UF 40V AXIAL |
953 | 6.52 |
RFQ |
Datasheet |
Bulk | AXLH | Obsolete | 1500 µF | -10%, +30% | 40 V | 57mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | - | High Temperature Reflow | 2.555 A @ 100 Hz | 7.3 A @ 5 kHz | - | - | 0.787 Dia x 1.063 L (20.00mm x 27.00mm) | - | - | Through Hole |
|

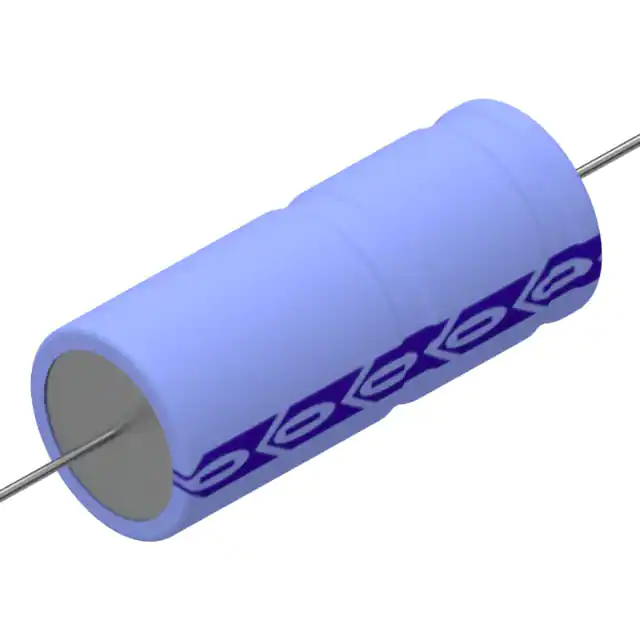

MAL204217109E3CAP ALUM 10UF 450V AXIAL |
9,317 | 5.03 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | 042 ASH | Active | 10 µF | -10%, +50% | 450 V | 15Ohm @ 100Hz | 10000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 150 mA @ 100 Hz | - | 10 Ohms | - | 0.492 Dia x 1.181 L (12.50mm x 30.00mm) | - | - | Through Hole |
|

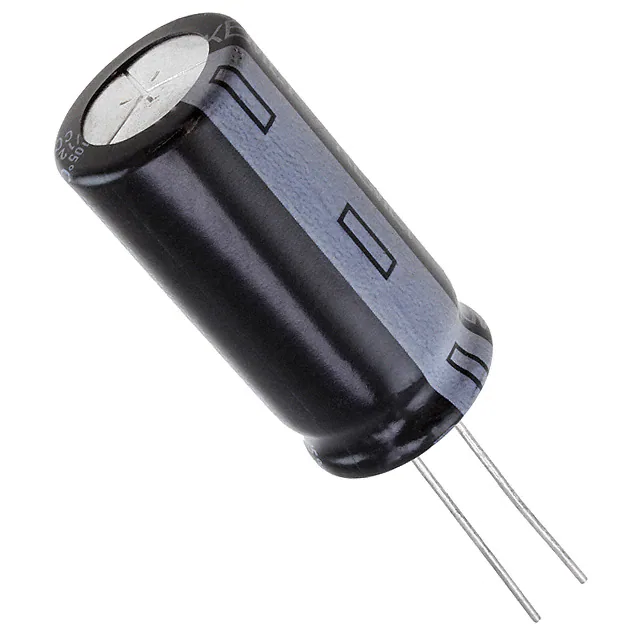

ESH478M035AN2AACAP ALUM 4700UF 20% 35V RADIAL |
8,095 | 2.60 |
RFQ |
Datasheet |
Bulk | ESH | Active | 4700 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.92 A @ 120 Hz | 2.208 A @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.496 (38.00mm) | - | Through Hole |
