| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALC70A331EF600CAP ALUM 330UF 20% 600V SNAP |
1,984 | 20.92 |
RFQ |
Datasheet |
Bulk | ALC70 | Active | 330 µF | ±20% | 600 V | 397 mohm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.75 A @ 100 Hz | 5.69 A @ 10 kHz | 275 mOhms | 0.394 (10.00mm) | 1.575 Dia (40.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
383LX332M200N062CAP ALUM 3300UF 20% 200V SNAP |
1,331 | 20.97 |
RFQ |
Datasheet |
Bulk | 383LX | Active | 3300 µF | ±20% | 200 V | 700mOhm | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.4 A @ 120 Hz | 6.2 A @ 20 kHz | - | - | 1.575 Dia (40.00mm) | 2.559 (65.00mm) | - | Through Hole |
|

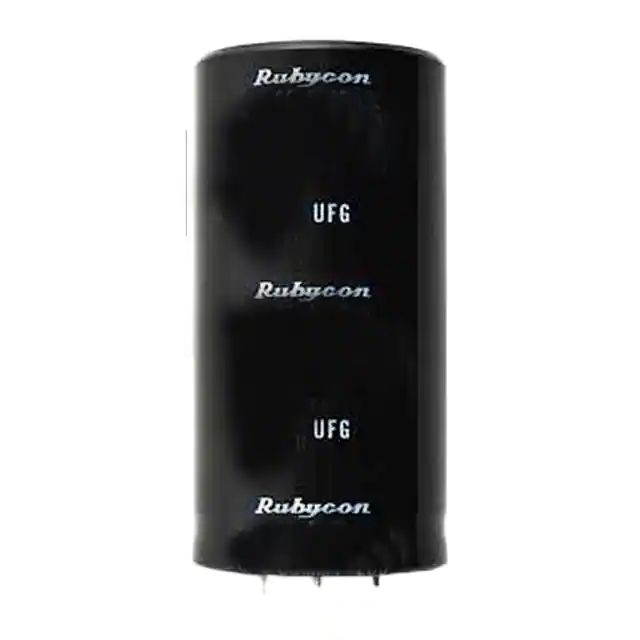

450UFG820MBN40X60CAP ALUM 820UF 20% 450V RADIAL |
3,702 | 21.34 |
RFQ |
Datasheet |
Bulk | UFG | Active | 820 µF | ±20% | 450 V | - | 10000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 4.9 A @ 120 Hz | 6.86 A @ 10 kHz | - | 0.886 (22.50mm) | 1.575 Dia (40.00mm) | 2.441 (62.00mm) | - | Through Hole |
|
ALC10A561DL500CAP ALUM 560UF 20% 500V SNAP |
1,518 | 21.83 |
RFQ |
Datasheet |
Bulk | ALC10 | Active | 560 µF | ±20% | 500 V | 250mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.5 A @ 100 Hz | 5.57 A @ 10 kHz | 182 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 3.228 (82.00mm) | - | Through Hole |
|

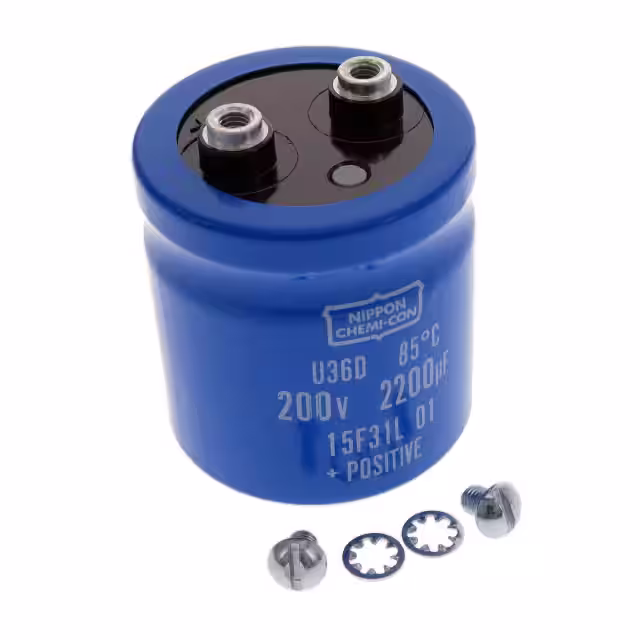

E36D201HPN222MC54UCAP ALUM 2200UF 20% 200V SCREW |
3,484 | 23.42 |
RFQ |
Bulk | U36D | Active | 2200 µF | ±20% | 200 V | 67mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.05 A @ 120 Hz | 5.67 A @ 3 kHz | - | 0.875 (22.22mm) | 2.000 Dia (50.80mm) | 2.125 (53.98mm) | - | Chassis Mount | |
|
382LX223M080B062VSCAP ALUM 22000UF 20% 80V SNAP |
3,866 | 23.68 |
RFQ |
Datasheet |
Bulk | 382LX | Active | 22000 µF | ±20% | 80 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.08 A @ 120 Hz | 12.74 A @ 20 kHz | - | - | 1.969 Dia (50.00mm) | 2.559 (65.00mm) | - | Through Hole |
|
MAL219390105E3CAP ALUM 560UF 20% 500V SNAP |
3,879 | 24.43 |
RFQ |
Datasheet |
Bulk | 193 PUR-SI | Active | 560 µF | ±20% | 500 V | 350mOhm | 6000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | - | - | 250 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.441 (62.00mm) | - | Through Hole |
|
383LX223M080B092VSCAP ALUM 22000UF 20% 80V SNAP |
2,796 | 24.58 |
RFQ |
Datasheet |
Bulk | 383LX | Active | 22000 µF | ±20% | 80 V | 22mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.83 A @ 120 Hz | 9 A @ 20 kHz | - | - | 1.969 Dia (50.00mm) | 3.701 (94.00mm) | - | Through Hole |
|
382LX272M400B102VSCAP ALUM 2700UF 20% 400V SNAP |
1,345 | 25.10 |
RFQ |
Datasheet |
Bulk | 382LX | Active | 2700 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 1.969 Dia (50.00mm) | 4.213 (107.00mm) | - | Through Hole |
|
|
382LX223M100B092VSCAP ALUM 22000UF 20% 100V SNAP |
1,336 | 26.58 |
RFQ |
Datasheet |
Bulk | 382LX | Active | 22000 µF | ±20% | 100 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.76 A @ 120 Hz | 13.52 A @ 20 kHz | - | - | 1.969 Dia (50.00mm) | 3.701 (94.00mm) | - | Through Hole |
|

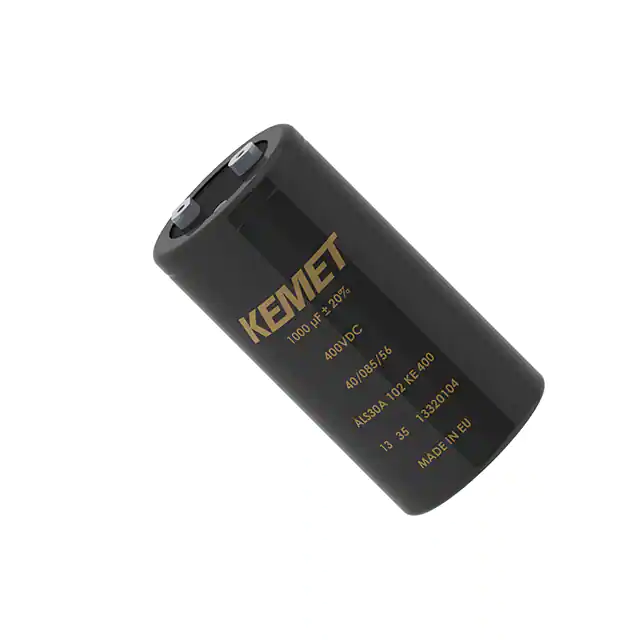

ALS30A153KE063CAP ALUM 15000UF 20% 63V SCREW |
1,646 | 26.66 |
RFQ |
Datasheet |
Box | ALS30 | Active | 15000 µF | ±20% | 63 V | 12mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.9 A @ 100 Hz | 14.4 A @ 10 kHz | 11 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 3.228 (82.00mm) | - | Chassis Mount |
|
MAL205157223E3CAP ALUM 22000UF 20% 40V RADIAL |
3,221 | 26.68 |
RFQ |
Datasheet |
Bulk | 051 PEC-PW | Active | 22000 µF | ±20% | 40 V | 39mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.8 A @ 100 Hz | - | 28 mOhms | 0.787 (20.00mm) | 1.575 Dia (40.00mm) | 2.165 (55.00mm) | - | Through Hole |
|
|
ALS30A333KE040CAP ALUM 33000UF 20% 40V SCREW |
2,169 | 27.49 |
RFQ |
Datasheet |
Box | ALS30 | Active | 33000 µF | ±20% | 40 V | 12mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.2 A @ 100 Hz | 16.7 A @ 10 kHz | 11 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 3.228 (82.00mm) | - | Chassis Mount |
|
ALC70C752FP200CAP ALUM 7500UF 20% 200V SNAP |
4,184 | 28.05 |
RFQ |
Datasheet |
Bulk | ALC70 | Active | 7500 µF | ±20% | 200 V | 34mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.2 A @ 100 Hz | 15.97 A @ 10 kHz | 22 mOhms | 0.886 (22.50mm) | 1.772 Dia (45.00mm) | 4.213 (107.00mm) | - | Through Hole |
|
MAL205018103E3CAP ALUM 10000UF 63V SOLDER LUG |
1,412 | 28.89 |
RFQ |
Datasheet |
Bulk | 050 PED-PW | Active | 10000 µF | -10%, +30% | 63 V | 25mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.2 A @ 100 Hz | - | 20 mOhms | 0.394 (10.00mm) | 1.575 Dia (40.00mm) | 2.835 (72.00mm) | - | Chassis Mount |
|
|
382LX273M100B102VSCAP ALUM 27000UF 20% 100V SNAP |
1,509 | 29.05 |
RFQ |
Datasheet |
Bulk | 382LX | Active | 27000 µF | ±20% | 100 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.53 A @ 120 Hz | 14.41 A @ 20 kHz | - | - | 1.969 Dia (50.00mm) | 4.213 (107.00mm) | - | Through Hole |
|
MAL210619102E3CAP ALUM 1000UF 100V SCREW |
2,311 | 29.19 |
RFQ |
Datasheet |
Bulk | 106 PED-ST | Active | 1000 µF | -10%, +30% | 100 V | 96mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.7 A @ 100 Hz | - | 48 mOhms | 0.504 (12.80mm) | 1.378 Dia (35.00mm) | 2.744 (69.70mm) | - | Chassis Mount |
|
|
450UFG1200MBN40X80CAP ALUM 1200UF 20% 450V RADIAL |
2,027 | 29.62 |
RFQ |
Datasheet |
Bulk | UFG | Active | 1200 µF | ±20% | 450 V | - | 10000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 6.19 A @ 120 Hz | 8.666 A @ 10 kHz | - | 0.886 (22.50mm) | 1.575 Dia (40.00mm) | 3.228 (82.00mm) | - | Through Hole |
|
B41456B9109M000CAP ALUM 10000UF 20% 100V SCREW |
2,202 | 30.87 |
RFQ |
Datasheet |
Bulk | B41456 | Active | 10000 µF | ±20% | 100 V | 18mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10 A @ 100 Hz | - | 14 mOhms | 0.874 (22.20mm) | 2.032 Dia (51.60mm) | 3.177 (80.70mm) | - | Chassis Mount |
|
ALC80C222FP400CAP ALUM 2200UF 20% 400V SNAP |
3,930 | 31.50 |
RFQ |
Datasheet |
Bulk | ALC80 | Active | 2200 µF | ±20% | 400 V | 60mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.24 A @ 100 Hz | 16.09 A @ 10 kHz | 32 mOhms | 0.886 (22.50mm) | 1.772 Dia (45.00mm) | 4.213 (107.00mm) | - | Through Hole |
