| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EKXL421ELL470MJ45SCAP ALUM 47UF 20% 420V RADIAL TH |
10,064 | 0.81 |
RFQ |
Datasheet |
Bulk | KXL | Active | 47 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 460 mA @ 120 Hz | 1.15 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
16YXJ6800MGC16X31.5CAP ALUM 6800UF 20% 16V RADIAL |
7,193 | 1.16 |
RFQ |
Datasheet |
Tape & Box (TB) | YXJ | Active | 6800 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.76 A @ 120 Hz | 3.45 A @ 100 kHz | 19 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|

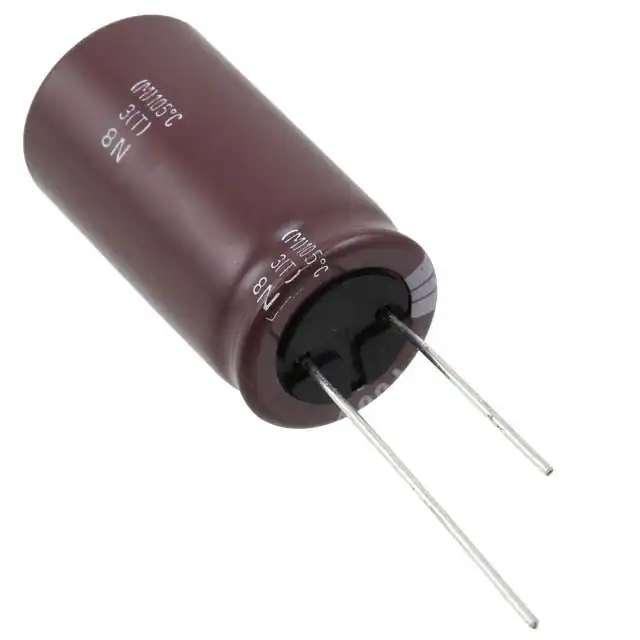

ELXV100ELL682ML35SCAP ALUM 6800UF 20% 10V RADIAL |
8,596 | 1.16 |
RFQ |
Datasheet |
Bulk | LXV | Active | 6800 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.3545 A @ 120 Hz | 2.77 A @ 100 kHz | 22 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.437 (36.50mm) | - | Through Hole |
|
AEA1213102M016RALUMINUM CAP |
6,400 | 1.16 |
RFQ |
Datasheet |
Tape & Reel (TR) | AEA | Active | 1000 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 660 mA @ 120 Hz | 1.1 A @ 100 kHz | 60 mOhms | - | 0.492 Dia (12.50mm) | 0.531 (13.50mm) | 0.512 L x 0.512 W (13.00mm x 13.00mm) | Surface Mount |
|
EGPA500ELL561MU20SCAP ALUM 560UF 20% 50V RADIAL |
6,215 | 1.16 |
RFQ |
Datasheet |
Bulk | GPA | Active | 560 µF | ±20% | 50 V | 55mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 870 mA @ 120 Hz | 1.74 A @ 100 kHz | - | 0.295 (7.50mm) | 0.571 Dia (14.50mm) | 0.846 (21.50mm) | - | Through Hole |
|
|
UHW1V182MHD6TNCAP ALUM 1800UF 20% 35V RADIAL |
6,872 | 1.17 |
RFQ |
Datasheet |
Tape & Reel (TR) | UHW | Not For New Designs | 1800 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.286 A @ 120 Hz | 3.81 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
EKY-630ELL821MM25SCAP ALUM 820UF 20% 63V RADIAL |
5,719 | 1.17 |
RFQ |
Datasheet |
Bulk | KY | Active | 820 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.68 A @ 120 Hz | 2.8 A @ 100 kHz | 24 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.043 (26.50mm) | - | Through Hole |
|

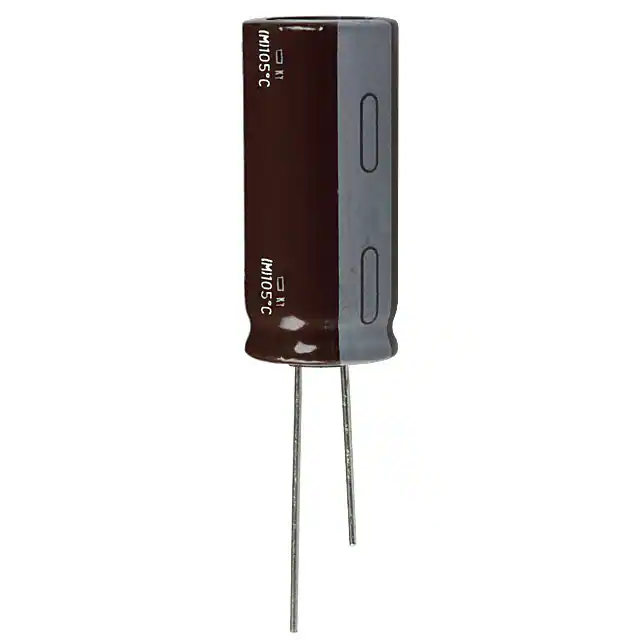

EKY-160ELL562MLP1SCAP ALUM 5600UF 20% 16V RADIAL |
7,979 | 1.17 |
RFQ |
Datasheet |
Bulk | KY | Active | 5600 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.0685 A @ 120 Hz | 3.61 A @ 100 kHz | 15 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.398 (35.50mm) | - | Through Hole |
|
MAL214660471E3CAP ALUM 470UF 20% 35V RADIAL |
11,164 | 0.81 |
RFQ |
Datasheet |
Bulk | 146 RTI | Active | 470 µF | ±20% | 35 V | - | 3000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 812.5 mA @ 100 Hz | - | 60 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
MAL214661331E3CAP ALUM 330UF 20% 50V RADIAL |
10,627 | 0.81 |
RFQ |
Datasheet |
Bulk | 146 RTI | Active | 330 µF | ±20% | 50 V | - | 3000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 500 mA @ 100 Hz | - | 90 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
MAL214665102E3CAP ALUM 1000UF 20% 16V RADIAL |
14,646 | 0.81 |
RFQ |
Datasheet |
Bulk | 146 RTI | Active | 1000 µF | ±20% | 16 V | - | 3000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 875 mA @ 100 Hz | - | 60 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
MAL214666681E3CAP ALUM 680UF 20% 25V RADIAL |
11,348 | 0.81 |
RFQ |
Datasheet |
Bulk | 146 RTI | Active | 680 µF | ±20% | 25 V | - | 3000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 882 mA @ 100 Hz | - | 60 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
MAL214668151E3CAP ALUM 150UF 20% 63V RADIAL |
12,804 | 0.81 |
RFQ |
Datasheet |
Bulk | 146 RTI | Active | 150 µF | ±20% | 63 V | - | 3000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 375 mA @ 100 Hz | - | 150 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
EKY-500ELL271MK15SCAP ALUM 270UF 20% 50V RADIAL |
7,737 | 1.17 |
RFQ |
Datasheet |
Bulk | KY | Active | 270 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 630 mA @ 120 Hz | 1.26 A @ 100 kHz | 61 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.591 (15.00mm) | - | Through Hole |
|
|
B41252A5478M007CAP ALUM 4700UF 20% 25V SNAP |
14,976 | 0.81 |
RFQ |
Bulk | B41252 | Active | 4700 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.73 A @ 120 Hz | - | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole | |
|
|
ELXV630ELL821ML35SCAP ALUM 820UF 20% 63V RADIAL |
9,751 | 1.17 |
RFQ |
Datasheet |
Bulk | LXV | Active | 820 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 955 mA @ 120 Hz | 1.91 A @ 100 kHz | 40 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.437 (36.50mm) | - | Through Hole |
|
|
ELXV800ELL561ML35SCAP ALUM 560UF 20% 80V RADIAL |
5,543 | 1.17 |
RFQ |
Datasheet |
Bulk | LXV | Active | 560 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1 A @ 120 Hz | 2 A @ 100 kHz | 52 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.437 (36.50mm) | - | Through Hole |
|
50YXG1000MEFCGC18X20CAP ALUM 1000UF 20% 50V RADIAL |
8,464 | 1.17 |
RFQ |
Datasheet |
Tape & Box (TB) | YXG | Active | 1000 µF | ±20% | 50 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.494 A @ 120 Hz | 2.49 A @ 100 kHz | 36 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
35YXG1800MEFCGC18X20CAP ALUM 1800UF 20% 35V RADIAL |
5,692 | 1.17 |
RFQ |
Datasheet |
Tape & Box (TB) | YXG | Active | 1800 µF | ±20% | 35 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.716 A @ 120 Hz | 2.86 A @ 100 kHz | 26 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
EKMG630EMC102ML25SCAP ALUM 1000UF 20% 63V RADIAL |
8,069 | 1.17 |
RFQ |
Datasheet |
Tape & Box (TB) | KMG | Active | 1000 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 930 mA @ 120 Hz | 1.395 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.043 (26.50mm) | - | Through Hole |
