| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UHE1E392MHD6CAP ALUM 3900UF 20% 25V RADIAL |
8,799 | 1.51 |
RFQ |
Datasheet |
Bulk | UHE | Not For New Designs | 3900 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.336 A @ 120 Hz | 4.17 A @ 100 kHz | 15 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.240 (31.50mm) | - | Through Hole |
|
UBT2G330MHD8CAP ALUM 33UF 20% 400V RADIAL |
9,556 | 1.51 |
RFQ |
Datasheet |
Bulk | UBT | Active | 33 µF | ±20% | 400 V | - | 2000 Hrs @ 125°C | -25°C ~ 125°C | Polar | - | Automotive | 189 mA @ 120 Hz | 340.2 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
688CKS016MKAGCAP ALUM 6800UF 20% 16V RADIAL |
6,382 | 1.13 |
RFQ |
Datasheet |
Bulk | CKS | Active | 6800 µF | ±20% | 16 V | 68mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.01 A @ 120 Hz | 4.214 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.240 (31.50mm) | - | Through Hole |
|
ELXZ100ELL682MM25SCAP ALUM 6800UF 20% 10V RADIAL |
8,243 | 1.51 |
RFQ |
Datasheet |
Bulk | LXZ | Active | 6800 µF | ±20% | 10 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.329 A @ 120 Hz | 2.74 A @ 100 kHz | 20 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
UPA0J562MHD6CAP ALUM 5600UF 20% 6.3V RADIAL |
7,070 | 1.13 |
RFQ |
Datasheet |
Bulk | UPA | Active | 5600 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.981 A @ 120 Hz | 2.33 A @ 100 kHz | 26 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
UHD1C392MHD1TNCAP ALUM 3900UF 20% 16V RADIAL |
5,619 | 1.13 |
RFQ |
Datasheet |
Tape & Reel (TR) | UHD | Not For New Designs | 3900 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.768 A @ 120 Hz | 3.46 A @ 100 kHz | 16 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|

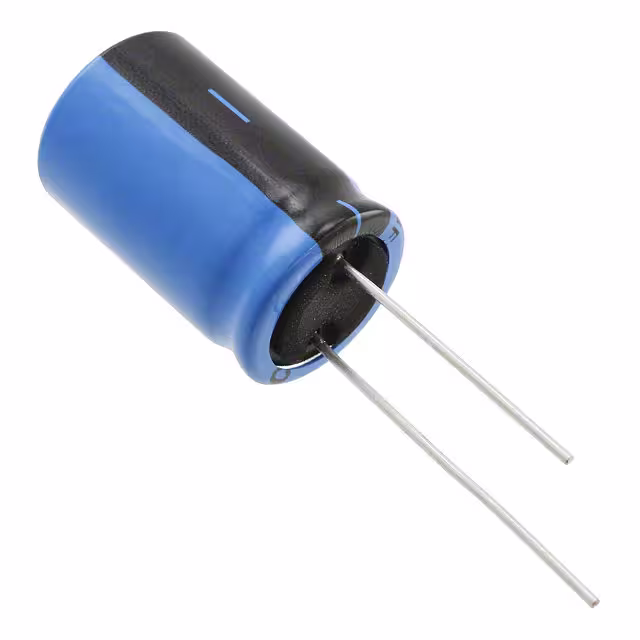

MAL214250222E3CAP ALUM 2200UF 20% 35V RADIAL |
6,889 | 1.14 |
RFQ |
Datasheet |
Bulk | 142 RHS | Active | 2200 µF | ±20% | 35 V | - | 2500 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 1.449 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
MAL214256332E3CAP ALUM 3300UF 20% 25V RADIAL |
7,585 | 1.14 |
RFQ |
Datasheet |
Bulk | 142 RHS | Active | 3300 µF | ±20% | 25 V | - | 2500 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 1.656 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
MAL214258102E3CAP ALUM 1000UF 20% 63V RADIAL |
7,261 | 1.14 |
RFQ |
Datasheet |
Bulk | 142 RHS | Active | 1000 µF | ±20% | 63 V | - | 2500 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 1.256 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
MAL214097002E3CAP ALUM 150UF 20% 35V SMD |
8,552 | 1.14 |
RFQ |
Datasheet |
Bulk | 140 CRH | Active | 150 µF | ±20% | 35 V | - | 1500 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 190.2 mA @ 100 Hz | - | 200 mOhms | - | 0.394 Dia (10.00mm) | 0.563 (14.30mm) | 0.413 L x 0.413 W (10.50mm x 10.50mm) | Surface Mount |
|
|
MAL214097302E3CAP ALUM 680UF 20% 6.3V SMD |
5,975 | 1.14 |
RFQ |
Datasheet |
Bulk | 140 CRH | Active | 680 µF | ±20% | 6.3 V | - | 1500 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 301 mA @ 100 Hz | - | 200 mOhms | - | 0.394 Dia (10.00mm) | 0.563 (14.30mm) | 0.413 L x 0.413 W (10.50mm x 10.50mm) | Surface Mount |
|
|
MAL214097402E3CAP ALUM 470UF 20% 10V SMD |
9,218 | 1.14 |
RFQ |
Datasheet |
Bulk | 140 CRH | Active | 470 µF | ±20% | 10 V | - | 1500 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 301 mA @ 100 Hz | - | 200 mOhms | - | 0.394 Dia (10.00mm) | 0.563 (14.30mm) | 0.413 L x 0.413 W (10.50mm x 10.50mm) | Surface Mount |
|
|
MAL214097501E3CAP ALUM 330UF 20% 16V SMD |
8,169 | 1.14 |
RFQ |
Datasheet |
Bulk | 140 CRH | Active | 330 µF | ±20% | 16 V | - | 1500 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 301 mA @ 100 Hz | - | 200 mOhms | - | 0.394 Dia (10.00mm) | 0.563 (14.30mm) | 0.413 L x 0.413 W (10.50mm x 10.50mm) | Surface Mount |
|
|
MAL214097802E3CAP ALUM 68UF 20% 63V SMD |
8,190 | 1.14 |
RFQ |
Datasheet |
Bulk | 140 CRH | Active | 68 µF | ±20% | 63 V | - | 1500 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 140.2 mA @ 100 Hz | - | 400 mOhms | - | 0.394 Dia (10.00mm) | 0.563 (14.30mm) | 0.413 L x 0.413 W (10.50mm x 10.50mm) | Surface Mount |
|
MAL204121109E3CAP ALUM 10UF 160V AXIAL |
6,442 | 1.14 |
RFQ |
Datasheet |
Tape & Box (TB) | 041 ASH | Active | 10 µF | -10%, +50% | 160 V | 24Ohm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 70 mA @ 100 Hz | - | 12 Ohms | - | 0.256 Dia x 0.709 L (6.50mm x 18.00mm) | - | - | Through Hole |
|
UPM2D330MHDCAP ALUM 33UF 20% 200V RADIAL |
7,641 | 1.14 |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 33 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 180 mA @ 120 Hz | 288 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
UPM2C470MHDCAP ALUM 47UF 20% 160V RADIAL |
8,878 | 1.14 |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 47 µF | ±20% | 160 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 220 mA @ 120 Hz | 352 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
686CKE400MKAGCAP ALUM 68UF 20% 400V RADIAL |
6,470 | 1.14 |
RFQ |
Datasheet |
Bulk | CKE | Active | 68 µF | ±20% | 400 V | 4.8761Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | Bypass, Decoupling | 475 mA @ 120 Hz | 855 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.240 (31.50mm) | - | Through Hole |
|
EGXF201ELL101ML20SCAP ALUM 100UF 20% 200V RAD TH |
5,715 | 1.14 |
RFQ |
Datasheet |
Bulk | GXF | Active | 100 µF | ±20% | 200 V | - | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 525 mA @ 120 Hz | - | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.846 (21.50mm) | - | Through Hole |
|

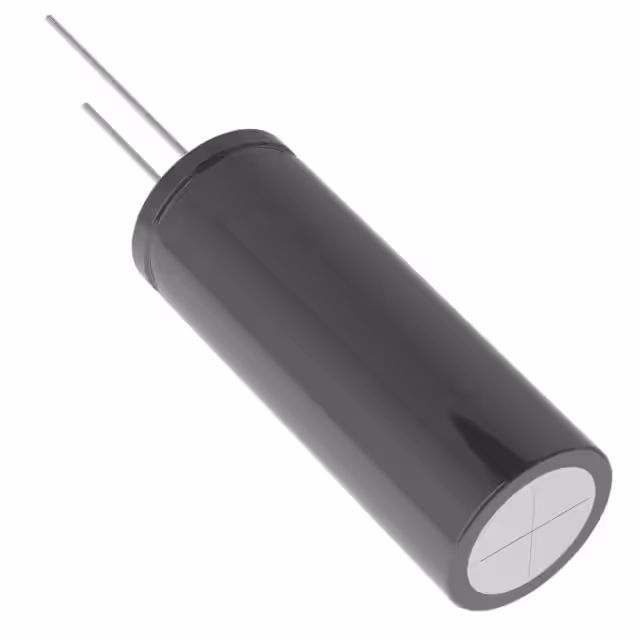

UAQ2D820MHDCAP ALUM 82UF 20% 200V RADIAL |
9,168 | 1.14 |
RFQ |
Datasheet |
Bulk | UAQ | Active | 82 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 285 mA @ 120 Hz | 456 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.319 (33.50mm) | - | Through Hole |
