| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

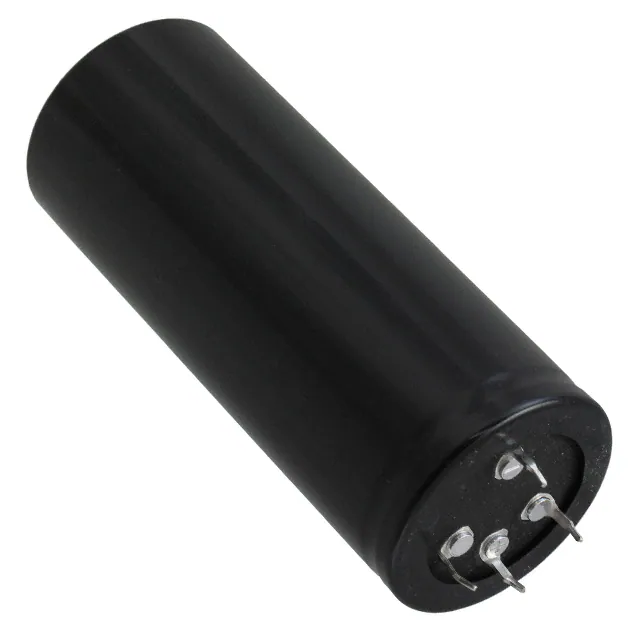

B43510A5158M000CAP ALUM 1500UF 20% 450V SNAP |
1,604 | 54.47 |
RFQ |
Datasheet |
Bulk | B43510 | Not For New Designs | 1500 µF | ±20% | 450 V | 75mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.16 A @ 100 Hz | - | 100 mOhms | 0.984 (25.00mm) | 1.575 Dia (40.00mm) | 4.016 (102.00mm) | - | Through Hole |
|
EEU-FS2A181CAP ALUM 180UF 20% 100V RADIAL |
7,750 | 1.83 |
RFQ |
Datasheet |
Bulk | FS-A | Active | 180 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.26 A @ 120 Hz | 1.8 A @ 100 kHz | 34 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
CGS162T200V3CCAP ALUM 1600UF 200V SCREW |
3,518 | 60.15 |
RFQ |
Datasheet |
Bulk | CGS | Active | 1600 µF | -10%, +50% | 200 V | 74mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.6 A @ 120 Hz | 6.9 A @ 10 kHz | - | 0.875 (22.22mm) | 2.000 Dia (50.80mm) | 3.125 (79.38mm) | - | Chassis Mount |
|
228CKH025MCAP ALUM 2200UF 20% 25V RADIAL |
6,292 | 1.84 |
RFQ |
Datasheet |
Bulk | CKH | Active | 2200 µF | ±20% | 25 V | 135.6mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.21 A @ 120 Hz | 1.694 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
ESY338M010AL4AACAP ALUM 3300UF 20% 10V RADIAL |
8,211 | 1.84 |
RFQ |
Datasheet |
Bulk | ESY | Active | 3300 µF | ±20% | 10 V | 18mOhm @ 100kHz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.216 A @ 120 Hz | 2.77 A @ 100 kHz | 18 mOhms | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
CGS103U075V4CCAP ALUM 10000UF 75V SCREW |
3,779 | 63.28 |
RFQ |
Datasheet |
Bulk | CGS | Active | 10000 µF | -10%, +75% | 75 V | 24mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9 A @ 120 Hz | 11.7 A @ 10 kHz | - | - | 2.000 Dia (50.80mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
UHW1J122MHD6TNCAP ALUM 1200UF 20% 63V RADIAL |
7,181 | 3.58 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UHW | Not For New Designs | 1200 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.758 A @ 120 Hz | 2.93 A @ 100 kHz | 38 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
B43456A9228M000CAP ALUM 2200UF 20% 400V SCREW |
3,342 | 65.65 |
RFQ |
Datasheet |
Bulk | B43456 | Not For New Designs | 2200 µF | ±20% | 400 V | 30mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8 A @ 100 Hz | - | 30 mOhms | 0.874 (22.20mm) | 2.032 Dia (51.60mm) | 4.201 (106.70mm) | - | Chassis Mount |
|
MAL214658101E3CAP ALUM 100UF 20% 63V RADIAL |
6,273 | 1.85 |
RFQ |
Datasheet |
Bulk | 146 RTI | Active | 100 µF | ±20% | 63 V | - | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 600 mA @ 100 kHz | 220 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
|
MAL214656471E3CAP ALUM 470UF 20% 25V RADIAL |
9,821 | 1.85 |
RFQ |
Datasheet |
Bulk | 146 RTI | Active | 470 µF | ±20% | 25 V | - | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 1.1 A @ 100 kHz | 75 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
|
MAL214650331E3CAP ALUM 330UF 20% 35V RADIAL |
5,289 | 1.85 |
RFQ |
Datasheet |
Bulk | 146 RTI | Active | 330 µF | ±20% | 35 V | - | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 1.1 A @ 100 kHz | 75 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|

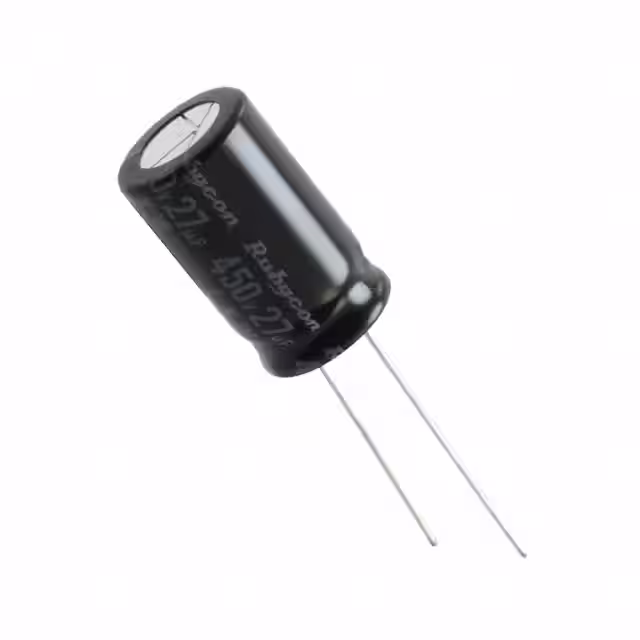

450LXW27MEFR12.5X20CAP ALUM 27UF 20% 450V RADIAL |
6,980 | 2.12 |
RFQ |
Datasheet |
Bulk | LXW | Active | 27 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 310 mA @ 120 Hz | 682 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
UBX1H221MPLCAP ALUM 220UF 20% 50V RADIAL |
9,036 | 2.13 |
RFQ |
Datasheet |
Bulk | UBX | Active | 220 µF | ±20% | 50 V | - | 1000 Hrs @ 150°C | -55°C ~ 150°C | Polar | - | Automotive | 320 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
EEU-FK1C272CAP ALUM 2700UF 20% 16V RAD TH |
9,240 | 2.19 |
RFQ |
Datasheet |
Bulk | FK | Active | 2700 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.824 A @ 120 Hz | 2.28 A @ 100 kHz | 22 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
EEU-FK1A392CAP ALUM 3900UF 20% 10V RAD TH |
9,093 | 2.19 |
RFQ |
Datasheet |
Bulk | FK | Active | 3900 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.824 A @ 120 Hz | 2.28 A @ 100 kHz | 22 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
LGU1V682MELZCAP ALUM 6800UF 20% 35V SNAP |
7,746 | 3.63 |
RFQ |
Datasheet |
Bulk | LGU | Active | 6800 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.41 A @ 120 Hz | 2.7715 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.654 (42.00mm) | - | Through Hole |
|

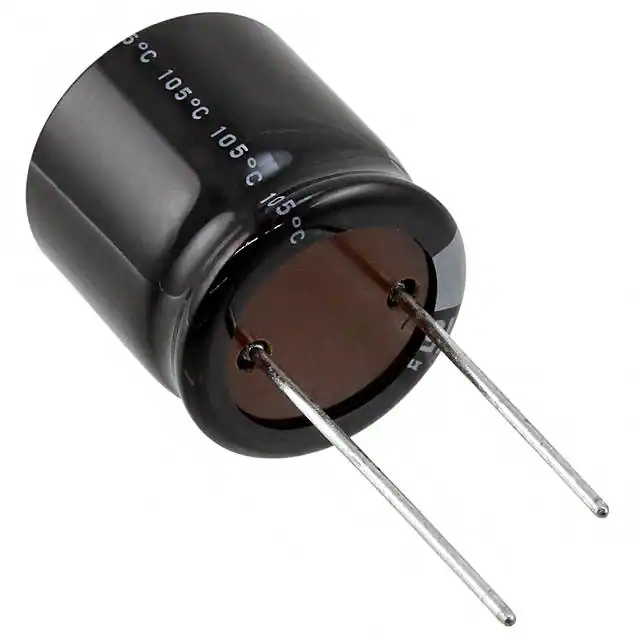

URZ2G470MRD6CAP ALUM 47UF 20% 400V RADIAL |
6,449 | 3.63 |
RFQ |
Datasheet |
Bulk | URZ | Active | 47 µF | ±20% | 400 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 300 mA @ 120 Hz | 480 mA @ 10 kHz | - | 0.394 (10.00mm) | 0.787 Dia (20.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
ELBK250ELL532AM20SCAP ALUM 5300UF 25V RADIAL |
9,007 | 3.64 |
RFQ |
Datasheet |
Bulk | LBK | Active | 5300 µF | 0%, +30% | 25 V | 29mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.125 A @ 120 Hz | 2.5 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
LGU1H272MELZCAP ALUM 2700UF 20% 50V SNAP |
5,690 | 3.67 |
RFQ |
Datasheet |
Bulk | LGU | Active | 2700 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 1.955 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.260 (32.00mm) | - | Through Hole |
|

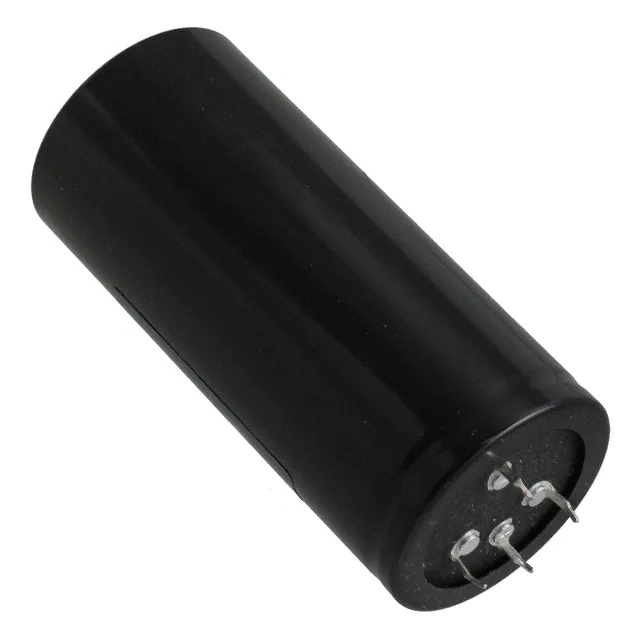

B43510A5228M000CAP ALUM 2200UF 20% 450V SNAP |
4,374 | 68.34 |
RFQ |
Datasheet |
Bulk | B43510 | Not For New Designs | 2200 µF | ±20% | 450 V | 50mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.65 A @ 100 Hz | - | 75 mOhms | 0.984 (25.00mm) | 1.772 Dia (45.00mm) | 4.016 (102.00mm) | - | Through Hole |
