| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
420HXG180MEFC20X50CAP ALUM 180UF 20% 420V SNAP |
9,368 | 2.03 |
RFQ |
Datasheet |
Bulk | HXG | Active | 180 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.79 A @ 120 Hz | 2.506 A @ 10 kHz | - | 0.394 (10.00mm) | 0.787 Dia (20.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
420HXG68MEFC20X25CAP ALUM 68UF 20% 420V SNAP |
6,338 | 2.03 |
RFQ |
Datasheet |
Bulk | HXG | Active | 68 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 920 mA @ 120 Hz | 1.288 A @ 10 kHz | - | 0.394 (10.00mm) | 0.787 Dia (20.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
860160380043CAP ALUM 3900UF 20% 16V RADIAL |
8,588 | 2.03 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATLL | Active | 3900 µF | ±20% | 16 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 2.736 A @ 100 kHz | 60 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
B43509B9107M000CAP ALUM 100UF 20% 400V SNAP |
8,923 | 2.77 |
RFQ |
Datasheet |
Bulk | B43509 | Active | 100 µF | ±20% | 400 V | 800mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 670 mA @ 100 Hz | - | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
AEA1616152M025RALUMINUM CAP |
8,855 | 2.77 |
RFQ |
Datasheet |
Tape & Reel (TR) | AEA | Active | 1500 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.08 A @ 120 Hz | 1.8 A @ 100 kHz | 35 mOhms | - | 0.630 Dia (16.00mm) | 0.669 (17.00mm) | 0.669 L x 0.669 W (17.00mm x 17.00mm) | Surface Mount |
|
|
AEA1616102M050RALUMINUM CAP |
7,504 | 2.77 |
RFQ |
Datasheet |
Tape & Reel (TR) | AEA | Active | 1000 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 966 mA @ 120 Hz | 1.61 A @ 100 kHz | 73 mOhms | - | 0.630 Dia (16.00mm) | 0.669 (17.00mm) | 0.669 L x 0.669 W (17.00mm x 17.00mm) | Surface Mount |
|

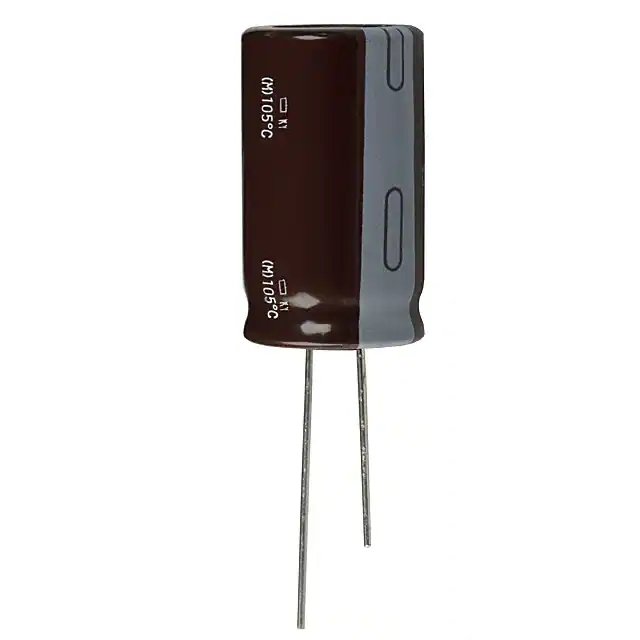

EKY-250ELL392MMN3SCAP ALUM 3900UF 20% 25V RADIAL |
5,955 | 2.77 |
RFQ |
Datasheet |
Bulk | KY | Active | 3900 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.1275 A @ 120 Hz | 4.17 A @ 100 kHz | 15 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.240 (31.50mm) | - | Through Hole |
|
80MXG1800MEFCSN25X25CAP ALUM 1800UF 20% 80V SNAP |
7,266 | 2.65 |
RFQ |
Datasheet |
Bulk | MXG | Active | 1800 µF | ±20% | 80 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.79 A @ 120 Hz | 2.0585 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
B41231C4279M000CAP ALUM 27000UF 20% 16V SNAP |
8,466 | 2.65 |
RFQ |
Datasheet |
Bulk | B41231 | Active | 27000 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.8 A @ 120 Hz | - | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
MAL213630182E3CAP ALUM 1800UF 20% 35V RADIAL |
5,531 | 2.04 |
RFQ |
Datasheet |
Tape & Box (TB) | 136 RVI | Active | 1800 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.44 A @ 100 Hz | - | 25 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
|
MAL213634472E3CAP ALUM 4700UF 20% 10V RADIAL |
7,259 | 2.04 |
RFQ |
Datasheet |
Tape & Box (TB) | 136 RVI | Active | 4700 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.992 A @ 100 Hz | - | 25 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
|
MAL213634562E3CAP ALUM 5600UF 20% 10V RADIAL |
9,703 | 2.04 |
RFQ |
Datasheet |
Tape & Box (TB) | 136 RVI | Active | 5600 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.992 A @ 100 Hz | - | 25 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
|
MAL213635392E3CAP ALUM 3900UF 20% 16V RADIAL |
6,738 | 2.04 |
RFQ |
Datasheet |
Tape & Box (TB) | 136 RVI | Active | 3900 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.656 A @ 100 Hz | - | 25 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
|
MAL213636222E3CAP ALUM 2200UF 20% 25V RADIAL |
9,579 | 2.04 |
RFQ |
Datasheet |
Tape & Box (TB) | 136 RVI | Active | 2200 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.656 A @ 100 Hz | - | 25 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
|
MAL213636272E3CAP ALUM 2700UF 20% 25V RADIAL |
7,684 | 2.04 |
RFQ |
Datasheet |
Tape & Box (TB) | 136 RVI | Active | 2700 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.656 A @ 100 Hz | - | 25 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
|
MAL213638681E3CAP ALUM 680UF 20% 63V RADIAL |
9,681 | 2.04 |
RFQ |
Datasheet |
Tape & Box (TB) | 136 RVI | Active | 680 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 850 mA @ 100 Hz | - | 46 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
|
MAL213639331E3CAP ALUM 330UF 20% 100V RADIAL |
5,354 | 2.04 |
RFQ |
Datasheet |
Tape & Box (TB) | 136 RVI | Active | 330 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 100 Hz | - | 58 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
MAL215297226E3CAP ALUM 22UF 20% 450V RADIAL |
7,727 | 2.04 |
RFQ |
Datasheet |
Bulk | 152 RMH | Active | 22 µF | ±20% | 450 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 150 mA @ 100 Hz | - | 4.6 Ohms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
B41231A3569M000CAP ALUM 56000UF 20% 10V SNAP |
7,575 | 2.66 |
RFQ |
Datasheet |
Bulk | B41231 | Active | 56000 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.31 A @ 120 Hz | - | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
450MXG82MEFCSN20X30CAP ALUM 82UF 20% 450V SNAP |
9,692 | 2.66 |
RFQ |
Datasheet |
Bulk | MXG | Active | 82 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 120 Hz | 1.12 A @ 10 kHz | - | 0.394 (10.00mm) | 0.787 Dia (20.00mm) | 1.260 (32.00mm) | - | Through Hole |
