| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CGS122U100R3CCAP ALUM 1200UF 100V SCREW |
3,049 | 29.37 |
RFQ |
Datasheet |
Bulk | CGS | Active | 1200 µF | -10%, +75% | 100 V | 62mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.5 A @ 120 Hz | 4.55 A @ 10 kHz | - | - | 1.375 Dia (34.93mm) | 3.125 (79.38mm) | - | Chassis Mount |
|
UPS2V2R2MPD1TDCAP ALUM 2.2UF 20% 350V RADIAL |
12,383 | 0.48 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPS | Not For New Designs | 2.2 µF | ±20% | 350 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 31 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
B43520B9108M000CAP ALUM 1000UF 20% 400V RADIAL |
2,327 | 29.99 |
RFQ |
Datasheet |
Bulk | B43520 | Not For New Designs | 1000 µF | ±20% | 400 V | 65mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.77 A @ 100 Hz | - | 80 mOhms | - | 1.575 Dia (40.00mm) | 2.520 (64.00mm) | - | Through Hole |
|

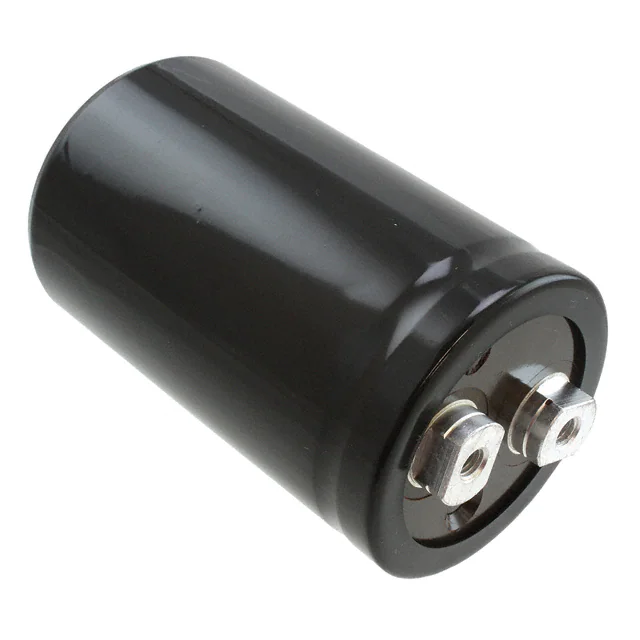

ALS30A102KE415CAP ALUM 1000UF 20% 415V SCREW |
1,489 | 31.69 |
RFQ |
Datasheet |
Bulk | ALS30 | Active | 1000 µF | ±20% | 415 V | 136mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.7 A @ 100 Hz | 10.4 A @ 10 kHz | 94 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 3.307 (84.00mm) | - | Chassis Mount |
|

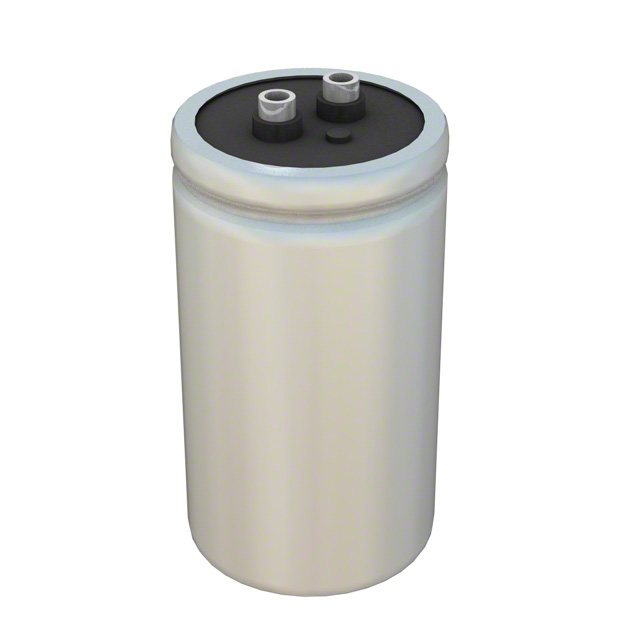

CG202U075U3CCAP ALUM 2000UF 75V SCREW |
3,463 | 41.47 |
RFQ |
Datasheet |
Bulk | CG | Active | 2000 µF | -10%, +75% | 75 V | 39mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.8 A @ 120 Hz | 6.67 A @ 10 kHz | - | - | 1.750 Dia (44.45mm) | 3.125 (79.38mm) | - | Chassis Mount |
|
B43521A5108M000CAP ALUM 1000UF 20% 450V SNAP |
3,847 | 41.13 |
RFQ |
Datasheet |
Bulk | B43521 | Not For New Designs | 1000 µF | ±20% | 450 V | 160mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.8 A @ 100 Hz | - | 160 mOhms | - | 1.575 Dia (40.00mm) | 4.094 (104.00mm) | - | Through Hole |
|
B43458A9228M000CAP ALUM 2200UF 20% 400V SCREW |
3,849 | 65.65 |
RFQ |
Datasheet |
Bulk | B43458 | Not For New Designs | 2200 µF | ±20% | 400 V | 30mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8 A @ 100 Hz | - | 30 mOhms | 0.874 (22.20mm) | 2.032 Dia (51.60mm) | 4.201 (106.70mm) | - | Chassis Mount |
|

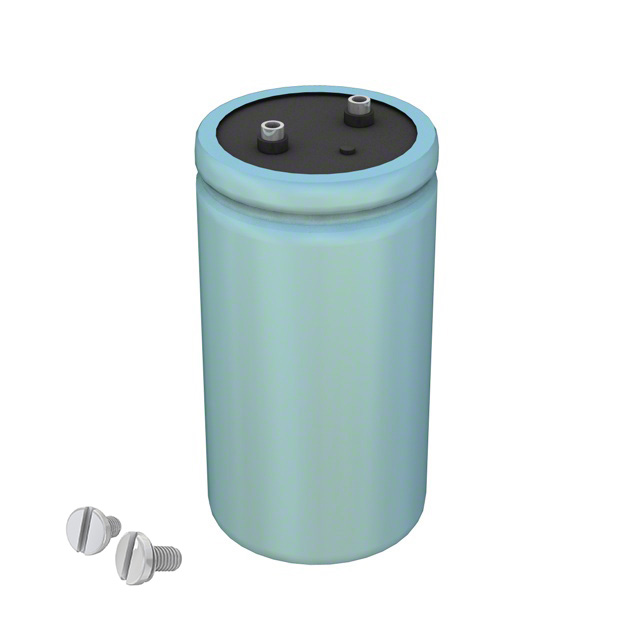

CGR223U040W4LCAP ALUM 22000UF 40V SCREW |
2,703 | 67.58 |
RFQ |
Datasheet |
Bulk | CGR | Active | 22000 µF | -10%, +75% | 40 V | 6mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 30 A @ 120 Hz | 34.5 A @ 10 kHz | - | - | 2.500 Dia (63.50mm) | 4.625 (117.48mm) | - | Chassis Mount |
|
B43770A9857M000CAP ALUM 850UF 20% 400V SCREW |
517 | 100.77 |
RFQ |
Datasheet |
Bulk | B43770 | Active | 850 µF | ±20% | 400 V | 70mOhm @ 100Hz | 8000 Hrs @ 105°C | - | Polar | - | General Purpose | 9.5 A @ 100 Hz | - | 110 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 3.201 (81.30mm) | - | Chassis Mount |
|
MLP203M025EB0ACAP ALUM 20000UF 20% 25V FLATPCK |
489 | 125.13 |
RFQ |
Datasheet |
Bulk | MLP | Active | 20000 µF | ±20% | 25 V | 34mOhm | 2000 Hrs @ 85°C | -55°C ~ 85°C | - | - | General Purpose | - | - | - | 1.000 (25.40mm) | 3.000 L x 1.750 W (76.20mm x 44.45mm) | 0.500 (12.70mm) | - | Chassis Mount |
|
UPM0J561MPD1TDCAP ALUM 560UF 20% 6.3V RADIAL |
11,390 | 0.61 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 560 µF | ±20% | 6.3 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 485 mA @ 120 Hz | 595 mA @ 10 kHz | 120 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
EEU-HD1E680BCAP ALUM 68UF 20% 25V RADIAL |
14,798 | 0.65 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | HD | Active | 68 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 91 mA @ 120 Hz | 136.5 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
UPM1A561MPD1TDCAP ALUM 560UF 20% 10V RADIAL |
14,824 | 0.62 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 560 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 595 mA @ 120 Hz | 730 mA @ 10 kHz | 100 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.846 (21.50mm) | - | Through Hole |
|

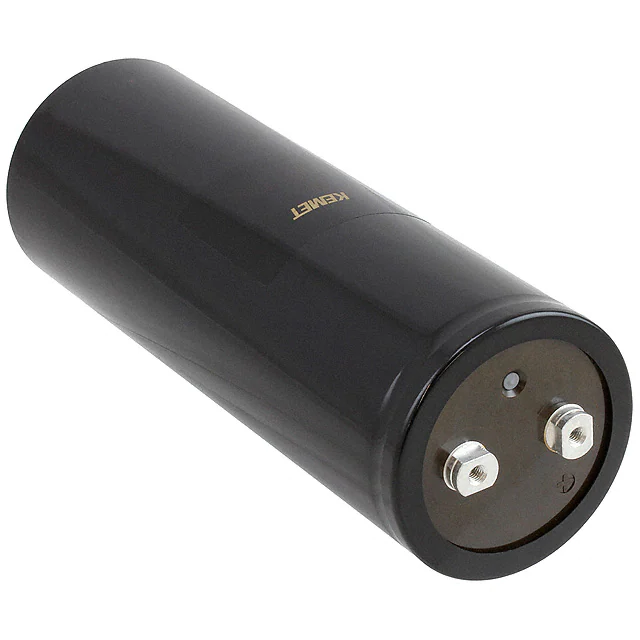

ALS30A103NT400CAP ALUM 10000UF 20% 400V SCREW |
594 | 143.96 |
RFQ |
Datasheet |
Bulk | ALS30 | Active | 10000 µF | ±20% | 400 V | 19mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 31.5 A @ 100 Hz | 42 A @ 10 kHz | 14 mOhms | 1.252 (31.80mm) | 3.032 Dia (77.00mm) | 8.740 (222.00mm) | - | Chassis Mount |
|

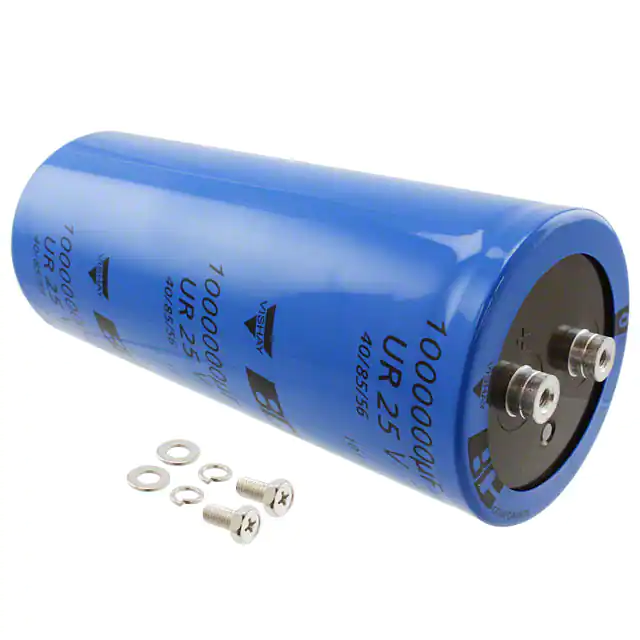

MAL210146105E3CAP ALUM 1F 20% 25V SCREW |
505 | 342.18 |
RFQ |
Datasheet |
Bulk | 101 PHR-ST | Active | 1 F | ±20% | 25 V | 5mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 46.6 A @ 100 Hz | 60.58 A @ 10 kHz | 5 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.661 (220.00mm) | - | Chassis Mount |
|
ESX475M400AH2EACAP ALUM 4.7UF 20% 400V RADIAL |
14,723 | 0.66 |
RFQ |
Cut Tape (CT),Tape & Box (TB) | ESX | Active | 4.7 µF | ±20% | 400 V | - | - | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole | |
|
|
UPM1K560MPD1TDCAP ALUM 56UF 20% 80V RADIAL |
14,145 | 0.84 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 56 µF | ±20% | 80 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 295 mA @ 120 Hz | 490 mA @ 10 kHz | 340 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
50PX3R3MEFC5X11CAP ALUM 3.3UF 20% 50V RADIAL |
11,555 | 0.26 |
RFQ |
Datasheet |
Bulk | PX | Active | 3.3 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 25 mA @ 120 Hz | 37.5 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
EEU-FS2A470LBCAP ALUM 47UF 20% 100V RADIAL |
10,343 | 0.79 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 47 µF | ±20% | 100 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 413 mA @ 120 Hz | 590 mA @ 100 kHz | 112 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
ESE226M016AC3FACAP ALUM 22UF 20% 16V RADIAL |
12,051 | 0.27 |
RFQ |
Datasheet |
Box | ESE | Active | 22 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 55 mA @ 120 Hz | 79.75 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
