| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

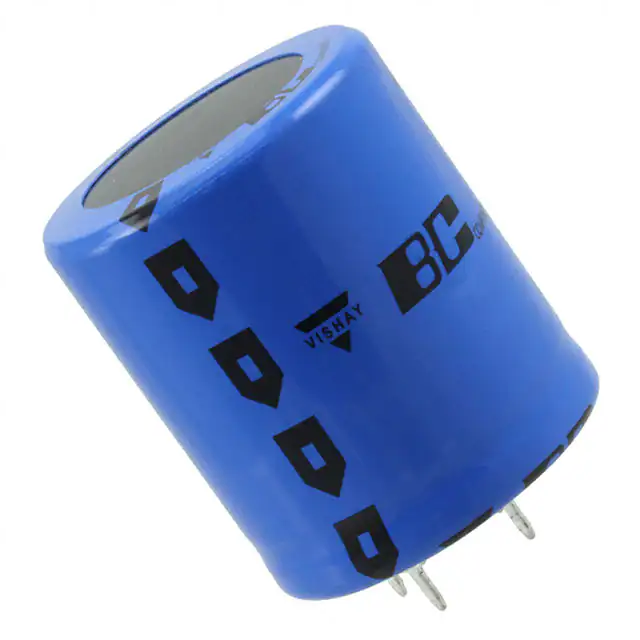

MAL216358221E3CAP ALUM 220UF 20% 385V SNAP |
3,793 | 16.77 |
RFQ |
Datasheet |
Bulk | 163 PLL-PW | Active | 220 µF | ±20% | 385 V | 525mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.44 A @ 100 Hz | - | 405 mOhms | - | 1.378 Dia (35.00mm) | 1.772 (45.00mm) | - | Through Hole |
|

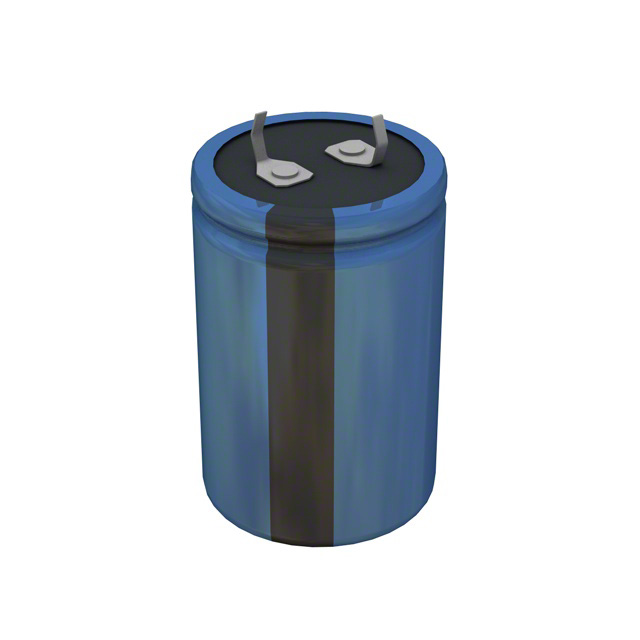

380LX221M500K452CAP ALUM 220UF 20% 500V SNAP |
2,282 | 17.38 |
RFQ |
Datasheet |
Bulk | 380LX | Active | 220 µF | ±20% | 500 V | 754mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | - | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
ALS30A221DE500CAP ALUM 220UF 20% 500V SCREW |
3,032 | 17.52 |
RFQ |
Datasheet |
Box | ALS30 | Active | 220 µF | ±20% | 500 V | 635mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.7 A @ 100 Hz | 4.8 A @ 10 kHz | 386 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 3.228 (82.00mm) | - | Chassis Mount |
|

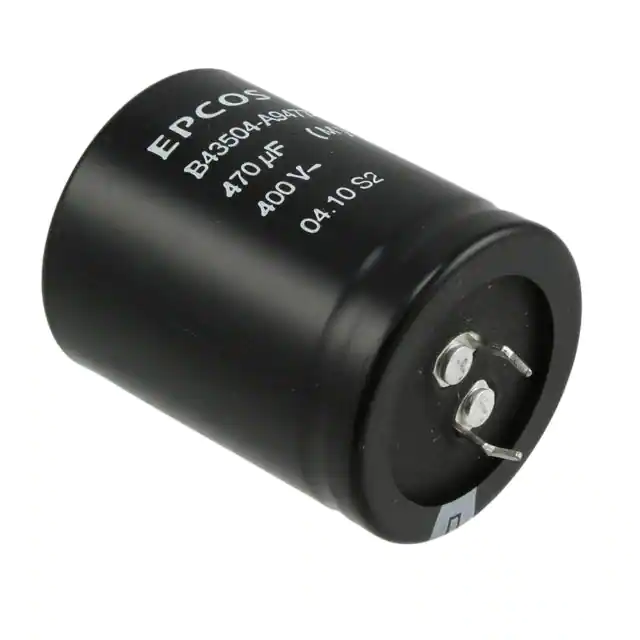

B43504A9477M000CAP ALUM 470UF 20% 400V SNAP |
3,315 | 18.14 |
RFQ |
Datasheet |
Bulk | B43504 | Not For New Designs | 470 µF | ±20% | 400 V | 190mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 100 Hz | - | 240 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
MAL225729471E3CAP ALUM 470UF 20% 500V SNAP |
2,481 | 18.84 |
RFQ |
Box | 257 PRM-SI | Active | 470 µF | ±20% | 500 V | 480mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.55 A @ 100 Hz | 3.57 A @ 10 kHz | 420 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.850 (47.00mm) | - | Through Hole | |
|

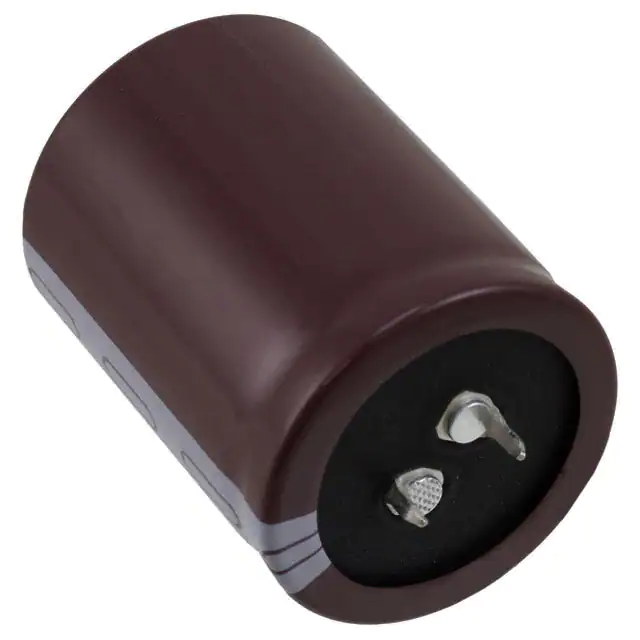

ETXH451VSN561MB60SCAP ALUM 560UF 20% 450V SNAP |
1,458 | 20.68 |
RFQ |
Datasheet |
Bulk | TXH | Active | 560 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.98 A @ 120 Hz | 2.8314 A @ 100 kHz | - | 0.394 (10.00mm) | 1.575 Dia (40.00mm) | 2.441 (62.00mm) | - | Through Hole |
|
ALS31A471DF450CAP ALUM 470UF 20% 450V SCREW |
2,847 | 20.77 |
RFQ |
Datasheet |
Box | ALS31 | Active | 470 µF | ±20% | 450 V | 235mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4 A @ 100 Hz | 8.4 A @ 10 kHz | 155 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 4.134 (105.00mm) | - | Chassis Mount |
|
B43727A9228M600CAP ALUM 2200UF 20% 400V SCREW |
4,863 | 41.97 |
RFQ |
Datasheet |
Bulk | B43727 | Active | 2200 µF | ±20% | 400 V | 55mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.65 A @ 100 Hz | - | 85 mOhms | 0.874 (22.20mm) | 2.031 Dia (51.60mm) | 3.217 (81.70mm) | - | Chassis, Stud Mount |
|
301R562U063JT2CAP ALUM 5600UF 63V RADIAL |
2,775 | 64.93 |
RFQ |
Datasheet |
Tray | 301 | Active | 5600 µF | -10%, +75% | 63 V | 19mOhm @ 120Hz | 4000 Hrs @ 85°C | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.400 (10.16mm) | 1.000 Dia (25.40mm) | 3.625 (92.08mm) | - | Through Hole |
|
PEH200XO4220MU2CAP ALUM 2200UF 20% 385V SCREW |
2,284 | 83.15 |
RFQ |
Datasheet |
Box | PEH200 | Active | 2200 µF | ±20% | 385 V | 38mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.6 A @ 100 Hz | 26.1 A @ 10 kHz | - | 1.260 (32.00mm) | 2.622 Dia (66.60mm) | 4.173 (106.00mm) | - | Chassis Mount |
|
|
PEH200YT4220MU2CAP ALUM 2200UF 20% 450V SCREW |
442 | 112.63 |
RFQ |
Datasheet |
Box | PEH200 | Active | 2200 µF | ±20% | 450 V | - | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.1 A @ 100 Hz | 35.6 A @ 10 kHz | - | 1.260 (32.00mm) | 3.016 Dia (76.60mm) | 4.173 (106.00mm) | - | Chassis Mount |
|
|
PEH200MV6100MU2CAP ALUM 100000UF 20% 63V SCREW |
396 | 131.73 |
RFQ |
Datasheet |
Box | PEH200 | Active | 100000 µF | ±20% | 63 V | 5mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 34.3 A @ 100 Hz | 50.3 A @ 10 kHz | - | 1.260 (32.00mm) | 3.016 Dia (76.60mm) | 5.748 (146.00mm) | - | Chassis Mount |
|
LNX2H392MSEHCAP ALUM 3900UF 20% 500V SCREW |
356 | 140.84 |
RFQ |
Datasheet |
Bulk | LNX | Active | 3900 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 12.1 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 6.024 (153.00mm) | - | Chassis Mount |
|
VHT.22M63CAP ALUM 0.22UF 20% 63V RADIAL |
12,981 | 0.03 |
RFQ |
Datasheet |
Bag | VHT | Active | 0.22 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.433 (11.00mm) | - | Through Hole |
|
CP-ST-220-25VCAP ALUM 220UF 25V AXIAL |
14,486 | 0.25 |
RFQ |
Bulk | - | Active | 220 µF | - | 25 V | - | - | - | - | - | - | - | - | - | - | 0.315 Dia x 0.630 L (8.00mm x 16.00mm) | - | - | Through Hole | |
|
6.3YXJ100M5X11CAP ALUM 100UF 20% 6.3V RADIAL |
13,488 | 0.26 |
RFQ |
Datasheet |
Bulk | YXJ | Active | 100 µF | ±20% | 6.3 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 105 mA @ 120 Hz | 150 mA @ 100 kHz | 900 mOhms | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
100YXJ3.3M5X11CAP ALUM 3.3UF 20% 100V RADIAL |
13,983 | 0.26 |
RFQ |
Datasheet |
Bulk | YXJ | Active | 3.3 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 16.8 mA @ 120 Hz | 40 mA @ 100 kHz | 2.7 Ohms | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
EKY-101ETD470MJC5SCAP ALUM 47UF 20% 100V RADIAL |
14,451 | 0.84 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | KY | Active | 47 µF | ±20% | 100 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 192 mA @ 120 Hz | 480 mA @ 100 kHz | 170 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
ECA-1CM220ICAP ALUM 22UF 20% 16V RADIAL |
10,308 | 0.28 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | M-A | Active | 22 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 75 mA @ 120 Hz | 127.5 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-0JM101ICAP ALUM 100UF 20% 6.3V RADIAL |
13,185 | 0.28 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | M-A | Active | 100 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 221 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
