| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
80D562P016JA2DE3CAP ALUM 5600UF 16V SNAP |
3,077 | 10.68 |
RFQ |
Datasheet |
Bulk | 80D | Active | 5600 µF | -10%, +30% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | 1.000 Dia (25.40mm) | 1.079 (27.40mm) | - | Through Hole |
|
LPX222M200H9P3CAP ALUM 2200UF 20% 200V SNAP |
3,644 | 11.29 |
RFQ |
Datasheet |
Bulk,Bulk | LPX | Active | 2200 µF | ±20% | 200 V | 90mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.5 A @ 120 Hz | 4.95 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
ALF40C822EL100CAP ALUM 8200UF 20% 100V SNAP |
3,991 | 10.69 |
RFQ |
Datasheet |
Bulk | ALF40 | Active | 8200 µF | ±20% | 100 V | 34mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 9.28 A @ 100 Hz | 9.78 A @ 10 kHz | 29 mOhms | 0.886 (22.50mm) | 1.575 Dia (40.00mm) | 3.228 (82.00mm) | - | Through Hole, Press-Fit |
|
ALS80A102DB250CAP ALUM 1000UF 20% 250V SCREW |
4,025 | 12.32 |
RFQ |
Datasheet |
Bulk | ALS80 | Active | 1000 µF | ±20% | 250 V | 202mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.6 A @ 100 Hz | 7.4 A @ 10 kHz | 128 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 2.520 (64.00mm) | - | Chassis Mount |
|
MAL205847103E3CAP ALUM 10000UF 20% 40V SNAP |
3,151 | 10.71 |
RFQ |
Datasheet |
Tape & Box (TB) | 058 PLL-SI | Active | 10000 µF | ±20% | 40 V | 36mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.98 A @ 100 Hz | - | 24 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 2.047 (52.00mm) | - | Through Hole |
|

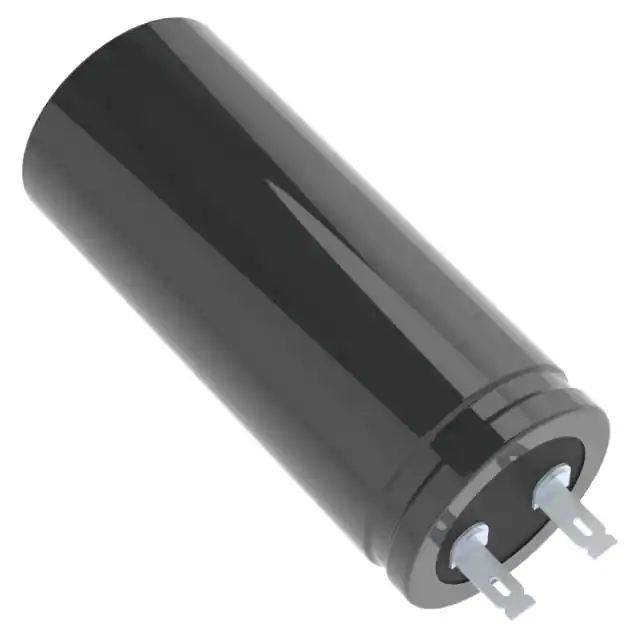

LKG1H103MKNCAP ALUM 10000UF 20% 50V SOLDER |
2,682 | 12.35 |
RFQ |
Datasheet |
Bulk | LKG | Active | 10000 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.6 A @ 120 Hz | - | - | 0.551 (14.00mm) | 1.378 Dia (35.00mm) | 3.268 (83.00mm) | - | Through Hole |
|
|
B43547A6397M062CAP ALUM 390UF 20% 500V SNAP |
2,958 | 10.71 |
RFQ |
Datasheet |
Bulk | B43547 | Active | 390 µF | ±20% | 500 V | 160mOhm @ 100Hz | 8000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.26 A @ 100 Hz | - | 220 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.244 (57.00mm) | - | Through Hole |
|
|
E91F3J1VND681MA65UCAP ALUM 680UF 20% 385V SNAP |
1,744 | 10.71 |
RFQ |
Bulk | U91F | Active | 680 µF | ±20% | 385 V | 123mOhm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | - | 3.3 A @ 120 Hz | 4.719 A @ 100 kHz | - | 0.886 (22.50mm) | 1.378 Dia (35.00mm) | 2.657 (67.50mm) | - | Through Hole | |
|
|
DCM222U040AA2ACAP ALUM 2200UF 40V SCREW |
2,845 | 12.35 |
RFQ |
Datasheet |
Bulk | DCM | Active | 2200 µF | -10%, +75% | 40 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.500 (12.70mm) | 1.375 Dia (34.93mm) | 2.187 (55.55mm) | - | Chassis Mount |
|
MAL205243471E3CAP ALUM 470UF 250V RADIAL |
3,994 | 10.72 |
RFQ |
Datasheet |
Tape & Box (TB) | 052 PED-PW | Active | 470 µF | -10%, +30% | 250 V | 420mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.8 A @ 100 Hz | - | 350 mOhms | 0.787 (20.00mm) | 1.575 Dia (40.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
B43547A5477M007CAP ALUM 470UF 20% 450V SNAP |
2,435 | 10.72 |
RFQ |
Datasheet |
Tray | B43547 | Active | 470 µF | ±20% | 450 V | 160mOhm @ 100Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.79 A @ 100 Hz | - | 240 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
EET-UQ2V821LACAP ALUM 820UF 20% 350V SNAP |
3,730 | 10.73 |
RFQ |
Datasheet |
Bulk | TS-UQ | Obsolete | 820 µF | ±20% | 350 V | 243mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.25 A @ 120 Hz | 4.55 A @ 10 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
ALC80A114EL025CAP ALUM 110000UF 20% 25V SNAP |
3,196 | 10.74 |
RFQ |
Datasheet |
Bulk | ALC80 | Active | 110000 µF | ±20% | 25 V | 16mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 13.66 A @ 100 Hz | 14.88 A @ 10 kHz | 15 mOhms | 0.394 (10.00mm) | 1.575 Dia (40.00mm) | 3.228 (82.00mm) | - | Through Hole |
|
ALC80C114EL025CAP ALUM 110000UF 20% 25V SNAP |
3,673 | 10.74 |
RFQ |
Datasheet |
Bulk | ALC80 | Active | 110000 µF | ±20% | 25 V | 16mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 13.66 A @ 100 Hz | 14.88 A @ 10 kHz | 15 mOhms | 0.886 (22.50mm) | 1.575 Dia (40.00mm) | 3.228 (82.00mm) | - | Through Hole |
|
|
ALC80D114EL025CAP ALUM 110000UF 20% 25V SNAP |
3,777 | 10.74 |
RFQ |
Datasheet |
Bulk | ALC80 | Active | 110000 µF | ±20% | 25 V | 16mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 13.66 A @ 100 Hz | 14.88 A @ 10 kHz | 15 mOhms | 0.394 (10.00mm) | 1.575 Dia (40.00mm) | 3.228 (82.00mm) | - | Through Hole |
|
|
ALC80E114EL025CAP ALUM 110000UF 20% 25V SNAP |
2,868 | 10.74 |
RFQ |
Datasheet |
Bulk | ALC80 | Active | 110000 µF | ±20% | 25 V | 16mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 13.66 A @ 100 Hz | 14.88 A @ 10 kHz | 15 mOhms | 0.886 (22.50mm) | 1.575 Dia (40.00mm) | 3.228 (82.00mm) | - | Through Hole |
|
ALC80F114EL025CAP ALUM 110000UF 20% 25V SNAP |
2,007 | 10.74 |
RFQ |
Datasheet |
Bulk | ALC80 | Active | 110000 µF | ±20% | 25 V | 16mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 13.66 A @ 100 Hz | 14.88 A @ 10 kHz | 15 mOhms | 0.394 (10.00mm) | 1.575 Dia (40.00mm) | 3.228 (82.00mm) | - | Through Hole |
|
380LX102M350A062CAP ALUM 1000UF 20% 350V SNAP |
4,433 | 10.74 |
RFQ |
Datasheet |
Bulk | 380LX | Active | 1000 µF | ±20% | 350 V | 250mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.8 A @ 120 Hz | 5.3 A @ 20 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.559 (65.00mm) | - | Through Hole |
|
|
ALF40G103EP100CAP ALUM 10000UF 20% 100V SNAP |
3,144 | 10.74 |
RFQ |
Datasheet |
Bulk | ALF40 | Active | 10000 µF | ±20% | 100 V | 24mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 11.33 A @ 100 Hz | 13.12 A @ 10 kHz | 21 mOhms | 0.984 (25.00mm) | 1.575 Dia (40.00mm) | 4.213 (107.00mm) | - | Through Hole, Press-Fit |
|
|
E92F421VND681MA65UCAP ALUM 680UF 20% 420V SNAP |
1,420 | 10.75 |
RFQ |
Bulk | U92F | Active | 680 µF | ±20% | 420 V | 110mOhm @ 120Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | - | 5 A @ 120 Hz | 7.15 A @ 100 kHz | - | 0.886 (22.50mm) | 1.378 Dia (35.00mm) | 2.657 (67.50mm) | - | Through Hole |
