| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL210656682E3CAP ALUM 6800UF 25V SCREW |
2,195 | 21.83 |
RFQ |
Datasheet |
Bulk | 106 PED-ST | Active | 6800 µF | -10%, +30% | 25 V | 55mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.3 A @ 100 Hz | - | 42 mOhms | 0.504 (12.80mm) | 1.378 Dia (35.00mm) | 2.744 (69.70mm) | - | Chassis Mount |
|
E36D351LPN881TCA5UCAP ALUM 880UF 350V SCREW |
2,805 | 21.84 |
RFQ |
Bulk | U36D | Active | 880 µF | -10%, +50% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.874 (22.20mm) | 2.000 Dia (50.80mm) | 4.134 (105.00mm) | - | Chassis Mount | |
|
|
B43513A0158M000CAP ALUM 1500UF 20% 420V SNAP |
2,438 | 21.84 |
RFQ |
Datasheet |
Bulk | B43513 | Active | 1500 µF | ±20% | 420 V | 70mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.79 A @ 100 Hz | - | 110 mOhms | 0.886 (22.50mm) | 1.575 Dia (40.00mm) | 3.819 (97.00mm) | - | Through Hole |
|
|
E32D401HPS102MC79UCAP ALUM 1000UF 20% 400V SCREW |
2,779 | 21.85 |
RFQ |
Bulk | U32D | Active | 1000 µF | ±20% | 400 V | 143.3mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.99 A @ 120 Hz | 6.0648 A @ 50 kHz | - | 0.875 (22.22mm) | 2.000 Dia (50.80mm) | 3.125 (79.38mm) | - | Chassis Mount | |
|
MAL205154104E3CAP ALUM 100000UF 20% 10V RADIAL |
1,579 | 22.05 |
RFQ |
Datasheet |
Tape & Box (TB) | 051 PEC-PW | Active | 100000 µF | ±20% | 10 V | 19mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.2 A @ 100 Hz | - | 16 mOhms | 0.787 (20.00mm) | 1.575 Dia (40.00mm) | 2.953 (75.00mm) | - | Through Hole |
|
|
MAL205356681E3CAP ALUM 680UF 20% 400V RADIAL |
2,560 | 22.05 |
RFQ |
Datasheet |
Tape & Box (TB) | 053 PEC-PW | Active | 680 µF | ±20% | 400 V | 235mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.9 A @ 100 Hz | - | 165 mOhms | 0.787 (20.00mm) | 1.575 Dia (40.00mm) | 2.953 (75.00mm) | - | Through Hole |
|
MAL209525681E3CAP ALUM 680UF 20% 350V SNAP |
3,064 | 22.05 |
RFQ |
Datasheet |
Tape & Box (TB) | 095 PLL-4TSI | Active | 680 µF | ±20% | 350 V | 165mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.1 A @ 100 Hz | - | 102 mOhms | 0.886 (22.50mm) | 1.575 Dia (40.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
MAL209575681E3CAP ALUM 680UF 20% 350V RADIAL |
2,639 | 22.05 |
RFQ |
Datasheet |
Tape & Box (TB) | 095 PLL-4TSI | Active | 680 µF | ±20% | 350 V | 165mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.1 A @ 100 Hz | - | 102 mOhms | 0.787 (20.00mm) | 1.575 Dia (40.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
ALC80H822KP200CAP ALUM 8200UF 20% 200V SNAP |
3,005 | 22.37 |
RFQ |
Datasheet |
Bulk | ALC80 | Active | 8200 µF | ±20% | 200 V | 31mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 11.15 A @ 100 Hz | 17.54 A @ 10 kHz | 20 mOhms | 0.984 (25.00mm) | 1.969 Dia (50.00mm) | 4.213 (107.00mm) | - | Through Hole |
|
|
E91F3J1VND152MBA0UCAP ALUM 1500UF 20% 385V SNAP |
2,107 | 22.37 |
RFQ |
Bulk | U91F | Active | 1500 µF | ±20% | 385 V | 58mOhm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | - | 6 A @ 120 Hz | 8.58 A @ 100 kHz | - | 0.886 (22.50mm) | 1.575 Dia (40.00mm) | 4.035 (102.50mm) | - | Through Hole | |
|

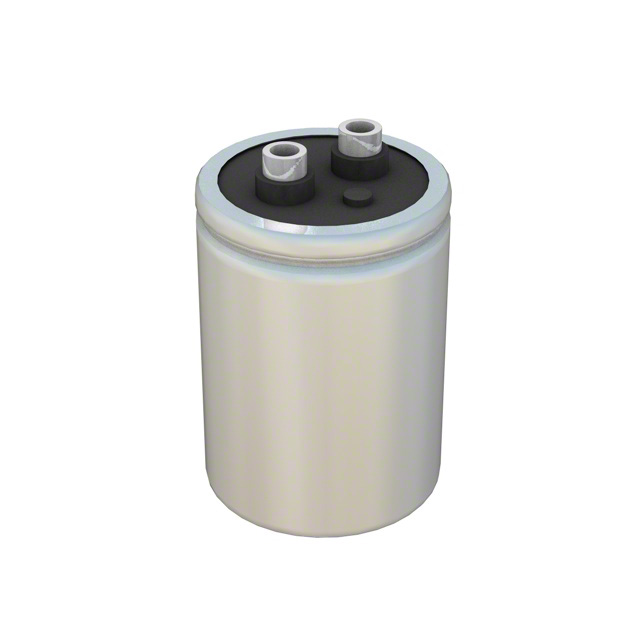

CGR222U030R1NCAP ALUM 2200UF 30V SCREW |
4,519 | 30.72 |
RFQ |
Datasheet |
Bulk | CGR | Active | 2200 µF | -10%, +75% | 30 V | 35mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.9 A @ 120 Hz | 6.785 A @ 10 kHz | - | - | 1.375 Dia (34.93mm) | 1.875 (47.63mm) | - | Chassis Mount |
|
CGS351T450R5CCAP ALUM 350UF 450V SCREW |
3,277 | 30.72 |
RFQ |
Datasheet |
Bulk | CGS | Active | 350 µF | -10%, +50% | 450 V | 226mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.2 A @ 120 Hz | 4.8 A @ 10 kHz | - | - | 1.375 Dia (34.93mm) | 5.125 (130.18mm) | - | Chassis Mount |
|
|
E36D251HPN222MC67UCAP ALUM 2200UF 20% 250V SCREW |
1,829 | 21.38 |
RFQ |
Bulk | U36D | Active | 2200 µF | ±20% | 250 V | 59.8mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.31 A @ 120 Hz | 6.034 A @ 3 kHz | - | 0.875 (22.22mm) | 2.000 Dia (50.80mm) | 2.625 (66.68mm) | - | Chassis Mount | |
|
|
E36D251HPN332MAE3UCAP ALUM 3300UF 20% 250V SCREW |
2,313 | 21.40 |
RFQ |
Bulk | U36D | Active | 3300 µF | ±20% | 250 V | 39.8mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.03 A @ 120 Hz | 8.442 A @ 3 kHz | - | 0.500 (12.70mm) | 1.375 Dia (34.93mm) | 5.625 (142.88mm) | - | Chassis Mount | |
|
|
600D226F100DG5CAP ALUM 22UF 100V AXIAL |
1,079 | 21.40 |
RFQ |
Datasheet |
Tray | 600D | Active | 22 µF | -10%, +50% | 100 V | - | - | -55°C ~ 125°C | Polar | - | General Purpose | - | - | - | - | 0.375 Dia x 1.375 L (9.53mm x 34.93mm) | - | - | Through Hole |
|
|
MAL209524681E3CAP ALUM 680UF 20% 420V SNAP |
1,458 | 21.41 |
RFQ |
Datasheet |
Tape & Box (TB) | 095 PLL-4TSI | Active | 680 µF | ±20% | 420 V | 163mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.3 A @ 100 Hz | - | 100 mOhms | 0.886 (22.50mm) | 1.575 Dia (40.00mm) | 2.362 (60.00mm) | - | Through Hole |
|
|
ALC80H152FP450CAP ALUM 1500UF 20% 450V SNAP |
3,052 | 21.41 |
RFQ |
Datasheet |
Bulk | ALC80 | Active | 1500 µF | ±20% | 450 V | 109mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6.25 A @ 100 Hz | 14.04 A @ 10 kHz | 70 mOhms | 0.984 (25.00mm) | 1.772 Dia (45.00mm) | 4.213 (107.00mm) | - | Through Hole |
|
PSU32465CAP ALUM 324UF 165V QC TERM |
1,886 | 33.03 |
RFQ |
Datasheet |
Bulk | PSU | Active | 324 µF | 0%, +20% | 165 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | - | 1.813 Dia (46.05mm) | 4.375 (111.13mm) | - | Chassis Mount |
|
63LSQ22000MNB51X83CAP ALUM 22000UF 20% 63V SCREW |
3,276 | 28.73 |
RFQ |
Datasheet |
Bulk | LSQ | Last Time Buy | 22000 µF | ±20% | 63 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.1 A @ 120 Hz | 7.81 A @ 10 kHz | - | 0.858 (21.80mm) | 2.008 Dia (51.00mm) | 3.386 (86.00mm) | - | Chassis Mount |
|
THAS103M020AD1CCAP ALUM 10000UF 20% 20V FLATPCK |
1,722 | 21.43 |
RFQ |
Datasheet |
Bulk | THAS | Active | 10000 µF | ±20% | 20 V | 50mOhm @ 120Hz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 3.5 A @ 120 Hz | 3.85 A @ 20 kHz | - | 0.394 (10.00mm) | 2.618 L x 1.000 W (66.50mm x 25.40mm) | 0.366 (9.30mm) | - | Through Hole |
