| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WBR80-250ACAP ALUM 80UF 250V AXIAL |
1,752 | 22.33 |
RFQ |
Datasheet |
Bulk | WBR | Active | 80 µF | -10%, +100% | 250 V | 3.1Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 200 mA @ 120 Hz | 260 mA @ 100 kHz | - | - | 0.740 Dia x 1.690 L (18.80mm x 42.93mm) | - | - | Through Hole |
|
TVA1620-E3CAP ALUM 100UF 350V AXIAL |
4,971 | 22.55 |
RFQ |
Datasheet |
Bulk | TVA ATOM® | Active | 100 µF | - | 350 V | - | - | -20°C ~ 85°C | Polar | - | Audio | - | - | - | - | 1.000 Dia x 2.626 L (25.40mm x 66.70mm) | - | - | Through Hole |
|
|
WBR150-150ACAP ALUM 150UF 150V AXIAL |
2,601 | 22.75 |
RFQ |
Datasheet |
Bulk | WBR | Active | 150 µF | -10%, +100% | 150 V | 2.05Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 230 mA @ 120 Hz | 276 mA @ 100 kHz | - | - | 0.740 Dia x 1.690 L (18.80mm x 42.93mm) | - | - | Through Hole |
|
MAL215759471E3CAP ALUM 470UF 20% 500V SNAP |
1,090 | 22.84 |
RFQ |
Datasheet |
Bulk | 157 PUM-SI | Active | 470 µF | ±20% | 500 V | 400mOhm @ 100Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | Audio | - | - | 340 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
382LX152M450B082VSCAP ALUM 1500UF 20% 450V SNAP |
4,649 | 23.01 |
RFQ |
Datasheet |
Bulk | 382LX | Active | 1500 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 1.969 Dia (50.00mm) | 3.228 (82.00mm) | - | Through Hole |
|

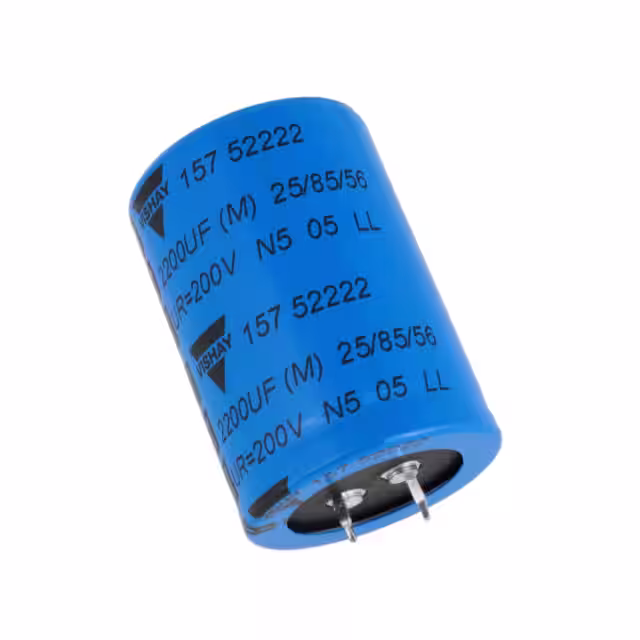

MAL215752222E3CAP ALUM 2200UF 20% 200V SNAP |
2,975 | 23.30 |
RFQ |
Datasheet |
Bulk | 157 PUM-SI | Active | 2200 µF | ±20% | 200 V | 150mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.68 A @ 120 Hz | - | 105 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
B43706A6188M600CAP ALUM 1800UF 20% 500V SCREW |
3,929 | 59.71 |
RFQ |
Datasheet |
Bulk | B43706 | Active | 1800 µF | ±20% | 500 V | 40mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.4 A @ 100 Hz | - | 55 mOhms | 0.874 (22.20mm) | 2.031 Dia (51.60mm) | 5.185 (131.70mm) | - | Chassis Mount |
|
861141486026CAP ALUM 680UF 20% 450V SNAP |
1,722 | 26.02 |
RFQ |
Datasheet |
Tray | WCAP-AI3H | Active | 680 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 3.036 A @ 100 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.323 (59.00mm) | - | Through Hole |
|
DCMC152T250AB2BCAP ALUM 1500UF 250V SCREW |
3,823 | 27.92 |
RFQ |
Datasheet |
Bulk | DCMC | Active | 1500 µF | -10%, +50% | 250 V | 88mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.1 A @ 120 Hz | 5.412 A @ 10 kHz | - | 0.500 (12.70mm) | 1.375 Dia (34.93mm) | 3.187 (80.95mm) | - | Chassis Mount |
|
WBR40-350ACAP ALUM 40UF 350V AXIAL |
4,949 | 28.10 |
RFQ |
Datasheet |
Bulk | WBR | Active | 40 µF | -10%, +100% | 350 V | 5.1Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 135 mA @ 120 Hz | 175.5 mA @ 100 kHz | - | - | 0.650 Dia x 1.830 L (16.51mm x 46.48mm) | - | - | Through Hole |
|
CGR103U030R4LCAP ALUM 10000UF 30V SCREW |
4,276 | 66.07 |
RFQ |
Datasheet |
Bulk | CGR | Active | 10000 µF | -10%, +75% | 30 V | 8mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18.9 A @ 120 Hz | 21.735 A @ 10 kHz | - | - | 1.375 Dia (34.93mm) | 4.625 (117.48mm) | - | Chassis Mount |
|
MAL210118472E3CAP ALUM 4700UF 20% 63V SCREW |
1,534 | 30.13 |
RFQ |
Datasheet |
Bulk | 101 PHR-ST | Active | 4700 µF | ±20% | 63 V | 42mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.9 A @ 100 Hz | - | 25 mOhms | 0.504 (12.80mm) | 1.378 Dia (35.00mm) | 2.744 (69.70mm) | - | Chassis Mount |
|
B43713F2478M000CAP ALUM 4700UF 20% 250V SCREW |
1,844 | 70.05 |
RFQ |
Datasheet |
Bulk | B43713 | Active | 4700 µF | ±20% | 250 V | 28mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 11.4 A @ 100 Hz | - | - | 1.122 (28.50mm) | 2.531 Dia (64.30mm) | 3.846 (97.70mm) | - | Chassis Mount |
|
MAL210619152E3CAP ALUM 1500UF 100V SCREW |
3,619 | 32.21 |
RFQ |
Datasheet |
Bulk | 106 PED-ST | Active | 1500 µF | -10%, +30% | 100 V | 59mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.8 A @ 100 Hz | - | 27 mOhms | 0.504 (12.80mm) | 1.378 Dia (35.00mm) | 2.744 (69.70mm) | - | Chassis Mount |
|
|
MAL210658472E3CAP ALUM 4700UF 63V SCREW |
3,564 | 35.24 |
RFQ |
Datasheet |
Bulk | 106 PED-ST | Active | 4700 µF | -10%, +30% | 63 V | 29mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.8 A @ 100 Hz | - | 19 mOhms | 0.504 (12.80mm) | 1.378 Dia (35.00mm) | 3.535 (89.80mm) | - | Chassis Mount |
|
|
MAL210618472E3CAP ALUM 4700UF 63V SCREW |
1,963 | 35.24 |
RFQ |
Datasheet |
Bulk | 106 PED-ST | Active | 4700 µF | -10%, +30% | 63 V | 29mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.8 A @ 100 Hz | - | 19 mOhms | 0.504 (12.80mm) | 1.378 Dia (35.00mm) | 3.535 (89.80mm) | - | Chassis Mount |
|

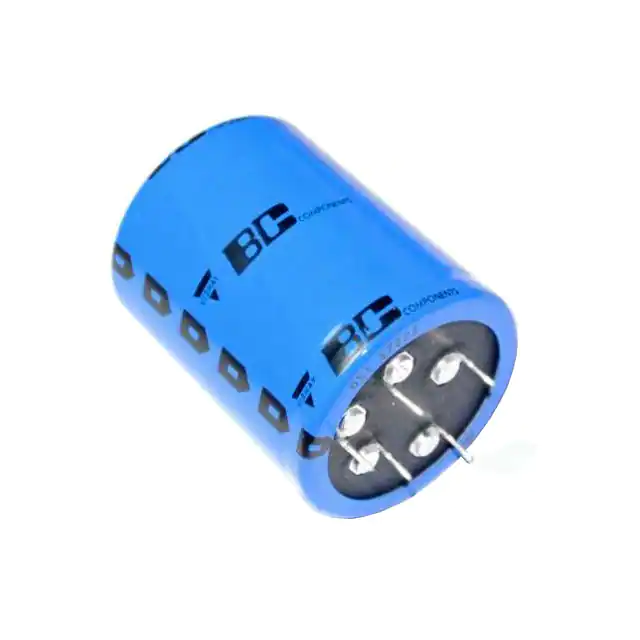

MAL209526102E3CAP ALUM 1000UF 20% 400V SNAP |
2,123 | 36.42 |
RFQ |
Datasheet |
Bulk | 095 PLL-4TSI | Active | 1000 µF | ±20% | 400 V | 107mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.2 A @ 100 Hz | - | 64 mOhms | 0.886 (22.50mm) | 1.575 Dia (40.00mm) | 2.756 (70.00mm) | - | Through Hole |
|
MAL216353152E3CAP ALUM 1500UF 20% 250V SNAP |
3,725 | 36.87 |
RFQ |
Datasheet |
Bulk | 163 PLL-PW | Active | 1500 µF | ±20% | 250 V | 85mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.05 A @ 100 Hz | - | 62 mOhms | - | 1.575 Dia (40.00mm) | 4.134 (105.00mm) | - | Through Hole |
|
|
MAL210119472E3CAP ALUM 4700UF 20% 100V SCREW |
3,258 | 37.04 |
RFQ |
Datasheet |
Bulk | 101 PHR-ST | Active | 4700 µF | ±20% | 100 V | 31mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.3 A @ 100 Hz | 9.49 A @ 10 kHz | 20 mOhms | 0.504 (12.80mm) | 1.378 Dia (35.00mm) | 3.240 (82.30mm) | - | Chassis Mount |
|
301A102M050HL2CAP ALUM 1000UF 20% 50V RADIAL |
4,117 | 42.02 |
RFQ |
Datasheet |
Tray | 301 | Active | 1000 µF | ±20% | 50 V | - | 4000 Hrs @ 85°C | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.300 (7.62mm) | 0.895 Dia (22.73mm) | 2.125 (53.98mm) | - | Through Hole |
