| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E36D630HPN284UEM9UCAP ALUM 280000UF 63V SCREW |
1,746 | 89.22 |
RFQ |
Bulk | U36D | Active | 280000 µF | -10%, +75% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 8.625 (219.08mm) | - | Chassis Mount | |
|
|
E37F401CPN103MEJ1UCAP ALUM 10000UF 20% 400V SCREW |
2,523 | 89.22 |
RFQ |
Bulk | U37F | Active | 10000 µF | ±20% | 400 V | 9mOhm @ 120Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28.2 A @ 120 Hz | 39.762 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 7.165 (182.00mm) | - | Chassis Mount | |
|
|
LNC2H562MTEJCAP ALUM 5600UF 20% 500V SCREW |
486 | 111.20 |
RFQ |
Datasheet |
Bulk | LNC | Active | 5600 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 26.4 A @ 120 Hz | 36.96 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 4.843 (123.00mm) | - | Chassis Mount |
|
CGS602T250W4CCAP ALUM 6000UF 250V SCREW |
619 | 111.27 |
RFQ |
Datasheet |
Bulk | CGS | Active | 6000 µF | -10%, +50% | 250 V | 22mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.6 A @ 120 Hz | 15.9 A @ 10 kHz | - | - | 2.500 Dia (63.50mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
|
LNT1J224MSEBCAP ALUM 220000UF 20% 63V SCREW |
639 | 111.28 |
RFQ |
Datasheet |
Bulk | LNT | Active | 220000 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 23.7 A @ 120 Hz | 35.55 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.780 (223.00mm) | - | Chassis Mount |
|
|
LNT1J224MSENCAP ALUM 220000UF 20% 63V SCREW |
335 | 111.28 |
RFQ |
Datasheet |
Bulk | LNT | Active | 220000 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 23.7 A @ 120 Hz | 35.55 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.780 (223.00mm) | - | Chassis Mount |
|
|
B43743B5338M000CAP ALUM 3300UF 20% 450V SCREW |
2,379 | 89.33 |
RFQ |
Bulk | B43743 | Active | 3300 µF | ±20% | 450 V | 26mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 16.3 A @ 100 Hz | - | 40 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 4.201 (106.70mm) | - | Chassis Mount | |
|
|
E36D351CDS163MEM9UCAP ALUM 16000UF 20% 350V SCREW |
3,323 | 89.37 |
RFQ |
Bulk | U36D | Active | 16000 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 8.625 (219.08mm) | - | Chassis Mount | |
|
672D187H040DM5JCAP ALUM 180UF 40V RADIAL |
4,480 | 89.37 |
RFQ |
Datasheet |
Bulk | 672D | Active | 180 µF | - | 40 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.161 (29.50mm) | - | Through Hole |
|
400LSG5600MEFC77X141CAP ALUM 5600UF 20% 400V SCREW |
861 | 111.36 |
RFQ |
Datasheet |
Bulk | LSG | Active | 5600 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 13.2 A @ 120 Hz | 18.48 A @ 10 kHz | - | 1.236 (31.40mm) | 3.032 Dia (77.00mm) | 5.630 (143.00mm) | - | Chassis Mount |
|
|
ERHB5H1LGC272MF85UCAP ALUM 2700UF 20% 575V SCREW |
3,433 | 89.44 |
RFQ |
Datasheet |
Bulk | RHB | Active | 2700 µF | ±20% | 575 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7 A @ 120 Hz | 9.8 A @ 3 kHz | - | 1.240 (31.50mm) | 3.504 Dia (89.00mm) | 3.504 (89.00mm) | - | Chassis Mount |
|
|
604D201F200JP7CAP ALUM 200UF 200V AXIAL |
2,726 | 89.45 |
RFQ |
Datasheet |
Bulk | 604D | Active | 200 µF | -10%, +50% | 200 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 1.000 Dia x 2.625 L (25.40mm x 66.68mm) | - | - | Through Hole |
|
|
E37L421CPN682MFB7UCAP ALUM 6800UF 20% 420V SCREW |
2,332 | 89.53 |
RFQ |
Bulk | U37L | Active | 6800 µF | ±20% | 420 V | 15mOhm @ 120Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.8 A @ 120 Hz | 27.918 A @ 10 kHz | - | 1.250 (31.75mm) | 3.504 Dia (89.00mm) | 4.646 (118.00mm) | - | Chassis Mount | |
|

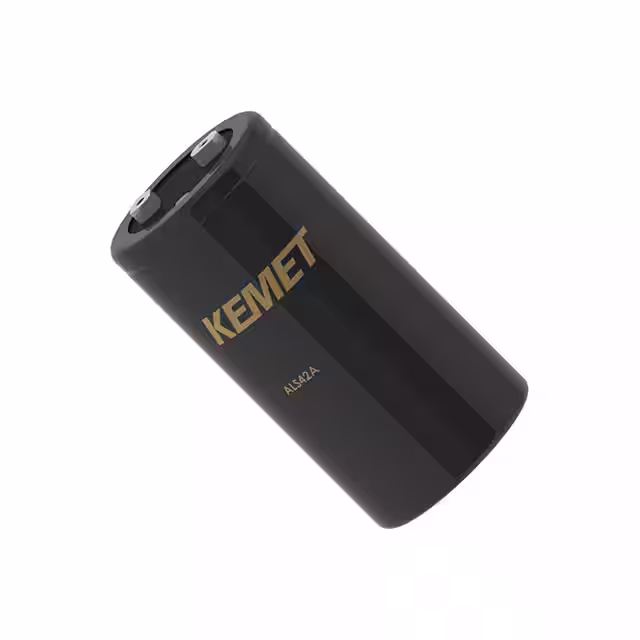

ALS42A123Q8L400CAP ALUM 12000UF 20% 400V SCREW |
898 | 111.49 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
E36D501CDS682MEM9UCAP ALUM 6800UF 20% 500V SCREW |
2,480 | 89.55 |
RFQ |
Bulk | U36D | Active | 6800 µF | ±20% | 500 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 8.625 (219.08mm) | - | Chassis Mount | |
|
|
LNK2H472MSEHBBCAP ALUM 4700UF 20% 500V SCREW |
908 | 111.54 |
RFQ |
Datasheet |
Bulk | LNK | Active | 4700 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 16.5 A @ 120 Hz | 23.1 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 6.811 (173.00mm) | - | Chassis Mount |
|
|
LNK2H472MSEHBNCAP ALUM 4700UF 20% 500V SCREW |
849 | 111.54 |
RFQ |
Datasheet |
Bulk | LNK | Active | 4700 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 16.5 A @ 120 Hz | 23.1 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 6.811 (173.00mm) | - | Chassis Mount |
|
|
B43763B5338M000CAP ALUM 3300UF 20% 450V SCREW |
4,406 | 89.62 |
RFQ |
Bulk | B43763 | Active | 3300 µF | ±20% | 450 V | 26mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 16.3 A @ 100 Hz | - | 40 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 4.201 (106.70mm) | - | Chassis Mount | |
|
B41560A8100M003CAP ALUM 100000UF 20% 63V SCREW |
520 | 111.56 |
RFQ |
Datasheet |
Bulk | B41560 | Active | 100000 µF | ±20% | 63 V | 5mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 23 A @ 100 Hz | - | 6.6 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.677 (144.20mm) | - | Chassis Mount |
|
|
B41580A8100M003CAP ALUM 100000UF 20% 63V SCREW |
454 | 111.56 |
RFQ |
Datasheet |
Bulk | B41580 | Active | 100000 µF | ±20% | 63 V | 5mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 23 A @ 100 Hz | - | 6.6 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.677 (144.20mm) | - | Chassis Mount |
