| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CGS644UFX5L3PDCAP ALUM 640000UF 16V SCREW |
791 | 198.28 |
RFQ |
Datasheet |
Bulk | CGS | Active | 640000 µF | -10%, +75% | 16 V | 2mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 30 A @ 120 Hz | 39 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 5.625 (142.88mm) | - | Chassis Mount |
|
DCMX902T450DG2BCAP ALUM 9000UF 450V SCREW |
580 | 198.53 |
RFQ |
Datasheet |
Bulk | DCMX | Active | 9000 µF | -10%, +50% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 8.687 (220.65mm) | - | Chassis Mount |
|

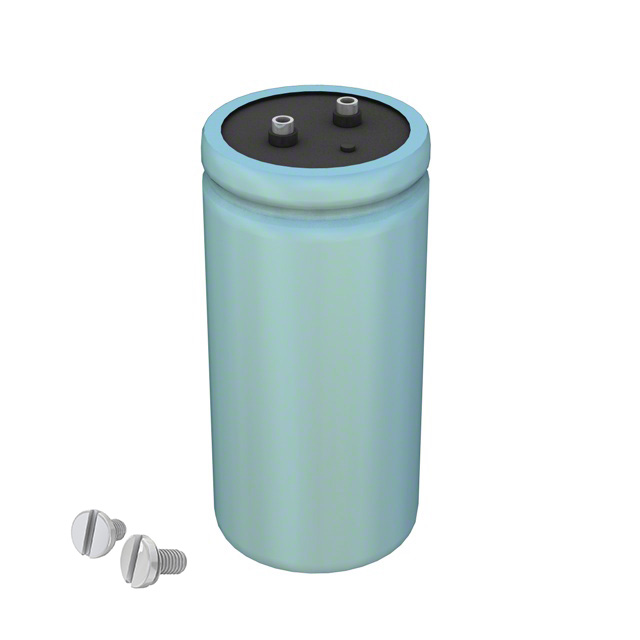

CGH242T500W5CCAP ALUM 2400UF 500V SCREW |
926 | 198.72 |
RFQ |
Datasheet |
Bulk | CGH | Active | 2400 µF | -10%, +50% | 500 V | 106mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.3 A @ 120 Hz | - | - | - | 2.500 Dia (63.50mm) | 5.125 (130.18mm) | - | Chassis Mount |
|
CGS242T500W5LCAP ALUM 2400UF 500V SCREW |
492 | 199.01 |
RFQ |
Datasheet |
Bulk | CGS | Active | 2400 µF | -10%, +50% | 500 V | 44mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9 A @ 120 Hz | 13.5 A @ 10 kHz | - | - | 2.500 Dia (63.50mm) | 5.625 (142.88mm) | - | Chassis Mount |
|
|
36DY392F350DD2ACAP ALUM 3900UF 350V SCREW |
783 | 149.04 |
RFQ |
Datasheet |
Bulk | 36DY | Active | 3900 µF | -10%, +50% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252 (31.80mm) | 3.079 Dia (78.20mm) | 4.752 (120.70mm) | - | Chassis Mount |
|
MLSG682M020EK0CCAP ALUM 6800UF 20% 20V FLATPACK |
740 | 199.34 |
RFQ |
Datasheet |
Bulk | MLSG Flatpack | Active | 6800 µF | ±20% | 20 V | 84mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 11 A @ 120 Hz | 12.2 A @ 20 kHz | - | 1.000 (25.40mm) | 1.500 L x 1.750 W (38.10mm x 44.45mm) | 0.500 (12.70mm) | - | Through Hole |
|
|
MLSG422M040EK0CCAP ALUM 4200UF 20% 40V FLATPACK |
352 | 199.34 |
RFQ |
Datasheet |
Bulk | MLSG Flatpack | Active | 4200 µF | ±20% | 40 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | - | - | - | 1.000 (25.40mm) | 1.500 L x 1.750 W (38.10mm x 44.45mm) | 0.500 (12.70mm) | - | Through Hole |
|
MLSG152M060EK0ACAP ALUM 1500UF 20% 60V FLATPACK |
639 | 199.34 |
RFQ |
Datasheet |
Bulk | MLSG Flatpack | Active | 1500 µF | ±20% | 60 V | 106mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 9.8 A @ 120 Hz | 11.5 A @ 20 kHz | - | 1.000 (25.40mm) | 1.500 L x 1.750 W (38.10mm x 44.45mm) | 0.500 (12.70mm) | - | Chassis Mount |
|
|
MLSG501M100EK0ACAP ALUM 500UF 20% 100V FLATPACK |
439 | 199.34 |
RFQ |
Datasheet |
Bulk | MLSG Flatpack | Active | 500 µF | ±20% | 100 V | 355mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 5.4 A @ 120 Hz | 6.4 A @ 20 kHz | - | 1.000 (25.40mm) | 1.500 L x 1.750 W (38.10mm x 44.45mm) | 0.500 (12.70mm) | - | Chassis Mount |
|
|
MLSG361M150EK1ACAP ALUM 360UF 20% 150V FLATPACK |
679 | 199.34 |
RFQ |
Datasheet |
Bulk | MLSG Flatpack | Active | 360 µF | ±20% | 150 V | 388mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 5.1 A @ 120 Hz | 6.4 A @ 20 kHz | - | 1.000 (25.40mm) | 1.500 L x 1.750 W (38.10mm x 44.45mm) | 0.500 (12.70mm) | - | Chassis Mount |
|
|
MLSG281M200EK1ACAP ALUM 280UF 20% 200V FLATPACK |
378 | 199.34 |
RFQ |
Datasheet |
Bulk | MLSG Flatpack | Active | 280 µF | ±20% | 200 V | 426mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 4.9 A @ 120 Hz | 6.2 A @ 20 kHz | - | 1.000 (25.40mm) | 1.500 L x 1.750 W (38.10mm x 44.45mm) | 0.500 (12.70mm) | - | Chassis Mount |
|
|
MLSG221M250EK0CCAP ALUM 220UF 20% 250V FLATPACK |
956 | 199.34 |
RFQ |
Datasheet |
Bulk | MLSG Flatpack | Active | 220 µF | ±20% | 250 V | 597mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 4.1 A @ 120 Hz | 5.1 A @ 20 kHz | - | 1.000 (25.40mm) | 1.500 L x 1.750 W (38.10mm x 44.45mm) | 0.500 (12.70mm) | - | Through Hole |
|
|
ERWF451LGN183MFP0UCAP ALUM 18000UF 20% 450V SCREW |
544 | 149.18 |
RFQ |
Bulk | RWF | Active | 18000 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | - | - | - | - | - | - | - | - | Chassis Mount | |
|
500LSU10000MNB90X221CAP ALUM 10000UF 20% 500V SCREW |
952 | 199.44 |
RFQ |
Datasheet |
Bulk | LSU | Active | 10000 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 27.4 A @ 120 Hz | 38.36 A @ 10 kHz | - | 1.236 (31.40mm) | 3.543 Dia (90.00mm) | 8.819 (224.00mm) | - | Chassis Mount |
|
MLSG243M010JB0CCAP ALUM 24000UF 20% 10V FLATPCK |
728 | 199.52 |
RFQ |
Datasheet |
Bulk | MLSG Slimpack | Active | 24000 µF | ±20% | 10 V | 42mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Bi-Polar | - | General Purpose | 15.4 A @ 120 Hz | 15.8 A @ 20 kHz | - | 0.500 (12.70mm) | 3.000 L x 1.000 W (76.20mm x 25.40mm) | 0.500 (12.70mm) | - | Through Hole |
|
|
MLSG113M020JB0CCAP ALUM 11000UF 20% 20V FLATPCK |
485 | 199.52 |
RFQ |
Datasheet |
Bulk | MLSG Slimpack | Active | 11000 µF | ±20% | 20 V | 42mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Bi-Polar | - | General Purpose | 15.2 A @ 120 Hz | 15.6 A @ 20 kHz | - | 0.500 (12.70mm) | 3.000 L x 1.000 W (76.20mm x 25.40mm) | 0.500 (12.70mm) | - | Through Hole |
|
|
MLSG852M030JB0CCAP ALUM 8500UF 20% 30V FLATPACK |
642 | 199.52 |
RFQ |
Datasheet |
Bulk | MLSG Slimpack | Active | 8500 µF | ±20% | 30 V | 43mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Bi-Polar | - | General Purpose | 14.9 A @ 120 Hz | 15.3 A @ 20 kHz | - | 0.500 (12.70mm) | 3.000 L x 1.000 W (76.20mm x 25.40mm) | 0.500 (12.70mm) | - | Through Hole |
|
|
MLSG592M040JB0CCAP ALUM 5900UF 20% 40V FLATPACK |
754 | 199.52 |
RFQ |
Datasheet |
Bulk | MLSG Slimpack | Active | 5900 µF | ±20% | 40 V | 45mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Bi-Polar | - | General Purpose | 14.9 A @ 120 Hz | 15.3 A @ 20 kHz | - | 0.500 (12.70mm) | 3.000 L x 1.000 W (76.20mm x 25.40mm) | 0.500 (12.70mm) | - | Through Hole |
|
|
MLSG262M060JB0CCAP ALUM 2600UF 20% 60V FLATPACK |
845 | 199.52 |
RFQ |
Datasheet |
Bulk | MLSG Slimpack | Active | 2600 µF | ±20% | 60 V | 47mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Bi-Polar | - | General Purpose | 14.7 A @ 120 Hz | 15 A @ 20 kHz | - | 0.500 (12.70mm) | 3.000 L x 1.000 W (76.20mm x 25.40mm) | 0.500 (12.70mm) | - | Through Hole |
|
|
MLSG202M075JB0CCAP ALUM 2000UF 20% 75V FLATPACK |
966 | 199.52 |
RFQ |
Datasheet |
Bulk | MLSG Slimpack | Active | 2000 µF | ±20% | 75 V | 96mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Bi-Polar | - | General Purpose | 8.2 A @ 120 Hz | 8.5 A @ 20 kHz | - | 0.500 (12.70mm) | 3.000 L x 1.000 W (76.20mm x 25.40mm) | 0.500 (12.70mm) | - | Through Hole |
