| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLS473M5R0EB1CCAP ALUM 47000UF 20% 5V FLATPACK |
323 | 237.65 |
RFQ |
Datasheet |
Bulk | MLS | Active | 47000 µF | ±20% | 5 V | 30mOhm @ 120Hz | 10000 Hrs @ 85°C | -55°C ~ 125°C | Polar | - | General Purpose | 34.4 A @ 120 Hz | 32 A @ 20 kHz | - | 1.000 (25.40mm) | 3.000 L x 1.750 W (76.20mm x 44.45mm) | 0.500 (12.70mm) | - | Through Hole |
|
MLS473M5R0EB1DCAP ALUM 47000UF 20% 5V FLATPACK |
468 | 237.65 |
RFQ |
Datasheet |
Bulk | MLS | Active | 47000 µF | ±20% | 5 V | 30mOhm @ 120Hz | 10000 Hrs @ 85°C | -55°C ~ 125°C | Polar | - | General Purpose | 34.4 A @ 120 Hz | 32 A @ 20 kHz | - | 1.000 (25.40mm) | 3.000 L x 1.750 W (76.20mm x 44.45mm) | 0.500 (12.70mm) | - | Chassis Mount |
|
|
MLS561M250EB1DCAP ALUM 560UF 20% 250V FLATPACK |
373 | 237.65 |
RFQ |
Datasheet |
Bulk | MLS | Active | 560 µF | ±20% | 250 V | 240mOhm @ 120Hz | 10000 Hrs @ 85°C | -55°C ~ 125°C | Polar | - | General Purpose | 6.5 A @ 120 Hz | 8.1 A @ 20 kHz | - | 1.000 (25.40mm) | 3.000 L x 1.750 W (76.20mm x 44.45mm) | 0.500 (12.70mm) | - | Chassis Mount |
|
MLS821M200EB0ACAP ALUM 820UF 20% 200V FLATPACK |
860 | 258.96 |
RFQ |
Datasheet |
Bulk,Bulk | MLS | Active | 820 µF | ±20% | 200 V | 172mOhm @ 120Hz | 10000 Hrs @ 85°C | -55°C ~ 125°C | Polar | - | General Purpose | 7.7 A @ 120 Hz | 10 A @ 20 kHz | - | 1.000 (25.40mm) | 3.000 L x 1.750 W (76.20mm x 44.45mm) | 0.500 (12.70mm) | - | Chassis Mount |
|
|
MLS821M200EB1DCAP ALUM 820UF 20% 200V FLATPACK |
781 | 237.65 |
RFQ |
Datasheet |
Bulk | MLS | Active | 820 µF | ±20% | 200 V | 172mOhm @ 120Hz | 10000 Hrs @ 85°C | -55°C ~ 125°C | Polar | - | General Purpose | 7.7 A @ 120 Hz | 10 A @ 20 kHz | - | 1.000 (25.40mm) | 3.000 L x 1.750 W (76.20mm x 44.45mm) | 0.500 (12.70mm) | - | Chassis Mount |
|
|
LNR1C155MSENCAP ALUM 1.5F 20% 16V SCREW |
328 | 238.96 |
RFQ |
Datasheet |
Bulk | LNR | Active | 1.5 F | ±20% | 16 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 39.7 A @ 120 Hz | 45.655 A @ 10 kHz | - | 1.634 (41.50mm) | 3.937 Dia (100.00mm) | 9.961 (253.00mm) | - | Chassis Mount |
|
B43713A6398M000CAP ALUM 3900UF 20% 500V SCREW |
398 | 169.13 |
RFQ |
Datasheet |
Bulk | B43713 | Active | 3900 µF | ±20% | 500 V | 26mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.4 A @ 100 Hz | - | 45 mOhms | 1.248 (31.70mm) | 3.027 Dia (76.90mm) | 5.677 (144.20mm) | - | Chassis Mount |
|

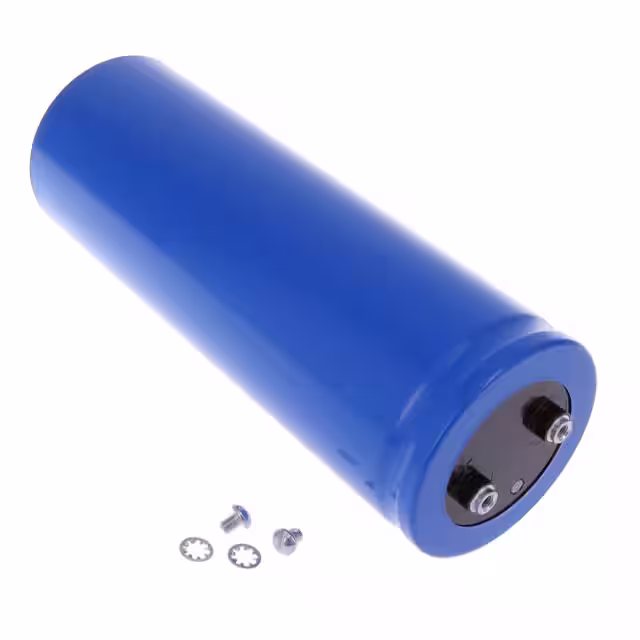

36DX312F450DJ2BCAP ALUM 3100UF 450V SCREW |
707 | 169.20 |
RFQ |
Datasheet |
Bulk | 36DX | Active | 3100 µF | -10%, +50% | 450 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252 (31.80mm) | 3.079 Dia (78.20mm) | 8.752 (222.30mm) | - | Chassis Mount |
|
MAL210619333E3CAP ALUM 33000UF 100V SCREW |
642 | 169.50 |
RFQ |
Datasheet |
Bulk | 106 PED-ST | Active | 33000 µF | -10%, +30% | 100 V | 8mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23 A @ 100 Hz | - | 6 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 6.012 (152.70mm) | - | Chassis Mount |
|
|
MAL210659333E3CAP ALUM 33000UF 100V SCREW |
789 | 169.50 |
RFQ |
Datasheet |
Bulk | 106 PED-ST | Active | 33000 µF | -10%, +30% | 100 V | 8mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23 A @ 100 Hz | - | 6 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 6.012 (152.70mm) | - | Chassis Mount |
|
HES352G400X4LCAP ALUM 3500UF 400V SCREW |
317 | 240.12 |
RFQ |
Datasheet |
Bulk | HES | Active | 3500 µF | 0%, +50% | 400 V | 31mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 10.7 A @ 120 Hz | 13.161 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 4.625 (117.48mm) | - | Chassis Mount |
|
MAL250015153E3CAP ALUM 15000UF 20% 350V SCREW |
321 | 169.98 |
RFQ |
Box | 500 PGP-ST | Active | 15000 µF | ±20% | 350 V | 9mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23 A @ 100 Hz | 34.5 A @ 10 kHz | 8 mOhms | 1.252 (31.80mm) | 3.008 Dia (76.40mm) | 8.693 (220.80mm) | - | Chassis Mount | |
|
|
MAL250055153E3CAP ALUM 15000UF 20% 350V SCREW |
354 | 169.98 |
RFQ |
Box | 500 PGP-ST | Active | 15000 µF | ±20% | 350 V | 9mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23 A @ 100 Hz | 34.5 A @ 10 kHz | 8 mOhms | 1.252 (31.80mm) | 3.008 Dia (76.40mm) | 8.693 (220.80mm) | - | Chassis Mount | |
|
|
36DE204G050DJ2DCAP ALUM 200000UF 50V SCREW |
506 | 170.06 |
RFQ |
Datasheet |
Bulk | 36DE | Active | 200000 µF | -10%, +75% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 95°C | Polar | - | General Purpose | - | - | - | 1.252 (31.80mm) | 3.079 Dia (78.20mm) | 8.752 (222.30mm) | - | Chassis Mount |
|
|
LNX2L822MSEKBNCAP ALUM 8200UF 20% 550V SCREW |
470 | 240.77 |
RFQ |
Datasheet |
Bulk | LNX | Active | 8200 µF | ±20% | 550 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 21.6 A @ 120 Hz | 30.24 A @ 10 kHz | - | 1.634 (41.50mm) | 3.937 Dia (100.00mm) | 8.819 (224.00mm) | - | Chassis Mount |
|
MAL210138154E3CAP ALUM 150000UF 20% 63V SCREW |
532 | 170.70 |
RFQ |
Datasheet |
Bulk | 101 PHR-ST | Active | 150000 µF | ±20% | 63 V | 6mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 22.2 A @ 100 Hz | - | 5 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 5.972 (151.70mm) | - | Chassis Mount |
|
|
MAL210178154E3CAP ALUM 150000UF 20% 63V SCREW |
953 | 170.70 |
RFQ |
Datasheet |
Bulk | 101 PHR-ST | Active | 150000 µF | ±20% | 63 V | 6mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 22.2 A @ 100 Hz | - | 5 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 5.972 (151.70mm) | - | Chassis Mount |
|
|
LNT2V223MSEKBNCAP ALUM 22000UF 20% 350V SCREW |
766 | 241.72 |
RFQ |
Datasheet |
Bulk | LNT | Active | 22000 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 48 A @ 120 Hz | 67.2 A @ 10 kHz | - | 1.634 (41.50mm) | 3.937 Dia (100.00mm) | 10.000 (254.00mm) | - | Chassis Mount |
|
CGS722T350X5LCAP ALUM 7200UF 350V SCREW |
672 | 242.93 |
RFQ |
Datasheet |
Bulk | CGS | Active | 7200 µF | -10%, +50% | 350 V | 22mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.3 A @ 120 Hz | 19.95 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 5.625 (142.88mm) | - | Chassis Mount |
|
|
CGS282T500X4LCAP ALUM 2800UF 500V SCREW |
761 | 243.07 |
RFQ |
Datasheet |
Bulk | CGS | Active | 2800 µF | -10%, +50% | 500 V | 40mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.8 A @ 120 Hz | 14.7 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 4.625 (117.48mm) | - | Chassis Mount |
