| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CGS153T300X8LCAP ALUM 15000UF 300V SCREW |
575 | 349.80 |
RFQ |
Datasheet |
Bulk | CGS | Active | 15000 µF | -10%, +50% | 300 V | 15mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.8 A @ 120 Hz | 29.7 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 8.625 (219.08mm) | - | Chassis Mount |
|

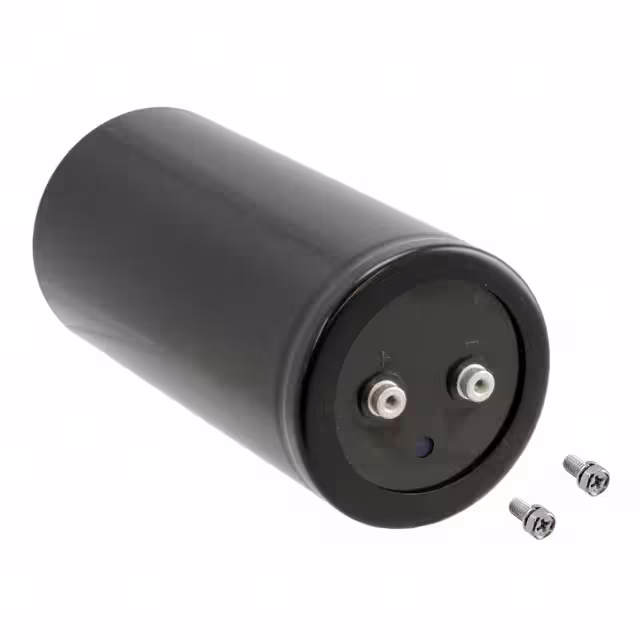

580LSU5600MNB90X191CAP ALUM 5600UF 20% 580V SCREW |
824 | 210.15 |
RFQ |
Datasheet |
Bulk | LSU | Last Time Buy | 5600 µF | ±20% | 580 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 16.3 A @ 120 Hz | 21.19 A @ 10 kHz | - | 1.236 (31.40mm) | 3.543 Dia (90.00mm) | 7.638 (194.00mm) | - | Chassis Mount |
|
CGH772T450X8LCAP ALUM 7700UF 450V SCREW |
696 | 350.10 |
RFQ |
Datasheet |
Bulk | CGH | Active | 7700 µF | -10%, +50% | 450 V | 17.3mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18.2 A @ 120 Hz | 22.386 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 8.625 (219.08mm) | - | Chassis Mount |
|
B43704A9159M000CAP ALUM 15000UF 20% 400V SCREW |
708 | 210.62 |
RFQ |
Bulk | B43704 | Active | 15000 µF | ±20% | 400 V | 7.7mOhm @ 100Hz | 12000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 41 A @ 100 Hz | - | 13 mOhms | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 7.795 (198.00mm) | - | Chassis Mount | |
|
B43733A4159M000CAP ALUM 15000UF 20% 350V SCREW |
451 | 210.65 |
RFQ |
Datasheet |
Bulk | B43733 | Active | 15000 µF | ±20% | 350 V | 8.6mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 34 A @ 100 Hz | - | - | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 7.795 (198.00mm) | - | Chassis Mount |
|
MAL210637154E3CAP ALUM 150000UF 40V SCREW |
534 | 211.05 |
RFQ |
Datasheet |
Bulk | 106 PED-ST | Active | 150000 µF | -10%, +30% | 40 V | 8mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 38 A @ 100 Hz | - | 8 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 8.925 (226.70mm) | - | Chassis Mount |
|
|
MAL210647154E3CAP ALUM 150000UF 40V SCREW |
318 | 211.05 |
RFQ |
Datasheet |
Bulk | 106 PED-ST | Active | 150000 µF | -10%, +30% | 40 V | 8mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 50 A @ 100 Hz | - | 8 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.157 (156.40mm) | - | Chassis Mount |
|
|
MAL210677154E3CAP ALUM 150000UF 40V SCREW |
387 | 211.05 |
RFQ |
Datasheet |
Bulk | 106 PED-ST | Active | 150000 µF | -10%, +30% | 40 V | 8mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 38 A @ 100 Hz | - | 8 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 8.925 (226.70mm) | - | Chassis Mount |
|
|
MAL210687154E3CAP ALUM 150000UF 40V SCREW |
683 | 211.05 |
RFQ |
Datasheet |
Bulk | 106 PED-ST | Active | 150000 µF | -10%, +30% | 40 V | 8mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 50 A @ 100 Hz | - | 8 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.157 (156.40mm) | - | Chassis Mount |
|
|
CGS324U050X8LCAP ALUM 320000UF 50V SCREW |
552 | 356.53 |
RFQ |
Datasheet |
Bulk | CGS | Active | 320000 µF | -10%, +75% | 50 V | 6mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 30.7 A @ 120 Hz | 39.91 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 8.625 (219.08mm) | - | Chassis Mount |
|
|
B43456A4189M000CAP ALUM 18000UF 20% 350V SCREW |
414 | 362.64 |
RFQ |
Datasheet |
Bulk | B43456 | Not For New Designs | 18000 µF | ±20% | 350 V | 5mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 38 A @ 100 Hz | - | 7 mOhms | 1.248 (31.70mm) | 3.583 Dia (91.00mm) | 8.740 (222.00mm) | - | Chassis Mount |
|
|
CGS105UGX8L6PDCAP ALUM 1F 20V SCREW |
812 | 362.72 |
RFQ |
Datasheet |
Bulk | CGS | Active | 1 F | -10%, +75% | 20 V | 3mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 41 A @ 120 Hz | 53.3 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 8.625 (219.08mm) | - | Chassis Mount |
|
MAL250017103E3CAP ALUM 10000UF 20% 450V SCREW |
419 | 211.35 |
RFQ |
Datasheet |
Bulk | 500 PGP-ST | Active | 10000 µF | ±20% | 450 V | 14mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 45.8 A @ 120 Hz | - | 11 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 8.886 (225.70mm) | - | Chassis Mount |
|
|
MAL250057103E3CAP ALUM 10000UF 20% 450V SCREW |
759 | 211.35 |
RFQ |
Datasheet |
Bulk | 500 PGP-ST | Active | 10000 µF | ±20% | 450 V | 14mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 45.8 A @ 120 Hz | - | 11 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 8.886 (225.70mm) | - | Chassis Mount |
|
|
B43724B6688M000CAP ALUM 6800UF 20% 500V SCREW |
840 | 211.52 |
RFQ |
Datasheet |
Bulk | B43724 | Active | 6800 µF | ±20% | 500 V | 14mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23.5 A @ 100 Hz | - | - | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 6.732 (171.00mm) | - | Chassis Mount |
|
|
CGS123T350X8LCAP ALUM 12000UF 350V SCREW |
923 | 373.34 |
RFQ |
Datasheet |
Bulk | CGS | Active | 12000 µF | -10%, +50% | 350 V | 17mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18.4 A @ 120 Hz | 27.6 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 8.625 (219.08mm) | - | Chassis Mount |
|
|
B43700D8398M000CAP ALUM 3900UF 20% 600V SCREW |
395 | 211.81 |
RFQ |
Datasheet |
Bulk | B43700 | Active | 3900 µF | ±20% | 600 V | 26mOhm @ 100Hz | 6000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.4 A @ 100 Hz | - | - | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 5.728 (145.50mm) | - | Chassis Mount |
|
|
36DX103F350DJ2ACAP ALUM 10000UF 350V SCREW |
308 | 211.93 |
RFQ |
Datasheet |
Bulk | 36DX | Active | 10000 µF | -10%, +50% | 350 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252 (31.80mm) | 3.079 Dia (78.20mm) | 8.752 (222.30mm) | - | Chassis Mount |
|
|
B43704B6688M000CAP ALUM 6800UF 20% 500V SCREW |
755 | 212.36 |
RFQ |
Datasheet |
Bulk | B43704 | Active | 6800 µF | ±20% | 500 V | 14mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23.5 A @ 100 Hz | 2.56 A @ 100 kHz | 22 mOhms | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 6.732 (171.00mm) | - | Chassis Mount |
|
|
MAL210618104E3CAP ALUM 100000UF 63V SCREW |
452 | 212.40 |
RFQ |
Datasheet |
Bulk | 106 PED-ST | Active | 100000 µF | -10%, +30% | 63 V | 8mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 36.5 A @ 100 Hz | - | 8 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 8.925 (226.70mm) | - | Chassis Mount |
