| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL250177153E3CAP ALUM 15000UF 20% 450V SCREW |
367 | 241.32 |
RFQ |
Datasheet |
Box | 501 PGM-ST | Active | 15000 µF | ±20% | 450 V | 13mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28.9 A @ 100 Hz | 43.35 A @ 10 kHz | 10 mOhms | 1.252 (31.80mm) | 3.520 Dia (89.40mm) | 7.602 (193.10mm) | - | Chassis Mount |
|
MAL210147474E3CAP ALUM 470000UF 20% 40V SCREW |
667 | 241.95 |
RFQ |
Datasheet |
Bulk | 101 PHR-ST | Active | 470000 µF | ±20% | 40 V | 5mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 41.5 A @ 100 Hz | - | 5 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.795 (223.40mm) | - | Chassis Mount |
|
|
MAL210187474E3CAP ALUM 470000UF 20% 40V SCREW |
535 | 241.95 |
RFQ |
Datasheet |
Bulk | 101 PHR-ST | Active | 470000 µF | ±20% | 40 V | 5mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 41.5 A @ 100 Hz | - | 5 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.795 (223.40mm) | - | Chassis Mount |
|

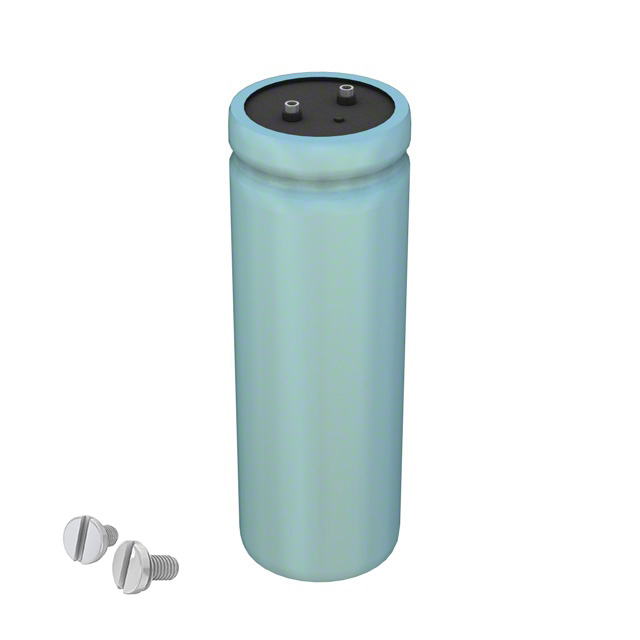

CGH223T250X8LCAP ALUM 22000UF 250V SCREW |
373 | 451.25 |
RFQ |
Datasheet |
Bulk | CGH | Active | 22000 µF | -10%, +50% | 250 V | 11.5mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 22.3 A @ 120 Hz | 27.429 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 8.625 (219.08mm) | - | Chassis Mount |
|
CGS223T250X8LCAP ALUM 22000UF 250V SCREW |
662 | 451.26 |
RFQ |
Datasheet |
Bulk | CGS | Active | 22000 µF | -10%, +50% | 250 V | 10mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23.8 A @ 120 Hz | 35.7 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 8.625 (219.08mm) | - | Chassis Mount |
|
|
CGS602T500X8LCAP ALUM 6000UF 500V SCREW |
492 | 454.61 |
RFQ |
Datasheet |
Bulk | CGS | Active | 6000 µF | -10%, +50% | 500 V | 18mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18.7 A @ 120 Hz | 28.05 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 8.625 (219.08mm) | - | Chassis Mount |
|
580LSU6800MNB90X221CAP ALUM 6800UF 20% 580V SCREW |
876 | 246.01 |
RFQ |
Datasheet |
Bulk | LSU | Active | 6800 µF | ±20% | 580 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 18.4 A @ 120 Hz | 23.92 A @ 10 kHz | - | 1.236 (31.40mm) | 3.543 Dia (90.00mm) | 8.819 (224.00mm) | - | Chassis Mount |
|
B43704A5129M000CAP ALUM 12000UF 20% 450V SCREW |
503 | 248.37 |
RFQ |
Datasheet |
Bulk | B43704 | Active | 12000 µF | ±20% | 450 V | 8.5mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 37.7 A @ 100 Hz | - | 14 mOhms | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 7.795 (198.00mm) | - | Chassis Mount |
|
|
B43704A6828M000CAP ALUM 8200UF 20% 500V SCREW |
985 | 250.19 |
RFQ |
Datasheet |
Bulk | B43704 | Active | 8200 µF | ±20% | 500 V | 12mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 26.2 A @ 100 Hz | - | - | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 8.728 (221.70mm) | - | Chassis Mount |
|
125113U030AH1BCAP ALUM 11000UF 30V SCREW |
320 | 252.03 |
RFQ |
Datasheet |
Bulk | 125 | Active | 11000 µF | -10%, +75% | 30 V | 16mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 16.5 A @ 120 Hz | - | - | 0.500 (12.70mm) | 1.399 Dia (35.54mm) | 2.657 (67.50mm) | - | Chassis Mount |
|
|
125142U040AK1ACAP ALUM 1400UF 40V SCREW |
444 | 252.03 |
RFQ |
Datasheet |
Bulk | 125 | Active | 1400 µF | -10%, +75% | 40 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | - | - | - | 0.500 (12.70mm) | 1.399 Dia (35.54mm) | 1.750 (44.45mm) | - | Chassis Mount |
|
|
125143U025AH1BCAP ALUM 14000UF 25V SCREW |
961 | 252.03 |
RFQ |
Datasheet |
Bulk | 125 | Active | 14000 µF | -10%, +75% | 25 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | - | - | - | 0.500 (12.70mm) | 1.399 Dia (35.54mm) | 2.657 (67.50mm) | - | Chassis Mount |
|
|
125143U030AB1BCAP ALUM 14000UF 30V SCREW |
374 | 252.03 |
RFQ |
Datasheet |
Bulk | 125 | Active | 14000 µF | -10%, +75% | 30 V | 13mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 18.9 A @ 120 Hz | - | - | 0.500 (12.70mm) | 1.399 Dia (35.54mm) | 3.435 (87.25mm) | - | Chassis Mount |
|
|
125173U015AA1BCAP ALUM 17000UF 15V SCREW |
789 | 252.03 |
RFQ |
Datasheet |
Bulk | 125 | Active | 17000 µF | -10%, +75% | 15 V | 19mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 15.2 A @ 120 Hz | - | - | 0.500 (12.70mm) | 1.399 Dia (35.54mm) | 2.421 (61.50mm) | - | Chassis Mount |
|
|
125233U6R3AK1BCAP ALUM 23000UF 6.3V SCREW |
420 | 252.03 |
RFQ |
Datasheet |
Bulk | 125 | Active | 23000 µF | -10%, +75% | 6.3 V | 28mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 11.3 A @ 120 Hz | - | - | 0.500 (12.70mm) | 1.399 Dia (35.54mm) | 1.940 (49.28mm) | - | Chassis Mount |
|
|
125242U040AA2ACAP ALUM 2400UF 40V SCREW |
837 | 252.03 |
RFQ |
Bulk | 125 | Active | 2400 µF | -10%, +75% | 40 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | - | - | - | 0.500 (12.70mm) | 1.399 Dia (35.54mm) | 2.250 (57.15mm) | - | Chassis Mount | |
|
|
125262U040AK1BCAP ALUM 2600UF 40V SCREW |
524 | 252.03 |
RFQ |
Datasheet |
Bulk | 125 | Active | 2600 µF | -10%, +75% | 40 V | 40mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 9.4 A @ 120 Hz | - | - | 0.500 (12.70mm) | 1.399 Dia (35.54mm) | 1.940 (49.28mm) | - | Chassis Mount |
|
|
125353U020AC1BCAP ALUM 35000UF 20V SCREW |
512 | 252.03 |
RFQ |
Datasheet |
Bulk | 125 | Active | 35000 µF | -10%, +75% | 20 V | 8mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 23.8 A @ 120 Hz | - | - | 0.500 (12.70mm) | 1.399 Dia (35.54mm) | 4.435 (112.65mm) | - | Chassis Mount |
|
|
125462U040AA1BCAP ALUM 4600UF 40V SCREW |
685 | 252.03 |
RFQ |
Datasheet |
Bulk | 125 | Active | 4600 µF | -10%, +75% | 40 V | 24mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 12.8 A @ 120 Hz | - | - | 0.500 (12.70mm) | 1.399 Dia (35.54mm) | 2.421 (61.50mm) | - | Chassis Mount |
|
|
125472U030AH2ACAP ALUM 4700UF 30V SCREW |
891 | 252.03 |
RFQ |
Bulk | 125 | Active | 4700 µF | -10%, +75% | 30 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | - | - | - | 0.500 (12.70mm) | 1.399 Dia (35.54mm) | 2.717 (69.00mm) | - | Chassis Mount |
