| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPM2E4R7MPDCAP ALUM 4.7UF 20% 250V RADIAL |
11,390 | 0.94 |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 4.7 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 60 mA @ 120 Hz | 96 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|

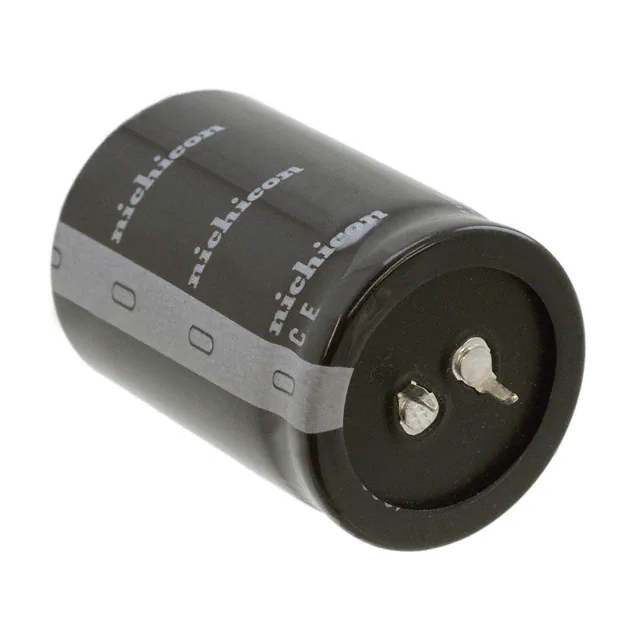

LGN2W561MELC50CAP ALUM 560UF 20% 450V SNAP |
2,460 | 11.22 |
RFQ |
Datasheet |
Bulk | LGN | Active | 560 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.99 A @ 120 Hz | 2.8457 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
ALC10C153EF063CAP ALUM 15000UF 20% 63V SNAP |
3,996 | 20.43 |
RFQ |
Datasheet |
Bulk | ALC10 | Active | 15000 µF | ±20% | 63 V | 44mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.02 A @ 100 Hz | 7.18 A @ 10 kHz | 39 mOhms | 0.886 (22.50mm) | 1.575 Dia (40.00mm) | 2.047 (52.00mm) | - | Through Hole |
|

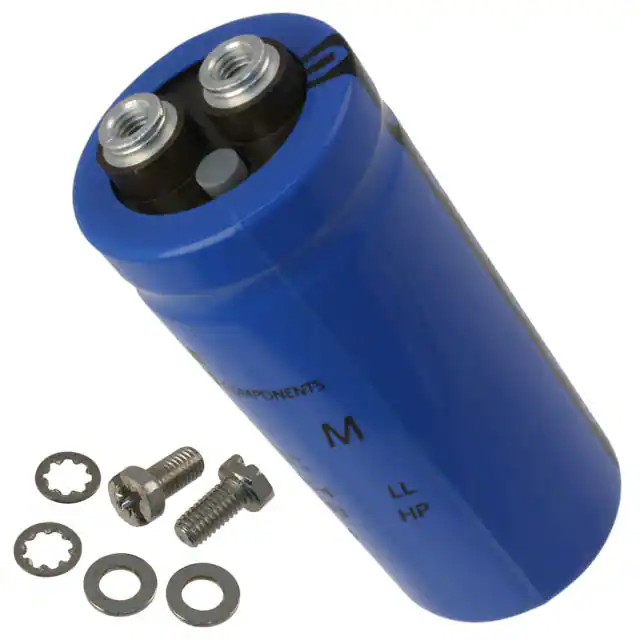

MAL210118103E3CAP ALUM 10000UF 20% 63V SCREW |
3,598 | 37.34 |
RFQ |
Datasheet |
Bulk | 101 PHR-ST | Active | 10000 µF | ±20% | 63 V | 27mOhm | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 10.53 A @ 10 kHz | 19 mOhms | 0.504 (12.80mm) | 1.378 Dia (35.00mm) | 3.150 (80.00mm) | - | Chassis Mount |
|
MAL210618333E3CAP ALUM 33000UF 63V SCREW |
1,005 | 95.85 |
RFQ |
Datasheet |
Bulk | 106 PED-ST | Active | 33000 µF | -10%, +30% | 63 V | 8mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23.5 A @ 100 Hz | - | 8 mOhms | 1.122 (28.50mm) | 2.559 Dia (65.00mm) | 4.402 (111.80mm) | - | Chassis Mount |
|
860020474013CAP ALUM 330UF 20% 25V RADIAL |
13,319 | 0.31 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATG5 | Active | 330 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 310 mA @ 120 Hz | 427.8 mA @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
UUR0J471MNL1GSCAP ALUM 470UF 20% 6.3V SMD |
12,424 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUR | Not For New Designs | 470 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | 265 mA @ 120 Hz | 344.5 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
ESK227M050AH9KACAP ALUM 220UF 20% 50V RADIAL |
12,165 | 0.58 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | ESK | Active | 220 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 380 mA @ 120 Hz | 456 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
EEE-FT0J221ARCAP ALUM 220UF 20% 6.3V SMD |
13,554 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FT | Active | 220 µF | ±20% | 6.3 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 156 mA @ 120 Hz | 240 mA @ 100 kHz | - | - | 0.197 Dia (5.00mm) | 0.240 (6.10mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
UPM0J471MPD6TDCAP ALUM 470UF 20% 6.3V RADIAL |
11,276 | 0.56 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 470 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 505 mA @ 120 Hz | 635 mA @ 10 kHz | 140 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.571 (14.50mm) | - | Through Hole |
|
UCW1C221MCL1GSCAP ALUM 220UF 20% 16V SMD |
10,718 | 0.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCW | Active | 220 µF | ±20% | 16 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 115 mA @ 120 Hz | 230 mA @ 100 kHz | 1 Ohms | - | 0.248 Dia (6.30mm) | 0.343 (8.70mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
ESK107M016AC3AACAP ALUM 100UF 20% 16V RADIAL |
14,762 | 0.22 |
RFQ |
Datasheet |
Bulk | ESK | Active | 100 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 165 mA @ 120 Hz | 198 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
ESK108M025AH4EACAP ALUM 1000UF 20% 25V RADIAL |
11,659 | 0.64 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | ESK | Active | 1000 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 760 mA @ 120 Hz | 874 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.827 (21.00mm) | - | Through Hole |
|
860130475005CAP ALUM 100UF 20% 25V RADIAL |
14,006 | 0.39 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATET | Active | 100 µF | ±20% | 25 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 250 mA @ 120 Hz | 382.5 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
EEU-FC1V221LBCAP ALUM 220UF 20% 35V RADIAL |
10,055 | 0.78 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FC | Active | 220 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 474.5 mA @ 120 Hz | 730 mA @ 100 kHz | 85 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
860080375014CAP ALUM 470UF 20% 16V RADIAL |
13,259 | 0.40 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATLI | Active | 470 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 1 A @ 100 kHz | 58 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
|
ESK475M016AC3AACAP ALUM 4.7UF 20% 16V RADIAL |
11,128 | 0.24 |
RFQ |
Datasheet |
Box | ESK | Active | 4.7 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 25 mA @ 120 Hz | 37.5 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
ESY476M016AC3AACAP ALUM 47UF 20% 16V RADIAL |
10,866 | 0.25 |
RFQ |
Datasheet |
Box | ESY | Active | 47 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 161 mA @ 120 Hz | 230 mA @ 100 kHz | 360 mOhms | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
860160474019CAP ALUM 330UF 20% 25V RADIAL |
10,947 | 0.44 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATLL | Active | 330 µF | ±20% | 25 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 400.2 mA @ 120 Hz | 960 mA @ 100 kHz | 250 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.689 (17.50mm) | - | Through Hole |
|

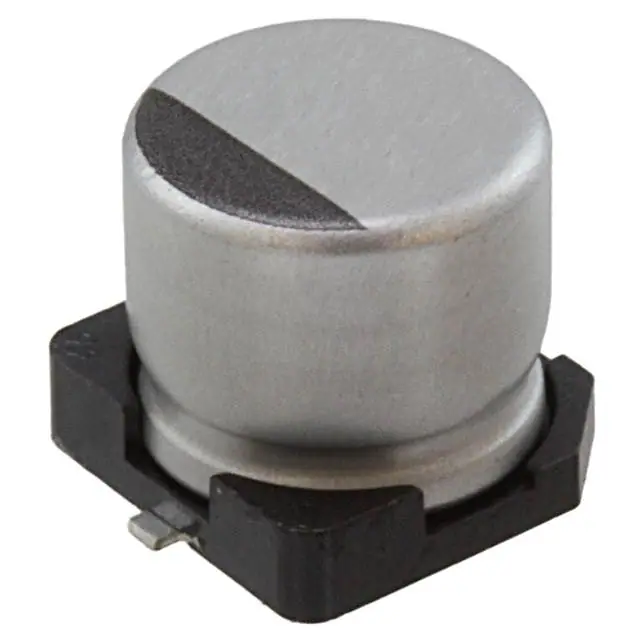

UUL0J101MCL1GSCAP ALUM 100UF 20% 6.3V SMD |
12,137 | 0.76 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUL | Active | 100 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 60 mA @ 120 Hz | 90 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
