| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
16ZLJ4700M16X25CAP ALUM 4700UF 20% 16V RADIAL |
5,426 | 2.04 |
RFQ |
Datasheet |
Bulk | ZLJ | Active | 4700 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.667 A @ 120 Hz | 3.81 A @ 100 kHz | 17 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
450BXC15MEFC12.5X20CAP ALUM 15UF 20% 450V RADIAL |
8,752 | 2.05 |
RFQ |
Datasheet |
Bulk | BXC | Active | 15 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 135 mA @ 120 Hz | 450 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEU-FM0J562LCAP ALUM 5600UF 20% 6.3V RADIAL |
7,482 | 2.05 |
RFQ |
Datasheet |
Bulk | FM-A | Active | 5600 µF | ±20% | 6.3 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3 A @ 120 Hz | 3.75 A @ 100 kHz | 12 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.457 (37.00mm) | - | Through Hole |
|
UPW1A562MHD6CAP ALUM 5600UF 20% 10V RADIAL |
6,154 | 2.05 |
RFQ |
Datasheet |
Bulk | UPW | Not For New Designs | 5600 µF | ±20% | 10 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.117 A @ 120 Hz | 2.49 A @ 100 kHz | 28 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.787 (20.00mm) | - | Through Hole |
|
EEU-FC1A272SCAP ALUM 2700UF 20% 10V RADIAL |
8,323 | 2.06 |
RFQ |
Datasheet |
Bulk | FC | Active | 2700 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.7 A @ 120 Hz | 2 A @ 100 kHz | 38 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.591 (15.00mm) | - | Through Hole |
|
UUG1C472MNQ1MSCAP ALUM 4700UF 20% 16V SMD |
8,155 | 2.92 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUG | Not For New Designs | 4700 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.75 A @ 120 Hz | 2.0125 A @ 10 kHz | - | - | 0.709 Dia (18.00mm) | 0.886 (22.50mm) | 0.752 L x 0.752 W (19.10mm x 19.10mm) | Surface Mount |
|
LQR2V272MSEGCAP ALUM 2700UF 20% 350V SCREW |
2,977 | 47.91 |
RFQ |
Datasheet |
Bulk | LQR | Active | 2700 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 10.6 A @ 120 Hz | 14.84 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 3.268 (83.00mm) | - | Chassis Mount |
|
UHW1V152MHDCAP ALUM 1500UF 20% 35V RADIAL |
5,805 | 2.07 |
RFQ |
Datasheet |
Bulk | UHW | Not For New Designs | 1500 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.145 A @ 120 Hz | 3.575 A @ 100 kHz | 14 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
ELXY500ELL821MK40SCAP ALUM 820UF 20% 50V RADIAL |
9,562 | 2.08 |
RFQ |
Datasheet |
Bulk | LXY | Active | 820 µF | ±20% | 50 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.218 A @ 120 Hz | 2.03 A @ 100 kHz | 29 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.634 (41.50mm) | - | Through Hole |
|

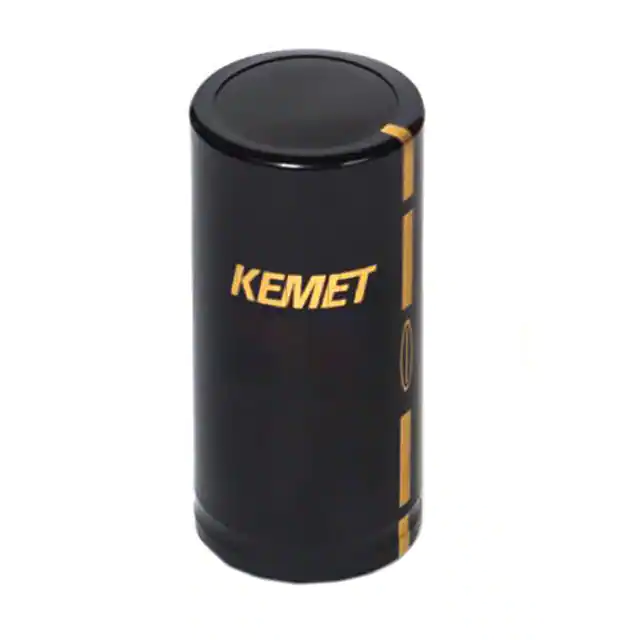

ALC10A102EP550CAP ALUM 1000UF 20% 550V SNAP |
2,083 | 48.65 |
RFQ |
Datasheet |
Bulk | ALC10 | Active | 1000 µF | ±20% | 550 V | 352mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.86 A @ 100 Hz | 7.59 A @ 10 kHz | 308 mOhms | 0.394 (10.00mm) | 1.575 Dia (40.00mm) | 4.213 (107.00mm) | - | Through Hole |
|

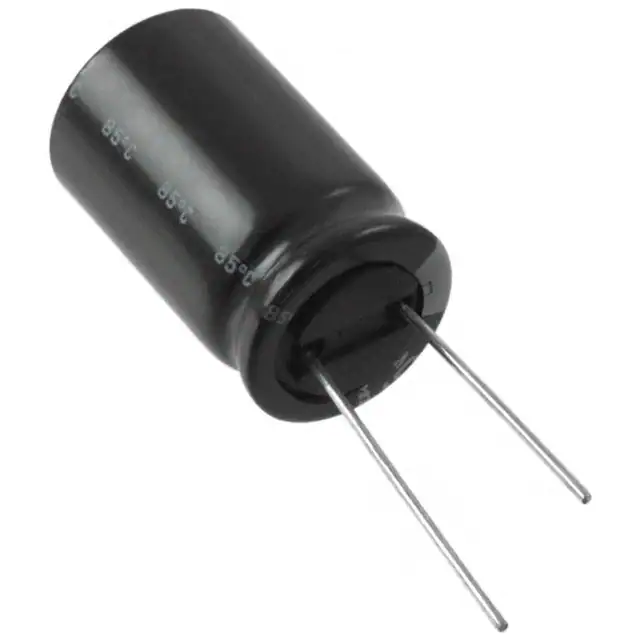

10PK10000MEFC16X25CAP ALUM 10000UF 20% 10V RADIAL |
5,396 | 2.09 |
RFQ |
Datasheet |
Bulk | PK | Active | 10000 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.27 A @ 120 Hz | 2.6105 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|

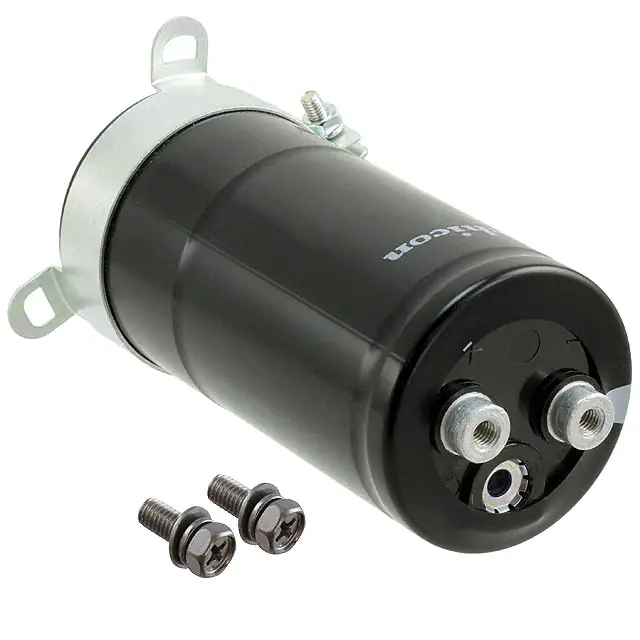

LNX2G182MSEFCAP ALUM 1800UF 20% 400V SCREW |
4,488 | 48.99 |
RFQ |
Datasheet |
Bulk | LNX | Active | 1800 µF | ±20% | 400 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 8.2 A @ 120 Hz | 11.48 A @ 10 kHz | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 4.449 (113.00mm) | - | Chassis Mount |
|
UHE2A391MHD6CAP ALUM 390UF 20% 100V RADIAL |
8,295 | 2.09 |
RFQ |
Datasheet |
Bulk | UHE | Not For New Designs | 390 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 120 Hz | 1.56 A @ 100 kHz | 57 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
|
UHE1A562MHD3CAP ALUM 5600UF 20% 10V RADIAL |
5,288 | 2.10 |
RFQ |
Datasheet |
Bulk | UHE | Not For New Designs | 5600 µF | ±20% | 10 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.288 A @ 120 Hz | 2.86 A @ 100 kHz | 26 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.787 (20.00mm) | - | Through Hole |
|
UHE2A331MHDCAP ALUM 330UF 20% 100V RADIAL |
6,557 | 2.10 |
RFQ |
Datasheet |
Bulk | UHE | Not For New Designs | 330 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 896 mA @ 120 Hz | 1.28 A @ 100 kHz | 71 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.575 (40.00mm) | - | Through Hole |
|
EKMG251ELL470MK25SCAP ALUM 47UF 20% 250V RADIAL |
6,918 | 2.10 |
RFQ |
Datasheet |
Bulk | KMG | Active | 47 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 210 mA @ 120 Hz | 378 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.043 (26.50mm) | - | Through Hole |
|

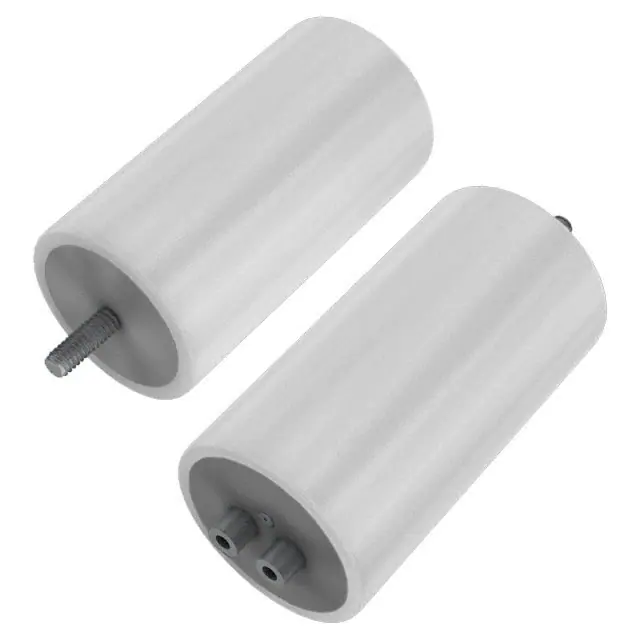

PEH169MJ5100QB2CAP ALUM 10000UF 63V SCREW |
3,188 | 49.24 |
RFQ |
Datasheet |
Bulk | PEH169 | Active | 10000 µF | -10%, +30% | 63 V | 13mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | 8 mOhms | 0.866 (22.00mm) | 2.032 Dia (51.60mm) | 3.878 (98.50mm) | - | Chassis Mount |
|
|
UUG2A331MNQ1MSCAP ALUM 330UF 20% 100V SMD |
9,922 | 2.98 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUG | Not For New Designs | 330 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 825 mA @ 120 Hz | 1.2375 A @ 10 kHz | - | - | 0.709 Dia (18.00mm) | 0.886 (22.50mm) | 0.752 L x 0.752 W (19.10mm x 19.10mm) | Surface Mount |
|
UCY2H150MHDCAP ALUM 15UF 20% 500V RADIAL |
8,854 | 2.11 |
RFQ |
Datasheet |
Bulk | UCY | Active | 15 µF | ±20% | 500 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 220 mA @ 120 Hz | 440 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.043 (26.50mm) | - | Through Hole |
|

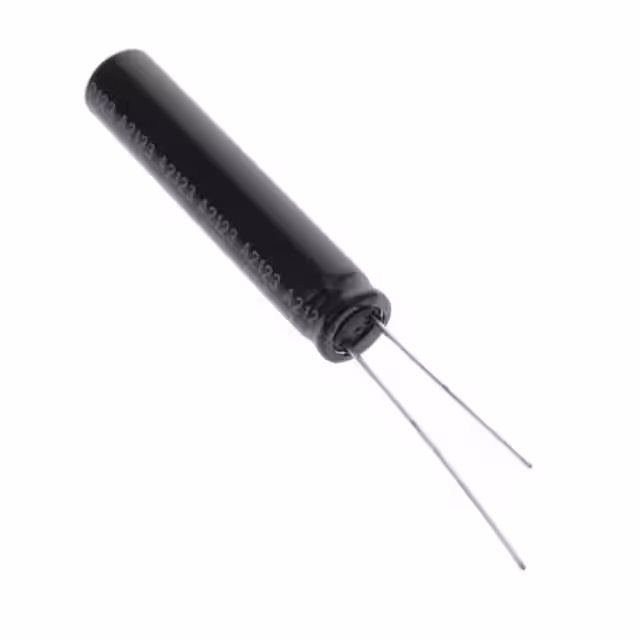

160TXW100MEFR8X40CAP ALUM 100UF 20% 160V RADIAL |
9,507 | 2.12 |
RFQ |
Datasheet |
Bulk | TXW | Active | 100 µF | ±20% | 160 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 490 mA @ 120 Hz | 686 mA @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 1.673 (42.50mm) | - | Through Hole |
