| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LNK2G472MSEHCAP ALUM 4700UF 20% 400V SCREW |
1,933 | 68.53 |
RFQ |
Datasheet |
Bulk | LNK | Active | 4700 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 15 A @ 120 Hz | 21 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 4.331 (110.00mm) | - | Chassis Mount |
|
EEU-EE2V470SCAP ALUM 47UF 20% 350V RADIAL |
7,533 | 2.60 |
RFQ |
Datasheet |
Bulk | EE-A | Active | 47 µF | ±20% | 350 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 374.5 mA @ 120 Hz | 1.07 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
ECA-0JM223CAP ALUM 22000UF 20% 6.3V RADIAL |
6,226 | 2.60 |
RFQ |
Datasheet |
Bulk | M-A | Active | 22000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 3.23 A @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.476 (37.50mm) | - | Through Hole |
|

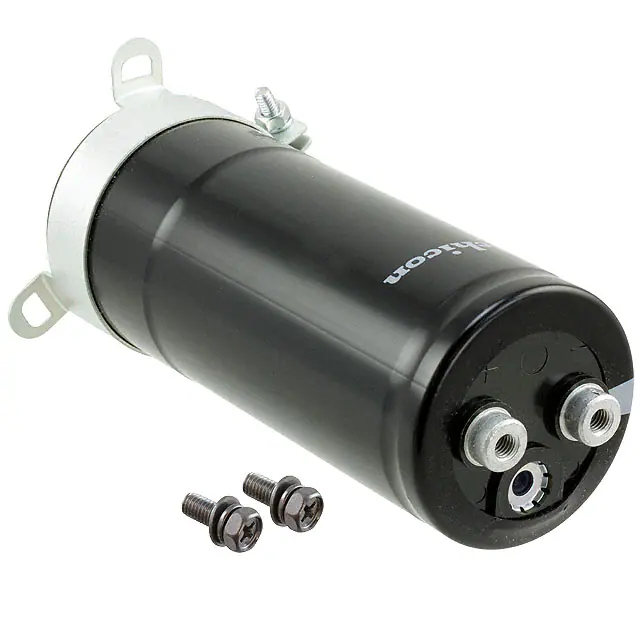

LNX2L102MSEFCAP ALUM 1000UF 20% 550V SCREW |
3,175 | 69.12 |
RFQ |
Datasheet |
Bulk | LNX | Active | 1000 µF | ±20% | 550 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 4.3 A @ 120 Hz | - | - | 0.866 (22.00mm) | 2.008 Dia (51.00mm) | 5.236 (133.00mm) | - | Chassis Mount |
|
EEU-ED2C221CAP ALUM 220UF 20% 160V RADIAL |
8,534 | 2.60 |
RFQ |
Datasheet |
Bulk | ED-A | Active | 220 µF | ±20% | 160 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 765 mA @ 120 Hz | 1.7 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.240 (31.50mm) | - | Through Hole |
|

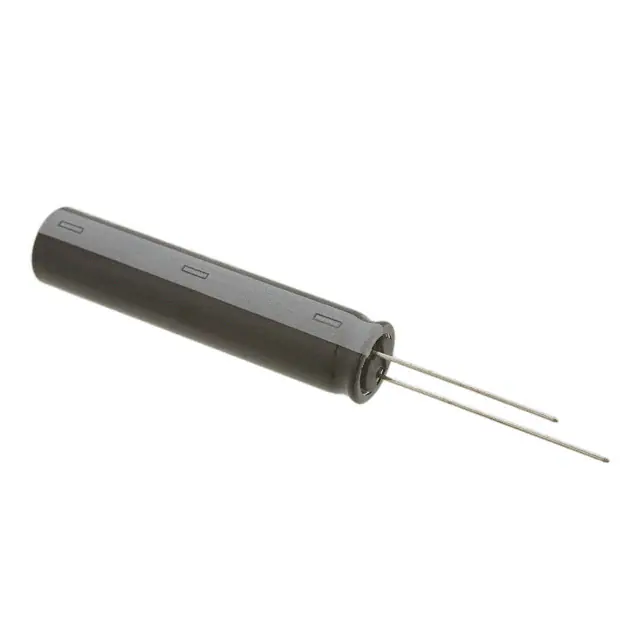

450QXW47MEFR10X45CAP ALUM 47UF 20% 450V RADIAL |
8,992 | 2.63 |
RFQ |
Datasheet |
Bulk | QXW | Active | 47 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 440 mA @ 120 Hz | 660 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
UHE2A561MHDCAP ALUM 560UF 20% 100V RADIAL |
9,360 | 2.63 |
RFQ |
Datasheet |
Bulk | UHE | Not For New Designs | 560 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.598 A @ 120 Hz | 2.13 A @ 100 kHz | 40 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.575 (40.00mm) | - | Through Hole |
|
100ZLH390MEFC18X20CAP ALUM 390UF 20% 100V RADIAL |
9,823 | 2.63 |
RFQ |
Datasheet |
Bulk | ZLH | Active | 390 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.073 A @ 120 Hz | 1.95 A @ 100 kHz | 54 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | - | Through Hole |
|

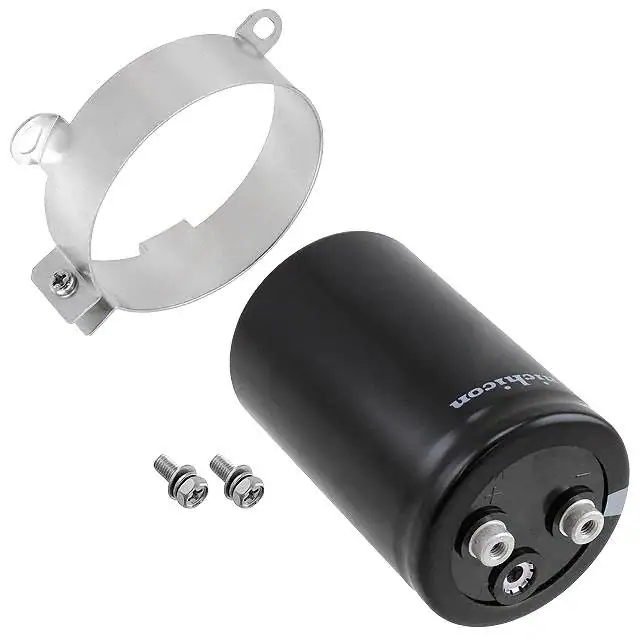

LNU2G392MSEGCAP ALUM 3900UF 20% 400V SCREW |
1,074 | 70.49 |
RFQ |
Datasheet |
Bulk | LNU | Active | 3900 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 14.6 A @ 120 Hz | 20.44 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 4.055 (103.00mm) | - | Chassis Mount |
|

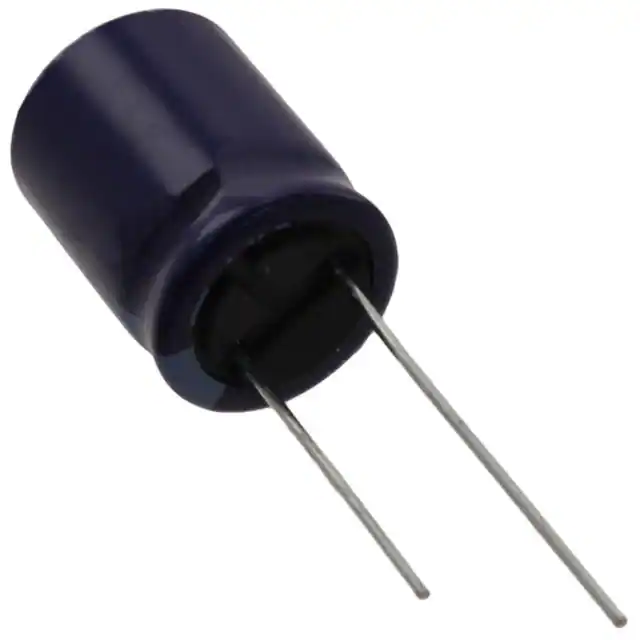

ELXZ250ELL332ML30SCAP ALUM 3300UF 20% 25V RADIAL |
6,035 | 2.64 |
RFQ |
Datasheet |
Bulk | LXZ | Active | 3300 µF | ±20% | 25 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.2575 A @ 120 Hz | 3.01 A @ 100 kHz | 19 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.240 (31.50mm) | - | Through Hole |
|

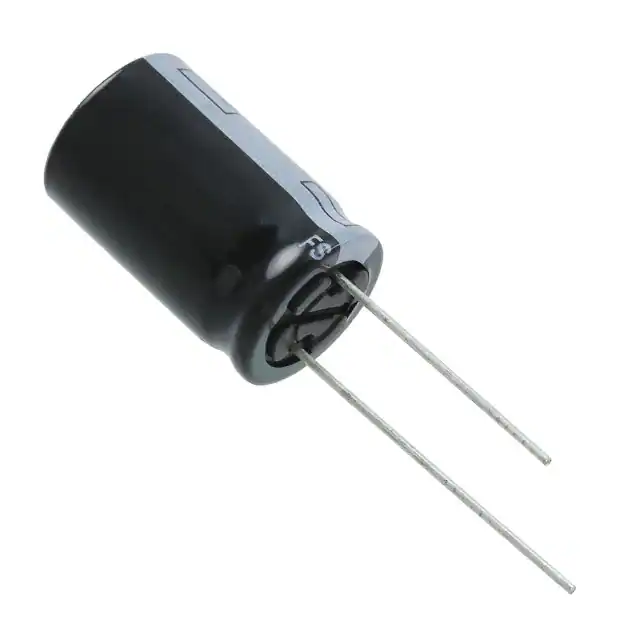

EEU-FS1A822CAP ALUM 8200UF 20% 10V RADIAL |
5,708 | 2.66 |
RFQ |
Datasheet |
Bulk | FS-A | Active | 8200 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.056 A @ 120 Hz | 3.82 A @ 100 kHz | 14 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
450KXW82MEFC16X40CAP ALUM 82UF 20% 450V RADIAL |
5,433 | 3.43 |
RFQ |
Datasheet |
Bulk | KXW | Active | 82 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 550 mA @ 120 Hz | 825 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.654 (42.00mm) | - | Through Hole |
|

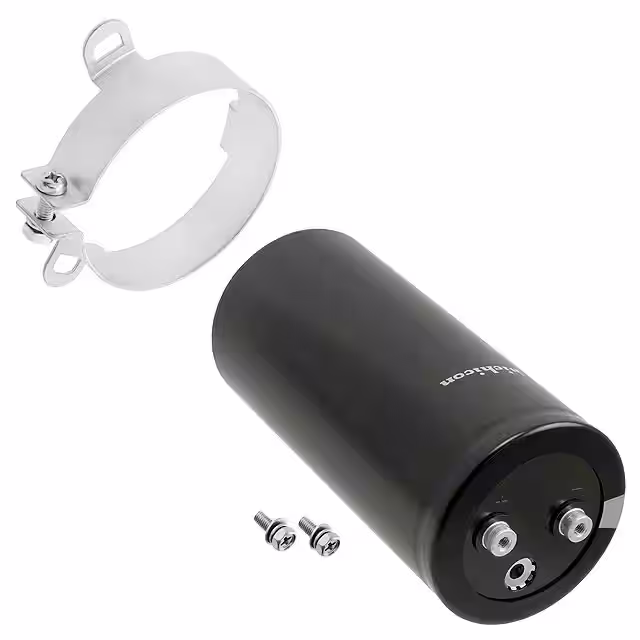

LNC2G103MSEHCAP ALUM 10000UF 20% 400V SCREW |
555 | 113.56 |
RFQ |
Datasheet |
Bulk | LNC | Active | 10000 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 29.5 A @ 120 Hz | 41.3 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 6.614 (168.00mm) | - | Chassis Mount |
|
ESMG250ELL472MLN3SCAP ALUM 4700UF 20% 25V RADIAL |
5,042 | 3.44 |
RFQ |
Datasheet |
Bulk | SMG | Active | 4700 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.42 A @ 120 Hz | 2.6136 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
LNT1H334MSECAP ALUM 330000UF 20% 50V SCREW |
595 | 114.69 |
RFQ |
Datasheet |
Bulk | LNT | Active | 330000 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 24.3 A @ 120 Hz | 27.945 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.780 (223.00mm) | - | Chassis Mount |
|
EEU-FS0J103CAP ALUM 10000UF 20% 6.3V RADIAL |
8,914 | 2.66 |
RFQ |
Datasheet |
Bulk | FS-A | Active | 10000 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.056 A @ 120 Hz | 3.82 A @ 100 kHz | 14 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
EEU-FS1E392CAP ALUM 3900UF 20% 25V RADIAL |
9,442 | 2.66 |
RFQ |
Datasheet |
Bulk | FS-A | Active | 3900 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.056 A @ 120 Hz | 3.82 A @ 100 kHz | 14 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
EKMG101ELL471MLN3SCAP ALUM 470UF 20% 100V RADIAL |
5,468 | 2.67 |
RFQ |
Datasheet |
Bulk | KMG | Active | 470 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 715 mA @ 120 Hz | 1.0725 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.299 (33.00mm) | - | Through Hole |
|

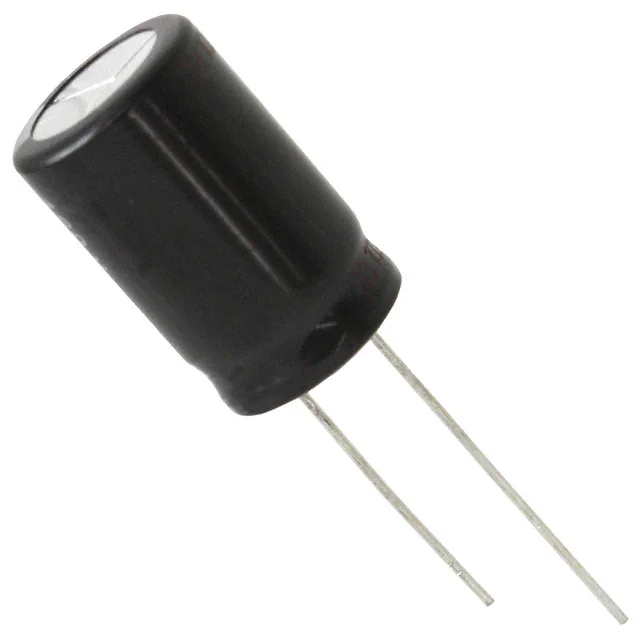

EEU-EB2V680CAP ALUM 68UF 20% 350V RADIAL |
9,017 | 2.67 |
RFQ |
Datasheet |
Bulk | EB-A | Active | 68 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 390 mA @ 120 Hz | 780 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
EEU-EE2C221CAP ALUM 220UF 20% 160V RADIAL |
8,679 | 2.68 |
RFQ |
Datasheet |
Bulk | EE-A | Active | 220 µF | ±20% | 160 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 912 mA @ 120 Hz | 2.28 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
