| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

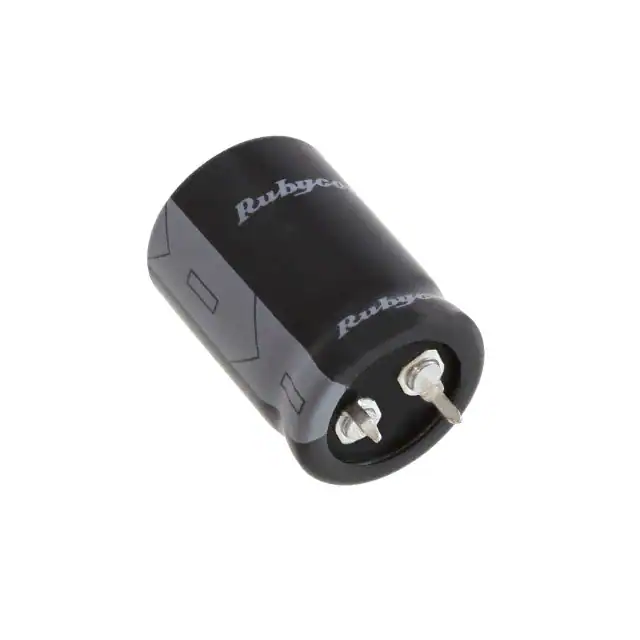

250MXG330MEFCSN22X30CAP ALUM 330UF 20% 250V SNAP |
6,097 | 3.74 |
RFQ |
Datasheet |
Bulk | MXG | Active | 330 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.51 A @ 120 Hz | 2.265 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
250MXG330MEFCSN25X25CAP ALUM 330UF 20% 250V SNAP |
6,723 | 3.74 |
RFQ |
Datasheet |
Bulk | MXG | Active | 330 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.41 A @ 120 Hz | 2.115 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
400MXG100MEFCSN22X25CAP ALUM 100UF 20% 400V SNAP |
5,326 | 3.75 |
RFQ |
Datasheet |
Bulk | MXG | Active | 100 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 850 mA @ 120 Hz | 1.19 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole |
|

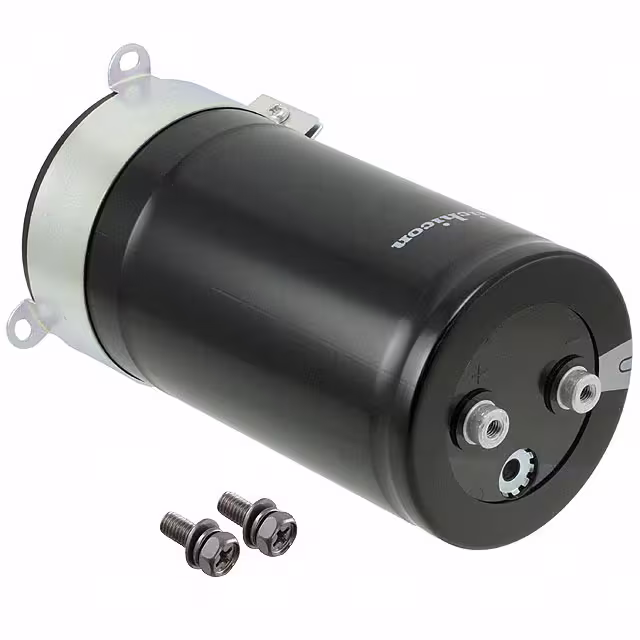

LNX2L272MSEHCAP ALUM 2700UF 20% 550V SCREW |
584 | 103.60 |
RFQ |
Datasheet |
Bulk | LNX | Active | 2700 µF | ±20% | 550 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 9.4 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 6.024 (153.00mm) | - | Chassis Mount |
|

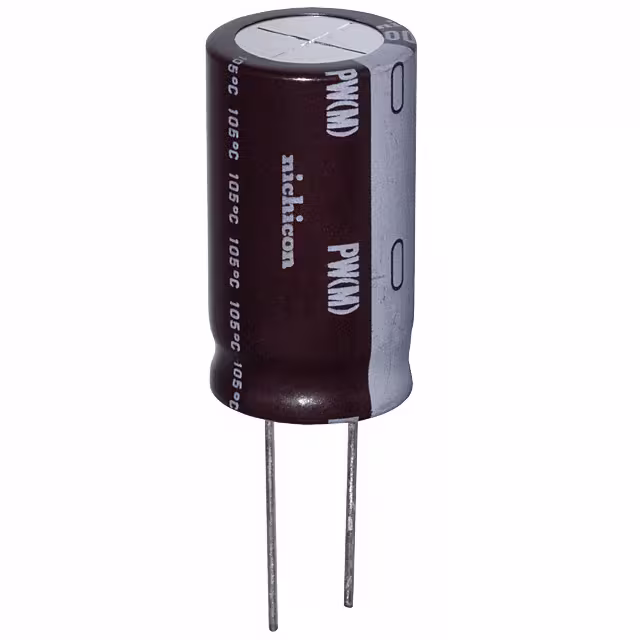

UPW2F101MRD6CAP ALUM 100UF 20% 315V RADIAL |
6,459 | 3.93 |
RFQ |
Datasheet |
Bulk | UPW | Not For New Designs | 100 µF | ±20% | 315 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 285 mA @ 120 Hz | 456 mA @ 10 kHz | - | 0.394 (10.00mm) | 0.787 Dia (20.00mm) | 1.378 (35.00mm) | - | Through Hole |
|

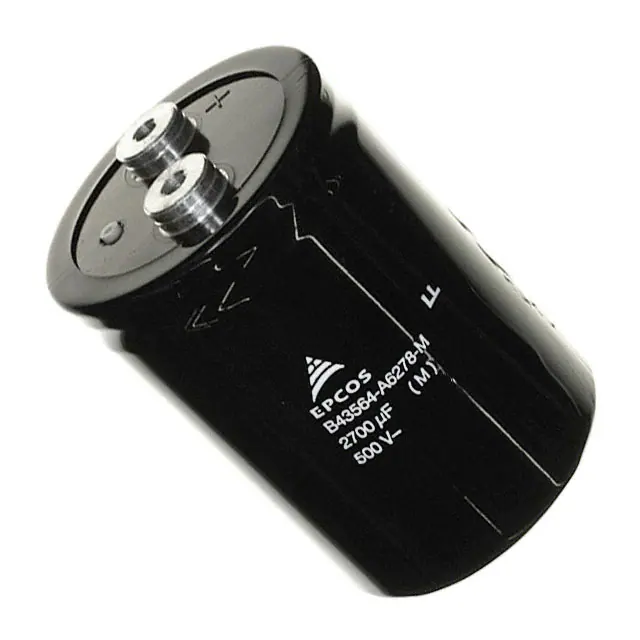

B43564A6278M000CAP ALUM 2700UF 20% 500V SCREW |
903 | 134.24 |
RFQ |
Datasheet |
Bulk | B43564 | Not For New Designs | 2700 µF | ±20% | 500 V | 60mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 10.5 A @ 100 Hz | - | 43 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 4.161 (105.70mm) | - | Chassis Mount |
|
UHW1C822MHDCAP ALUM 8200UF 20% 16V RADIAL |
6,317 | 4.04 |
RFQ |
Datasheet |
Bulk | UHW | Not For New Designs | 8200 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.36 A @ 120 Hz | 4.2 A @ 100 kHz | 10 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.476 (37.50mm) | - | Through Hole |
|

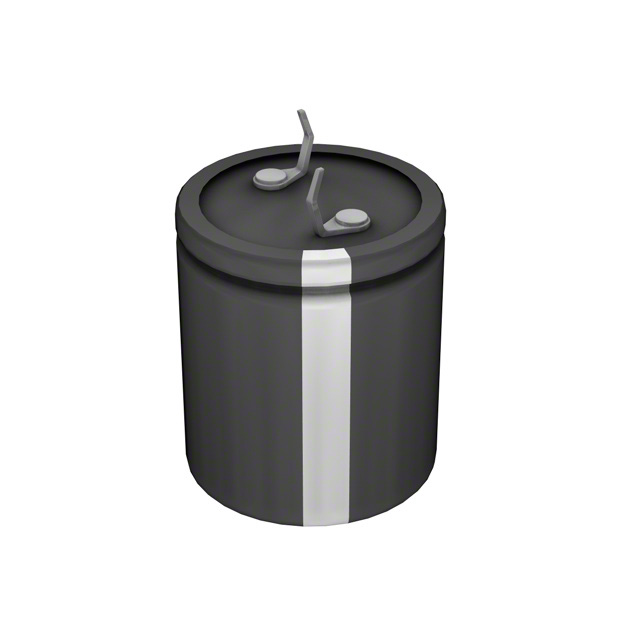

LP152M050A1P3CAP ALUM 1500UF 20% 50V SNAP |
7,207 | 3.89 |
RFQ |
Datasheet |
Bulk | LP | Active | 1500 µF | ±20% | 50 V | 225mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 983 mA @ 120 Hz | 1.0813 A @ 100 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
EPAG401ELL101MU40SCAP ALUM 100UF 20% 400V RADIAL |
7,088 | 3.89 |
RFQ |
Datasheet |
Bulk | PAG | Active | 100 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 580 mA @ 120 Hz | 870 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.571 Dia (14.50mm) | 1.654 (42.00mm) | - | Through Hole |
|
EGPA250ELL472MM30SCAP ALUM 4700UF 20% 25V RADIAL |
8,820 | 4.06 |
RFQ |
Datasheet |
Bulk | GPA | Active | 4700 µF | ±20% | 25 V | 22mOhm @ 100kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 2.8815 A @ 120 Hz | 3.39 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.240 (31.50mm) | - | Through Hole |
|
|
UHW0J153MHDCAP ALUM 15000UF 20% 6.3V RADIAL |
7,834 | 4.10 |
RFQ |
Datasheet |
Bulk | UHW | Not For New Designs | 15000 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.36 A @ 120 Hz | 4.2 A @ 100 kHz | 10 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.476 (37.50mm) | - | Through Hole |
|

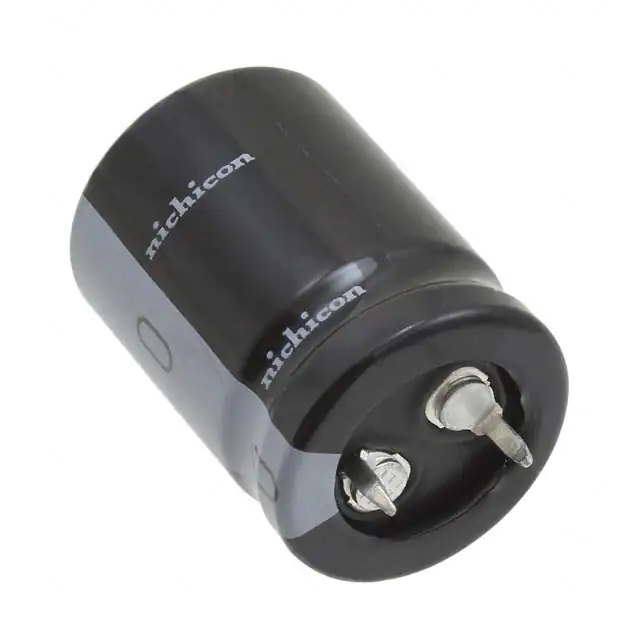

LGU2W820MELZCAP ALUM 82UF 20% 450V SNAP |
7,711 | 3.94 |
RFQ |
Datasheet |
Bulk | LGU | Active | 82 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 640 mA @ 120 Hz | 915.2 mA @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.181 (30.00mm) | - | Through Hole |
.JPG)
|

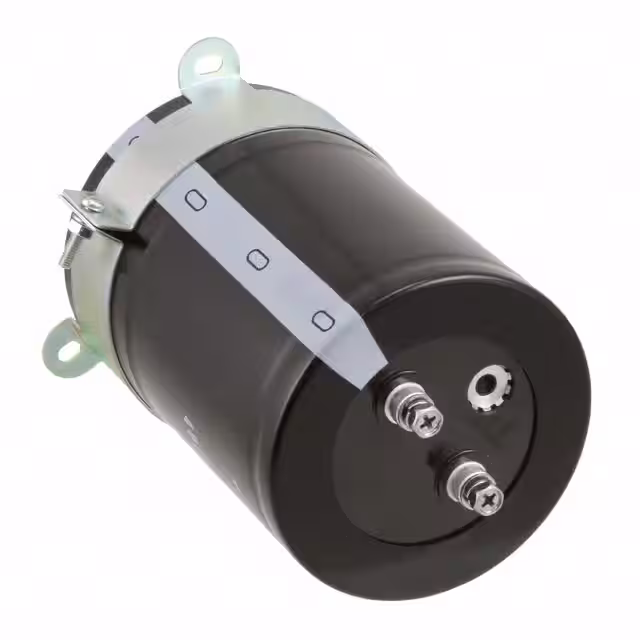

LNX2H472MSEJCAP ALUM 4700UF 20% 500V SCREW |
362 | 138.78 |
RFQ |
Datasheet |
Bulk | LNX | Active | 4700 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 13.7 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 5.236 (133.00mm) | - | Chassis Mount |
|
EKMQ401VSN151MQ25SCAP ALUM 150UF 20% 400V SNAP |
5,055 | 3.99 |
RFQ |
Datasheet |
Bulk | KMQ | Active | 150 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 880 mA @ 120 Hz | 1.2584 A @ 50 kHz | - | 0.394 (10.00mm) | 1.000 Dia (25.40mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
LNX2J222MSEJCAP ALUM 2200UF 20% 630V SCREW |
901 | 139.85 |
RFQ |
Datasheet |
Bulk | LNX | Active | 2200 µF | ±20% | 630 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 10.7 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 5.236 (133.00mm) | - | Chassis Mount |
|
|
EPAG451ELL820ML40SCAP ALUM 82UF 20% 450V RADIAL |
7,141 | 3.99 |
RFQ |
Datasheet |
Bulk | PAG | Active | 82 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 550 mA @ 120 Hz | 990 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
UVR2D331MRDCAP ALUM 330UF 20% 200V RADIAL |
5,540 | 4.18 |
RFQ |
Datasheet |
Bulk | UVR | Not For New Designs | 330 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.13 A @ 120 Hz | 1.2995 A @ 10 kHz | - | 0.394 (10.00mm) | 0.787 Dia (20.00mm) | 1.654 (42.00mm) | - | Through Hole |
|

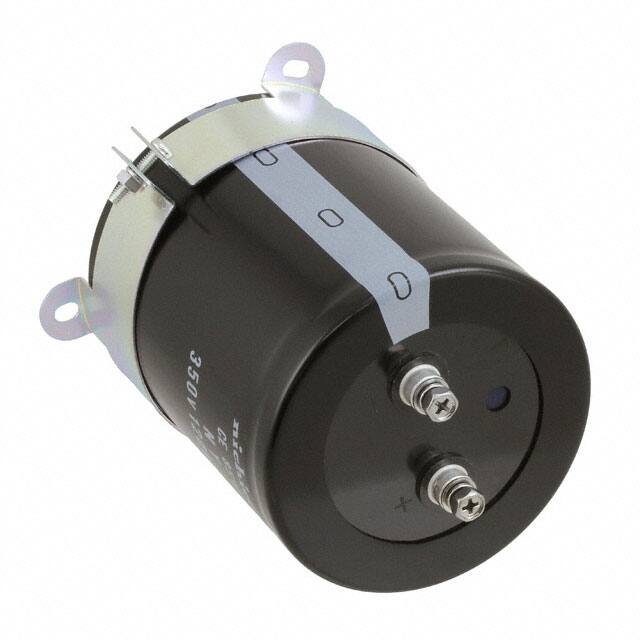

LNY2V123MSEJCAP ALUM 12000UF 20% 350V SCREW |
319 | 141.39 |
RFQ |
Datasheet |
Bulk | LNY | Active | 12000 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24.1 A @ 120 Hz | 33.74 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 4.331 (110.00mm) | - | Chassis Mount |
|

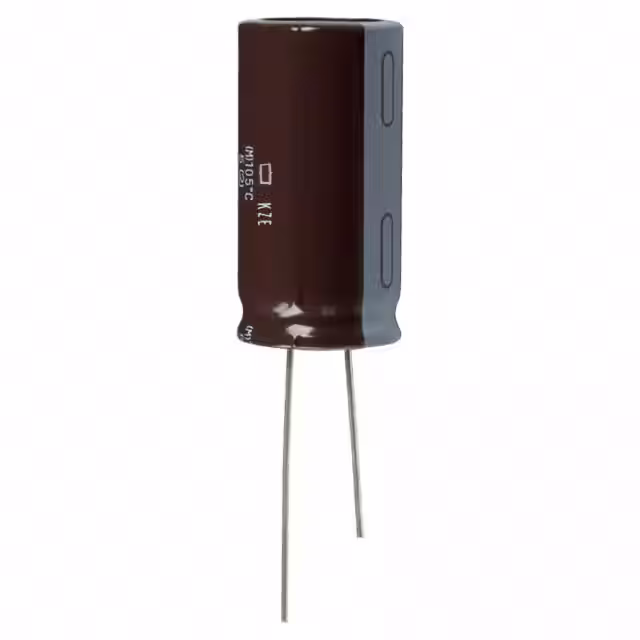

EKZE630ELL152MMP1SCAP ALUM 1500UF 20% 63V RADIAL |
6,278 | 4.21 |
RFQ |
Datasheet |
Bulk | KZE | Active | 1500 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.04 A @ 120 Hz | 3.4 A @ 100 kHz | 18 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.398 (35.50mm) | - | Through Hole |
|
|
EPAG401ELL121ML35SCAP ALUM 120UF 20% 400V RADIAL |
9,770 | 4.06 |
RFQ |
Datasheet |
Bulk | PAG | Active | 120 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 670 mA @ 120 Hz | 1.005 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.457 (37.00mm) | - | Through Hole |
