| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
URS1C222MHDCAP ALUM 2200UF 20% 16V RADIAL |
6,578 | 1.21 |
RFQ |
Datasheet |
Bulk | URS | Active | 2200 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.16 A @ 120 Hz | 1.334 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
25YXG1000MEFC12.5X20CAP ALUM 1000UF 20% 25V RADIAL |
6,094 | 1.21 |
RFQ |
Datasheet |
Bulk | YXG | Active | 1000 µF | ±20% | 25 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.14 A @ 120 Hz | 1.9 A @ 100 kHz | 35 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEU-ED2G470BCAP ALUM 47UF 20% 400V RADIAL |
5,738 | 2.30 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | ED-A | Active | 47 µF | ±20% | 400 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 336 mA @ 120 Hz | 840 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
ESMQ161VSN392MA50SCAP ALUM 3900UF 20% 160V SNAP |
5,407 | 6.71 |
RFQ |
Datasheet |
Bulk | SMQ | Active | 3900 µF | ±20% | 160 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 6 A @ 120 Hz | 9 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
UPM1J221MHDCAP ALUM 220UF 20% 63V RADIAL |
9,822 | 1.22 |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 220 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 835 mA @ 120 Hz | 1.14 A @ 10 kHz | 65 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|

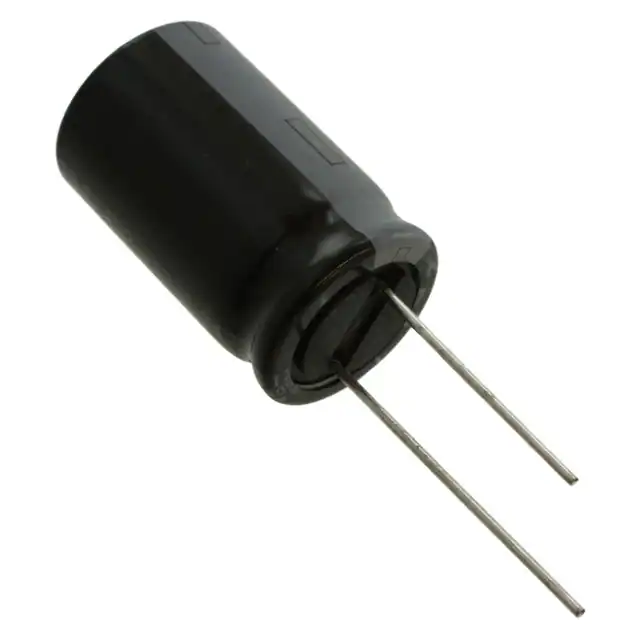

16YXJ4700M16X25CAP ALUM 4700UF 20% 16V RADIAL |
7,888 | 1.22 |
RFQ |
Datasheet |
Bulk | YXJ | Active | 4700 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.344 A @ 120 Hz | 2.93 A @ 100 kHz | 21 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
MAL215050101E3CAP ALUM 100UF 20% 35V RADIAL |
9,976 | 1.22 |
RFQ |
Datasheet |
Tape & Box (TB) | 150 RMI | Active | 100 µF | ±20% | 35 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 360.8 mA @ 100 Hz | - | 117 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
|
MAL215058479E3CAP ALUM 47UF 20% 63V RADIAL |
6,215 | 1.22 |
RFQ |
Datasheet |
Bulk | 150 RMI | Active | 47 µF | ±20% | 63 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 263.2 mA @ 100 Hz | - | 342 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
EKMQ251VSN122MR45SCAP ALUM 1200UF 20% 250V SNAP |
6,150 | 6.78 |
RFQ |
Datasheet |
Bulk | KMQ | Active | 1200 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.45 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
LGU2D122MELBCAP ALUM 1200UF 20% 200V SNAP |
7,105 | 6.84 |
RFQ |
Datasheet |
Bulk | LGU | Active | 1200 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.65 A @ 120 Hz | 3.975 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.575 (40.00mm) | - | Through Hole |
|
LKG1J472MESAAKCAP ALUM 4700UF 20% 63V SNAP |
7,076 | 7.16 |
RFQ |
Datasheet |
Bulk | LKG | Active | 4700 µF | ±20% | 63 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.2 A @ 120 Hz | - | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
50TRV330M12.5X13.5CAP ALUM 330UF 20% 50V SMD |
9,066 | 2.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TRV | Active | 330 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 510 mA @ 120 Hz | 850 mA @ 100 kHz | 180 mOhms | - | 0.492 Dia (12.50mm) | 0.551 (14.00mm) | 0.512 L x 0.512 W (13.00mm x 13.00mm) | Surface Mount |
|
LKG1H822MESBAKCAP ALUM 8200UF 20% 50V SNAP |
9,103 | 7.19 |
RFQ |
Datasheet |
Bulk | LKG | Active | 8200 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.55 A @ 120 Hz | - | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.654 (42.00mm) | - | Through Hole |
|

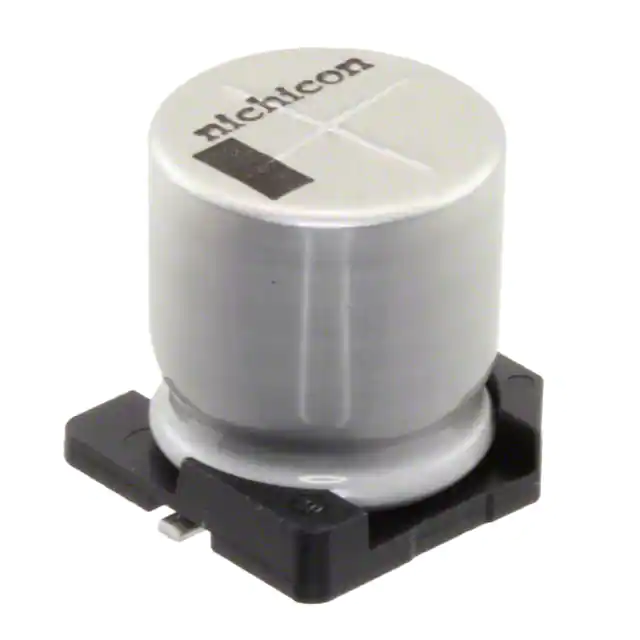

UCZ1J221MNQ1MSCAP ALUM 220UF 20% 63V SMD |
8,316 | 2.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCZ | Not For New Designs | 220 µF | ±20% | 63 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 500 mA @ 120 Hz | 1 A @ 100 kHz | - | - | 0.492 Dia (12.50mm) | 0.571 (14.50mm) | 0.535 L x 0.535 W (13.60mm x 13.60mm) | Surface Mount |
|
UCS2G150MHDCAP ALUM 15UF 20% 400V RADIAL |
9,272 | 1.24 |
RFQ |
Datasheet |
Bulk | UCS | Active | 15 µF | ±20% | 400 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 275 mA @ 120 Hz | 550 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.846 (21.50mm) | - | Through Hole |
|
UVZ1J682MRDCAP ALUM 6800UF 20% 63V RADIAL |
6,412 | 7.26 |
RFQ |
Datasheet |
Bulk | UVZ | Not For New Designs | 6800 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.8 A @ 120 Hz | 3.22 A @ 10 kHz | - | 0.492 (12.50mm) | 0.984 Dia (25.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
50MXG15000MEFCSN35X40CAP ALUM 15000UF 20% 50V SNAP |
9,243 | 7.00 |
RFQ |
Datasheet |
Bulk | MXG | Active | 15000 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.77 A @ 120 Hz | 5.4855 A @ 10 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
|
50TRV390M12.5X16CAP ALUM 390UF 20% 50V SMD |
6,982 | 2.02 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TRV | Active | 390 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 570 mA @ 120 Hz | 950 mA @ 100 kHz | 150 mOhms | - | 0.492 Dia (12.50mm) | 0.650 (16.50mm) | 0.512 L x 0.512 W (13.00mm x 13.00mm) | Surface Mount |
|
400SGV10M12.5X13.5CAP ALUM 10UF 20% 400V SMD |
7,182 | 2.02 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SGV | Active | 10 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | AEC-Q200 | Automotive | 135 mA @ 120 Hz | 202.5 mA @ 10 kHz | - | - | 0.492 Dia (12.50mm) | 0.551 (14.00mm) | 0.512 L x 0.512 W (13.00mm x 13.00mm) | Surface Mount |
|
35TGV470M12.5X13.5CAP ALUM 470UF 20% 35V SMD |
9,962 | 2.13 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TGV | Active | 470 µF | ±20% | 35 V | 92mOhm @ 100kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 510 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.492 Dia (12.50mm) | 0.551 (14.00mm) | 0.512 L x 0.512 W (13.00mm x 13.00mm) | Surface Mount |
