| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FrequencyRange | Impedance-Unbalanced/Balanced | PhaseDifference | InsertionLoss(Max) | ReturnLoss(Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MABA-009852-CF1A40BALUN 5MHZ-120MHZ 75/75 5SMD |
6,173 | 3.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 5MHz ~ 120MHz | 75 / 75Ohm | - | 0.4dB | 19dB |
|
MABA-010321-CT1A42TRANSFORMER 1:1 TXLINE |
8,156 | 3.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 50MHz ~ 1.2GHz | 1:1 | 6.7° | 1.65dB | 8dB |
|

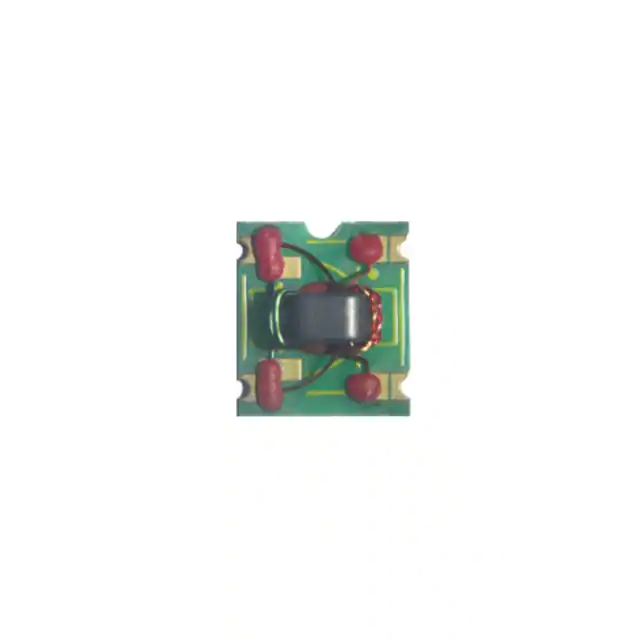

MABA-011085BALUN 5 - 1225 MHZ 1:1 |
7,263 | 3.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 5MHz ~ 1.225GHz | 1:1 | 2° | 1.0dB | 25dB |
|

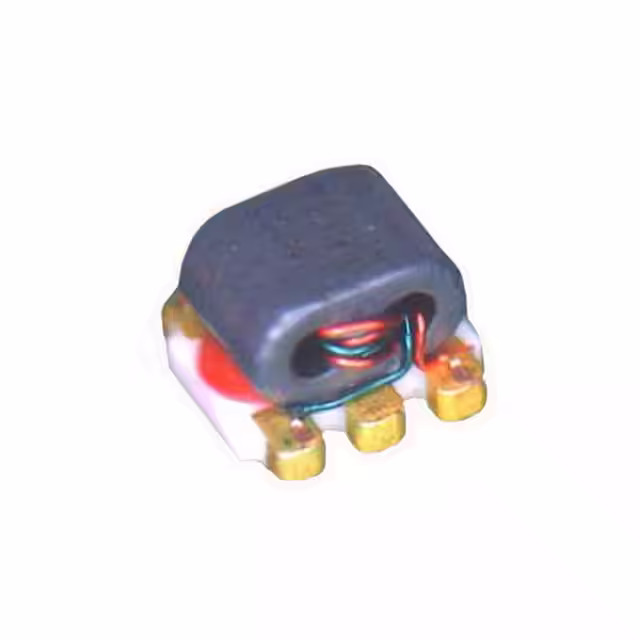

MABA-008757-CT11601:1 TXLINE BALUN, SCREENED RETLO |
6,845 | 3.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 4.5MHz ~ 3GHz | 1:1 | - | 3dB | 16dB |
|

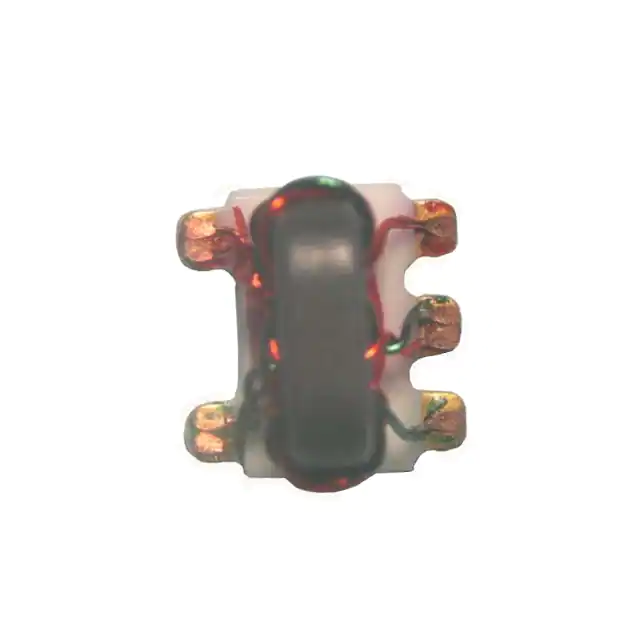

MABA-008639-TC41T7TRANSFORMER, RF 1:4 TX LINE, 6-1 |
7,440 | 3.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 6MHz ~ 1GHz | 1:4 | 10° | 3dB | - |
|
TCW2-2700+1:2 LTCC TRANSFORMER, 500 - 2700 |
6,663 | 3.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 500MHz ~ 2.7GHz | 1:2 | 19° | 1.7dB | 9.5dB |
|
TCW2-282+1:2 LTCC TRANSFORMER, 700 - 2800 |
5,997 | 3.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 700MHz ~ 2.8GHz | 1:2 | 13° | 2.0dB | 10.83dB |
|
|
TCW1-2700+1:1 LTCC TRANSFORMER, 700 - 2700 |
9,996 | 3.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 700MHz ~ 2.7GHz | 50 / 50Ohm | 12° | 2.0dB | 9.01dB |
|
|
TCW1-6000+1:1 LTCC TRANSFORMER, 3200 - 600 |
6,988 | 3.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 3.2GHz ~ 6GHz | 50 / 50Ohm | 10° | 2.0dB | 7.99dB |
|
|
TCW2-6000+1:2 LTCC TRANSFORMER, 3100 - 600 |
9,954 | 3.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 3.1GHz ~ 6GHz | 1:2 | 11° | 1.8dB | 9.49dB |
|
TC4-6TX+1:4 CORE & WIRE TRANSFORMER, 1.5 |
8,808 | 3.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1.5MHz ~ 600MHz | 1:4 | - | 3dB | 9.91dB |
|
|
TC4-1WX+1:4 CORE & WIRE TRANSFORMER, 3 - |
9,178 | 3.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 3MHz ~ 800MHz | 1:4 | - | 3dB | 9.07dB |
|
TC1-1T+1:1 CORE & WIRE TRANSFORMER, 0.4 |
9,466 | 3.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 400kHz ~ 500MHz | 50 / 50Ohm | 5° | 3dB | 6.9dB |
|
TC4-6T+1:4 CORE & WIRE TRANSFORMER, 1.5 |
9,795 | 3.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1.5MHz ~ 600MHz | 1:4 | - | 3dB | 9.91dB |
|
CX2047LNLTBALUN 500KHZ-300MHZ 50/50 5SMD |
5,577 | 3.18 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 500KHz ~ 300MHz | 1:4 | - | 4.0dB | - |
|
TCO2-532+1:2 LTCC TRANSFORMER, 4600 - 590 |
8,502 | 3.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 4.6GHz ~ 5.9GHz | 1:2 | 10° | 1.2dB | 9dB |
|
|
TCO1-462+1:1 LTCC TRANSFORMER, 3300 - 590 |
5,781 | 3.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 3.3GHz ~ 5.9GHz | 1:1 | 10° | 0.8dB | 13dB |
|
|
TC4-14+1:4 CORE & WIRE TRANSFORMER, 200 |
8,397 | 3.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 200MHz ~ 1.4GHz | 1:4 | - | 3dB | 5.05dB |
|
TC4-1TG2+1:4 CORE & WIRE TRANSFORMER, 0.5 |
9,644 | 3.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 50MHz ~ 1GHz | 1:4 | - | 2.0dB | 14.29dB |
|

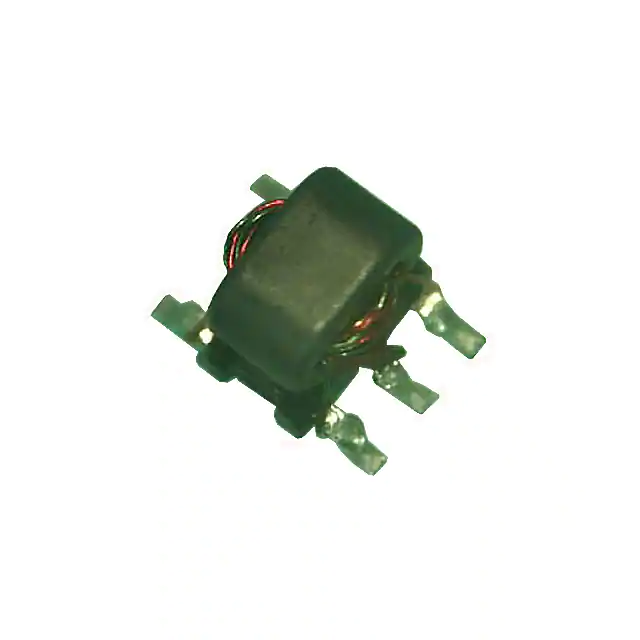

MABAES0031TRANSFORMER, 4:1 |
8,029 | 3.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1MHz ~ 650MHz | 1:4 | 10° | 2.0dB | - |
-
