| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Technology | Type | IsolatedPower | NumberofChannels | Inputs-Side1/Side2 | ChannelType | Voltage-Isolation | CommonModeTransientImmunity(Min) | DataRate | PropagationDelaytpLH/tpHL(Max) | PulseWidthDistortion(Max) | Rise/FallTime(Typ) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADUM7642ARQZDGTL ISO 1000VRMS 6CH GP 20QSOP |
7,107 | 6.81 |
RFQ |
Datasheet |
Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 6 | 4/2 | Unidirectional | 1000Vrms | 15kV/µs | 1Mbps | 75ns, 75ns | 25ns | 2ns, 2ns | 3V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
ADUM1445ARQZDGTL ISO 2500VRMS 4CH GP 16QSOP |
9,293 | 6.81 |
RFQ |
Datasheet |
Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs | 2Mbps | 180ns, 180ns | 8ns | 2ns, 2ns | 2.25V ~ 3.6V | -40°C ~ 125°C | Surface Mount |
|
|
ADUM7643ARQZDGTL ISO 1000VRMS 6CH GP 20QSOP |
5,146 | 6.81 |
RFQ |
Datasheet |
Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 6 | 3/3 | Unidirectional | 1000Vrms | 15kV/µs | 1Mbps | 75ns, 75ns | 25ns | 2ns, 2ns | 3V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
IL 611-3EDGTL ISO 2500VRMS 2CH GP 8SOIC |
7,852 | 7.49 |
RFQ |
Datasheet |
Tube | IsoLoop® | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 2 | 2/0 | Unidirectional | 2500Vrms | 15kV/µs | 100Mbps | 15ns, 15ns | 5ns | 2ns, 2ns | 3V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|

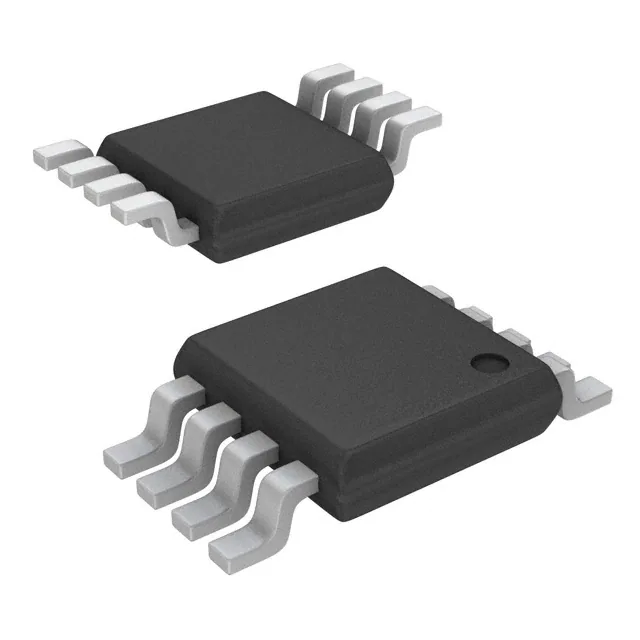

IL 712T-1EDGTL ISO 1000VRMS 2CH GP 8MSOP |
8,820 | 8.30 |
RFQ |
Datasheet |
Tube | IsoLoop® | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 2 | 1/1 | Unidirectional | 1000Vrms | 100kV/µs | 110Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
.jpg)
|
IL 3685-1EDGT ISO 2.5KV RS422/RS485 16QSOP |
5,547 | 8.78 |
RFQ |
Datasheet |
Tube | IsoLoop® | Active | GMR (Giant Magnetoresistive) | RS422, RS485 | No | 3 | 2/1 | Unidirectional | 2500Vrms | 30kV/µs | 40Mbps | 30ns, 30ns | - | - | 3V ~ 5.5V, 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|

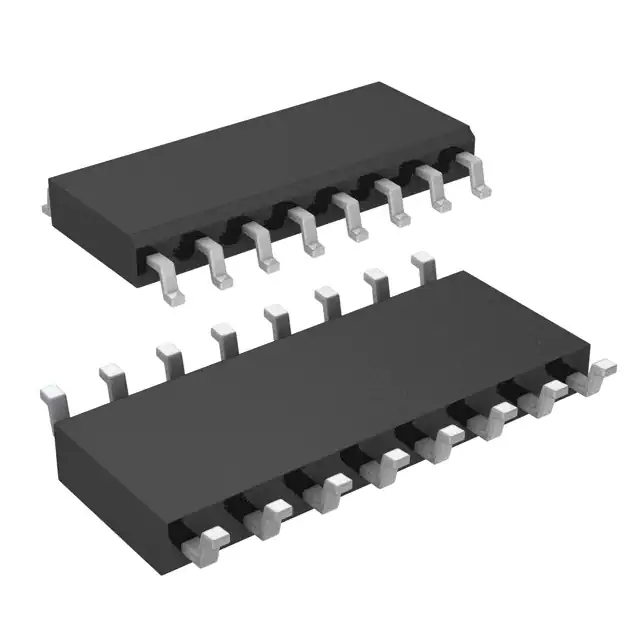

IL 613-3EDGTL ISO 2500VRMS 3CH GP 16SOIC |
6,274 | 9.21 |
RFQ |
Datasheet |
Tube | IsoLoop® | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 3 | 3/0 | Unidirectional | 2500Vrms | 15kV/µs | 100Mbps | 15ns, 15ns | 5ns | 2ns, 2ns | 3V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
HCPL-9000-000EDGTL ISO 2500VRMS 1CH GP 8DIP |
9,730 | 9.81 |
RFQ |
Datasheet |
Tube | - | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 1 | 1/0 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | -55°C ~ 125°C | Through Hole |
|
|
IL 715EDGTL ISO 2500VRMS 4CH GP 16SOIC |
4,084 | 10.14 |
RFQ |
Datasheet |
Tube | IsoLoop® | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 100kV/µs | 110Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|

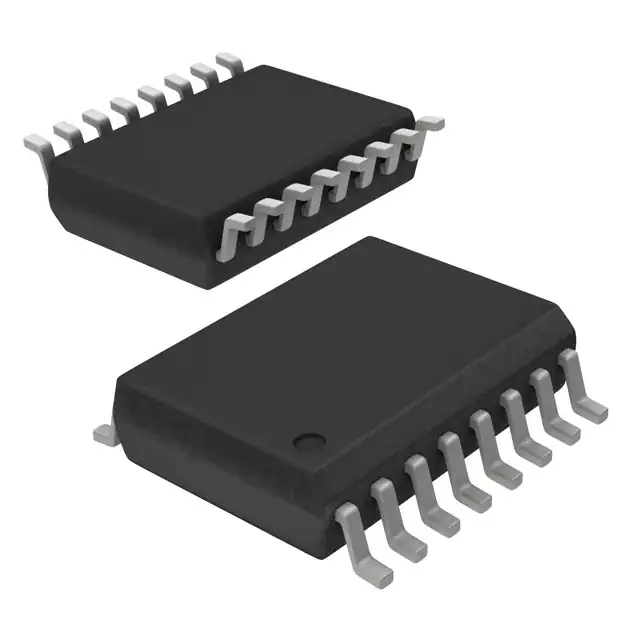

ADUM3160WBRWZDGT ISOL 2500VRMS 2CH USB 16SOIC |
3,687 | 11.78 |
RFQ |
Datasheet |
Tube | Automotive | Active | Magnetic Coupling | USB | No | 1 | 1/1 | Bidirectional | 2500Vrms | 25kV/µs | 12Mbps | 70ns, 70ns | - | 20ns, 20ns (Max) | 3V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
IL 715T-3EDGTL ISO 2500VRMS 4CH GP 16SOIC |
1,182 | 10.92 |
RFQ |
Datasheet |
Tube | IsoLoop® | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 100kV/µs | 110Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
HCPL-0900DGTL ISO 2500VRMS 1CH GP 8SOIC |
1,849 | 11.75 |
RFQ |
Datasheet |
Tube | - | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 1 | 1/0 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | -55°C ~ 125°C | Surface Mount |
|
|
IL 712T-3DGTL ISO 2500VRMS 2CH GP 8SOIC |
4,701 | 11.78 |
RFQ |
Datasheet |
Tube | IsoLoop® | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 2 | 1/1 | Unidirectional | 2500Vrms | 100kV/µs | 110Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
LTM2892CY-S#PBFDGTL ISOL 3500VRMS 6CH SPI 24BGA |
4,958 | 15.60 |
RFQ |
Datasheet |
Tray | µModule® | Active | Magnetic Coupling | SPI | No | 6 | 3/3 | Unidirectional | 3500Vrms | 50kV/µs | 4MHz, 8MHz | 100ns, 100ns | - | 3ns, 3ns | 3V ~ 5.5V | 0°C ~ 70°C | Surface Mount |
|
|
IL 3685EDGT ISO 2.5KV RS422/RS485 16SOIC |
1,685 | 14.62 |
RFQ |
Datasheet |
Tube | IsoLoop® | Active | GMR (Giant Magnetoresistive) | RS422, RS485 | No | 3 | 2/1 | Unidirectional | 2500Vrms | 30kV/µs | 40Mbps | 30ns, 30ns | - | - | 3V ~ 5.5V, 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
IL 485WEDGT ISO 2.5KV RS422/RS485 16SOIC |
4,555 | 14.62 |
RFQ |
Datasheet |
Tube | IsoLoop® | Active | GMR (Giant Magnetoresistive) | RS422, RS485 | No | 4 | 2/2 | Unidirectional | 2500Vrms | 20kV/µs | 35Mbps | 32ns, 32ns | - | 8ns, 8ns | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
LTM2882CY-5#PBFDGT ISO 2500VRMS 4CH RS232 32BGA |
4,719 | 22.15 |
RFQ |
Datasheet |
Tray | µModule® | Active | Magnetic Coupling | RS232 | Yes | 4 | 2/2 | Unidirectional | 2500Vrms | 30kV/µs | 10Mbps | 100ns, 100ns | - | 60ns, 60ns | 4.5V ~ 5.5V | 0°C ~ 70°C | Surface Mount |
|
|
LTM2892HY-S#PBFDGTL ISOL 3500VRMS 6CH SPI 24BGA |
4,931 | 22.72 |
RFQ |
Datasheet |
Tray | µModule® | Active | Magnetic Coupling | SPI | No | 6 | 3/3 | Unidirectional | 3500Vrms | 50kV/µs | 4MHz, 8MHz | 100ns, 100ns | - | 3ns, 3ns | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|

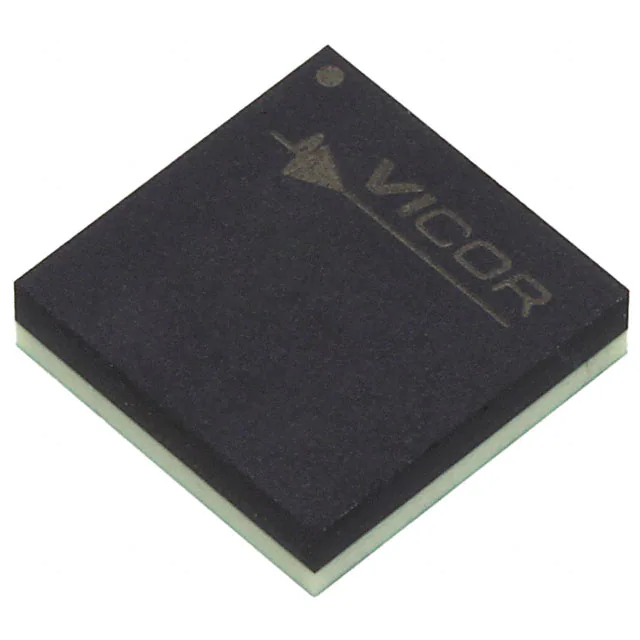

I13TL1A0DGTL ISO 3000VRMS 3CH GP 8LGA |
1,498 | 23.78 |
RFQ |
Datasheet |
Tray | - | Active | Magnetic Coupling | General Purpose | No | 3 | 1/2 | Unidirectional | 3000Vrms | 3kV/µs | - | 58ns, 84ns | - | 65ns, 22ns | 2.5V ~ 3.6V | -40°C ~ 125°C | Surface Mount |
|
LTM2881HV-5#PBFDGTL ISO 2.5KV RS422/RS485 32LGA |
3,697 | 28.83 |
RFQ |
Datasheet |
Tray | µModule® | Active | Magnetic Coupling | RS422, RS485 | Yes | 2 | 1/1 | Unidirectional | 2500Vrms | 30kV/µs | 20Mbps | - | - | - | 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
