| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Technology | Type | IsolatedPower | NumberofChannels | Inputs-Side1/Side2 | ChannelType | Voltage-Isolation | CommonModeTransientImmunity(Min) | DataRate | PropagationDelaytpLH/tpHL(Max) | PulseWidthDistortion(Max) | Rise/FallTime(Typ) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX22820EAWA+2-CH 3KVRMS DIGITAL ISOLATOR |
7,120 | 5.83 |
RFQ |
Datasheet |
Tube | - | Active | Capacitive Coupling | General Purpose | No | 2 | 2/0 | Unidirectional | 5000Vrms | 200kV/µs | 10Mbps | 136ns, 136ns | 15ns | 5ns, 5ns (Max) | 1.71V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
ADUM260N0BRIZDGTL ISO 5000VRMS 6CH GP 16SOIC |
6,998 | 6.63 |
RFQ |
Datasheet |
Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 6 | 6/0 | Unidirectional | 5000Vrms | 75kV/µs | 150Mbps | 13ns, 13ns | 4.5ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
ADUM262N1BRIZDGTL ISO 5000VRMS 6CH GP 16SOIC |
8,630 | 6.63 |
RFQ |
Datasheet |
Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 6 | 4/2 | Unidirectional | 5000Vrms | 75kV/µs | 150Mbps | 13ns, 13ns | 4.5ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
SI8661EC-B-IS1DGTL ISO 3750VRMS 6CH GP 16SOIC |
7,158 | 6.10 |
RFQ |
Datasheet |
Tube | - | Active | Capacitive Coupling | General Purpose | No | 6 | 5/1 | Unidirectional | 3750Vrms | 35kV/µs | 150Mbps | 13ns, 13ns | 4.5ns | 2.5ns, 2.5ns | 2.5V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
SI8662BC-B-IS1DGTL ISO 3750VRMS 6CH GP 16SOIC |
9,900 | 6.10 |
RFQ |
Datasheet |
Tube | - | Active | Capacitive Coupling | General Purpose | No | 6 | 4/2 | Unidirectional | 3750Vrms | 35kV/µs | 150Mbps | 13ns, 13ns | 4.5ns | 2.5ns, 2.5ns | 2.5V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
SI8662EC-B-IS1DGTL ISO 3750VRMS 6CH GP 16SOIC |
8,028 | 6.10 |
RFQ |
Datasheet |
Tube | - | Active | Capacitive Coupling | General Purpose | No | 6 | 4/2 | Unidirectional | 3750Vrms | 35kV/µs | 150Mbps | 13ns, 13ns | 4.5ns | 2.5ns, 2.5ns | 2.5V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
SI8663BC-B-IS1DGTL ISO 3750VRMS 6CH GP 16SOIC |
5,440 | 6.10 |
RFQ |
Datasheet |
Tube | - | Active | Capacitive Coupling | General Purpose | No | 6 | 3/3 | Unidirectional | 3750Vrms | 35kV/µs | 150Mbps | 13ns, 13ns | 4.5ns | 2.5ns, 2.5ns | 2.5V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
IL 3422-3EDGT ISO 2.5KV RS422/RS485 16SOIC |
8,115 | 6.18 |
RFQ |
Datasheet |
Tube | IsoLoop® | Active | GMR (Giant Magnetoresistive) | RS422, RS485 | No | 2 | 1/1 | Unidirectional | 2500Vrms | 15kV/µs | 20Mbps | - | - | 12ns, 12ns | 3V ~ 5.5V, 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|

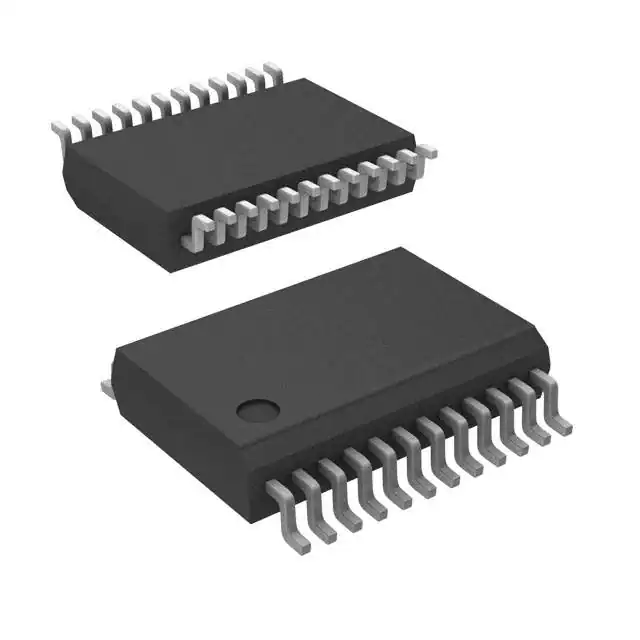

ADUM5410BRSZ-RL7DGTL ISO 2500VRMS 4CH GP 24SSOP |
2,836 | 10.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 4 | 4/0 | Unidirectional | 2500Vrms | 75kV/µs | 150Mbps | 13ns, 13ns | 3ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADUM5412BRSZ-RL7DGTL ISO 2500VRMS 4CH GP 24SSOP |
2,308 | 10.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 4 | 2/2 | Unidirectional | 2500Vrms | 75kV/µs | 150Mbps | 13ns, 13ns | 3ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
SI8440BB-D-ISDGTL ISO 2500VRMS 4CH GP 16SOIC |
9,255 | 6.29 |
RFQ |
Datasheet |
Tube | - | Not For New Designs | Capacitive Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs (Typ) | 150Mbps | 9.5ns, 9.5ns | 2.5ns | 3.8ns, 2.8ns | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
NCID9401HIGH SPEED QUAD-CHANNEL DIGITAL |
6,931 | 6.31 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q100 | Active | Capacitive Coupling | I²C, SPI | No | 4 | 4/0 | Unidirectional | 5000Vrms | 100kV/µs | 10Mbps | 200ns, 200ns | 80ns | 3ns, 2ns | 2.5V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
NCID9411HIGH SPEED QUAD-CHANNEL DIGITAL |
6,892 | 6.31 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q100 | Active | Capacitive Coupling | I²C, SPI | No | 4 | 3/1 | Unidirectional | 5000Vrms | 100kV/µs | 10Mbps | 170ns, 170ns | 70ns | 3ns, 2ns | 2.5V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
SI8380PF-IUDGTL ISO 2500VRMS 8CH GP 20QSOP |
8,669 | 6.32 |
RFQ |
Datasheet |
Tube | - | Active | Capacitive Coupling | General Purpose | No | 8 | 8/0 | Unidirectional | 2500Vrms | 200kV/µs | 100bps | - | - | 3.9ns, 3.7ns | 2.25V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
SI86S642EE-IS26.0 KVRMS ISOLATOR, 4 UNIDIRECTI |
7,666 | 6.35 |
RFQ |
Tube | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
ADUM3401TRWZ-EPDGTL ISO 2500VRMS 4CH GP 16SOIC |
2,029 | 19.66 |
RFQ |
Datasheet |
Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 3.135V ~ 5.5V | -55°C ~ 125°C | Surface Mount |
|
LTM2892HY-I#PBFDGTL ISOL 3500VRMS 6CH I2C 24BGA |
2,224 | 22.72 |
RFQ |
Datasheet |
Bulk,Tray | µModule® | Active | Magnetic Coupling | I²C | No | 6 | 3/3 | Unidirectional | 3500Vrms | 50kV/µs | 400kHz | 250ns, 250ns | - | 250ns, 250ns (Max) | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
LTM2810CY-I#PBFDGTL ISOL 7500VRMS 6CH I2C 36BGA |
4,034 | 21.56 |
RFQ |
Datasheet |
Tray | µModule® | Active | Magnetic Coupling | I²C | Yes | 6 | 3/3 | Unidirectional | 7500Vrms | 50kV/µs | 400kHz | 500ns, 500ns | 50ns | 350ns, 250ns (Max) | 3V ~ 5.5V | 0°C ~ 70°C | Surface Mount |
|
|
LTM2810CY-S#PBFDGTL ISOL 7500VRMS 6CH SPI 36BGA |
4,497 | 21.56 |
RFQ |
Datasheet |
Tray | µModule® | Active | Magnetic Coupling | SPI | Yes | 6 | 3/3 | Unidirectional | 7500Vrms | 50kV/µs | 10MHz | 100ns, 100ns | 50ns | 350ns, 250ns (Max) | 1.62V ~ 5.5V | 0°C ~ 70°C | Surface Mount |
|
SI8620AB-B-ISRDGTL ISO 2500VRMS 2CH GP 8SOIC |
7,325 | 1.31 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Capacitive Coupling | General Purpose | No | 2 | 2/0 | Unidirectional | 2500Vrms | 35kV/µs | 1Mbps | 35ns, 35ns | 25ns | 2.5ns, 2.5ns | 2.5V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
