Diodes - Rectifiers - Arrays

Manufacturer	Packaging	Series	ProductStatus	DiodeConfiguration	DiodeType	Voltage-DCReverse(Vr)(Max)	Current-AverageRectified(Io)(perDiode)	Voltage-Forward(Vf)(Max)@If	Speed	ReverseRecoveryTime(trr)	Current-ReverseLeakage@Vr	OperatingTemperature-Junction	MountingType
Allegro MicroSystems ANBON SEMICONDUCTOR (INT'L) LIMITED Bourns Inc. Central Semiconductor Corp Comchip Technology Diodes Incorporated Diotec Semiconductor Fairchild Semiconductor FRESH DIGIT GeneSiC Semiconductor Global Power Technology Co. Ltd Global Power Technology-GPT Harris Corporation HY Electronic (Cayman) Limited Infineon Technologies Inventchip IXYS IXYS-RF KYOCERA AVX Linear Integrated Systems, Inc. Littelfuse Inc. MDD Micro Commercial Co Microchip Technology Microsemi Corporation Nexperia USA Inc. NTE Electronics, Inc NXP Semiconductors NXP USA Inc. onsemi Panasonic Electronic Components Panjit International Inc. Phoenix Contact Power Integrations Powerex Inc. Rectron USA Renesas Electronics America Inc Rohm Semiconductor Sanken SanRex Corporation Sanyo SemiQ Semtech Corporation Sensata-Crydom Siemens SMC Diode Solutions Solid State Inc. STMicroelectronics Taiwan Semiconductor Corporation Texas Instruments Toshiba Semiconductor and Storage TT Electronics/Optek Technology Unitrode Vishay General Semiconductor - Diodes Division Vishay Semiconductor Opto Division WAGO Corporation WeEn Semiconductors Weidmüller Wolfspeed, Inc. Yangzhou Yangjie Electronic Technology Co.,Ltd	- Bag Box Bulk Bulk,Box Bulk,Bulk Bulk,Tray Bulk,Tube Bulk,Tube,Tube Bulk,Tube,Tube,Tube Cut Tape (CT) Cut Tape (CT),Bulk Cut Tape (CT),Cut Tape (CT),Digi-Reel®,Digi-Reel® Cut Tape (CT),Digi-Reel® Cut Tape (CT),Digi-Reel®,Bulk Cut Tape (CT),Digi-Reel®,Tube Cut Tape (CT),Tape & Box (TB) Cut Tape (CT),Tube Strip Tape & Reel (TR) Tape & Reel (TR),Bulk Tape & Reel (TR),Cut Tape (CT) Tape & Reel (TR),Cut Tape (CT),Bulk Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT) Tape & Reel (TR),Cut Tape (CT),Digi-Reel® Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk,Bulk Tape & Reel (TR),Digi-Reel® Tape & Reel (TR),Tape & Reel (TR) Tape & Reel (TR),Tape & Reel (TR),Bulk Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT) Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT) Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT),Digi-Reel®,Digi-Reel® Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Digi-Reel® Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk Tape & Reel (TR),Tube Tray Tray,Tray Tube Tube,Tube Tube,Tube,Tube	* - Amp+™ Automotive Automotive, AEC-Q100 Automotive, AEC-Q101 Automotive, AEC-Q101, BAS70-AU Automotive, AEC-Q101, BAS70TW-AU Automotive, AEC-Q101, BAS70W-AU Automotive, AEC-Q101, BAT54 Automotive, AEC-Q101, BAT54W Automotive, AEC-Q101, BAT64 Automotive, AEC-Q101, BAV23C Automotive, AEC-Q101, BAV70 Automotive, AEC-Q101, BAV99 Automotive, AEC-Q101, ECOPACK®2 Automotive, AEC-Q101, eSMP® Automotive, AEC-Q101, eSMP®, TMBS® Automotive, AEC-Q101, FRED Pt® Automotive, AEC-Q101, FRED Pt® Gen 5 Automotive, AEC-Q101, SBR® Automotive, AEC-Q101, SWITCHMODE™ Automotive, AEC-Q101, TMBS® Automotive, AEC-Q101, TrenchSBR BAS40 BAS70 BAS70TW BAS70W BAT54-G BAT54-HF BAT54TB BAT54TB6 BAT54W-AU BAT54xT-HF BAV23C BAV23C-G BAV70 BAV70-G BAV99 BAW56 BD10H150CS CMUSH2-4 CoolSiC™+ DAA10P1800PZ DAA200X1800NA DAA200XA1800NA DCG 160X650NA DD104N DD160N DD171N DD230S DD242S DD98N DFE240X600NA DFE250X600NA DFE25I600HA DHG 50X650NA DLA5P800UC DMA200X1600NA DMA200XA1600NA DMA200YA1600NA DMA200YC1600NA DMA240YA1600NA DMA240YC1600NA DNA90YA2200NA DNA90YC2200NA DPAD DPG20C400PC DPG30C200PC DPG30C300PC DPG60C300PC DPJ50XS1800NA DSA10C150UC DSA20C200PB DSA30C150PC DSA30C200PC DSA30C45PC DSEI2x60-04C DSEK300-06A DSEP2x61-12B DSP DSP25-12AT DSP25-16AT DSSK18-0025BS DUR ECOPACK® ECOPACK®2 eSMP® eSMP®, TMBS® F18 FRED FRED Pt® FRED Pt® Gen 4 HEXFRED® HiPerDynFRED™ HiPerFRED²™ HiPerFRED™ MBR MBR10H150CT MBR10H150DC MBR10H150FCT MBR2040DC MBR2040FCT MBR2540CT MBR3040CT MBR3040FCT MBR3040PT MBR30H150CT MBR30H150DC MBR30H150FCT MBR4040PT MBR6040PT MDMA1400C1600CC MDMA280P1600YD MDMA425P1600PTSF MDMA600P1600PTSF MDMA700P1600CC MEGAHERTZ™ Military, MIL-PRF-19500/116 Military, MIL-PRF-19500/4 Military, MIL-PRF-19500/608 Military, MIL-PRF-19500/617 Military, MIL-PRF-19500/680 Military, MIL-PRF-19500/730 Military, MIL-PRF-19500/737 MMBD1503A MMBD7000 MMBD717 MMBD717W MSP Q Automotive Qspeed™ Rapid 1 Rapid 2 RB551V-30TA SB1620DC SB2020CT SB3020CT SB3020FCT SB3020PT SB4020PT SBR SBR® SiC Schottky MPS™ SOT-23 Stealth™ SWITCHMODE™ TMBS® TO 220AB TrenchMOS™ TrenchSBR TrenchSBR® TURBOSWITCH™ UF1600FCT UF2002FCT Z-Rec® Zero Recovery™	Active Discontinued at Mosen Last Time Buy Not For New Designs Obsolete	- 1 Independent 1 Pair Common Anode 1 Pair Common Cathode 1 Pair Series Connection 14 Common Anode 14 Common Cathode 16 Pair Common Cathode 17 Independent 2 Independent 2 Pair CA + CC 2 Pair Common Anode 2 Pair Common Cathode 2 Pair Series Connection 3 Common Anode 3 Common Cathode 3 Independent 3 Pair Series Connection 32 Common Anode 32 Common Cathode 4 Common Anode 4 Common Cathode 4 Independent 4 Pair Common Cathode 4 Pair Series Connection 5 Common Cathode 5 Series Connection 6 Common Cathode 6 Independent 6 Series Connection 7 Common Anode 7 Common Cathode 7 Independent 7 Pair Common Cathode 8 Common Anode 8 Common Cathode 8 Independent 8 Pair Common Cathode 8 Pair Series Connection	- Avalanche FERD (Field Effect Rectifier Diode) Schottky Schottky, Reverse Polarity Silicon Carbide Schottky Single Phase (Braking) Standard Standard, Reverse Polarity Super Barrier	- 1.2 V 10 V 100 V 1000 V 10000 V 105 V 110 V 11000 V 120 V 1200 V 12000 V 1300 V 135 V 140 V 1400 V 14000 V 14400 V 15 V 150 V 15000 V 160 V 1600 V 16000 V 16800 V 170 V 1700 V 175 V 180 V 1800 V 19000 V 19200 V 19600 V 2 V 20 V 200 V 2000 V 20000 V 2200 V 22000 V 22400 V 225 V 24 V 240 V 2400 V 24000 V 25 V 250 V 2500 V 25000 V 2600 V 26000 V 2800 V 28000 V 3 V 30 V 300 V 3000 V 30000 V 3200 V 32000 V 325 V 3300 V 33000 V 33600 V 3400 V 35 V 350 V 35000 V 3600 V 3800 V 38000 V 39200 V 4 V 40 V 400 V 4000 V 40000 V 44000 V 44800 V 45 V 450 V 4500 V 48 V 480 V 48000 V 5 V 50 V 500 V 5000 V 51000 V 56000 V 57 V 60 V 600 V 6000 V 64000 V 65 V 650 V 6500 V 7 V 70 V 700 V 7200 V 75 V 7500 V 8 V 80 V 800 V 8000 V 8400 V 85 V 90 V 9600 V	- 1.3A 1.5A 1.65A (DC) 1.7A 1.8A 1.9A 1000A (DC) 100A 100A (DC) 100mA 100mA (DC) 101A (DC) 102.5A (DC) 102A (DC) 104A 104A (DC) 105A (DC) 108A 108A (DC) 10A 10A (DC) 10mA 10mA (DC) 11.25A 1100A 110A 110A (DC) 110mA (DC) 111A (DC) 113A 115A 115A (DC) 11A 11A (DC) 12.5A 1200A 1200A (DC) 120A 120A (DC) 120mA 120mA (DC) 123A 123A (DC) 125A 125mA 125mA (DC) 126A 126A (DC) 127A 128A 12A 12A (DC) 130A 135A 136A 136A (DC) 13A 140A 140A (DC) 140mA 140mA (DC) 141A (DC) 142A 142A (DC) 144A 147A 149A 14A 14A (DC) 150A 150A (DC) 150mA 150mA (DC) 155A 155mA 15A 15A (DC) 15mA 15mA (DC) 16.5A 160A 160A (DC) 160mA 160mA (DC) 161A 165A 167A 168A 16A 16A (DC) 170A 170A (DC) 170mA (DC) 171A 171A (DC) 172A 172A (DC) 175A (DC) 175mA 175mA (DC) 177A 17A 17A (DC) 180A 180mA (DC) 185A (DC) 18A 18A (DC) 19.35A (DC) 19.8A (DC) 190A 192A 193A (DC) 195A 198A (DC) 19A 19A (DC) 1A 1A (DC) 2.5A 2.75A 2.7A 2.8A 200A 200A (DC) 200mA 200mA (DC) 202A 209A (DC) 20A 20A (DC) 20mA (DC) 21.25A 21.5A 210A 210A (DC) 215mA 215mA (DC) 21A 22.5A 220A 222A (DC) 223A 224A 225mA 225mA (DC) 226A 229A (DC) 22A 22A (DC) 230A 235A 23A 23A (DC) 24.5V (DC) 240A 243A (DC) 244A (DC) 24A 24A (DC) 25.5A (DC) 25.9A (DC) 250A 250A (DC) 250mA 250mA (DC) 259A (DC) 25A 25A (DC) 25mA 260A 261A 26A 27.9A (DC) 270A 273A 27A 27A (DC) 280A 280A (DC) 285A 28A 29.5A (DC) 290A 29A 2A 3.1A 3.2A 3.4A 3.5A 3.6A 3.75A 3.7A 3.8A 3.9A 300A 300A (DC) 300mA 300mA (DC) 304A 305A 30A 30A (DC) 30mA 30mA (DC) 31.2A (DC) 310A 31A 320A 320mA (DC) 321A (DC) 32A (DC) 33.2A (DC) 330A 33A 33A (DC) 34A 350A 350mA 350mA (DC) 355mA (DC) 356A 35A 35A (DC) 35mA (DC) 36A 36A (DC) 375mA (DC) 37A (DC) 380A 38A 390A 39A (DC) 3A 3A (DC) 4.2A 4.5A 4.6A 4.7A 4.8A 400A 400A (DC) 400mA 400mA (DC) 40A 40A (DC) 42.5A 420A 425A 42A (DC) 435A 43A 440A 440A (DC) 448A (DC) 44A 44A (DC) 450A (DC) 450mA (DC) 45A 45A (DC) 460A 470A 480A 48A 49A 4A 4A (DC) 5.1A 5.1mA 5.2A 5.4A 5.5A 5.6A 500A 500A (DC) 500mA 500mA (DC) 505A (DC) 50A 50A (DC) 50mA 50mA (DC) 510A 52A 52A (DC) 53A 540A 55A 55A (DC) 56A 56A (DC) 572A 573A 57A 59A 5A 5A (DC) 6.3A 6.5A 600A 600A (DC) 600mA 60A 60A (DC) 62A (DC) 630A 64.5A (DC) 64A 650A 65A 65A (DC) 660A (DC) 6A 6A (DC) 7.5A 700A 700mA 708A 70A 70A (DC) 70mA 70mA (DC) 710A 715mA 71A 75A 75A (DC) 75mA 75mA (DC) 76A 76A (DC) 772A (DC) 8.5A (DC) 800A (DC) 807A 80A 80A (DC) 80mA 82.5A 83A (DC) 85A 85A (DC) 87A 880A 883A 89A 89A (DC) 8A 8A (DC) 90A 90A (DC) 91A 93A 93A (DC) 94A 94A (DC) 950A 95A 95A (DC) 96A 97.5A 98A 99A 99A (DC) 9A 9A (DC)	- 0.93 V @ 4 A 0.94 V @ 3 A 0.95 V @ 5 A 0.98 V @ 2 A 1 V @ 1.5 A 1 V @ 10 A 1 V @ 10 mA 1 V @ 100 A 1 V @ 100 mA 1 V @ 110 A 1 V @ 120 A 1 V @ 15 A 1 V @ 15 mA 1 V @ 150 A 1 V @ 18 A 1 V @ 20 A 1 V @ 200 A 1 V @ 200 mA 1 V @ 25 A 1 V @ 3 A 1 V @ 30 A 1 V @ 30 mA 1 V @ 35 mA 1 V @ 40 A 1 V @ 40 mA 1 V @ 400 mA 1 V @ 5 A 1 V @ 50 A 1 V @ 50 mA 1 V @ 6 A 1 V @ 60 A 1 V @ 7.5 A 1 V @ 70 A 1 V @ 75 A 1 V @ 8 A 1 V @ 80 A 1 V @ 9 A 1 V @ 9 mA 1.01 V @ 10 A 1.01 V @ 100 A 1.01 V @ 40 A 1.02 V @ 10 A 1.02 V @ 20 A 1.02 V @ 25 A 1.02 V @ 30 A 1.02 V @ 40 A 1.03 V @ 10 A 1.03 V @ 100 A 1.03 V @ 15 A 1.03 V @ 150 A 1.03 V @ 20 A 1.03 V @ 200 A 1.03 V @ 5 A 1.03 V @ 8 A 1.04 V @ 20 A 1.05 V @ 10 A 1.05 V @ 100 A 1.05 V @ 100 mA 1.05 V @ 15 A 1.05 V @ 150 A 1.05 V @ 2 A 1.05 V @ 20 A 1.05 V @ 30 A 1.05 V @ 300 A 1.05 V @ 5 A 1.05 V @ 60 A 1.05 V @ 7.5 A 1.05 V @ 8 A 1.06 V @ 100 A 1.06 V @ 15 A 1.06 V @ 3 A 1.06 V @ 400 A 1.06 V @ 8 A 1.07 V @ 120 A 1.07 V @ 15 A 1.07 V @ 200 A 1.07 V @ 260 A 1.07 V @ 300 A 1.08 V @ 15 A 1.08 V @ 30 A 1.08 V @ 5 A 1.08 V @ 60 A 1.08 V @ 7.5 A 1.09 V @ 200 A 1.09 V @ 300 A 1.09 V @ 35 A 1.09 V @ 60 A 1.1 V @ 10 A 1.1 V @ 100 A 1.1 V @ 100 mA 1.1 V @ 120 A 1.1 V @ 15 A 1.1 V @ 150 A 1.1 V @ 16 A 1.1 V @ 18 A 1.1 V @ 20 A 1.1 V @ 200 A 1.1 V @ 200 mA 1.1 V @ 3 A 1.1 V @ 30 A 1.1 V @ 300 A 1.1 V @ 36 A 1.1 V @ 4 A 1.1 V @ 400 A 1.1 V @ 5 A 1.1 V @ 50 mA 1.1 V @ 500 mA 1.1 V @ 54 A 1.1 V @ 6 A 1.1 V @ 6.5 A 1.1 V @ 75 A 1.1 V @ 8 A 1.1 V @ 80 A 1.1 V @ 9 A 1.11 V @ 15 A 1.11 V @ 30 A 1.12 V @ 10 A 1.12 V @ 20 A 1.125 V @ 100 A 1.13 V @ 16 A 1.13 V @ 200 A 1.13 V @ 210 A 1.13 V @ 50 A 1.13 V @ 60 A 1.14 V @ 280 A 1.14 V @ 40 A 1.14 V @ 700 A 1.14 V @ 8 A 1.14 V @ 80 A 1.15 V @ 10 A 1.15 V @ 100 A 1.15 V @ 15 A 1.15 V @ 16 A 1.15 V @ 1800 A 1.15 V @ 20 A 1.15 V @ 3 A 1.15 V @ 30 A 1.15 V @ 300 A 1.15 V @ 300 mA 1.15 V @ 5 A 1.15 V @ 6 A 1.15 V @ 7 A 1.15 V @ 800 A 1.16 V @ 30 A 1.16 V @ 35 A 1.16 V @ 40 A 1.17 V @ 10 A 1.17 V @ 150 A 1.17 V @ 160 A 1.17 V @ 80 A 1.17 V @ 85 A 1.18 V @ 100 A 1.18 V @ 110 A 1.18 V @ 140 A 1.18 V @ 15 A 1.18 V @ 1500 A 1.18 V @ 5 A 1.18 V @ 50 A 1.18 V @ 65 A 1.19 V @ 100 A 1.19 V @ 150 A 1.19 V @ 1800 A 1.19 V @ 30 A 1.19 V @ 50 A 1.2 V @ 1 A 1.2 V @ 10 A 1.2 V @ 100 A 1.2 V @ 100 mA 1.2 V @ 1000 A 1.2 V @ 15 A 1.2 V @ 150 A 1.2 V @ 16 A 1.2 V @ 18 A 1.2 V @ 20 A 1.2 V @ 200 A 1.2 V @ 200 mA 1.2 V @ 250 A 1.2 V @ 3 A 1.2 V @ 30 A 1.2 V @ 300 A 1.2 V @ 35 A 1.2 V @ 36 A 1.2 V @ 400 A 1.2 V @ 5 A 1.2 V @ 500 A 1.2 V @ 54 A 1.2 V @ 6 A 1.2 V @ 60 A 1.2 V @ 600 A 1.2 V @ 70 mA 1.2 V @ 8 A 1.2 V @ 80 A 1.2 V @ 9 A 1.21 V @ 33 A 1.21 V @ 400 A 1.21 V @ 50 A 1.22 V @ 10 A 1.22 V @ 35 A 1.22 V @ 40 A 1.22 V @ 8 A 1.23 V @ 100 mA 1.23 V @ 2 A 1.23 V @ 20 A 1.23 V @ 25 A 1.23 V @ 30 A 1.23 V @ 40 A 1.23 V @ 70 A 1.24 V @ 10 A 1.24 V @ 100 A 1.24 V @ 1800 A 1.24 V @ 2000 A 1.24 V @ 750 A 1.25 V @ 10 A 1.25 V @ 100 A 1.25 V @ 100 mA 1.25 V @ 120 A 1.25 V @ 15 A 1.25 V @ 150 mA 1.25 V @ 16 A 1.25 V @ 165 A 1.25 V @ 180 A 1.25 V @ 20 A 1.25 V @ 200 A 1.25 V @ 200 mA 1.25 V @ 30 A 1.25 V @ 300 A 1.25 V @ 3000 A 1.25 V @ 320 A 1.25 V @ 35 A 1.25 V @ 40 A 1.25 V @ 400 mA 1.25 V @ 5 A 1.25 V @ 60 A 1.25 V @ 70 A 1.25 V @ 8 A 1.26 V @ 10 A 1.26 V @ 1000 A 1.26 V @ 125 A 1.26 V @ 15 A 1.26 V @ 30 A 1.26 V @ 45 A 1.26 V @ 500 A 1.27 V @ 10 A 1.27 V @ 100 A 1.275 V @ 200 mA 1.28 V @ 10 A 1.28 V @ 1000 A 1.28 V @ 30 A 1.28 V @ 45 A 1.29 V @ 785 A 1.29 V @ 90 A 1.3 V @ 10 A 1.3 V @ 100 A 1.3 V @ 100 mA 1.3 V @ 120 A 1.3 V @ 125 A 1.3 V @ 15 A 1.3 V @ 150 A 1.3 V @ 1600 A 1.3 V @ 2.5 A 1.3 V @ 20 A 1.3 V @ 200 A 1.3 V @ 200 mA 1.3 V @ 2000 A 1.3 V @ 250 A 1.3 V @ 3 A 1.3 V @ 30 A 1.3 V @ 300 A 1.3 V @ 35 A 1.3 V @ 5 A 1.3 V @ 50 A 1.3 V @ 500 A 1.3 V @ 6 A 1.3 V @ 60 A 1.3 V @ 600 A 1.3 V @ 620 A 1.3 V @ 7.5 A 1.3 V @ 70 A 1.3 V @ 750 A 1.3 V @ 8 A 1.3 V @ 80 A 1.31 V @ 110 A 1.31 V @ 1600 A 1.31 V @ 200 A 1.31 V @ 2500 A 1.31 V @ 50 A 1.31 V @ 800 A 1.32 V @ 10 A 1.32 V @ 1800 A 1.32 V @ 35 A 1.32 V @ 600 A 1.32 V @ 800 A 1.33 V @ 180 A 1.33 V @ 270 A 1.33 V @ 800 A 1.34 V @ 100 A 1.34 V @ 30 A 1.34 V @ 800 A 1.35 V @ 10 A 1.35 V @ 100 A 1.35 V @ 150 A 1.35 V @ 150 mA 1.35 V @ 1500 A 1.35 V @ 16 A 1.35 V @ 180 A 1.35 V @ 20 A 1.35 V @ 200 A 1.35 V @ 30 A 1.35 V @ 300 A 1.35 V @ 3000 A 1.35 V @ 320 A 1.35 V @ 35 A 1.35 V @ 50 A 1.35 V @ 500 A 1.35 V @ 6 A 1.35 V @ 60 A 1.35 V @ 70 A 1.35 V @ 750 A 1.36 V @ 10 A 1.36 V @ 15 A 1.36 V @ 2200 A 1.36 V @ 260 A 1.36 V @ 30 A 1.36 V @ 40 A 1.37 V @ 400 A 1.37 V @ 60 A 1.38 V @ 15 A 1.38 V @ 600 A 1.38 V @ 80 A 1.39 V @ 15 A 1.39 V @ 30 A 1.39 V @ 500 A 1.4 V @ 10 A 1.4 V @ 100 A 1.4 V @ 120 A 1.4 V @ 15 A 1.4 V @ 150 A 1.4 V @ 1600 A 1.4 V @ 165 A 1.4 V @ 1978 A 1.4 V @ 20 A 1.4 V @ 200 A 1.4 V @ 200 mA 1.4 V @ 25 A 1.4 V @ 270 A 1.4 V @ 3 A 1.4 V @ 30 A 1.4 V @ 300 A 1.4 V @ 4 A 1.4 V @ 400 A 1.4 V @ 50 A 1.4 V @ 500 A 1.4 V @ 6 A 1.4 V @ 60 A 1.4 V @ 600 A 1.4 V @ 8 A 1.4 V @ 90 A 1.41 V @ 30 A 1.41 V @ 320 A 1.41 V @ 5 A 1.42 V @ 800 A 1.43 V @ 150 A 1.43 V @ 20 A 1.43 V @ 259 A 1.43 V @ 300 A 1.43 V @ 40 A 1.43 V @ 520 A 1.44 V @ 100 A 1.45 V @ 10 A 1.45 V @ 15 A 1.45 V @ 170 A 1.45 V @ 20 A 1.45 V @ 200 A 1.45 V @ 30 A 1.45 V @ 330 A 1.45 V @ 50 A 1.45 V @ 500 A 1.46 V @ 400 A 1.47 V @ 15 A 1.47 V @ 20 A 1.47 V @ 200 A 1.48 V @ 1.7 kA 1.48 V @ 1700 A 1.48 V @ 20 A 1.48 V @ 200 A 1.48 V @ 30 A 1.49 V @ 30 A 1.49 V @ 60 A 1.5 V @ 1 mA 1.5 V @ 10 A 1.5 V @ 100 A 1.5 V @ 105 A 1.5 V @ 12 A 1.5 V @ 120 A 1.5 V @ 15 A 1.5 V @ 16 A 1.5 V @ 18 A 1.5 V @ 2.5 A 1.5 V @ 20 A 1.5 V @ 240 A 1.5 V @ 25 A 1.5 V @ 250 A 1.5 V @ 30 A 1.5 V @ 300 A 1.5 V @ 35 A 1.5 V @ 36 A 1.5 V @ 360 A 1.5 V @ 400 A 1.5 V @ 5 A 1.5 V @ 50 A 1.5 V @ 500 A 1.5 V @ 54 A 1.5 V @ 60 A 1.5 V @ 600 A 1.5 V @ 7.5 A 1.5 V @ 70 A 1.5 V @ 75 A 1.5 V @ 750 A 1.5 V @ 8 A 1.5 V @ 80 A 1.5 V @ 9 A 1.5 V @ 90 A 1.51 V @ 450 A 1.53 V @ 10 A 1.53 V @ 300 A 1.53 V @ 600 A 1.54 V @ 100 A 1.54 V @ 320 A 1.54 V @ 90 A 1.55 V @ 10 A 1.55 V @ 100 A 1.55 V @ 12 A 1.55 V @ 15 A 1.55 V @ 20 A 1.55 V @ 30 A 1.55 V @ 300 A 1.55 V @ 320 A 1.55 V @ 5 A 1.55 V @ 60 A 1.55 V @ 75 A 1.55 V @ 800 A 1.57 V @ 800 A 1.59 V @ 100 A 1.59 V @ 700 A 1.6 V @ 1 A 1.6 V @ 10 A 1.6 V @ 100 A 1.6 V @ 12 A 1.6 V @ 140 A 1.6 V @ 15 A 1.6 V @ 150 A 1.6 V @ 18 A 1.6 V @ 2 A 1.6 V @ 20 A 1.6 V @ 200 A 1.6 V @ 280 A 1.6 V @ 30 A 1.6 V @ 300 A 1.6 V @ 35 A 1.6 V @ 350 A 1.6 V @ 36 A 1.6 V @ 37 A 1.6 V @ 5 A 1.6 V @ 50 A 1.6 V @ 54 A 1.6 V @ 55 A 1.6 V @ 6 A 1.6 V @ 60 A 1.6 V @ 7.5 A 1.6 V @ 8 A 1.6 V @ 9 A 1.61 V @ 300 A 1.62 V @ 230 A 1.62 V @ 30 A 1.65 V @ 10 A 1.65 V @ 100 A 1.65 V @ 12 A 1.65 V @ 15 A 1.65 V @ 150 A 1.65 V @ 20 A 1.65 V @ 200 A 1.65 V @ 30 A 1.65 V @ 300 A 1.65 V @ 330 A 1.65 V @ 5 A 1.66 V @ 500 A 1.67 V @ 15 A 1.68 V @ 120 A 1.68 V @ 60 A 1.69 V @ 30 A 1.7 V @ 1.5 A 1.7 V @ 10 A 1.7 V @ 100 A 1.7 V @ 12 A 1.7 V @ 15 A 1.7 V @ 150 A 1.7 V @ 16 A 1.7 V @ 2 A 1.7 V @ 20 A 1.7 V @ 200 A 1.7 V @ 240 A 1.7 V @ 25 A 1.7 V @ 250 A 1.7 V @ 3 A 1.7 V @ 30 A 1.7 V @ 300 A 1.7 V @ 35 A 1.7 V @ 4 A 1.7 V @ 40 A 1.7 V @ 45 A 1.7 V @ 5 A 1.7 V @ 50 A 1.7 V @ 6 A 1.7 V @ 60 A 1.7 V @ 7.5 A 1.7 V @ 70 A 1.7 V @ 75 A 1.7 V @ 8 A 1.7 V @ 90 A 1.71 V @ 1200 A 1.72 V @ 240 A 1.72 V @ 400 A 1.72 V @ 800 A 1.73 V @ 50 A 1.74 V @ 800 A 1.75 V @ 10 A 1.75 V @ 12 A 1.75 V @ 15 A 1.75 V @ 16 A 1.75 V @ 20 A 1.75 V @ 30 A 1.75 V @ 4 A 1.75 V @ 5 A 1.75 V @ 6 A 1.75 V @ 60 A 1.75 V @ 8 A 1.75 V @ 800 A 1.78 V @ 100 A 1.8 V @ 10 A 1.8 V @ 100 A 1.8 V @ 15 A 1.8 V @ 150 A 1.8 V @ 16 A 1.8 V @ 20 A 1.8 V @ 200 A 1.8 V @ 25 A 1.8 V @ 260 A 1.8 V @ 30 A 1.8 V @ 300 A 1.8 V @ 4 A 1.8 V @ 40 A 1.8 V @ 450 A 1.8 V @ 5 A 1.8 V @ 50 A 1.8 V @ 60 A 1.8 V @ 600 A 1.8 V @ 8 A 1.8 V @ 90 A 1.82 V @ 600 A 1.85 V @ 30 A 1.87 V @ 100 A 1.87 V @ 30 A 1.88 V @ 120 A 1.9 V @ 10 A 1.9 V @ 15 A 1.9 V @ 16 A 1.9 V @ 20 A 1.9 V @ 200 A 1.9 V @ 30 A 1.9 V @ 40 A 1.9 V @ 5 A 1.9 V @ 50 A 1.9 V @ 6 A 1.9 V @ 60 A 1.9 V @ 7.5 A 1.91 V @ 120 A 1.94 V @ 100 mA 1.94 V @ 30 A 1.95 V @ 15 A 1.95 V @ 30 A 1.96 V @ 300 A 1.97 V @ 50 A 10 V @ 2 A 10 V @ 200 mA 12 V @ 2 A 12 V @ 3 A 14 V @ 500 mA 15 V @ 3 A 16 V @ 1.5 A 16 V @ 12 A 16 V @ 3 A 18.3 V @ 12 A 180 mV @ 10 µA 19.8 V @ 1 A 2 V @ 10 A 2 V @ 12 A 2 V @ 15 A 2 V @ 200 A 2 V @ 3 A 2 V @ 30 A 2 V @ 400 A 2 V @ 5 A 2 V @ 60 A 2.01 V @ 60 A 2.03 V @ 15 A 2.03 V @ 25 A 2.04 V @ 15 A 2.04 V @ 60 A 2.05 V @ 45 A 2.05 V @ 600 A 2.05 V @ 90 A 2.08 V @ 16 A 2.08 V @ 700 mA 2.1 V @ 10 A 2.1 V @ 1200 A 2.1 V @ 140 A 2.1 V @ 15 A 2.1 V @ 16 A 2.1 V @ 20 A 2.1 V @ 210 A 2.1 V @ 25 A 2.1 V @ 30 A 2.1 V @ 40 A 2.1 V @ 45 A 2.1 V @ 6 A 2.1 V @ 8 A 2.1 V @ 800 A 2.12 V @ 25 A 2.15 V @ 15 A 2.15 V @ 30 A 2.16 V @ 50 A 2.17 V @ 100 A 2.2 V @ 10 A 2.2 V @ 100 A 2.2 V @ 15 A 2.2 V @ 150 A 2.2 V @ 18 A 2.2 V @ 1800 A 2.2 V @ 20 A 2.2 V @ 3 A 2.2 V @ 30 A 2.2 V @ 36 A 2.2 V @ 3600 A 2.2 V @ 4 A 2.2 V @ 40 A 2.2 V @ 5 A 2.2 V @ 54 A 2.2 V @ 60 A 2.2 V @ 75 A 2.2 V @ 8 A 2.2 V @ 800 A 2.2 V @ 9 A 2.22 V @ 10 A 2.25 V @ 210 A 2.25 V @ 30 A 2.25 V @ 60 A 2.3 V @ 10 A 2.3 V @ 15 A 2.3 V @ 30 A 2.3 V @ 5 A 2.3 V @ 60 A 2.31 V @ 20 A 2.32 V @ 20 A 2.35 V @ 10 A 2.35 V @ 100 A 2.35 V @ 120 A 2.35 V @ 1200 A 2.35 V @ 30 A 2.35 V @ 60 A 2.36 V @ 30 A 2.37 V @ 10 A 2.4 V @ 15 A 2.4 V @ 30 A 2.4 V @ 4 A 2.4 V @ 40 A 2.4 V @ 60 A 2.4 V @ 8 A 2.42 V @ 60 A 2.45 V @ 15 A 2.45 V @ 60 A 2.48 V @ 30 A 2.49 V @ 30 A 2.5 V @ 10 A 2.5 V @ 100 A 2.5 V @ 120 A 2.5 V @ 140 A 2.5 V @ 15 A 2.5 V @ 20 A 2.5 V @ 210 A 2.5 V @ 280 A 2.5 V @ 30 A 2.5 V @ 35 A 2.5 V @ 400 A 2.5 V @ 50 A 2.5 V @ 60 A 2.51 V @ 30 A 2.55 V @ 30 A 2.58 V @ 15 A 2.6 V @ 100 A 2.6 V @ 150 A 2.6 V @ 200 A 2.6 V @ 250 A 2.6 V @ 300 A 2.6 V @ 4 A 2.6 V @ 400 A 2.66 V @ 60 A 2.69 V @ 20 A 2.7 V @ 100 A 2.7 V @ 400 A 2.72 V @ 30 A 2.74 V @ 15 A 2.74 V @ 30 A 2.8 V @ 100 A 2.8 V @ 15 A 2.8 V @ 200 A 2.8 V @ 300 A 2.8 V @ 4 A 2.8 V @ 400 A 2.8 V @ 60 A 2.89 V @ 500 A 2.9 V @ 15 A 2.9 V @ 5 A 2.9 V @ 60 A 2.91 V @ 100 mA 2.94 V @ 10 A 2.94 V @ 6 A 2.94 V @ 8 A 2.95 V @ 30 A 2.96 V @ 4 A 20 V @ 200 mA 21 V @ 250 mA 22 V @ 2 A 23 V @ 12 A 24 V @ 1.5 A 24 V @ 2 A 24 V @ 3 A 290 mV @ 1 mA 3 V @ 100 A 3 V @ 15 A 3 V @ 16 A 3 V @ 30 A 3 V @ 300 A 3 V @ 40 A 3 V @ 400 A 3 V @ 6 A 3 V @ 60 A 3.1 V @ 1200 A 3.1 V @ 30 A 3.1 V @ 400 A 3.1 V @ 60 A 3.1 V @ 800 A 3.2 V @ 100 A 3.2 V @ 5 A 3.2 V @ 6 A 3.2 V @ 8 A 3.3 V @ 15 A 3.3 V @ 18 A 3.3 V @ 30 A 3.3 V @ 40 A 3.3 V @ 60 A 3.3 V @ 8 A 3.33 V @ 120 A 3.33 V @ 60 A 3.5 V @ 10 A 3.5 V @ 100 A 3.5 V @ 1200 A 3.5 V @ 140 A 3.5 V @ 15 A 3.5 V @ 20 A 3.5 V @ 200 A 3.5 V @ 210 A 3.5 V @ 25 A 3.5 V @ 250 A 3.5 V @ 300 A 3.5 V @ 400 A 3.5 V @ 5 A 3.5 V @ 500 A 3.5 V @ 600 A 3.5 V @ 750 A 3.5 V @ 800 A 3.57 V @ 30 A 3.6 V @ 100 A 3.6 V @ 15 A 3.6 V @ 30 A 3.6 V @ 5 A 3.6 V @ 8 A 3.8 V @ 150 A 3.8 V @ 200 A 3.8 V @ 300 A 3.8 V @ 60 A 3.85 V @ 1000 A 3.85 V @ 500 A 300 mV @ 1 mA 310 mV @ 100 mA 32 V @ 12 A 32 V @ 3 A 320 mV @ 1 mA 320 mV @ 2 mA 330 mV @ 2 mA 340 mV @ 100 A 340 mV @ 40 A 350 mV @ 1 mA 350 mV @ 10 mA 350 mV @ 3 A 36.8 V @ 12 A 360 mV @ 10 mA 360 mV @ 40 A 370 mV @ 1 mA 370 mV @ 10 mA 370 mV @ 55 A 380 mV @ 110 A 390 mV @ 1 A 390 mV @ 12.5 A 390 mV @ 500 mA 4 V @ 12 A 4 V @ 15 A 4 V @ 30 A 4 V @ 60 A 4.1 V @ 100 mA 4.3 V @ 100 A 4.3 V @ 16 A 4.71 V @ 25 A 40 V @ 1.5 A 40 V @ 3 A 400 mV @ 1 A 400 mV @ 1 mA 400 mV @ 10 mA 400 mV @ 100 mA 400 mV @ 2 A 410 mV @ 1 mA 410 mV @ 10 mA 410 mV @ 19 A 410 mV @ 20 A 420 mV @ 100 mA 420 mV @ 2 A 420 mV @ 20 A 420 mV @ 3 A 420 mV @ 40 A 420 mV @ 5 A 425 mV @ 3 A 430 mV @ 1 A 430 mV @ 1 mA 430 mV @ 100 mA 430 mV @ 20 A 430 mV @ 500 mA 430 mV @ 60 A 440 mV @ 100 mA 440 mV @ 15 A 440 mV @ 2 A 440 mV @ 20 A 440 mV @ 5 A 440 mV @ 75 A 450 mV @ 1 A 450 mV @ 10 A 450 mV @ 10 mA 450 mV @ 100 mA 450 mV @ 20 A 450 mV @ 3 A 450 mV @ 35 A 450 mV @ 40 A 450 mV @ 5 A 450 mV @ 80 A 46 V @ 12 A 460 mV @ 1 A 460 mV @ 1 mA 460 mV @ 10 A 460 mV @ 110 A 460 mV @ 15 A 460 mV @ 2 A 460 mV @ 20 A 460 mV @ 30 A 460 mV @ 40 A 460 mV @ 5 A 460 mV @ 500 mA 470 mV @ 10 A 470 mV @ 12.5 A 470 mV @ 15 A 470 mV @ 200 mA 470 mV @ 40 A 470 mV @ 5 A 470 mV @ 500 mA 470 mV @ 6 A 48 V @ 1.5 A 48 V @ 3 A 480 mV @ 110 A 480 mV @ 15 A 480 mV @ 20 A 480 mV @ 200 mA 480 mV @ 25 A 480 mV @ 4 A 480 mV @ 40 A 480 mV @ 5 A 480 mV @ 500 mA 480 mV @ 7.5 A 490 mV @ 100 mA 490 mV @ 110 A 490 mV @ 12.5 A 490 mV @ 15 A 490 mV @ 20 A 490 mV @ 220 A 490 mV @ 30 A 490 mV @ 55 A 490 mV @ 700 mA 5 V @ 3 A 50 V @ 1 A 500 mV @ 1 A 500 mV @ 10 A 500 mV @ 100 mA 500 mV @ 15 A 500 mV @ 20 A 500 mV @ 200 mA 500 mV @ 220 A 500 mV @ 30 A 500 mV @ 5 A 500 mV @ 7.5 A 500 mV @ 8 A 510 mV @ 10 A 510 mV @ 15 A 510 mV @ 20 A 510 mV @ 25 A 510 mV @ 3 A 510 mV @ 35 A 510 mV @ 40 A 510 mV @ 7.5 A 520 mV @ 10 A 520 mV @ 110 A 520 mV @ 15 A 520 mV @ 2 A 520 mV @ 20 A 520 mV @ 200 mA 520 mV @ 3 A 520 mV @ 30 A 520 mV @ 40 A 520 mV @ 5 A 520 mV @ 500 mA 520 mV @ 6 A 520 mV @ 7.5 A 530 mV @ 1 A 530 mV @ 10 A 530 mV @ 100 mA 530 mV @ 12.5 A 530 mV @ 15 A 530 mV @ 20 A 530 mV @ 220 A 530 mV @ 3 A 530 mV @ 30 A 530 mV @ 300 mA 530 mV @ 40 A 530 mV @ 5 A 530 mV @ 6 A 530 mV @ 80 A 540 mV @ 1 A 540 mV @ 10 A 540 mV @ 100 A 540 mV @ 110 A 540 mV @ 15 A 540 mV @ 3 A 540 mV @ 30 A 540 mV @ 4 A 540 mV @ 40 A 540 mV @ 5 A 540 mV @ 55 A 540 mV @ 7.5 A 540 mV @ 8 A 545 mV @ 15 A 545 mV @ 20 A 550 mV @ 1 A 550 mV @ 10 A 550 mV @ 100 A 550 mV @ 100 mA 550 mV @ 12 A 550 mV @ 12.5 A 550 mV @ 15 A 550 mV @ 2 A 550 mV @ 2.5 A 550 mV @ 20 A 550 mV @ 200 mA 550 mV @ 250 A 550 mV @ 3 A 550 mV @ 30 A 550 mV @ 300 A 550 mV @ 35 A 550 mV @ 4 A 550 mV @ 40 A 550 mV @ 5 A 550 mV @ 50 A 550 mV @ 50 mA 550 mV @ 500 mA 550 mV @ 6 A 550 mV @ 7.5 A 550 mV @ 75 A 550 mV @ 8 A 550 mV @ 80 A 560 mV @ 15 A 560 mV @ 150 A 560 mV @ 20 A 560 mV @ 30 A 560 mV @ 40 A 560 mV @ 5 A 560 mV @ 500 mA 560 mV @ 6 A 560 mV @ 7.5 A 570 mV @ 1 A 570 mV @ 10 A 570 mV @ 10 mA 570 mV @ 100 A 570 mV @ 110 A 570 mV @ 12.5 A 570 mV @ 15 A 570 mV @ 20 A 570 mV @ 200 A 570 mV @ 220 A 570 mV @ 3 A 570 mV @ 30 A 570 mV @ 30 mA 570 mV @ 40 A 570 mV @ 5 A 570 mV @ 7.5 A 570 mV @ 8 A 575 mV @ 10 A 580 mV @ 1 A 580 mV @ 10 A 580 mV @ 100 mA 580 mV @ 15 A 580 mV @ 150 A 580 mV @ 20 A 580 mV @ 200 A 580 mV @ 200 mA 580 mV @ 25 A 580 mV @ 3 A 580 mV @ 30 A 580 mV @ 300 A 580 mV @ 4 A 580 mV @ 40 A 580 mV @ 400 A 580 mV @ 5 A 580 mV @ 6 A 580 mV @ 7.5 A 585 mV @ 15 A 590 mV @ 1 A 590 mV @ 10 A 590 mV @ 110 A 590 mV @ 15 A 590 mV @ 20 A 590 mV @ 3 A 590 mV @ 30 A 590 mV @ 40 A 590 mV @ 40 mA 590 mV @ 5 A 590 mV @ 500 mA 590 mV @ 7.5 A 590 mV @ 80 A 595 mV @ 20 A 6 V @ 12 A 6 V @ 2 A 6 V @ 3 A 6.6 V @ 1 A 6.8 V @ 15 A 6.9 V @ 20 A 6.99 V @ 25 A 600 mV @ 1 A 600 mV @ 10 A 600 mV @ 10 mA 600 mV @ 100 mA 600 mV @ 15 A 600 mV @ 150 A 600 mV @ 20 A 600 mV @ 200 A 600 mV @ 200 mA 600 mV @ 3 A 600 mV @ 30 A 600 mV @ 300 A 600 mV @ 40 A 600 mV @ 400 A 600 mV @ 440 A 600 mV @ 5 A 600 mV @ 500 mA 600 mV @ 6 A 600 mV @ 60 A 600 mV @ 7.5 A 600 mV @ 80 A 610 mV @ 10 A 610 mV @ 100 mA 610 mV @ 15 A 610 mV @ 150 A 610 mV @ 20 A 610 mV @ 3 A 610 mV @ 30 A 610 mV @ 40 A 610 mV @ 5 A 610 mV @ 55 A 610 mV @ 6 A 620 mV @ 10 A 620 mV @ 100 mA 620 mV @ 120 A 620 mV @ 15 A 620 mV @ 2 A 620 mV @ 20 A 620 mV @ 200 A 620 mV @ 3 A 620 mV @ 30 A 620 mV @ 40 A 620 mV @ 5 A 620 mV @ 6 A 620 mV @ 7.5 A 620 mV @ 80 A 625 mV @ 15 A 625 mV @ 20 A 630 mV @ 10 A 630 mV @ 15 A 630 mV @ 20 A 630 mV @ 3 A 630 mV @ 30 A 630 mV @ 440 A 630 mV @ 5 A 630 mV @ 7.5 A 640 mV @ 10 A 640 mV @ 15 A 640 mV @ 20 A 640 mV @ 30 A 640 mV @ 4 A 645 mV @ 10 A 650 mV @ 1 A 650 mV @ 10 A 650 mV @ 100 A 650 mV @ 12.5 A 650 mV @ 120 A 650 mV @ 15 A 650 mV @ 150 A 650 mV @ 160 A 650 mV @ 20 A 650 mV @ 200 A 650 mV @ 3 A 650 mV @ 30 A 650 mV @ 300 A 650 mV @ 400 mA 650 mV @ 5 A 650 mV @ 60 A 650 mV @ 7.5 A 650 mV @ 80 A 660 mV @ 10 A 660 mV @ 15 A 660 mV @ 30 A 660 mV @ 4 A 660 mV @ 40 A 660 mV @ 5 A 660 mV @ 80 A 670 mV @ 10 A 670 mV @ 100 A 670 mV @ 120 A 670 mV @ 15 A 670 mV @ 20 A 670 mV @ 200 A 670 mV @ 30 A 670 mV @ 5 A 670 mV @ 60 A 670 mV @ 75 A 670 V @ 100 A 680 mV @ 10 A 680 mV @ 10 mA 680 mV @ 100 A 680 mV @ 12 A 680 mV @ 15 A 680 mV @ 20 A 680 mV @ 200 A 680 mV @ 220 A 680 mV @ 3 A 680 mV @ 30 A 680 mV @ 40 A 680 mV @ 5 A 690 mV @ 10 A 690 mV @ 100 A 690 mV @ 100 mA 690 mV @ 15 A 690 mV @ 150 A 690 mV @ 2 A 690 mV @ 3 A 690 mV @ 30 A 690 mV @ 5 A 690 mV @ 60 A 690 mV @ 7.5 A 690 mV @ 80 A 7 V @ 250 mA 7 V @ 500 mA 7.3 V @ 7.5 A 700 mV @ 1 A 700 mV @ 10 A 700 mV @ 100 A 700 mV @ 110 A 700 mV @ 12.5 A 700 mV @ 120 A 700 mV @ 15 A 700 mV @ 150 A 700 mV @ 20 A 700 mV @ 200 A 700 mV @ 250 A 700 mV @ 3 A 700 mV @ 30 A 700 mV @ 30 mA 700 mV @ 300 A 700 mV @ 35 A 700 mV @ 4 A 700 mV @ 5 A 700 mV @ 50 A 700 mV @ 60 A 700 mV @ 7.5 A 700 mV @ 8 A 700 mV @ 80 A 700 V @ 12.5 A 705 mV @ 5 A 710 mV @ 10 A 710 mV @ 15 A 710 mV @ 20 A 710 mV @ 30 A 710 mV @ 7.5 A 710 mV @ 75 A 710 mV @ 8 A 710 mV @ 80 A 720 mV @ 10 A 720 mV @ 100 A 720 mV @ 15 A 720 mV @ 20 A 720 mV @ 200 A 720 mV @ 3 A 720 mV @ 400 A 720 mV @ 5 A 720 mV @ 60 A 720 mV @ 7.5 A 720 mV @ 8 A 725 mV @ 7.5 A 730 mV @ 10 A 730 mV @ 12 A 730 mV @ 15 A 730 mV @ 20 A 730 mV @ 25 A 730 mV @ 250 A 730 mV @ 3 A 730 mV @ 30 A 730 mV @ 40 A 730 mV @ 400 A 730 mV @ 5 A 730 mV @ 7.5 A 730 mV @ 800 A 735 mV @ 20 A 740 mV @ 10 A 740 mV @ 15 A 740 mV @ 20 A 740 mV @ 200 A 740 mV @ 3 A 740 mV @ 30 A 740 mV @ 40 A 740 mV @ 5 A 740 mV @ 60 A 740 mV @ 7.5 A 740 mV @ 8 A 740 mV @ 80 A 745 mV @ 15 A 745 mV @ 5 A 750 mV @ 10 A 750 mV @ 100 A 750 mV @ 100 mA 750 mV @ 12.5 A 750 mV @ 120 A 750 mV @ 15 A 750 mV @ 150 A 750 mV @ 16 A 750 mV @ 160 A 750 mV @ 20 A 750 mV @ 200 A 750 mV @ 200 mA 750 mV @ 25 A 750 mV @ 250 A 750 mV @ 3 A 750 mV @ 30 A 750 mV @ 300 A 750 mV @ 35 A 750 mV @ 4 A 750 mV @ 5 A 750 mV @ 50 A 750 mV @ 6 A 750 mV @ 60 A 750 mV @ 7.5 A 750 mV @ 8 A 750 mV @ 80 A 760 mV @ 10 A 760 mV @ 20 A 760 mV @ 200 A 760 mV @ 30 A 760 mV @ 35 A 760 mV @ 5 A 760 mV @ 6 A 760 mV @ 60 A 765 mV @ 15 A 770 mV @ 1 A 770 mV @ 10 A 770 mV @ 15 A 770 mV @ 20 A 770 mV @ 3 A 770 mV @ 30 A 770 mV @ 300 A 770 mV @ 35 A 770 mV @ 40 A 770 mV @ 5 A 770 mV @ 8 A 770 mV @ 80 A 780 mV @ 10 A 780 mV @ 15 A 780 mV @ 20 A 780 mV @ 25 A 780 mV @ 250 A 780 mV @ 3 A 780 mV @ 30 A 780 mV @ 40 A 780 mV @ 400 A 780 mV @ 5 A 780 mV @ 7.5 A 790 mV @ 1 A 790 mV @ 10 A 790 mV @ 12 A 790 mV @ 15 A 790 mV @ 150 A 790 mV @ 2 A 790 mV @ 20 A 790 mV @ 30 A 790 mV @ 35 A 790 mV @ 5 A 8 V @ 12 A 800 mV @ 10 A 800 mV @ 100 A 800 mV @ 100 mA 800 mV @ 12.5 A 800 mV @ 120 A 800 mV @ 15 A 800 mV @ 150 A 800 mV @ 160 A 800 mV @ 20 A 800 mV @ 200 A 800 mV @ 25 A 800 mV @ 250 A 800 mV @ 3 A 800 mV @ 30 A 800 mV @ 300 A 800 mV @ 4 A 800 mV @ 40 A 800 mV @ 5 A 800 mV @ 6 A 800 mV @ 60 A 800 mV @ 7.5 A 800 mV @ 700 mA 800 mV @ 8 A 800 mV @ 80 A 810 mV @ 10 A 810 mV @ 15 A 810 mV @ 2 A 810 mV @ 20 A 810 mV @ 200 A 810 mV @ 25 A 810 mV @ 3 A 810 mV @ 30 A 810 mV @ 4 A 810 mV @ 40 A 810 mV @ 400 mA 810 mV @ 5 A 810 mV @ 55 A 810 mV @ 7.5 A 810 mV @ 8 A 820 mV @ 10 A 820 mV @ 10 mA 820 mV @ 12.5 A 820 mV @ 15 A 820 mV @ 20 A 820 mV @ 200 A 820 mV @ 25 A 820 mV @ 3 A 820 mV @ 30 A 820 mV @ 40 A 820 mV @ 5 A 820 mV @ 60 A 825 mV @ 120 A 830 mV @ 10 A 830 mV @ 100 A 830 mV @ 15 A 830 mV @ 20 A 830 mV @ 200 A 830 mV @ 3 A 830 mV @ 30 A 830 mV @ 40 A 830 mV @ 5 A 830 mV @ 7.5 A 840 mV @ 10 A 840 mV @ 100 A 840 mV @ 120 A 840 mV @ 15 A 840 mV @ 150 A 840 mV @ 160 A 840 mV @ 20 A 840 mV @ 200 A 840 mV @ 25 A 840 mV @ 250 A 840 mV @ 30 A 840 mV @ 300 A 840 mV @ 35 A 840 mV @ 40 A 840 mV @ 400 A 840 mV @ 5 A 840 mV @ 50 A 840 mV @ 60 A 840 mV @ 7.5 A 840 mV @ 8 A 840 mV @ 80 A 845 mV @ 10 A 850 mV @ 1 A 850 mV @ 10 A 850 mV @ 100 A 850 mV @ 12 A 850 mV @ 15 A 850 mV @ 16 A 850 mV @ 20 A 850 mV @ 25 A 850 mV @ 3 A 850 mV @ 30 A 850 mV @ 300 A 850 mV @ 5 A 850 mV @ 50 A 850 mV @ 500 mA 850 mV @ 6 A 850 mV @ 7.5 A 850 mV @ 8 A 850 mV @ 80 A 855 mV @ 10 mA 855 mV @ 100 mA 860 mV @ 10 A 860 mV @ 100 A 860 mV @ 15 A 860 mV @ 150 A 860 mV @ 20 A 860 mV @ 30 A 860 mV @ 40 A 860 mV @ 5 A 860 mV @ 60 A 860 mV @ 80 A 870 mV @ 10 A 870 mV @ 15 A 870 mV @ 150 A 870 mV @ 2 A 870 mV @ 20 A 870 mV @ 30 A 870 mV @ 40 A 870 mV @ 5 A 880 mV @ 10 A 880 mV @ 100 A 880 mV @ 120 A 880 mV @ 15 A 880 mV @ 15 mA 880 mV @ 150 A 880 mV @ 16 A 880 mV @ 160 A 880 mV @ 20 A 880 mV @ 200 A 880 mV @ 25 A 880 mV @ 250 A 880 mV @ 3.5 A 880 mV @ 30 A 880 mV @ 300 A 880 mV @ 40 A 880 mV @ 400 A 880 mV @ 5 A 880 mV @ 50 A 880 mV @ 500 A 880 mV @ 60 A 880 mV @ 80 A 890 mV @ 10 A 890 mV @ 15 A 890 mV @ 20 A 890 mV @ 200 A 890 mV @ 3 A 890 mV @ 5 A 890 mV @ 6 A 900 mV @ 10 A 900 mV @ 100 mA 900 mV @ 12.5 A 900 mV @ 15 A 900 mV @ 15 mA 900 mV @ 20 A 900 mV @ 25 A 900 mV @ 250 A 900 mV @ 3 A 900 mV @ 30 A 900 mV @ 30 mA 900 mV @ 300 A 900 mV @ 35 A 900 mV @ 4 A 900 mV @ 40 A 900 mV @ 400 mA 900 mV @ 5 A 900 mV @ 5 mA 900 mV @ 6 A 900 mV @ 60 A 900 mV @ 7.5 A 900 mV @ 8 A 910 mV @ 10 A 910 mV @ 100 A 910 mV @ 15 A 910 mV @ 150 A 910 mV @ 20 A 910 mV @ 40 A 910 mV @ 45 A 910 mV @ 5 A 910 mV @ 60 A 910 mV @ 8 A 920 mV @ 10 A 920 mV @ 100 A 920 mV @ 120 A 920 mV @ 15 A 920 mV @ 150 A 920 mV @ 160 A 920 mV @ 20 A 920 mV @ 200 A 920 mV @ 25 A 920 mV @ 250 A 920 mV @ 30 A 920 mV @ 300 A 920 mV @ 35 A 920 mV @ 4 A 920 mV @ 400 A 920 mV @ 5 A 920 mV @ 50 A 920 mV @ 60 A 920 mV @ 7.5 A 920 mV @ 8 A 920 mV @ 80 A 930 mV @ 10 A 930 mV @ 15 A 930 mV @ 150 A 930 mV @ 20 A 930 mV @ 3 A 930 mV @ 30 A 930 mV @ 35 A 930 mV @ 4 A 930 mV @ 40 A 930 mV @ 400 A 930 mV @ 5 A 930 mV @ 60 A 930 mV @ 8 A 940 mV @ 10 A 940 mV @ 100 A 940 mV @ 15 A 940 mV @ 3 A 940 mV @ 30 A 940 mV @ 5 A 940 mV @ 75 A 940 mV @ 80 A 950 mV @ 10 A 950 mV @ 100 A 950 mV @ 12 A 950 mV @ 15 A 950 mV @ 150 A 950 mV @ 2 A 950 mV @ 20 A 950 mV @ 3 A 950 mV @ 30 A 950 mV @ 35 A 950 mV @ 35 mA 950 mV @ 4 A 950 mV @ 5 A 950 mV @ 6 A 950 mV @ 60 A 950 mV @ 7.5 A 950 mV @ 8 A 950 mV @ 90 A 960 mV @ 15 A 960 mV @ 20 A 960 mV @ 30 A 960 mV @ 4 A 960 mV @ 45 A 960 mV @ 6 A 960 mV @ 75 A 960 mV @ 80 A 970 mV @ 10 A 970 mV @ 15 A 970 mV @ 2 A 970 mV @ 20 A 970 mV @ 30 A 970 mV @ 400 A 970 mV @ 5 A 970 mV @ 8 A 975 mV @ 10 A 975 mV @ 100 A 975 mV @ 16 A 975 mV @ 200 A 975 mV @ 3 A 975 mV @ 4 A 975 mV @ 5 A 975 mV @ 60 A 975 mV @ 70 A 975 mV @ 8 A 980 mV @ 10 A 980 mV @ 10 mA 980 mV @ 120 A 980 mV @ 15 A 980 mV @ 160 A 980 mV @ 2 A 980 mV @ 2.5 A 980 mV @ 20 A 980 mV @ 200 A 980 mV @ 200 mA 980 mV @ 3 A 980 mV @ 30 A 980 mV @ 40 A 980 mV @ 5 A 980 mV @ 500 mA 980 mV @ 6.5 A 980 mV @ 60 A 980 mV @ 7.5 A 980 mV @ 8 A 980 mV @ 80 A 980 V @ 5 A 990 mV @ 10 A 990 mV @ 100 A 990 mV @ 12 A 990 mV @ 20 A 990 mV @ 200 A 990 mV @ 3 A 990 mV @ 30 A 990 mV @ 40 A 990 mV @ 5 A 990 mV @ 8 A	- Fast Recovery =< 500ns, > 200mA (Io) No Recovery Time > 500mA (Io) Small Signal =< 200mA (Io), Any Speed Standard Recovery >500ns, > 200mA (Io)	- 0 ns 1 ns 1 µs 1.2 ns 1.2 µs 1.3 ns 1.5 ns 1.5 µs 1.6 ns 10 ns 10 µs 10.7 ns 100 ns 100 ps 104 ns 105 ns 108 ns 11 ns 11.4 ns 11.5 ns 11.8 ns 110 ns 112 ns 115 ns 118 ns 12 ns 12.3 ns 12.6 ns 120 ns 123 ns 124 ns 125 ns 13 ns 13.7 ns 13.9 ns 130 ns 135 ns 136 ns 14 ns 14.8 ns 140 ns 141 ns 145 ns 15 ns 15.1 ns 150 ns 150 µs 157 ns 16 ns 16.1 ns 16.3 ns 16.5 ns 16.5 µs 16.9 ns 160 ns 165 ns 166 ns 17 ns 170 ns 18 ns 18 µs 18.5 ns 180 ns 19 ns 2 ns 2 µs 2.5 ns 2.99 ns 20 ns 20 µs 20.2 ns 200 ns 2000 ns 21 ns 21.5 ns 215 ns 22 ns 22 µs 220 ns 23 ns 23.4 ns 230 ns 235 ns 24 ns 24.7 ns 240 ns 25 ns 25 µs 250 ns 255 ns 26 ns 260 ns 265 ns 27 ns 27.4 ns 28 ns 280 ns 290 ns 295 ns 3 ns 3 µs 3.5 ns 30 ns 300 ns 31 ns 32 ns 320 ns 33 ns 34 ns 35 ns 350 ns 36 ns 360 ns 37 ns 370 ns 38 ns 385 ns 39 ns 4 ns 40 ns 400 ns 408 ns 41 ns 42 ns 420 ns 43 ns 44 ns 45 ns 46 ns 47 ns 5 ns 5 µs 50 ns 500 ns 51 ns 52 ns 54 ns 55 ns 57 ns 572 ns 58 ns 6 ns 6 µA 6.8 ns 60 ns 61 ns 63 ns 65 ns 66 ns 67 ns 68 ns 7.4 ns 70 ns 700 ps 71 ns 72 ns 73 ns 74 ns 75 ns 75.5 ns 76 ns 77 ns 77.5 ns 78 ns 8 ns 8.2 ns 8.3 ns 8.4 ns 8.9 ns 80 ns 800 ns 800 ps 85 ns 86 ns 9 ns 9.3 ns 90 ns 900 ps 93 ns 95 ns 96 ns 97 ns 98 ns	- 0.1 µA @ 50 V 1 A @ 8100 V 1 mA @ 10 V 1 mA @ 100 V 1 mA @ 120 V 1 mA @ 1200 V 1 mA @ 1400 V 1 mA @ 15 V 1 mA @ 150 V 1 mA @ 1600 V 1 mA @ 1800 V 1 mA @ 20 V 1 mA @ 200 V 1 mA @ 2000 V 1 mA @ 2200 V 1 mA @ 25 V 1 mA @ 2800 V 1 mA @ 30 V 1 mA @ 300 V 1 mA @ 32000 V 1 mA @ 3400 V 1 mA @ 35 V 1 mA @ 40 V 1 mA @ 400 V 1 mA @ 40000 V 1 mA @ 45 V 1 mA @ 48000 V 1 mA @ 50 V 1 mA @ 60 V 1 mA @ 600 V 1 mA @ 80 V 1 mA @ 90 V 1 nA @ 125 V 1 pA @ 20 V 1 µA @ 10 V 1 µA @ 100 V 1 µA @ 1000 V 1 µA @ 10000 V 1 µA @ 150 V 1 µA @ 15000 V 1 µA @ 16000 V 1 µA @ 20 V 1 µA @ 200 V 1 µA @ 24000 V 1 µA @ 25 V 1 µA @ 30 V 1 µA @ 300 V 1 µA @ 40 V 1 µA @ 400 V 1 µA @ 50 V 1 µA @ 5000 V 1 µA @ 600 V 1 µA @ 70 V 1 µA @ 75 V 1 µA @ 7500 V 1 µA @ 80 V 1 µA @ 800 V 1.1 mA @ 200 V 1.1 mA @ 45 V 1.1 mA @ 60 V 1.2 mA @ 1200 V 1.2 mA @ 40 V 1.2 mA @ 45 V 1.2 mA @ 50 V 1.2 mA @ 60 V 1.2 mA @ 600 V 1.2 µA @ 60 V 1.25 mA @ 100 V 1.25 mA @ 15 V 1.25 mA @ 80 V 1.28 mA @ 400 V 1.3 mA @ 180 V 1.3 mA @ 250 V 1.3 mA @ 45 V 1.3 mA @ 600 V 1.38 mA @ 200 V 1.38 mA @ 600 V 1.4 mA @ 15 V 1.4 mA @ 45 V 1.4 mA @ 60 V 1.5 mA @ 100 V 1.5 mA @ 135 V 1.5 mA @ 150 V 1.5 mA @ 20 V 1.5 mA @ 200 V 1.5 mA @ 30 V 1.5 mA @ 35 V 1.5 mA @ 40 V 1.5 mA @ 45 V 1.5 mA @ 50 V 1.5 mA @ 60 V 1.5 mA @ 80 V 1.5 µA @ 100 V 1.5 µA @ 30 V 1.5 µA @ 40 V 1.5 µA @ 60 V 1.6 mA @ 45 V 1.7 mA @ 50 V 1.7 mA @ 60 V 1.75 mA @ 25 V 1.75 mA @ 30 V 1.75 mA @ 35 V 1.75 mA @ 40 V 1.75 mA @ 45 V 1.8 mA @ 150 V 1.8 mA @ 45 V 1.8 mA @ 50 V 1.8 mA @ 60 V 1.8 µA @ 60 V 1.9 mA @ 30 V 1.9 µA @ 30 V 10 mA @ 1.6 kV 10 mA @ 1000 V 10 mA @ 1200 V 10 mA @ 1400 V 10 mA @ 15 V 10 mA @ 150 V 10 mA @ 1600 V 10 mA @ 1800 V 10 mA @ 20 V 10 mA @ 200 V 10 mA @ 2200 V 10 mA @ 25 V 10 mA @ 30 V 10 mA @ 35 V 10 mA @ 40 V 10 mA @ 400 V 10 mA @ 45 V 10 mA @ 50 V 10 mA @ 60 V 10 mA @ 600 V 10 mA @ 800 V 10 nA @ 180 V 10 nA @ 20 V 10 nA @ 40 V 10 nA @ 80 V 10 pA @ 20 V 10 µA @ 1.2 V 10 µA @ 10 V 10 µA @ 100 V 10 µA @ 1000 V 10 µA @ 120 V 10 µA @ 1200 V 10 µA @ 1400 V 10 µA @ 15 V 10 µA @ 150 V 10 µA @ 15000 V 10 µA @ 160 V 10 µA @ 1600 V 10 µA @ 170 V 10 µA @ 1800 V 10 µA @ 2 V 10 µA @ 20 V 10 µA @ 200 V 10 µA @ 3 V 10 µA @ 30 V 10 µA @ 300 V 10 µA @ 320 V 10 µA @ 40 V 10 µA @ 400 V 10 µA @ 480 V 10 µA @ 50 V 10 µA @ 500 V 10 µA @ 5000 V 10 µA @ 60 V 10 µA @ 600 V 10 µA @ 650 V 10 µA @ 7 V 10 µA @ 70 V 10 µA @ 80 V 10 µA @ 800 V 10.5 mA @ 15 V 100 mA @ 400 V 100 mA @ 600 V 100 nA @ 120 V 100 nA @ 15 V 100 nA @ 150 V 100 nA @ 175 V 100 nA @ 200 V 100 nA @ 240 V 100 nA @ 250 V 100 nA @ 280 V 100 nA @ 30 V 100 nA @ 33 V 100 nA @ 35 V 100 nA @ 350 V 100 nA @ 40 V 100 nA @ 400 V 100 nA @ 50 V 100 nA @ 60 V 100 nA @ 600 V 100 nA @ 70 V 100 nA @ 75 V 100 nA @ 80 V 100 nA @ 90 V 100 pA @ 20 V 100 µA @ 10 V 100 µA @ 100 V 100 µA @ 1000 V 100 µA @ 120 V 100 µA @ 1200 V 100 µA @ 140 V 100 µA @ 150 V 100 µA @ 160 V 100 µA @ 1600 V 100 µA @ 170 V 100 µA @ 1700 V 100 µA @ 180 V 100 µA @ 2.2 kV 100 µA @ 20 V 100 µA @ 200 V 100 µA @ 2200 V 100 µA @ 30 V 100 µA @ 300 V 100 µA @ 35 V 100 µA @ 40 V 100 µA @ 400 V 100 µA @ 45 V 100 µA @ 480 V 100 µA @ 50 V 100 µA @ 500 V 100 µA @ 60 V 100 µA @ 600 V 100 µA @ 650 V 100 µA @ 70 V 100 µA @ 700 V 100 µA @ 80 V 100 µA @ 800 V 100 µA @ 90 V 1000 A @ 1800 V 1000 A @ 2800 V 1000 µA @ 20 V 110 µA @ 10 V 110 µA @ 1200 V 110 µA @ 60 V 1100 A @ 1800 V 1100 A @ 3600 V 12 mA @ 1000 V 12 mA @ 1200 V 12 mA @ 1400 V 12 mA @ 1600 V 12 mA @ 1800 V 12 mA @ 2000 V 12 mA @ 2200 V 12 mA @ 2400 V 12 mA @ 25 V 12 mA @ 35 V 12 mA @ 45 V 12 mA @ 600 V 12 mA @ 800 V 12 µA @ 100 V 12 µA @ 12 µA 12 µA @ 150 V 12 µA @ 1600 V 12 µA @ 30 V 12 µA @ 40 V 12 µA @ 400 V 12 µA @ 60 V 12 µA @ 70 V 12 µA @ 90 V 120 mA @ 45 V 120 µA @ 100 V 120 µA @ 120 V 120 µA @ 1200 V 120 µA @ 30 V 120 µA @ 300 V 120 µA @ 40 V 120 µA @ 400 V 120 µA @ 45 V 120 µA @ 5 V 120 µA @ 650 V 124 µA @ 1200 V 125 µA @ 45 V 125 µA @ 650 V 1250 A @ 900 V 14 µA @ 1200 V 140 mA @ 100 V 140 µA @ 100 V 140 µA @ 1200 V 140 µA @ 45 V 140 µA @ 65 V 15 mA @ 1200 V 15 mA @ 1400 V 15 mA @ 1600 V 15 mA @ 1800 V 15 mA @ 2000 V 15 mA @ 2200 V 15 mA @ 30 V 15 mA @ 35 V 15 mA @ 40 V 15 mA @ 45 V 15 mA @ 800 V 15 µA @ 1.2 V 15 µA @ 10 V 15 µA @ 100 V 15 µA @ 1000 V 15 µA @ 120 V 15 µA @ 1200 V 15 µA @ 150 V 15 µA @ 16 V 15 µA @ 170 V 15 µA @ 200 V 15 µA @ 30 V 15 µA @ 300 V 15 µA @ 400 V 15 µA @ 50 V 15 µA @ 500 V 15 µA @ 600 V 15 µA @ 700 V 15 µA @ 80 V 15 µA @ 800 V 150 mA @ 11000 V 150 mA @ 600 V 150 mA @ 650 V 150 mA @ 6500 V 150 nA @ 240 V 150 nA @ 25 V 150 nA @ 250 V 150 nA @ 70 V 150 µA @ 100 V 150 µA @ 120 V 150 µA @ 1200 V 150 µA @ 150 V 150 µA @ 160 V 150 µA @ 170 V 150 µA @ 200 V 150 µA @ 30 V 150 µA @ 300 V 150 µA @ 35 V 150 µA @ 400 V 150 µA @ 45 V 150 µA @ 480 V 150 µA @ 50 V 150 µA @ 60 V 150 µA @ 600 V 150 µA @ 65 V 150 µA @ 90 V 1500 A @ 2800 V 1500 µA @ 45 V 16 mA @ 15 V 16 µA @ 100 V 160 mA @ 2600 V 160 µA @ 1200 kV 160 µA @ 200 V 166 µA @ 1200 V 17 mA @ 1600 V 17 mA @ 800 V 17 µA @ 70 V 170 µA @ 60 V 1700 A @ 1800 V 18 µA @ 1200 V 180 µA @ 100 V 180 µA @ 1200 V 180 µA @ 60 V 180 µA @ 650 V 1800 µA @ 600 V 190 µA @ 650 V 2 A @ 45 V 2 A @ 50 V 2 mA @ 100 V 2 mA @ 1200 V 2 mA @ 150 V 2 mA @ 1600 V 2 mA @ 180 V 2 mA @ 20 V 2 mA @ 200 V 2 mA @ 25 V 2 mA @ 250 V 2 mA @ 30 V 2 mA @ 35 V 2 mA @ 40 V 2 mA @ 400 V 2 mA @ 45 V 2 mA @ 50 V 2 mA @ 60 V 2 mA @ 600 V 2 mA @ 80 V 2 mA @ 90 V 2 pA @ 20 V 2 µA @ 100 V 2 µA @ 1000 V 2 µA @ 1200 V 2 µA @ 150 V 2 µA @ 200 V 2 µA @ 25 V 2 µA @ 30 V 2 µA @ 400 V 2 µA @ 4000 V 2 µA @ 50 V 2 µA @ 600 V 2 µA @ 75 V 2 µA @ 800 V 2.1 mA @ 60 V 2.2 mA @ 1200 V 2.2 mA @ 60 V 2.4 mA @ 60 V 2.5 mA @ 30 V 2.5 mA @ 45 V 2.5 mA @ 70 V 2.5 µA @ 1 V 2.5 µA @ 100 V 2.5 µA @ 600 V 2.5 µA @ 650 V 2.5 µA @ 70 V 2.5 µA @ 75 V 20 mA @ 100 V 20 mA @ 1000 V 20 mA @ 120 V 20 mA @ 1200 V 20 mA @ 1400 V 20 mA @ 15 V 20 mA @ 1600 V 20 mA @ 1800 V 20 mA @ 200 V 20 mA @ 2200 V 20 mA @ 25 V 20 mA @ 30 V 20 mA @ 3000 V 20 mA @ 3200 V 20 mA @ 3400 V 20 mA @ 35 V 20 mA @ 40 V 20 mA @ 400 V 20 mA @ 45 V 20 mA @ 480 V 20 mA @ 50 V 20 mA @ 60 V 20 mA @ 600 V 20 mA @ 80 V 20 mA @ 800 V 20 nA @ 20 V 20 pA @ 20 V 20 µA @ 1.2 kV 20 µA @ 1.2 V 20 µA @ 10 V 20 µA @ 100 V 20 µA @ 1000 V 20 µA @ 120 V 20 µA @ 1200 V 20 µA @ 1400 V 20 µA @ 150 V 20 µA @ 1600 V 20 µA @ 170 V 20 µA @ 1700 V 20 µA @ 200 V 20 µA @ 30 V 20 µA @ 300 V 20 µA @ 400 V 20 µA @ 500 V 20 µA @ 60 V 20 µA @ 600 V 20 µA @ 650 V 20 µA @ 80 V 20 µA @ 800 V 200 mA @ 1000 V 200 mA @ 1200 V 200 mA @ 1400 V 200 mA @ 1600 V 200 mA @ 1800 V 200 mA @ 2000 V 200 mA @ 2200 V 200 mA @ 2400 V 200 mA @ 2600 V 200 mA @ 3600 V 200 mA @ 3800 V 200 mA @ 4000 V 200 mA @ 600 V 200 mA @ 8 V 200 mA @ 800 V 200 nA @ 1 V 200 nA @ 100 V 200 nA @ 15 V 200 nA @ 200 V 200 nA @ 225 V 200 nA @ 25 V 200 nA @ 30 V 200 nA @ 40 V 200 nA @ 45 V 200 nA @ 50 V 200 nA @ 70 V 200 nA @ 80 V 200 µA @ 1.2 V 200 µA @ 100 V 200 µA @ 120 V 200 µA @ 1200 V 200 µA @ 150 V 200 µA @ 160 V 200 µA @ 1600 V 200 µA @ 170 V 200 µA @ 1800 V 200 µA @ 20 V 200 µA @ 200 V 200 µA @ 200 µA 200 µA @ 2000 V 200 µA @ 2200 V 200 µA @ 30 V 200 µA @ 300 V 200 µA @ 35 V 200 µA @ 40 V 200 µA @ 400 V 200 µA @ 45 V 200 µA @ 480 V 200 µA @ 50 V 200 µA @ 60 V 200 µA @ 600 V 200 µA @ 65 V 200 µA @ 650 V 200 µA @ 700 V 200 µA @ 80 V 200 µA @ 90 V 200 µA @ 960 V 21 mA @ 45 V 210 µA @ 200 V 210 µA @ 45 V 210 µA @ 50 V 210 µA @ 60 V 210 µA @ 650 V 22 mA @ 12 V 220 µA @ 100 V 220 µA @ 60 V 230 nA @ 15 V 240 µA @ 1200 V 240 µA @ 40 V 25 mA @ 1600 V 25 mA @ 2000 V 25 mA @ 2200 V 25 mA @ 2400 V 25 mA @ 2500 V 25 mA @ 2600 V 25 mA @ 3600 V 25 mA @ 40 V 25 mA @ 60 V 25 nA @ 20 V 25 nA @ 50 V 25 µA @ 100 V 25 µA @ 1000 V 25 µA @ 120 V 25 µA @ 1200 V 25 µA @ 150 V 25 µA @ 200 V 25 µA @ 300 V 25 µA @ 400 V 25 µA @ 45 V 25 µA @ 50 V 25 µA @ 500 mV 25 µA @ 500 V 25 µA @ 600 V 25 µA @ 650 V 25 µA @ 80 V 25 µA @ 800 V 250 µA @ 100 V 250 µA @ 1000 V 250 µA @ 120 V 250 µA @ 1200 V 250 µA @ 150 V 250 µA @ 170 V 250 µA @ 180 V 250 µA @ 1800 V 250 µA @ 20 V 250 µA @ 200 V 250 µA @ 250 V 250 µA @ 300 V 250 µA @ 400 V 250 µA @ 45 V 250 µA @ 60 V 250 µA @ 600 V 250 µA @ 650 V 250 µA @ 80 V 270 A @ 1800 V 270 µA @ 100 V 270 µA @ 80 V 275 A @ 1800 V 275 µA @ 120 V 280 µA @ 100 V 280 µA @ 60 V 280 µA @ 80 V 280 µA @ 90 V 3 mA @ 100 V 3 mA @ 1000 V 3 mA @ 120 V 3 mA @ 1200 V 3 mA @ 135 V 3 mA @ 150 V 3 mA @ 1600 V 3 mA @ 180 V 3 mA @ 20 V 3 mA @ 200 V 3 mA @ 30 V 3 mA @ 35 V 3 mA @ 40 V 3 mA @ 400 V 3 mA @ 45 V 3 mA @ 50 V 3 mA @ 60 V 3 mA @ 600 V 3 mA @ 80 V 3 mA @ 90 V 3 nA @ 50 V 3 µA @ 100 V 3 µA @ 1000 V 3 µA @ 150 V 3 µA @ 200 V 3 µA @ 30 V 3 µA @ 40 V 3 µA @ 400 V 3 µA @ 6 V 3 µA @ 60 V 3 µA @ 600 V 3 µA @ 90 V 3.5 mA @ 30 V 3.5 mA @ 60 V 3.5 µA @ 100 V 3.5 µA @ 90 V 3.6 µA @ 100 V 30 mA @ 1200 V 30 mA @ 1400 V 30 mA @ 1600 V 30 mA @ 1700 V 30 mA @ 1800 V 30 mA @ 2000 V 30 mA @ 2200 V 30 mA @ 400 V 30 mA @ 45 V 30 mA @ 600 V 30 mA @ 800 V 30 µA @ 1 V 30 µA @ 1.2 kV 30 µA @ 10 V 30 µA @ 100 V 30 µA @ 120 V 30 µA @ 1200 V 30 µA @ 15 V 30 µA @ 150 V 30 µA @ 170 V 30 µA @ 200 V 30 µA @ 30 V 30 µA @ 300 V 30 µA @ 400 V 30 µA @ 45 V 30 µA @ 50 V 30 µA @ 500 V 30 µA @ 60 V 30 µA @ 600 V 30 µA @ 650 V 30 µA @ 80 V 30 µA @ 800 V 300 mA @ 600 V 300 nA @ 10 V 300 nA @ 150 V 300 nA @ 30 V 300 nA @ 45 V 300 nA @ 50 V 300 µA @ 100 V 300 µA @ 120 V 300 µA @ 1200 V 300 µA @ 150 V 300 µA @ 1600 V 300 µA @ 180 V 300 µA @ 20 V 300 µA @ 30 V 300 µA @ 40 V 300 µA @ 45 V 300 µA @ 50 V 300 µA @ 60 V 300 µA @ 600 V 300 µA @ 7.5 V 300 µA @ 80 V 300 µA @ 90 V 305 µA @ 1200 V 3050 A @ 900 V 320 µA @ 100 V 320 µA @ 45 V 330 µA @ 60 V 35 nA @ 30 V 35 µA @ 120 V 35 µA @ 170 V 35 µA @ 400 V 350 µA @ 100 V 350 µA @ 120 V 350 µA @ 15 V 350 µA @ 40 V 350 µA @ 45 V 350 µA @ 60 V 360 µA @ 15 V 360 µA @ 40 V 360 µA @ 80 V 370 A @ 3600 V 370 mA @ 3600 V 370 µA @ 120 V 375 µA @ 1200 V 380 µA @ 60 V 4 mA @ 100 V 4 mA @ 150 V 4 mA @ 200 V 4 mA @ 30 V 4 mA @ 35 V 4 mA @ 40 V 4 mA @ 400 V 4 mA @ 45 V 4 mA @ 480 V 4 mA @ 50 V 4 mA @ 60 V 4 mA @ 600 V 4 mA @ 80 V 4 mA @ 800 V 4 mA @ 90 V 4 µA @ 100 V 4 µA @ 1000 V 4 µA @ 10000 V 4 µA @ 120 V 4 µA @ 1200 V 4 µA @ 200 V 4 µA @ 2000 V 4 µA @ 25 V 4 µA @ 400 V 4 µA @ 4000 V 4 µA @ 6000 V 4 µA @ 8000 V 4.5 mA @ 100 V 4.5 mA @ 60 V 4.5 mA @ 80 V 4.5 µA @ 100 V 4.5 µA @ 90 V 40 mA @ 100 V 40 mA @ 1000 V 40 mA @ 1200 V 40 mA @ 1400 V 40 mA @ 15 V 40 mA @ 1600 V 40 mA @ 1800 V 40 mA @ 2000 V 40 mA @ 2200 V 40 mA @ 2400 V 40 mA @ 25 V 40 mA @ 2600 V 40 mA @ 30 V 40 mA @ 450 V 40 mA @ 800 V 40 µA @ 1.2 kV 40 µA @ 100 V 40 µA @ 1200 V 40 µA @ 150 V 40 µA @ 1600 V 40 µA @ 200 V 40 µA @ 300 V 40 µA @ 400 V 40 µA @ 500 V 40 µA @ 60 V 40 µA @ 600 V 40 µA @ 650 V 40 µA @ 80 V 400 mA @ 8 V 400 nA @ 1 V 400 µA @ 100 V 400 µA @ 120 V 400 µA @ 1200 V 400 µA @ 250 V 400 µA @ 40 V 400 µA @ 45 V 400 µA @ 60 V 400 µA @ 600 V 400 µA @ 700 V 400 µA @ 80 V 400 µA @ 90 V 42 µA @ 15 V 430 µA @ 40 V 45 µA @ 100 V 45 µA @ 150 V 450 µA @ 100 V 450 µA @ 150 V 450 µA @ 170 V 450 µA @ 45 V 450 µA @ 65 V 475 A @ 600 V 480 µA @ 45 V 480 µA @ 60 V 5 mA @ 1.6 kV 5 mA @ 1.8 kV 5 mA @ 100 V 5 mA @ 1200 V 5 mA @ 15 V 5 mA @ 150 V 5 mA @ 1600 V 5 mA @ 1800 V 5 mA @ 20 V 5 mA @ 200 V 5 mA @ 30 V 5 mA @ 3300 V 5 mA @ 35 V 5 mA @ 40 V 5 mA @ 400 V 5 mA @ 45 V 5 mA @ 50 V 5 mA @ 60 V 5 mA @ 600 V 5 mA @ 80 V 5 mA @ 800 V 5 mA @ 90 V 5 nA @ 100 V 5 nA @ 400 V 5 nA @ 70 V 5 nA @ 75 V 5 pA @ 20 V 5 µA @ 1.2 V 5 µA @ 100 V 5 µA @ 1000 V 5 µA @ 120 V 5 µA @ 1200 V 5 µA @ 1300 V 5 µA @ 150 V 5 µA @ 200 V 5 µA @ 25 V 5 µA @ 30 V 5 µA @ 300 V 5 µA @ 36 V 5 µA @ 360 V 5 µA @ 40 V 5 µA @ 400 V 5 µA @ 50 V 5 µA @ 500 V 5 µA @ 60 V 5 µA @ 600 V 5 µA @ 650 V 5 µA @ 70 V 5 µA @ 75 V 5 µA @ 800 V 5 µA @ 90 V 5.5 mA @ 20 V 50 mA @ 1000 V 50 mA @ 1200 V 50 mA @ 1400 V 50 mA @ 1600 V 50 mA @ 1800 V 50 mA @ 2000 V 50 mA @ 2200 V 50 mA @ 2400 V 50 mA @ 2500 V 50 mA @ 2800 V 50 mA @ 3000 V 50 mA @ 3400 V 50 mA @ 3600 V 50 mA @ 400 V 50 mA @ 4000 V 50 mA @ 600 V 50 mA @ 650 V 50 mA @ 800 V 50 nA @ 1 V 50 nA @ 100 V 50 nA @ 20 V 50 nA @ 50 V 50 pA @ 20 V 50 µA @ 100 V 50 µA @ 1200 V 50 µA @ 150 V 50 µA @ 1600 V 50 µA @ 170 V 50 µA @ 1700 V 50 µA @ 2.2 kV 50 µA @ 20 V 50 µA @ 200 V 50 µA @ 240 V 50 µA @ 25 V 50 µA @ 30 V 50 µA @ 300 V 50 µA @ 320 V 50 µA @ 35 V 50 µA @ 40 V 50 µA @ 400 V 50 µA @ 45 V 50 µA @ 50 V 50 µA @ 500 V 50 µA @ 60 V 50 µA @ 600 V 50 µA @ 650 V 50 µA @ 70 V 50 µA @ 75 V 50 µA @ 80 V 50 µA @ 90 V 500 A @ 1800 V 500 A @ 2800 V 500 A @ 3300 V 500 nA @ 10 V 500 nA @ 100 V 500 nA @ 150 V 500 nA @ 20 V 500 nA @ 200 V 500 nA @ 25 V 500 nA @ 30 V 500 nA @ 60 V 500 nA @ 70 V 500 nA @ 75 V 500 nA @ 8 V 500 nA @ 80 V 500 pA @ 75 V 500 µA @ 10 V 500 µA @ 100 V 500 µA @ 10000 V 500 µA @ 120 V 500 µA @ 1200 V 500 µA @ 12000 V 500 µA @ 135 V 500 µA @ 14000 V 500 µA @ 14400 V 500 µA @ 150 V 500 µA @ 1600 V 500 µA @ 16800 V 500 µA @ 170 V 500 µA @ 1800 V 500 µA @ 19000 V 500 µA @ 19200 V 500 µA @ 19600 V 500 µA @ 2.2 kV 500 µA @ 20 V 500 µA @ 200 V 500 µA @ 2000 V 500 µA @ 20000 V 500 µA @ 2200 V 500 µA @ 22000 V 500 µA @ 22400 V 500 µA @ 2400 V 500 µA @ 24000 V 500 µA @ 25000 V 500 µA @ 26000 V 500 µA @ 2800 V 500 µA @ 28000 V 500 µA @ 30 V 500 µA @ 300 V 500 µA @ 30000 V 500 µA @ 32000 V 500 µA @ 33000 V 500 µA @ 33600 V 500 µA @ 35 V 500 µA @ 35000 V 500 µA @ 38000 V 500 µA @ 39200 V 500 µA @ 40 V 500 µA @ 400 V 500 µA @ 40000 V 500 µA @ 44800 V 500 µA @ 45 V 500 µA @ 48000 V 500 µA @ 50 V 500 µA @ 500 V 500 µA @ 51000 V 500 µA @ 56000 V 500 µA @ 6 V 500 µA @ 60 V 500 µA @ 600 V 500 µA @ 6000 V 500 µA @ 64000 V 500 µA @ 700 V 500 µA @ 7200 V 500 µA @ 80 V 500 µA @ 8400 V 500 µA @ 90 V 500 µA @ 9600 V 51 µA @ 650 V 530 A @ 1800 V 55 µA @ 40 V 550 A @ 1800 V 550 nA @ 150 V 550 µA @ 100 V 550 µA @ 120 V 550 µA @ 150 V 550 µA @ 30 V 550 µA @ 40 V 550 µA @ 45 V 550 µA @ 50 V 550 µA @ 60 V 550 µA @ 80 V 550 µA @ 90 V 580 µA @ 60 V 6 mA @ 100 V 6 mA @ 1200 V 6 mA @ 135 V 6 mA @ 15 V 6 mA @ 150 V 6 mA @ 1600 V 6 mA @ 1800 V 6 mA @ 200 V 6 mA @ 400 V 6 mA @ 45 V 6 mA @ 480 V 6 mA @ 60 V 6 mA @ 80 V 6 mA @ 800 V 6 µA @ 1000 V 6 µA @ 110 V 6 µA @ 120 V 6 µA @ 200 V 6 µA @ 400 V 6 µA @ 600 V 6.5 µA @ 150 V 60 mA @ 45 V 60 µA @ 1.2 kV 60 µA @ 100 V 60 µA @ 1200 V 60 µA @ 150 V 60 µA @ 170 V 60 µA @ 200 V 60 µA @ 300 V 60 µA @ 400 V 60 µA @ 50 V 60 µA @ 500 V 60 µA @ 60 V 60 µA @ 600 V 60 µA @ 650 V 60 µA @ 800 V 600 µA @ 100 V 600 µA @ 120 V 600 µA @ 1200 V 600 µA @ 170 V 600 µA @ 30 V 600 µA @ 35 V 600 µA @ 45 V 600 µA @ 60 V 600 µA @ 600 V 600 µA @ 80 V 62 µA @ 1200 V 640 µA @ 200 V 640 µA @ 60 V 65 µA @ 120 V 65 µA @ 60 V 65 µA @ 80 V 650 µA @ 100 V 650 µA @ 1200 V 650 µA @ 300 V 650 µA @ 45 V 650 µA @ 60 V 650 µA @ 600 V 675 µA @ 100 V 680 µA @ 150 V 680 µA @ 45 V 7 mA @ 150 V 7 mA @ 1600 V 7 mA @ 45 V 7 mA @ 800 V 7 µA @ 10 V 7 µA @ 100 V 7 µA @ 1200 V 7 µA @ 150 V 7 µA @ 200 V 7.5 mA @ 40 V 7.5 µA @ 15 V 70 µA @ 10 V 70 µA @ 100 V 70 µA @ 120 V 70 µA @ 150 V 70 µA @ 25 V 70 µA @ 45 V 70 µA @ 60 V 70 µA @ 65 V 70 µA @ 650 V 700 nA @ 1 V 700 nA @ 30 V 700 µA @ 100 V 700 µA @ 120 V 700 µA @ 20 V 700 µA @ 250 V 700 µA @ 35 V 700 µA @ 40 V 700 µA @ 45 V 700 µA @ 50 V 700 µA @ 60 V 700 µA @ 600 V 700 µA @ 80 V 730 A @ 3600 V 75 µA @ 1200 V 75 µA @ 150 V 75 µA @ 300 V 75 µA @ 40 V 750 µA @ 1000 V 750 µA @ 120 V 750 µA @ 1200 V 750 µA @ 1700 V 750 µA @ 200 V 750 µA @ 600 V 780 A @ 900 V 8 mA @ 100 V 8 mA @ 1000 V 8 mA @ 1200 V 8 mA @ 1400 V 8 mA @ 1600 V 8 mA @ 1800 V 8 mA @ 20 V 8 mA @ 35 V 8 mA @ 45 V 8 mA @ 60 V 8 mA @ 80 V 8 mA @ 800 V 8 µA @ 100 V 8 µA @ 1200 V 8 µA @ 15 V 8 µA @ 150 V 8 µA @ 1600 V 8 µA @ 600 V 8 µA @ 90 V 80 µA @ 100 V 80 µA @ 120 V 80 µA @ 1200 V 80 µA @ 170 V 80 µA @ 200 V 80 µA @ 25 V 80 µA @ 300 V 80 µA @ 35 V 80 µA @ 400 V 80 µA @ 45 V 80 µA @ 60 V 80 µA @ 650 V 800 nA @ 150 V 800 µA @ 10 V 800 µA @ 100 V 800 µA @ 120 V 800 µA @ 1200 V 800 µA @ 25 V 800 µA @ 30 V 800 µA @ 35 V 800 µA @ 40 V 800 µA @ 45 V 800 µA @ 50 V 800 µA @ 60 V 800 µA @ 600 V 820 µA @ 60 V 83 µA @ 1200 V 85 µA @ 100 V 850 µA @ 20 V 850 µA @ 30 V 850 µA @ 60 V 9 mA @ 1200 V 9 mA @ 1600 V 9 mA @ 1800 V 9 mA @ 45 V 9 mA @ 800 V 9 µA @ 400 V 90 µA @ 1.2 kV 90 µA @ 100 V 90 µA @ 120 V 90 µA @ 1200 V 90 µA @ 170 V 90 µA @ 200 V 90 µA @ 40 V 90 µA @ 60 V 90 µA @ 650 V 900 A @ 3600 V 900 A @ 900 V 900 µA @ 15 V 900 µA @ 20 V 900 µA @ 200 V 900 µA @ 25 V 900 µA @ 30 V 900 µA @ 45 V 900 µA @ 60 V 95 µA @ 100 V 95 µA @ 650 V 970 µA @ 60 V 980 nA @ 25 V	- -0°C ~ 70°C -10°C ~ 55°C -20°C ~ 150°C -20°C ~ 50°C -25°C ~ 105°C -25°C ~ 40°C -25°C ~ 85°C -30°C ~ 125°C -40°C ~ 100°C -40°C ~ 125°C -40°C ~ 130°C -40°C ~ 135°C -40°C ~ 150°C -40°C ~ 175°C -40°C ~ 180°C -40°C ~ 70°C -45°C ~ 150°C -50°C ~ 125°C -50°C ~ 150°C -50°C ~ 175°C -55°C ~ 100°C -55°C ~ 125°C -55°C ~ 135°C -55°C ~ 150°C -55°C ~ 155°C -55°C ~ 175°C -55°C ~ 200°C -55°C ~ 75°C -60°C ~ 150°C -65°C ~ 100°C -65°C ~ 125°C -65°C ~ 150°C -65°C ~ 155°C -65°C ~ 175°C -65°C ~ 200°C 125°C 125°C (Max) 130°C 135°C (Max) 150°C 150°C (Max) 175°C 175°C (Max) 200°C (Max) 70°C (Max)	- Chassis Mount Chassis, Stud Mount DIN Rail DIN Rail/Channel Screw Mount Socketable Surface Mount Surface Mount, Wettable Flank Terminal Block Through Hole

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	DiodeConfiguration	DiodeType	Voltage-DCReverse(Vr)(Max)	Current-AverageRectified(Io)(perDiode)	Voltage-Forward(Vf)(Max)@If	Speed	ReverseRecoveryTime(trr)	Current-ReverseLeakage@Vr	OperatingTemperature-Junction	MountingType
V20PW10C-M3/I DIODE ARRAY SCHOTT 100V SLIMDPAK Vishay General Semiconductor - Diodes Division	9,233	1.10	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101, eSMP®, TMBS®	Active	1 Pair Common Cathode	Schottky	100 V	10A	790 mV @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	-	300 µA @ 100 V	-40°C ~ 150°C	Surface Mount
SDUR2020CT DIODE ARRAY GP 200V TO220AB SMC Diode Solutions	6,846	1.12	RFQ	Datasheet	Tube	-	Active	1 Pair Common Cathode	Standard	200 V	-	1.05 V @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	35 ns	10 µA @ 200 V	-55°C ~ 150°C	Through Hole
MBRB3045CT-1G DIODE ARRAY SCHOTTKY 45V I2PAK onsemi	576	1.12	RFQ	Datasheet	Tube	SWITCHMODE™	Obsolete	1 Pair Common Cathode	Schottky	45 V	15A	620 mV @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	-	200 µA @ 45 V	-65°C ~ 175°C	Through Hole

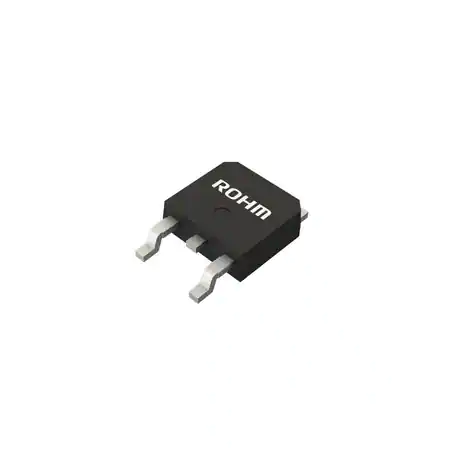

RB088BM-60TL SUPER LOW IR, 60V, 10A, TO-252 ( Rohm Semiconductor	6,532	1.13	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Cathode	Schottky	60 V	10A	830 mV @ 5 A	Fast Recovery =< 500ns, > 200mA (Io)	-	3 µA @ 60 V	150°C	Surface Mount
RB088BM-40TL SUPER LOW IR, 40V, 10A, TO-252 ( Rohm Semiconductor	7,121	1.13	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Cathode	Schottky	40 V	10A	770 mV @ 5 A	Fast Recovery =< 500ns, > 200mA (Io)	-	3 µA @ 40 V	150°C	Surface Mount
STPS20S100CR DIODE ARRAY SCHOTTKY 100V I2PAK STMicroelectronics	244	1.13	RFQ	Datasheet	Tube	-	Obsolete	1 Pair Common Cathode	Schottky	100 V	10A	850 mV @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	-	3.5 µA @ 100 V	175°C (Max)	Through Hole
VS-8DKH02-M3/H DIODE ARRAY GP 200V 4A FLATPAK Vishay General Semiconductor - Diodes Division	11,495	0.91	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	FRED Pt®	Active	2 Independent	Standard	200 V	4A	960 mV @ 4 A	Fast Recovery =< 500ns, > 200mA (Io)	25 ns	2 µA @ 200 V	-55°C ~ 175°C	Surface Mount
MBR10H150CT DIODE SCHOTTKY 150V 10A TO220AB Taiwan Semiconductor Corporation	6,012	1.15	RFQ	Datasheet	Tube	-	Active	1 Pair Common Cathode	Schottky	150 V	10A	970 mV @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	-	5 µA @ 150 V	-55°C ~ 175°C	Through Hole
MBRP1545NTU DIODE ARRAY SCHOTTKY 45V TO220 onsemi	645	1.15	RFQ	Datasheet	Tube	-	Obsolete	1 Pair Common Cathode	Schottky	45 V	15A	800 mV @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	-	1 mA @ 45 V	-65°C ~ 150°C	Through Hole
ST20120C DIODE ARRAY SCHOTTKY 120V TO220 SMC Diode Solutions	8,695	1.16	RFQ	Datasheet	Tube	-	Active	1 Pair Common Cathode	Schottky	120 V	-	900 mV @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	-	700 µA @ 120 V	-55°C ~ 150°C	Through Hole
ST2045C DIODE ARRAY SCHOTTKY 45V TO220AB SMC Diode Solutions	5,440	1.16	RFQ	Datasheet	Tube	-	Active	1 Pair Common Cathode	Schottky	45 V	10A	580 mV @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	-	2 mA @ 45 V	-55°C ~ 150°C	Through Hole
ST20150C DIODE ARRAY SCHOTTKY 150V TO220 SMC Diode Solutions	6,114	1.16	RFQ	Datasheet	Tube	-	Active	1 Pair Common Cathode	Schottky	150 V	-	1.2 V @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	-	150 µA @ 150 V	-55°C ~ 150°C	Through Hole
RBQ10NS65ATL ROHM'S SCHOTTKY BARRIER DIODES A Rohm Semiconductor	9,253	1.16	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Cathode	Schottky	65 V	10A	690 mV @ 5 A	Fast Recovery =< 500ns, > 200mA (Io)	-	70 µA @ 65 V	150°C (Max)	Surface Mount
ST2060C DIODE ARRAY SCHOTTKY 60V TO220AB SMC Diode Solutions	7,921	1.16	RFQ	Datasheet	Tube	-	Active	1 Pair Common Cathode	Schottky	60 V	-	650 mV @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	-	850 µA @ 60 V	-55°C ~ 150°C	Through Hole
ST20100C DIODE ARRAY SCHOTTKY 100V TO220 SMC Diode Solutions	6,848	1.16	RFQ	Datasheet	Tube	-	Active	1 Pair Common Cathode	Schottky	100 V	-	750 mV @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	-	300 µA @ 100 V	-55°C ~ 150°C	Through Hole
RBQ10NS45ATL SCHOTTKY BARRIER DIODE Rohm Semiconductor	5,477	1.16	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Cathode	Schottky	45 V	10A	650 mV @ 5 A	Fast Recovery =< 500ns, > 200mA (Io)	-	70 µA @ 45 V	150°C (Max)	Surface Mount
NTSV20120CTG DIODE ARRAY SCHOTTKY 120V TO220 onsemi	564	1.17	RFQ	Datasheet	Tube	-	Obsolete	1 Pair Common Cathode	Schottky	120 V	10A	1.12 V @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	-	700 µA @ 120 V	-40°C ~ 150°C	Through Hole
42CTQ030 SCHOTTKY RECTIFIER 30V 40A TO-22 SMC Diode Solutions	6,841	1.18	RFQ	Datasheet	Tube	-	Active	1 Pair Common Cathode	Schottky	30 V	20A	500 mV @ 20 A	Fast Recovery =< 500ns, > 200mA (Io)	-	3 mA @ 30 V	-55°C ~ 150°C	Through Hole
NTSB20100CTT4G DIODE ARRAY SCHOTTKY 100V D2PAK onsemi	151	1.18	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	1 Pair Common Cathode	Schottky	100 V	10A	830 mV @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	-	17 µA @ 70 V	-40°C ~ 150°C	Surface Mount
RB095T-40 DIODE ARRAY SCHOTTKY 40V TO220FN Rohm Semiconductor	7,776	1.19	RFQ	Datasheet	Bulk	-	Active	1 Pair Common Cathode	Schottky	40 V	3A	550 mV @ 3 A	Fast Recovery =< 500ns, > 200mA (Io)	-	100 µA @ 40 V	150°C (Max)	Through Hole
