Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	DiodeType	Voltage-PeakReverse(Max)	Current-Max	Capacitance@VrF	Resistance@IfF	PowerDissipation(Max)	OperatingTemperature
MADS-001318-1197HP GFCAP1S IN POCKET TAPE MACOM Technology Solutions	9,101	3.58	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Active	Schottky - Anti-Parallel	-	-	0.06pF @ 0V, 1MHz	7Ohm @ 10mA, 1MHz	-	-65°C ~ 125°C
MPP4206-206/TR SI PIN NON HERMETIC MMSM Microchip Technology	5,746	3.66	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	GIGAMITE®	Active	PIN - Single	200V	-	0.15pF @ 10V, 1MHz	2.5Ohm @ 10mA, 100MHz	-	-
MPP4205-206/TR SI PIN NON HERMETIC MMSM Microchip Technology	6,430	3.72	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	70V	-	0.15pF @ 10V, 1MHz	5Ohm @ 10mA, 100MHz	-	-55°C ~ 150°C
MPP4202-206/TR SI LIMITER NON HERMETIC MMSM Microchip Technology	9,911	4.02	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	50V	-	0.15pF @ 10V, 1MHz	2.8Ohm @ 20mA, 100MHz	-	-55°C ~ 150°C
MPP4205A-206/TR SI PIN NON HERMETIC MMSM Microchip Technology	5,264	4.17	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	70V	-	0.15pF @ 10V, 1MHz	5Ohm @ 10mA, 100MHz	-	-55°C ~ 150°C
MPP4201A-206/TR SI LIMITER NON HERMETIC MMSM Microchip Technology	6,588	4.17	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	70V	-	0.2pF @ 10V, 1MHz	2.5Ohm @ 20mA, 100MHz	-	-55°C ~ 150°C
MADS-002502-1246MP SCH SURMOUNT IN POCKET TAPE MACOM Technology Solutions	7,150	4.29	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	MA4E2502	Active	PIN - Single	5V	20 mA	0.12pF @ 0V, 1MHz	-	50 mW	175°C (TJ)
MADL-011052-14280W DIODE,LIMITER,CHIP MACOM Technology Solutions	5,986	4.45	RFQ		Bulk	MADL	Active	PIN - Single	40V	100 mA	0.19pF @ 10V, 1MHz	2Ohm @ 10mA, 500MHz	4 W	175°C (TJ)
MADL-011011-01340W DIODE,LIMITER,134 MACOM Technology Solutions	8,479	4.45	RFQ		Bulk	MADL	Active	PIN - Single	60V	100 mA	0.17pF @ 0V, 1MHz	2.3Ohm @ 10mA, 500MHz	5 W	-55°C ~ 125°C (TJ)

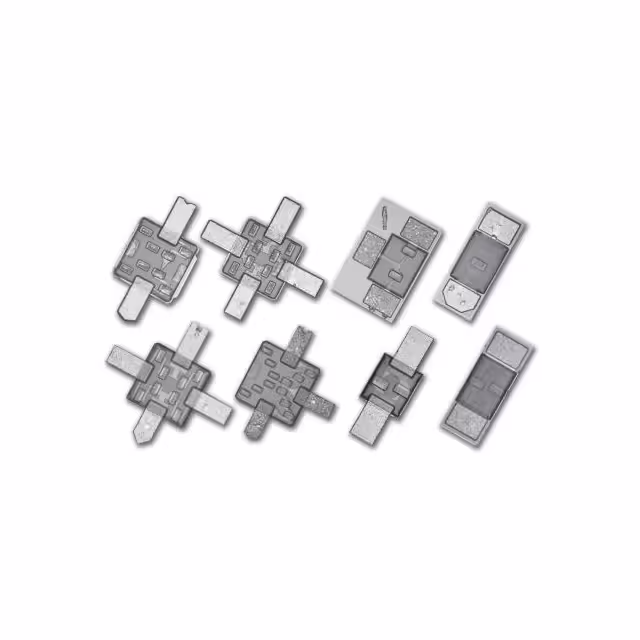

MGS801A COM SCHOTTKY-GAAS-CHIP-GC110 MACOM Technology Solutions	9,438	4.55	RFQ	Datasheet	Tray	MGS8xx	Active	Schottky - 1 Pair Series Connection	5V (Min)	50 mA	0.075pF @ 0V, 1MHz	5Ohm @ 5mA, 1MHz	75 mW	-65°C ~ 150°C

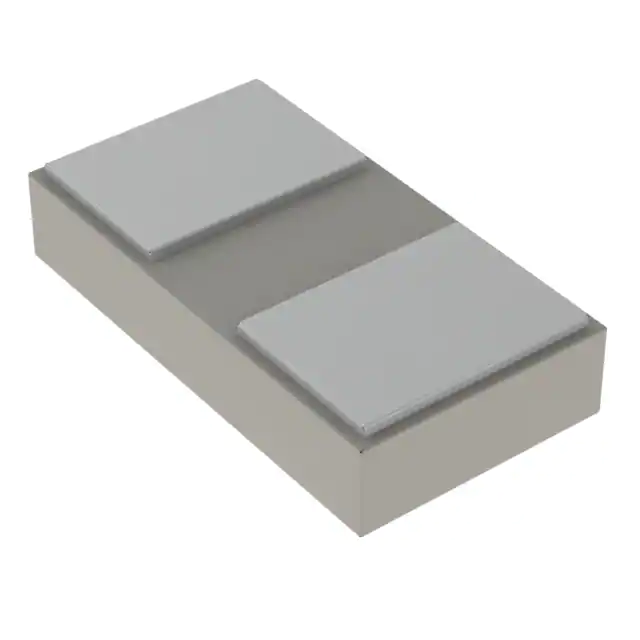

MADP-042405-130600 DIODE,HMIC,PIN,SURMOUNT,VERTICAL MACOM Technology Solutions	6,753	4.73	RFQ	Datasheet	Tray	-	Active	PIN - Single	80V	250 mA	0.75pF @ 40V, 1MHz	580mOhm @ 50mA, 1GHz	1.3 W	-55°C ~ 125°C (TJ)
MML4402-GM2 SI LIMITER NON HERMETIC PLASTIC Microchip Technology	5,450	5.00	RFQ	Datasheet	Bulk	MML4400	Active	PIN - Single	75V	-	2pF @ 0V, 1MHz	1.5Ohm @ 100mA, 100MHz	-	-55°C ~ 150°C
MML4403-GM2 SI LIMITER NON HERMETIC PLASTIC Microchip Technology	6,995	5.00	RFQ	Datasheet	Bulk	MML4400	Active	PIN - Single	75V	-	1.5pF @ 0V, 1MHz	1Ohm @ 100mA, 100MHz	-	-55°C ~ 150°C
MMP4402-GM2 SI PIN NON HERMETIC PLASTIC SMT Microchip Technology	8,623	5.00	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	MMP4400	Active	PIN - Single	500V	-	0.5pF @ 50V, 1MHz	650mOhm @ 100mA, 100MHz	4 W	-55°C ~ 150°C
MA4SPS421 DIODE,SILICON-GLASS,PIN,CHIP MACOM Technology Solutions	7,130	5.07	RFQ		Tray	MA4SPS421 Surmount™	Active	PIN - Single	200V	250 mA	0.175pF @ 0V, 1MHz	6.2Ohm @ 10mA, 1GHz	1.8 W	-55°C ~ 125°C (TJ)

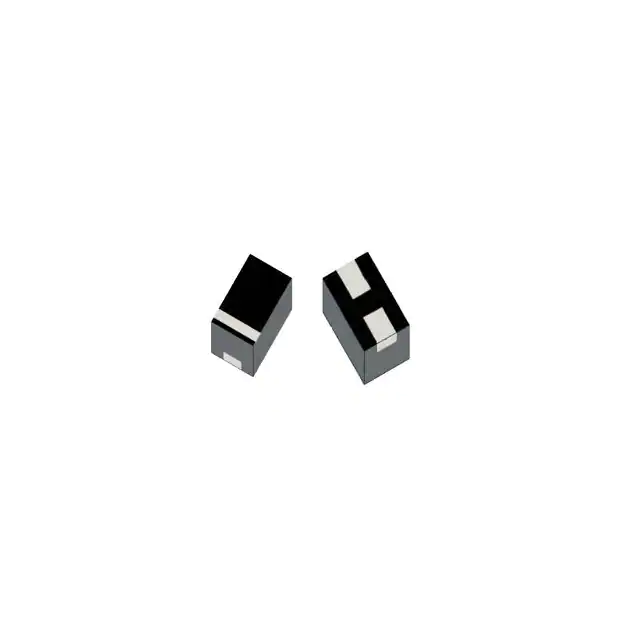

MSWSE-020-05 SWITCH,RF,DFN 0503 PKG MACOM Technology Solutions	9,783	5.49	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	250V	500 mA	0.65pF @ 50V, 1MHz	500mOhm @ 10mA, 100MHz	-	175°C (TJ)
MA4SPS302 DIODE,SWITCH,HMIC,SURFACE_MOUNT MACOM Technology Solutions	7,526	6.12	RFQ		Tray	MA4SPS302 Surmount™	Active	PIN - Single	100V	600 mA	0.45pF @ 40V, 1MHz	2.2Ohm @ 10mA, 100MHz	800 mW	175°C (TJ)

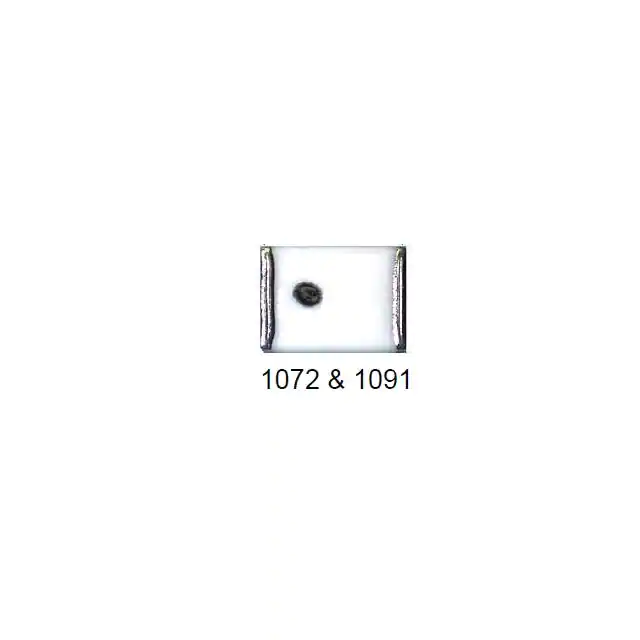

MA4PH236-1072T RF DIODE PIN 600V 1W MACOM Technology Solutions	8,282	6.64	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	600V	-	0.5pF @ 10V, 1MHz	3Ohm @ 10mA, 100MHz	1 W	-65°C ~ 175°C (TJ)
MADP-017015-13140P DIODE,PIN,SURMOUNT MACOM Technology Solutions	8,832	6.66	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	115V	500 mA	0.3pF @ 40V, 1MHz	720mOhm @ 10mA, 1GHz	5 W	175°C (TJ)
MADP-000234-10720T PIN, MELF, TAPE & REEL MACOM Technology Solutions	9,316	6.78	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	500V	-	1.5pF @ 10V, 1MHz	250mOhm @ 100mA, 100MHz	3 W	-65°C ~ 175°C
