Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	DiodeType	Voltage-PeakReverse(Max)	Current-Max	Capacitance@VrF	Resistance@IfF	PowerDissipation(Max)	OperatingTemperature
MSS30-142-E25 SCHOTTKY DIODE,BEAMLEAD, E25-1 MACOM Technology Solutions	1,515	52.00	RFQ		Tray	-	Active	Schottky - Single	2V	50 mA	0.26pF @ 0V, 1MHz	13Ohm @ 5mA, 1MHz	100 mW	-65°C ~ 150°C

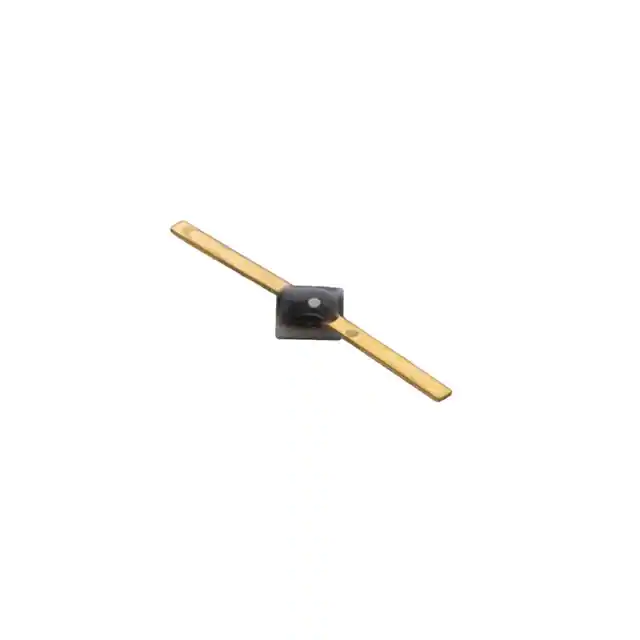

MSS20-046-E25 SCHOTTKY DIODE,BEAMLEAD, E25 MACOM Technology Solutions	4,921	52.00	RFQ		Tray	-	Active	Schottky - Single	1V	35 mA	0.18pF @ 0V, 1MHz	-	100 mW	-65°C ~ 150°C

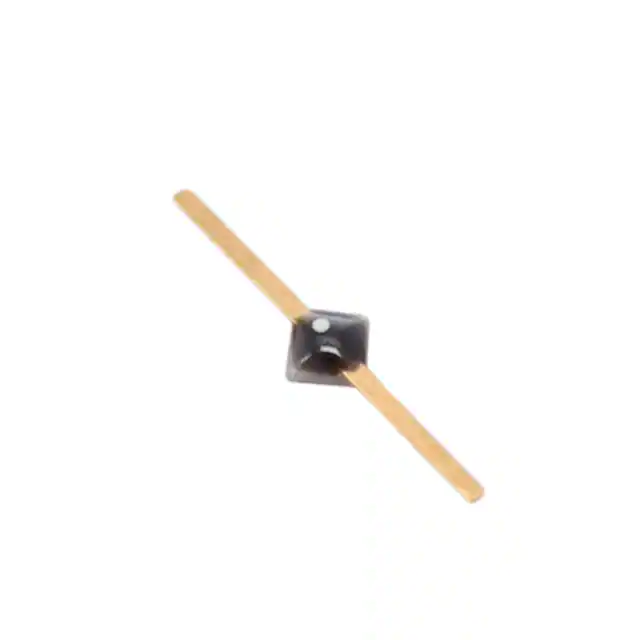

MSS60-144-E25 SCHOTTKY DIODE,BEAMLEAD, E25 MACOM Technology Solutions	3,058	52.64	RFQ		Tray	-	Active	Schottky - Single	3.5V	50 mA	0.27pF @ 0V, 1MHz	20Ohm @ 5mA, 1MHz	100 mW	-65°C ~ 150°C
MA40205-119 DIODE,SCHOTTKY,HI-REL,CERAMIC,SI MACOM Technology Solutions	3,529	52.84	RFQ	Datasheet	Tray	-	Active	Schottky - Single	3V	-	-	-	150 mW	-65°C ~ 150°C
MSS60-B53-E45 SCHOTTKY,HIGH BARRIER, BRIDGE QU MACOM Technology Solutions	3,470	53.16	RFQ	Datasheet	Tray	MSS60-xxx-x	Active	Schottky - 1 Bridge	3V	50 mA	0.25pF @ 0V, 1MHz	-	100 mW	-65°C ~ 150°C

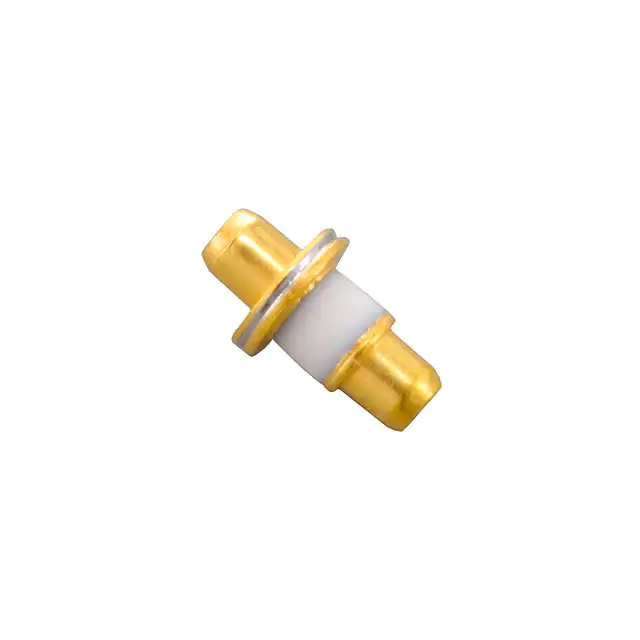

MMD837-T86 DIODE, SRD, T86 PACKAGE MACOM Technology Solutions	1,765	53.33	RFQ		Tray	MMDx	Active	Standard - Single	20V	150 mA	0.58pF @ 6V, 1MHz	-	250 mW	-65°C ~ 175°C

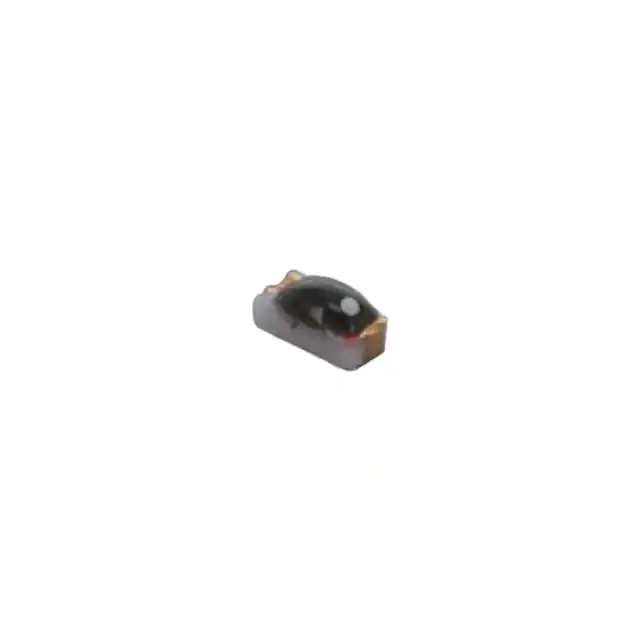

MSS20-145-0402 SCHOTTKY DIODE,BEAMLEAD, 0402 MACOM Technology Solutions	1,416	53.56	RFQ		Tray	-	Active	Schottky - Single	1V	35 mA	0.2pF @ 500mV, 1MHz	-	100 mW	-65°C ~ 150°C
MSS50-448-E40 COM SCHOTTKY-BL - E40 MACOM Technology Solutions	4,783	53.66	RFQ	Datasheet	Tray	MSS50-xxx-x	Active	Schottky - 1 Bridge	4V	50 mA	0.35pF @ 0V, 1MHz	-	150 mW	-65°C ~ 150°C

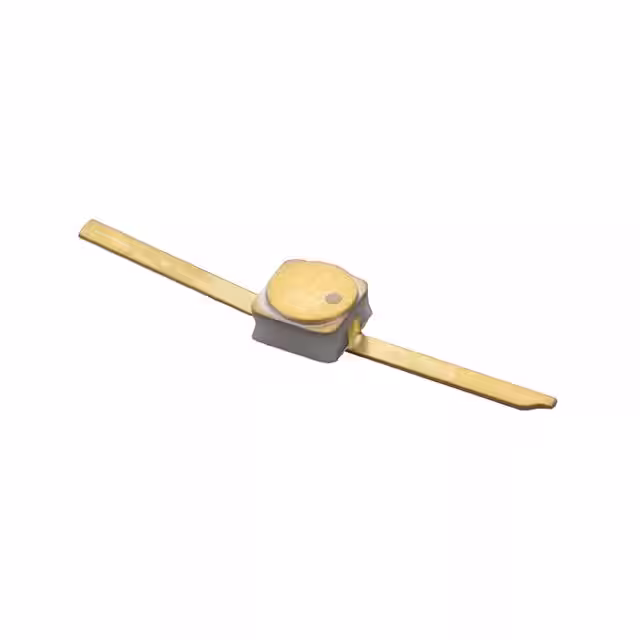

MSS20-046-H27 SCHOTTKY DIODE,CHIP-PACKAGE H27 MACOM Technology Solutions	2,671	53.74	RFQ		Tray	-	Active	Schottky - Single	1V	35 mA	0.22pF @ 0V, 1MHz	-	100 mW	-65°C ~ 150°C
MSS60-841-E45 SCHOTTKY DIODE,BEAMLEAD, E45-1 MACOM Technology Solutions	2,004	55.74	RFQ		Tray	-	Active	Schottky - 1 Bridge	6V	50 mA	0.35pF @ 0V, 1MHz	23Ohm @ 5mA, 1MHz	100 mW	-65°C ~ 150°C
MA40215-276 DIODE,SCHOTTKY,HI-REL,CERAMIC,SI MACOM Technology Solutions	1,008	55.74	RFQ		Tray	-	Active	Schottky - Single	-	-	-	-	150 mW	-65°C ~ 150°C
MSS40-148-H20 SCHOTTKY DIODE,BEAMLEAD, H20-2 MACOM Technology Solutions	2,030	58.39	RFQ		Tray	-	Active	Schottky - Single	3V	50 mA	0.36pF @ 0V, 1MHz	7Ohm @ 5mA, 1MHz	100 mW	-65°C ~ 150°C
MSS30-254-E30 COM SCHOTTKY-BEAMLEAD-PACKAGE, E MACOM Technology Solutions	2,124	58.64	RFQ	Datasheet	Tray	MSS30-xxx-x	Active	Schottky - 1 Pair Series Connection	2V	50 mA	0.41pF @ 0V, 1MHz	3Ohm @ 5mA, 1MHz	100 mW	-65°C ~ 150°C
MA4E932B-186 DIODE,SCHOTTKY,QUAD,SURFACE_MT MACOM Technology Solutions	3,529	60.87	RFQ		Tray	-	Active	Schottky - Single	7V	-	-	-	100 mW	-65°C ~ 150°C
MSS30-448-H47 SCHOTTKY DIODE,BEAMLEAD,PACKAGE MACOM Technology Solutions	2,277	64.59	RFQ	Datasheet	Tray	MSS30-xxx-x	Active	Schottky - 1 Bridge	2V	50 mA	0.26pF @ 0V, 1MHz	7Ohm @ 5mA, 1MHz	100 mW	-65°C ~ 150°C
MA4P606-36 DIODE,PIN,CERAMIC_PKG,SI MACOM Technology Solutions	3,798	64.96	RFQ		Tray	-	Active	PIN - Single	1000V	-	0.8pF @ 100V, 1MHz	700mOhm @ 100mA, 100MHz	20 W	-65°C ~ 175°C
MA4L032-186 DIODE,PIN,BONDED,STRIPLINE,SI MACOM Technology Solutions	3,158	66.05	RFQ		Tray	MA4L	Active	PIN - Single	50V	100 mA	0.18pF @ 10V, 1MHz	2.5Ohm @ 10mA, 500MHz	4 W	175°C (TJ)
MSS30-154-H27 SCHOTTKY DIODE,BEAMLEAD, H27 MACOM Technology Solutions	3,395	69.01	RFQ	Datasheet	Tray	MSS30-xxx-x	Active	Schottky - Single	2V	50 mA	0.46pF @ 0V, 1MHz	3Ohm @ 5mA, 1MHz	100 mW	-65°C ~ 150°C

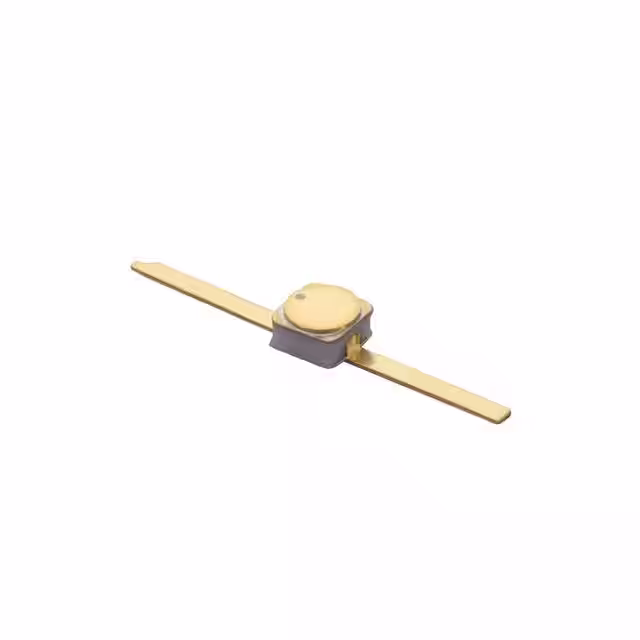

MSS20-047-H27 SCHOTTKY DIODE,BEAMLEAD, H27 MACOM Technology Solutions	2,505	69.01	RFQ		Tray	-	Active	Schottky - Single	1V	35 mA	0.22pF @ 0V, 1MHz	-	100 mW	-65°C ~ 150°C
MSS30-B53-H40 SCHOTTKY DIODE,BEAMLEAD, H40 MACOM Technology Solutions	1,337	70.96	RFQ	Datasheet	Tray	MSS30-xxx-x	Active	Schottky - 1 Bridge	2V	-	0.46pF @ 0V, 1MHz	-	-	-
