Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	DiodeType	Voltage-PeakReverse(Max)	Current-Max	Capacitance@VrF	Resistance@IfF	PowerDissipation(Max)	OperatingTemperature

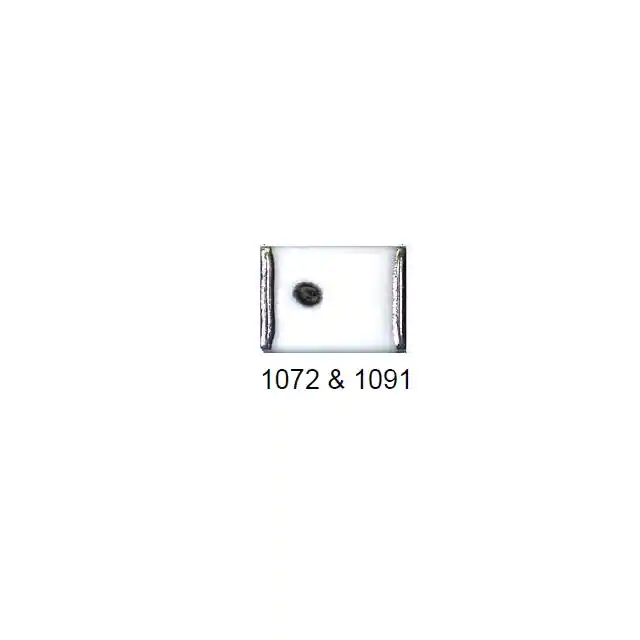

MADP-007417-10720T DIODE,PIN,MELF MACOM Technology Solutions	2,627	11.44	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	1000V	150 mA	0.7pF @ 100V, 100MHz	800mOhm @ 100mA, 100MHz	12 W	175°C (TJ)
MA4P4301F-1091T RF DIODE PIN 100V 5W MACOM Technology Solutions	4,455	15.54	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	100V	-	-	1Ohm @ 100mA, 100MHz	5 W	-55°C ~ 175°C (TJ)
MA4P4001F-1091T RF DIODE PIN 100V 7.5W MACOM Technology Solutions	1,396	18.48	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	100V	-	-	500mOhm @ 100mA, 100MHz	7.5 W	-55°C ~ 175°C (TJ)
MA4P4006F-1091T RF DIODE PIN 600V 7.5W MACOM Technology Solutions	4,616	20.81	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	600V	-	-	500mOhm @ 100mA, 100MHz	7.5 W	-55°C ~ 175°C (TJ)

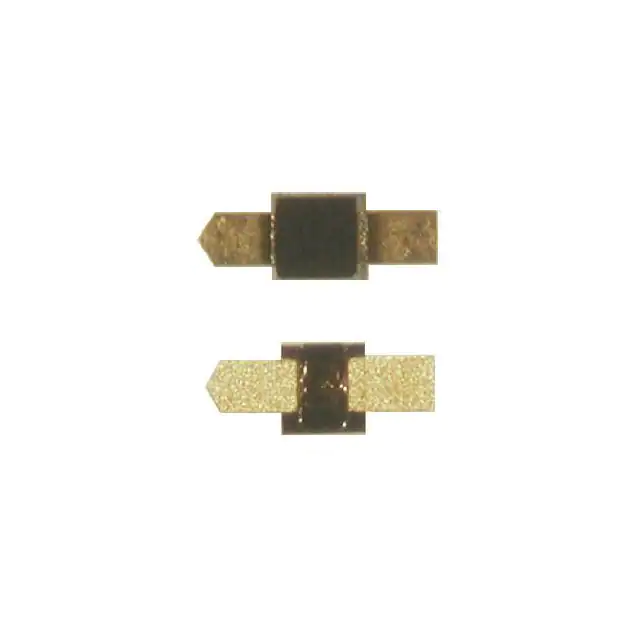

MA4E2037 DIODE,SCHOTTKY,BEAM_LEAD,GAAS,OD MACOM Technology Solutions	1,889	15.93	RFQ		Tray	-	Active	PIN - Single	7V	-	0.06pF @ 0V, 1MHz	7Ohm @ 10mA, 1MHz	-	-65°C ~ 125°C
BAR6304WH6327XTSA1 RF DIODE PIN 50V 250MW SOT323-3 Infineon Technologies	13,936	0.54	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - 1 Pair Series Connection	50V	100 mA	0.3pF @ 5V, 1MHz	1Ohm @ 10mA, 100MHz	250 mW	150°C (TJ)
BAR6305WH6327XTSA1 RF DIODE PIN 50V 250MW SOT23-3 Infineon Technologies	13,196	0.54	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - 1 Pair Common Cathode	50V	100 mA	0.3pF @ 5V, 1MHz	1Ohm @ 10mA, 100MHz	250 mW	150°C (TJ)
BAT17,215 RF DIODE SCHOTTKY 4V TO236AB Nexperia USA Inc.	14,172	0.47	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Schottky - Single	4V	30 mA	1pF @ 0V, 1MHz	15Ohm @ 5mA, 1kHz	-	100°C (TJ)
1PS76SB17,115 RF DIODE SCHOTTKY 4V SOD323 Nexperia USA Inc.	11,274	0.39	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Schottky - Single	4V	30 mA	0.65pF @ 0.5V, 1MHz	-	-	150°C (TJ)
BA592E6327HTSA1 RF DIODE STANDARD 35V SOD323-2 Infineon Technologies	13,852	0.50	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Not For New Designs	Standard - Single	35V	100 mA	1.1pF @ 3V, 1MHz	500mOhm @ 10mA, 100MHz	-	150°C (TJ)
MA4P7446F-1091T RF DIODE PIN 600V 8W MACOM Technology Solutions	2,601	22.33	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	600V	500 mA	2.2pF @ 100V, 100MHz	500mOhm @ 100mA, 100MHz	8 W	175°C (TJ)

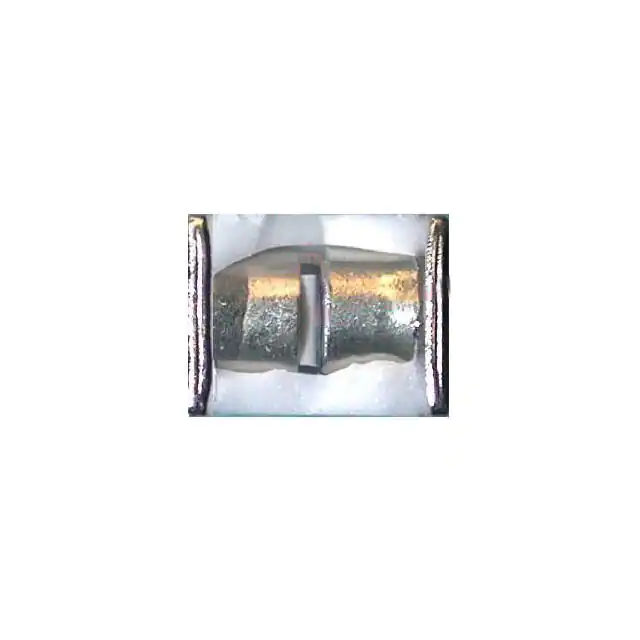

MA4P7435NM-1091T DIODE, PIN, CERAMIC MACOM Technology Solutions	2,338	23.82	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	1100V	500 mA	3pF @ 100V, 1MHz	200mOhm @ 100mA, 63.6MHz	-	175°C (TJ)

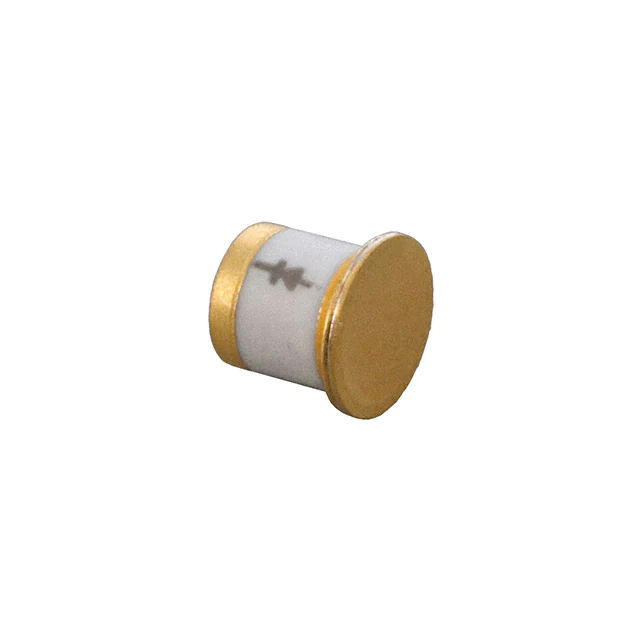

MA4PK2000 DIODE,PIN,CERAMIC_PKG,SI,ODS1027 MACOM Technology Solutions	570	105.96	RFQ	Datasheet	Tray	KILOVOLT™	Active	PIN - Single	2000V	25 A	3.2pF @ 100V, 1MHz	200mOhm @ 500mA, 4MHz	-	-65°C ~ 175°C (TA)
MMBD770T1G DIODE SCHOTTKY 70V 120MW SC70-3 onsemi	10,441	0.33	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Schottky - Single	70V	200 mA	1pF @ 20V, 1MHz	-	120 mW	-55°C ~ 125°C (TJ)
MMDL101T1G DIODE SCHOTTKY 7V 200MW SOD323 onsemi	10,650	0.34	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Schottky - Single	7V	-	1pF @ 0V, 1MHz	-	200 mW	-55°C ~ 150°C (TJ)
MMBD101LT1G DIODE SCHOTTKY 7V 225MW SOT23-3 onsemi	11,927	0.34	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Schottky - Single	7V	-	1pF @ 0V, 1MHz	-	225 mW	150°C (TJ)
MMBD352WT1G RF DIODE SCHOTTKY 7V 200MW SC70 onsemi	12,686	0.37	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Schottky - 1 Pair Series Connection	7V	-	1pF @ 0V, 1MHz	-	200 mW	-55°C ~ 150°C (TJ)
MMBD330T1G DIODE SCHOTTKY 30V 120MW SC70-3 onsemi	12,648	0.39	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Schottky - Single	30V	200 mA	1.5pF @ 15V, 1MHz	-	120 mW	-55°C ~ 125°C (TJ)
BAR6502VH6327XTSA1 RF DIODE PIN 30V 250MW SC79-2 Infineon Technologies	10,185	0.39	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	30V	100 mA	0.8pF @ 3V, 1MHz	900mOhm @ 10mA, 100MHz	250 mW	150°C (TJ)
BAR6402VH6327XTSA1 RF DIODE PIN 150V 250MW SC79-2 Infineon Technologies	12,979	0.39	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	150V	100 mA	0.35pF @ 20V, 1MHz	1.35Ohm @ 100mA, 100MHz	250 mW	150°C (TJ)
