Display Modules - LCD, OLED Character and Numeric

Manufacturer	Packaging	Series	ProductStatus	NumberofCharacters	DisplayFormat	CharacterFormat	DisplayType	DisplayMode	CharacterSize	OutlineLxWxH	ViewingArea	Backlight	Voltage-Supply	DotSize	Interface	ControllerType	OperatingTemperature	TextColor
Adafruit Industries LLC Advanced Linear Devices Inc. AZ Displays Crystalfontz DFRobot Digi Display Visions Displaytech E Ink Corporation Focus LCDs Kyocera International, Inc. Lumex Opto/Components Inc. Matrix Orbital Midas Displays MikroElektronika Newhaven Display Intl Omron Automation and Safety Orient Display Pacific Goal Parallax Inc. Seeed Technology Co., Ltd SparkFun Electronics Storm Interface Terasic Inc. Texas Instruments Varitronix Vishay Dale	- Bag Box Box,Box Bulk Retail Package Tape & Box (TB) Tape & Reel (TR) Tray	* - 5000 5100 ACM0802C ACM1601C ACM1601H ACM1602B ACM1602K(3.8V) ACM1604C ACM1604D ACM2002D ACM2002E ACM2004D ACM2004F ACM2004G ACM4002E BlueLine C-51505 C-51847 C-51849 C-51850 DMC-16202 DMC-16230 DMC-20261 DMC-20481 E Ink EA DIP162-D EA DIP203 EA DOG EA OLED Economy Economy Series Gravity IIC InfoVue LCD0821 LCD2041 LK162-12 LK202-25 LK204-25 LK402-25 LK404-25 MC20803A MC20805B MC21603A MC21605A MC21605DA MC21605FA MC21605G MC21609AB MC42005A MC4DIG MCCOG21605B MCCOG21605D MD21605G MDL(S)-16166 MDL(S)-16263 MDL(S)-16264 MDL(S)-16265 MDL(S)-16265B MDL(S)-16268B MDL(S)-16268C MDL(S)-16268D MDL(S)-16465 MDL(S)-20188 MDL(S)-20189 MDL(S)-20263 MDL(S)-20265 MDL(S)-20433 MDL(S)-20464 MDL(S)-24265 MDL(S)-24269 MDL(S)-40263 MDL(S)-40266 MDL(S)-40266K MDL(S)-40466 MDL(S)-81089 MDL(S)-81809 MDL(S)-82603 NV VI-201 VI-301 VI-302 VI-319 VI-321 VI-322 VI-401 VI-402 VI-415 VI-419 VI-422 VI-502 VI-503 VI-508 VI-509 VI-511 VI-514 VI-602 VI-607 VI-611 VI-804 VIM-404 VIM-503 VIM-516 VIM-808 VIM-810 VIM-828 VIM-838 VIM-878	Active Discontinued at Mosen Not For New Designs Obsolete	- 1 12 13 14 16 160 2 2.5 20 24 3 3.5 32 36 4 4.5 40 48 5 50 6 64 8 80 96	- 1 x 1 1 x 14 1 x 5 10 x 4 12 x 1 12 x 2 12 x 3 16 x 1 16 x 2 16 x 3 16 x 4 2 x 1 2 x 16 2 x 8 2.5 x 1 20 x 1 20 x 2 20 x 4 20 x 8 24 x 2 24 x 4 3 x 1 3 x 1, 5 x 2 3.5 x 1 4 x 1 4 x 20 4.5 x 1 40 x 1 40 x 2 40 x 4 5 x 1 6 x 1 8 x 1 8 x 2	- 1 x 2 Segments 14-Segment 16-Segment 5 x 12 Dots 5 x 32 Dots 5 x 7 Dots 5 x 7 Dots w/Cursor 5 x 8 Dots 5 x 8 Dots w/Cursor 6 x 8 Dots 6-Segment 7-Segment	- Alphanumeric E-INK Segmented Display FFSTN - Double Film Super-Twisted Nematic FSTN - Film Super-Twisted Nematic FSTN - Film Super-Twisted Nematic, STN - Super-Twisted Nematic, TN - Twisted Nematic LCD - Color LCD - Monochrome OLED Plasma STN - Super-Twisted Nematic STN - Super-Twisted Nematic, TN - Twisted Nematic TFT - Color TFT - Color, IPS (In-Plane Switching) TN - Twisted Nematic	- Passive Reflective Reflective, Transflective, Transmissive Transflective Transmissive	- 1.66mm H x 2.84mm W 1.85mm H x 3.15mm W 10.16mm H x 4.83mm W 10.16mm H x 5.08mm W 10.16mm H x 5.10mm W 10.20mm H x 4.75mm W 10.20mm H x 5.00mm W 10.20mm H x 5.10mm W 10.52mm H x 5.16mm W 10.70mm H x 5.40mm W 10.75mm H x 6.45mm W 10.80mm H x 6.50mm W 101.60mm H x 58.70mm W 101.60mm H x 71.12mm W 11.00mm H x 6.20mm W 11.44mm H x 6.07mm W 11.48mm H x 5.96mm W 11.50mm H x 6.70mm W 11.97mm H x 4.97mm W 12.17mm H x 7.00mm W 12.20mm H x 6.80mm W 12.70mm H x 5.64mm W 12.70mm H x 5.90mm W 12.70mm H x 6.35mm W 12.70mm H x 6.50mm W 12.70mm H x 6.60mm W 12.70mm H x 6.61mm W 12.70mm H x 6.80mm W 12.70mm H x 6.99mm W 12.70mm H x 7.00mm W 12.70mm H x 7.10mm W 12.70mm H x 7.62mm W 12.70mm H x 9.14mm W 12.71mm H x 6.68mm W 13.20mm H x 7.62mm W 14.51mm H x 5.25mm W 14.54mm H x 6.00mm W 15.24mm H x 7.62mm W 15.24mm H x 9.00mm W 15.80mm H x 8.30mm W 16.26mm H x 12.19mm W 16.51mm H x 11.43mm W 17.78mm H x 10.16mm W 17.78mm H x 12.70mm W 17.80mm H x 10.00mm W 17.80mm H x 9.95mm W 17.99mm H x 10.16mm W 18.00mm H x 9.00mm W 2.45mm H x 3.95mm W 2.60mm H x 1.85mm W 2.78mm H x 4.89mm W 2.95mm H x 4.75mm W 2.95mm H x 5.55mm W 2.95mm H x 6.35mm W 2.97mm H x 5.57mm W 25.40mm H x 12.70mm W 3.07mm H x 6.56mm W 3.15mm H x 1.85mm W 3.20mm H x 5.55mm W 3.23mm H x 1.85mm W 3.25mm H x 5.60mm W 3.39mm H x 2.10mm W 3.40mm H x 7.10mm W 3.55mm H x 2.20mm W 3.65mm H x 2.47mm W 3.72mm H x 2.31mm W 3.75mm H x 2.34mm W 3.79mm H x 2.00mm W 34.54mm H x 19.00mm W 4.00mm H x 2.00mm W 4.03mm H x 2.30mm W 4.07mm H x 2.54mm W 4.13mm H x 1.82mm W 4.35mm H x 2.80mm W 4.35mm H x 2.95mm W 4.42mm H x 2.31mm W 4.45mm H x 1.82mm W 4.62mm H x 2.49mm W 4.67mm H x 2.45mm W 4.67mm H x 2.60mm W 4.68mm H x 2.21mm W 4.68mm H x 2.27mm W 4.70mm H x 2.40mm W 4.70mm H x 2.90mm W 4.74mm H x 2.95mm W 4.74mm H x 8.90mm W 4.75mm H x 2.90mm W 4.75mm H x 2.95mm W 4.75mm H x 2.96mm W 4.75mm H x 3.55mm W 4.76mm H x 2.28mm W 4.76mm H x 2.96mm W 4.77mm H x 2.95mm W 4.77mm H x 2.97mm W 4.80mm H x 9.66mm W 4.83mm H x 2.46mm W 4.89mm H x 2.78mm W 4.90mm H x 2.56mm W 4.99mm H x 2.55mm W 5.00mm H x 2.45mm W 5.00mm H x 2.70mm W 5.00mm H x 3.00mm W 5.01mm H x 3.12mm W 5.15mm H x 2.35mm W 5.15mm H x 2.90mm W 5.15mm H x 2.95mm W 5.15mm H x 3.15mm W 5.15mm H x 3.20mm W 5.20mm H x 3.90mm W 5.22mm H x 2.90mm W 5.23mm H x 3.00mm W 5.35mm H x 3.20mm W 5.50mm H x 2.65mm W 5.50mm H x 3.15mm W 5.55mm H x 2.45mm W 5.55mm H x 2.70mm W 5.55mm H x 2.95mm W 5.55mm H x 2.96mm W 5.55mm H x 3.05mm W 5.55mm H x 3.20mm W 5.56mm H x 2.46mm W 5.56mm H x 2.96mm W 5.56mm H x 3.55mm W 5.57mm H x 2.47mm W 5.57mm H x 2.97mm W 5.57mm H x 3.22mm W 5.58mm H x 3.23mm W 5.67mm H x 2.97mm W 5.67mm H x 3.22mm W 5.88mm H x 3.70mm W 5.94mm H x 2.96mm W 5.95mm H x 3.20mm W 56.13mm H x 36.70mm W 6.00mm H x 2.80mm W 6.30mm H x 3.15mm W 6.40mm H x 3.12mm W 6.45mm H x 2.37mm W 6.56mm H x 3.07mm W 6.68mm H x 2.96mm W 7.00mm H x 3.50mm W 7.00mm H x 4.00mm W 7.10mm H x 3.40mm W 7.28mm H x 5.02mm W 7.71mm H x 4.20mm W 7.87mm H x 4.30mm W 7.87mm H x 5.08mm W 76.00mm H x 43.18mm W 8.00mm H x 3.50mm W 8.06mm H x 4.84mm W 8.20mm H x 3.70mm W 8.55mm H x 5.20mm W 8.70mm H x 5.40mm W 8.89mm H x 4.50mm W 8.89mm H x 5.08mm W 8.89mm H x 5.50mm W 8.89mm H x 6.35mm W 8.90mm H x 4.74mm W 9.00mm H x 4.50mm W 9.00mm H x 5.30mm W 9.00mm H x 5.40mm W 9.22mm H x 4.84mm W 9.40mm H x 6.70mm W 9.52mm H x 5.92mm W 9.55mm H x 5.20mm W 9.63mm H x 4.84mm W 9.66mm H x 4.84mm W 9.66mm H x 6.00mm W 9.92mm H x 6.35mm W	- 102.00mm x 102.00mm x 32.00mm 103.00mm x 36.00mm x 7.05mm 105.40mm x 67.15mm 105.50mm x 67.20mm 105.50mm x 67.30mm 108.00mm x 20.00mm x 9.60mm 114.00mm x 88.00mm x 17.00mm 116.00mm x 28.50mm x 12.70mm 116.00mm x 28.50mm x 8.90mm 116.00mm x 37.00mm x 10.00mm 116.00mm x 37.00mm x 10.40mm 116.00mm x 37.00mm x 12.70mm 116.00mm x 37.00mm x 13.50mm 116.00mm x 37.00mm x 13.90mm 116.00mm x 37.00mm x 14.00mm 116.00mm x 37.00mm x 14.50mm 116.00mm x 37.00mm x 15.60mm 116.00mm x 37.00mm x 15.70mm 116.00mm x 37.00mm x 20.10mm 116.00mm x 37.00mm x 22.00mm 116.00mm x 37.00mm x 23.20mm 116.00mm x 37.00mm x 23.77mm 116.00mm x 37.00mm x 25.00mm 116.00mm x 37.00mm x 26.10mm 116.00mm x 37.00mm x 27.70mm 116.00mm x 37.00mm x 28.69mm 116.00mm x 37.00mm x 28.98mm 116.00mm x 37.00mm x 29.00mm 116.00mm x 37.00mm x 3.80mm 116.00mm x 37.00mm x 4.90mm 116.00mm x 37.00mm x 6.60mm 116.00mm x 37.00mm x 6.70mm 116.00mm x 37.00mm x 8.90mm 116.00mm x 37.00mm x 9.50mm 116.00mm x 37.00mm x 9.70mm 116.00mm x 37.00mm x 9.80mm 116.00mm x 37.00mm x 9.90mm 118.00mm x 33.50mm x 6.60mm 118.00mm x 36.00mm x 10.00mm 118.00mm x 36.00mm x 12.50mm 118.00mm x 36.00mm x 12.70mm 118.00mm x 36.00mm x 13.60mm 118.00mm x 36.00mm x 14.00mm 118.00mm x 36.00mm x 6.60mm 118.00mm x 36.00mm x 8.80mm 118.00mm x 63.00mm x 14.00mm 120.60mm x 75.70mm 120.70mm x 75.80mm 120.70mm x 75.90mm 120.70mm x 76.30mm 122.00mm x 33.00mm x 14.00mm 122.00mm x 33.00mm x 14.50mm 122.00mm x 43.00mm x 11.00mm 122.00mm x 43.00mm x 15.00mm 122.00mm x 44.00mm x 10.00mm 122.00mm x 44.00mm x 10.60mm 122.00mm x 44.00mm x 11.00mm 122.00mm x 44.00mm x 13.00mm 122.00mm x 44.00mm x 13.50mm 122.00mm x 44.00mm x 13.60mm 122.00mm x 44.00mm x 14.50mm 122.00mm x 44.00mm x 14.60mm 122.00mm x 44.00mm x 4.70mm 122.00mm x 44.00mm x 7.00mm 122.00mm x 44.00mm x 8.80mm 122.00mm x 48.00mm x 14.00mm 122.56mm x 81.28mm x 2.80mm 125.00mm x 35.00mm x 13.40mm 125.00mm x 39.00mm x 14.00mm 126.00mm x 44.00mm x 10.50mm 131.00mm x 90.50mm 132.08mm x 58.42mm x 58.42mm 137.16mm x 45.72mm x 2.80mm 140.20mm x 38.00mm x 29.00mm 144.00mm x 38.00mm x 33.00mm 144.00mm x 38.00mm x 34.30mm 146.00mm x 33.00mm x 11.00mm 146.00mm x 39.30mm x 23.60mm 146.00mm x 43.00mm x 13.70mm 146.00mm x 43.00mm x 13.80mm 146.00mm x 43.00mm x 14.20mm 146.00mm x 62.50mm x 11.00mm 146.00mm x 62.50mm x 13.00mm 146.00mm x 62.50mm x 13.50mm 146.00mm x 62.50mm x 13.60mm 146.00mm x 62.50mm x 14.50mm 146.00mm x 62.50mm x 26.60mm 146.00mm x 74.00mm x 26.00mm 149.10mm x 229.50mm 151.00mm x 40.00mm x 13.00mm 151.00mm x 40.00mm x 13.50mm 154.40mm x 43.50mm x 8.90mm 155.50mm x 73.00mm x 14.00mm 163.00mm x 22.00mm x 13.40mm 164.90mm x 100.00mm 165.00mm x 100.00mm 165.00mm x 104.00mm 165.40mm x 104.59mm 180.00mm x 40.00mm x 13.90mm 180.00mm x 40.00mm x 14.00mm 180.00mm x 40.00mm x 14.50mm 180.00mm x 40.00mm x 9.30mm 182.00mm x 33.50mm x 11.00mm 182.00mm x 33.50mm x 12.70mm 182.00mm x 33.50mm x 13.00mm 182.00mm x 33.50mm x 13.50mm 182.00mm x 33.50mm x 14.00mm 182.00mm x 33.50mm x 14.50mm 182.00mm x 33.50mm x 15.00mm 182.00mm x 33.50mm x 30.50mm 182.00mm x 33.50mm x 31.46mm 182.00mm x 33.50mm x 6.60mm 182.00mm x 33.50mm x 7.60mm 182.00mm x 33.50mm x 8.80mm 182.00mm x 33.50mm x 9.70mm 182.00mm x 34.50mm x 15.10mm 182.00mm x 38.50mm x 9.30mm 182.00mm x 60.00mm x 14.00mm 182.07mm x 117.60mm 190.00mm x 42.00mm x 6.70mm 190.00mm x 54.00mm x 10.00mm 190.00mm x 54.00mm x 13.00mm 190.00mm x 54.00mm x 13.60mm 190.00mm x 54.00mm x 13.70mm 190.00mm x 54.00mm x 14.00mm 190.00mm x 54.00mm x 14.50mm 190.00mm x 54.00mm x 14.60mm 190.00mm x 54.00mm x 29.18mm 190.00mm x 54.00mm x 9.50mm 196.00mm x 56.00mm x 11.30mm 196.00mm x 56.00mm x 6.60mm 198.00mm x 56.00mm x 6.60mm 199.00mm x 157.00mm 20.10mm x 10.10mm x 1.85mm 20.32mm x 10.16mm x 2.80mm 21.57mm x 30.57mm x 0.58mm 22.86mm x 21.34mm x 2.80mm 228.50mm x 149.10mm 23.70mm x 11.50mm x 1.85mm 23.77mm x 13.72mm x 2.00mm 230.00mm x 146.50mm 235.00mm x 143.00mm 24.25mm x 26.07mm x 0.59mm 248.40mm x 195.40mm 25.00mm x 17.50mm x 4.30mm 25.00mm x 17.50mm x 6.30mm 25.40mm x 22.86mm x 2.80mm 259.84mm x 109.98mm x 41.28mm 26.30mm x 8.50mm x 0.58mm 27.90mm x 30.50mm x 2.80mm 285.00mm x 56.00mm x 13.50mm 288.30mm x 78.00mm x 20.80mm 288.92mm x 41.50mm 30.00mm x 17.30mm x 2.80mm 30.00mm x 26.17mm x 2.80mm 30.48mm x 22.86mm x 2.80mm 30.57mm x 21.57mm x 0.59mm 30.60mm x 34.80mm 30.70mm x 16.20mm x 2.80mm 33.00mm x 50.00mm x 2.80mm 33.10mm x 20.40mm x 2.80mm 33.32mm x 36.06mm 33.70mm x 44.40mm x 10.00mm 36.00mm x 27.50mm x 4.60mm 37.50mm x 8.50mm x 0.58mm 37.90mm x 27.65mm x 0.59mm 375.92mm x 125.10mm x 10.03mm 38.00mm x 20.30mm x 2.80mm 38.00mm x 25.50mm x 2.00mm 40.00mm x 20.00mm x 10.80mm 40.00mm x 20.00mm x 7.80mm 40.00mm x 23.20mm x 13.50mm 40.00mm x 33.00mm x 2.60mm 40.00mm x 35.40mm x 13.00mm 40.00mm x 35.40mm x 13.50mm 40.00mm x 35.40mm x 8.00mm 40.00mm x 35.50mm x 14.00mm 40.00mm x 35.50mm x 8.00mm 41.40mm x 19.90mm x 1.60mm 41.40mm x 24.30mm x 4.00mm 42.00mm x 13.50mm x 1.70mm 42.92mm x 60.26mm 441.12mm x 177.17mm x 11.35mm 46.00mm x 33.00mm x 2.70mm 49.20mm x 24.40mm x 4.50mm 49.20mm x 25.70mm x 4.50mm 49.20mm x 26.90mm 49.70mm x 18.30mm x 2.00mm 49.70mm x 25.30mm x 2.00mm 49.70mm x 25.30mm x 2.10mm 49.70mm x 25.30mm x 5.50mm 50.00mm x 33.00mm x 2.80mm 50.80mm x 22.73mm x 2.20mm 50.80mm x 22.73mm x 2.50mm 50.80mm x 22.86mm x 2.80mm 50.80mm x 23.50mm x 2.80mm 50.80mm x 30.48mm x 2.50mm 50.80mm x 30.48mm x 2.70mm 50.80mm x 30.48mm x 2.80mm 50.80mm x 30.48mm x 2.85mm 50.80mm x 30.48mm x 3.00mm 50.80mm x 30.50mm x 2.80mm 51.20mm x 20.70mm x 6.30mm 52.00mm x 22.00mm x 2.80mm 53.00mm x 20.00mm x 5.60mm 53.00mm x 20.00mm x 7.60mm 53.00mm x 20.00mm x 8.00mm 53.00mm x 20.00mm x 8.50mm 53.00mm x 20.00mm x 9.10mm 53.00mm x 20.00mm x 9.60mm 53.00mm x 23.00mm x 8.40mm 53.00mm x 24.20mm x 11.00mm 53.00mm x 24.20mm x 9.80mm 53.34mm x 48.77mm x 7.47mm 54.70mm x 25.30mm x 2.00mm 55.00mm x 27.60mm x 9.20mm 55.00mm x 27.94mm x 2.00mm 55.70mm x 32.00mm x 11.00mm 55.70mm x 32.00mm x 14.50mm 55.70mm x 32.00mm x 15.00mm 55.70mm x 32.00mm x 9.70mm 56.00mm x 25.30mm x 5.50mm 56.54mm x 84.96mm 58.00mm x 30.00mm x 2.80mm 58.00mm x 32.00mm x 10.00mm 58.00mm x 32.00mm x 12.80mm 58.00mm x 32.00mm x 13.00mm 58.00mm x 32.00mm x 13.50mm 58.00mm x 32.00mm x 14.00mm 58.00mm x 32.00mm x 22.40mm 58.00mm x 32.00mm x 25.00mm 58.00mm x 32.00mm x 26.80mm 58.00mm x 32.00mm x 27.32mm 58.00mm x 32.00mm x 4.50mm 58.00mm x 32.00mm x 8.60mm 58.00mm x 32.00mm x 9.50mm 58.00mm x 32.00mm x 9.70mm 59.00mm x 29.00mm x 5.50mm 60.70mm x 33.85mm x 6.25mm 60.96mm x 26.00mm x 2.40mm 61.00mm x 36.00mm x 2.80mm 62.50mm x 105.55mm 62.80mm x 23.00mm x 6.30mm 63.00mm x 85.00mm 63.50mm x 20.32mm x 2.80mm 65.00mm x 20.00mm x 8.00mm 65.00mm x 20.00mm x 8.50mm 65.00mm x 27.70mm x 2.64mm 65.00mm x 27.70mm x 2.80mm 65.00mm x 28.40mm x 5.60mm 65.00mm x 28.40mm x 8.00mm 65.00mm x 28.40mm x 9.00mm 65.50mm x 36.70mm x 10.00mm 65.50mm x 36.70mm x 13.50mm 65.50mm x 36.70mm x 14.00mm 65.50mm x 36.70mm x 15.00mm 65.50mm x 36.70mm x 6.60mm 65.50mm x 36.70mm x 9.40mm 66.00mm x 26.00mm x 6.50mm 66.00mm x 26.80mm x 10.80mm 66.00mm x 36.00mm x 13.00mm 66.00mm x 38.10mm x 2.00mm 66.70mm x 23.30mm x 11.00mm 67.00mm x 27.80mm x 2.80mm 67.56mm x 122.35mm 68.50mm x 17.50mm x 2.05mm 69.00mm x 21.50mm x 23.00mm 69.00mm x 27.00mm x 13.00mm 69.00mm x 27.00mm x 8.00mm 69.00mm x 27.00mm x 8.50mm 69.50mm x 25.00mm x 5.80mm 69.58mm x 38.10mm x 2.80mm 69.80mm x 30.48mm x 2.70mm 69.80mm x 30.48mm x 2.80mm 69.80mm x 38.00mm x 2.80mm 69.85mm x 30.48mm x 2.80mm 69.85mm x 38.10mm x 2.18mm 69.85mm x 38.10mm x 2.80mm 69.85mm x 38.1mm x 7.33mm 70.00mm x 25.00mm x 2.71mm 70.00mm x 25.00mm x 2.80mm 70.00mm x 38.10mm x 2.80mm 70.30mm x 25.00mm x 6.10mm 72.00mm x 36.00mm x 14.00mm 74.50mm x 30.70mm x 10.40mm 74.50mm x 43.00mm x 6.20mm 75.00mm x 26.80mm x 10.80mm 75.00mm x 45.80mm x 10.80mm 75.70mm x 27.10mm x 6.80mm 76.00mm x 24.50mm x 2.50mm 76.00mm x 24.50mm x 5.00mm 76.20mm x 102.40mm x 2.80mm 76.20mm x 55.88mm x 2.80mm 76.80mm x 63.90mm 76.90mm x 63.90mm 77.00mm x 47.00mm x 13.00mm 77.00mm x 47.00mm x 14.00mm 77.00mm x 47.00mm x 14.20mm 77.00mm x 47.00mm x 14.50mm 77.00mm x 54.00mm x 26.20mm 79.00mm x 36.00mm x 13.00mm 79.00mm x 44.00mm x 14.00mm 8.00mm x 10.00mm x 1.80mm 80.00mm x 36.00mm x 10.00mm 80.00mm x 36.00mm x 11.00mm 80.00mm x 36.00mm x 11.50mm 80.00mm x 36.00mm x 12.50mm 80.00mm x 36.00mm x 12.70mm 80.00mm x 36.00mm x 13.00mm 80.00mm x 36.00mm x 13.20mm 80.00mm x 36.00mm x 13.50mm 80.00mm x 36.00mm x 14.00mm 80.00mm x 36.00mm x 15.80mm 80.00mm x 36.00mm x 21.00mm 80.00mm x 36.00mm x 23.30mm 80.00mm x 36.00mm x 23.97mm 80.00mm x 36.00mm x 25.10mm 80.00mm x 36.00mm x 25.50mm 80.00mm x 36.00mm x 25.60mm 80.00mm x 36.00mm x 28.82mm 80.00mm x 36.00mm x 4.80mm 80.00mm x 36.00mm x 6.60mm 80.00mm x 36.00mm x 6.80mm 80.00mm x 36.00mm x 8.80mm 80.00mm x 36.00mm x 9.00mm 80.00mm x 36.00mm x 9.50mm 80.00mm x 36.00mm x 9.70mm 80.00mm x 36.00mm x 9.80mm 80.00mm x 36.00mm x 9.90mm 80.00mm x 36.32mm x 25.40mm 81.00mm x 36.00mm x 6.00mm 81.28mm x 122.56mm x 2.80mm 81.28mm x 38.10mm x 2.70mm 84.00mm x 36.00mm x 9.70mm 84.00mm x 44.00mm x 10.00mm 84.00mm x 44.00mm x 11.00mm 84.00mm x 44.00mm x 12.00mm 84.00mm x 44.00mm x 12.70mm 84.00mm x 44.00mm x 13.00mm 84.00mm x 44.00mm x 13.20mm 84.00mm x 44.00mm x 13.50mm 84.00mm x 44.00mm x 14.00mm 84.00mm x 44.00mm x 4.80mm 84.00mm x 44.00mm x 6.60mm 84.00mm x 44.00mm x 6.80mm 84.00mm x 44.00mm x 8.80mm 84.00mm x 44.00mm x 8.90mm 84.00mm x 44.00mm x 9.00mm 84.00mm x 44.00mm x 9.50mm 84.00mm x 44.00mm x 9.67mm 84.00mm x 44.00mm x 9.70mm 84.00mm x 44.00mm x 9.80mm 84.00mm x 45.00mm x 15.10mm 84.50mm x 19.28mm x 2.17mm 84.50mm x 27.50mm x 2.17mm 85.00mm x 29.50mm x 13.50mm 85.00mm x 30.00mm x 10.00mm 85.00mm x 30.00mm x 12.70mm 85.00mm x 30.00mm x 13.20mm 85.00mm x 30.00mm x 14.00mm 85.00mm x 30.00mm x 8.90mm 85.00mm x 30.00mm x 9.70mm 85.00mm x 36.00mm x 10.00mm 85.00mm x 36.00mm x 12.70mm 85.00mm x 36.00mm x 13.50mm 85.00mm x 36.00mm x 4.80mm 85.00mm x 36.00mm x 8.80mm 85.00mm x 44.00mm x 13.50mm 86.00mm x 39.60mm x 6.60mm 87.00mm x 32.00mm x 13.00mm 87.00mm x 40.00mm x 14.00mm 87.00mm x 60.00mm x 12.70mm 87.00mm x 60.00mm x 13.50mm 87.00mm x 60.00mm x 13.60mm 87.00mm x 60.00mm x 14.00mm 87.00mm x 60.00mm x 14.50mm 87.00mm x 60.00mm x 6.60mm 87.00mm x 60.00mm x 8.90mm 87.00mm x 60.00mm x 9.40mm 87.00mm x 60.00mm x 9.50mm 87.00mm x 60.00mm x 9.70mm 87.00mm x 62.00mm x 14.00mm 89.00mm x 29.50mm x 13.50mm 92.00mm x 23.30mm x 2.50mm 92.00mm x 23.30mm x 5.00mm 92.00mm x 31.50mm x 2.50mm 92.00mm x 31.50mm x 6.50mm 93.85mm x 30.48mm x 2.80mm 93.85mm x 38.10mm x 2.80mm 93.98mm x 30.48mm x 2.80mm 96.00mm x 66.00mm x 13.80mm 96.40mm x 23.00mm x 31.14mm 97.00mm x 60.00mm x 14.00mm 98.00mm x 60.00mm x 10.00mm 98.00mm x 60.00mm x 11.60mm 98.00mm x 60.00mm x 12.70mm 98.00mm x 60.00mm x 13.20mm 98.00mm x 60.00mm x 13.50mm 98.00mm x 60.00mm x 13.60mm 98.00mm x 60.00mm x 13.70mm 98.00mm x 60.00mm x 14.00mm 98.00mm x 60.00mm x 14.20mm 98.00mm x 60.00mm x 15.00mm 98.00mm x 60.00mm x 17.00mm 98.00mm x 60.00mm x 2.20mm 98.00mm x 60.00mm x 23.00mm 98.00mm x 60.00mm x 26.10mm 98.00mm x 60.00mm x 27.50mm 98.00mm x 60.00mm x 27.70mm 98.00mm x 60.00mm x 28.82mm 98.00mm x 60.00mm x 28.90mm 98.00mm x 60.00mm x 28.98mm 98.00mm x 60.00mm x 30.50mm 98.00mm x 60.00mm x 30.63mm 98.00mm x 60.00mm x 4.70mm 98.00mm x 60.00mm x 6.60mm 98.00mm x 60.00mm x 7.10mm 98.00mm x 60.00mm x 8.80mm 98.00mm x 60.00mm x 9.40mm 98.00mm x 60.00mm x 9.50mm 98.00mm x 60.00mm x 9.70mm 98.50mm x 61.00mm x 15.60mm	- 10.25mm L x 21.07mm W 104.73mm L x 64.84mm W 108.00mm L x 64.80mm W 108.80mm L x 65.60mm W 109.00mm L x 41.00mm W 110.00mm L x 66.80mm W 113.03mm L x 17.78mm W 118.84mm L x 38.47mm W 119.40mm L x 18.70mm W 120.00mm L x 23.00mm W 122.00mm L x 23.00mm W 122.00mm L x 36.00mm W 123.00mm L x 13.00mm W 123.00mm L x 23.00mm W 123.00mm L x 42.50mm W 123.50mm L x 43.00mm W 129.54mm L x 30.48mm W 140.45mm L x 23.16mm W 147.00mm L x 29.50mm W 147.00mm L x 35.20mm W 147.50mm L x 11.50mm W 148.00mm L x 30.30mm W 148.00mm L x 42.90mm W 149.00mm L x 23.00mm W 149.00mm L x 29.50mm W 149.70mm L x 13.50mm W 15.86mm L x 18.18mm W 152.40mm L x 91.44mm W 152.50mm L x 16.50mm W 153.50mm L x 16.00mm W 153.50mm L x 17.50mm W 153.60mm L x 16.20mm W 154.00mm L x 15.30mm W 154.00mm L x 15.80mm W 154.08mm L x 85.92mm W 154.40mm L x 16.50mm W 154.40mm L x 27.60mm W 154.50mm L x 16.50mm W 154.50mm L x 17.00mm W 155.08mm L x 86.92mm W 155.11mm L x 86.92mm W 155.60mm L x 87.50mm W 156.00mm L x 88.50mm W 156.08mm L x 87.90mm W 156.68mm L x 88.52mm W 159.30mm L x 23.00mm W 163.00mm L x 122.50mm W 17.92mm L x 5.28mm W 18.10mm L x 7.30mm W 199.00mm L x 112.70mm W 20.30mm L x 19.86mm W 21.00mm L x 9.00mm W 21.10mm L x 16.00mm W 21.20mm L x 8.00mm W 21.70mm L x 8.20mm W 212.20mm L x 159.40mm W 218.60mm L x 137.20mm W 220.00mm L x 139.60mm W 224.70mm L x 127.30mm W 23.40mm L x 23.40mm W 246.00mm L x 38.00mm W 25.40mm L x 12.70mm W 25.57mm L x 6.40mm W 256.00mm L x 56.60mm W 26.00mm L x 17.17mm W 26.50mm L x 12.20mm W 264.19mm L x 35.80mm W 27.60mm L x 11.60mm W 27.70mm L x 29.24mm W 27.72mm L x 27.72mm W 27.80mm L x 11.50mm W 27.80mm L x 13.90mm W 27.81mm L x 11.50mm W 27.90mm L x 10.00mm W 27.90mm L x 38.90mm W 29.81mm L x 13.50mm W 3.00 mm L x 12.30 mm W 3.00mm L x 10.30mm W 3.00mm L x 23.50mm W 30.40mm L x 13.90mm W 30.50mm L x 15.80mm W 30.60mm L x 40.80mm W 32.40mm L x 32.40mm W 323.80mm L x 80.01mm W 33.00mm L x 12.10mm W 33.00mm L x 14.50mm W 34.00mm L x 12.10mm W 35.00mm L x 12.60mm W 35.00mm L x 15.00mm W 36.00mm L x 10.00mm W 36.22mm L x 11.40mm W 36.30mm L x 13.90mm W 36.72mm L x 48.96mm W 37.40mm L x 17.00mm W 37.60mm L x 12.80mm W 37.72mm L x 49.86mm W 37.77mm L x 23.37mm W 38.00mm L x 16.00mm W 38.00mm L x 19.00mm W 38.00mm L x 26.00mm W 38.90mm L x 27.90mm W 389.38mm L x 129.29mm W 39.00mm L x 8.00mm W 40.00mm L x 10.00mm W 43.18mm L x 12.70mm W 44.45mm L x 16.51mm W 45.00mm L x 13.50mm W 45.00mm L x 15.50mm W 45.20mm L x 13.80mm W 45.70mm L x 12.70mm W 45.70mm L x 14.30mm W 45.70mm L x 17.70mm W 45.70mm L x 17.78mm W 45.72mm L x 12.70mm W 45.72mm L x 16.51mm W 45.72mm L x 17.78mm W 45.80mm L x 17.78mm W 45.80mm L x 17.86mm W 46.00mm L x 10.00mm W 46.00mm L x 10.80mm W 46.00mm L x 14.50mm W 46.00mm L x 18.40mm W 46.80mm L x 14.40mm W 47.56mm L x 11.00mm W 47.80mm L x 20.00mm W 48.00mm L x 10.00mm W 48.00mm L x 13.00mm W 48.60mm L x 12.00mm W 48.96mm L x 73.44mm W 50.00mm L x 20.00mm W 50.80mm L x 65.02mm W 51.00mm L x 14.50mm W 51.00mm L x 14.80mm W 51.20mm L x 14.70mm W 51.40mm L x 11.40mm W 51.50mm L x 12.20mm W 51.60mm L x 11.90mm W 52.00mm L x 15.00mm W 52.00mm L x 19.00mm W 52.20mm L x 18.00mm W 53.28mm L x 71.04mm W 54.00mm L x 14.40mm W 56.20mm L x 11.50mm W 56.22mm L x 13.52mm W 56.50mm L x 22.00mm W 56.76mm L x 94.60mm W 58.00mm L x 28.00mm W 58.20mm L x 22.80mm W 58.22mm L x 13.52mm W 59.00mm L x 26.00mm W 6.00mm L x 5.50mm W 60.00mm L x 22.00mm W 60.00mm L x 23.60mm W 60.00mm L x 28.00mm W 61.00mm L x 11.50mm W 61.00mm L x 15.10mm W 61.00mm L x 15.70mm W 61.00mm L x 15.80mm W 61.00mm L x 16.00mm W 61.00mm L x 19.00mm W 61.00mm L x 38.00mm W 61.00mm L x 44.00mm W 61.56mm L x 8.56mm W 61.63mm L x 109.65mm W 61.70mm L x 13.46mm W 61.70mm L x 15.60mm W 61.80mm L x 25.20mm W 62.00mm L x 16.00mm W 62.00mm L x 25.60mm W 62.00mm L x 26.00mm W 62.00mm L x 27.00mm W 62.20mm L x 17.78mm W 62.23mm L x 22.86mm W 62.23mm L x 30.48mm W 62.38mm L x 22.86mm W 62.50mm L x 26.20mm W 63.00mm L x 19.00mm W 63.00mm L x 24.00mm W 63.00mm L x 25.00mm W 63.50mm L x 16.51mm W 63.75mm L x 24.38mm W 64.00mm L x 12.50mm W 64.00mm L x 13.80mm W 64.00mm L x 14.00mm W 64.00mm L x 14.50mm W 64.50mm L x 13.80mm W 64.50mm L x 14.00mm W 64.50mm L x 15.50mm W 64.50mm L x 16.00mm W 64.50mm L x 16.40mm W 64.50mm L x 36.00mm W 64.60mm L x 16.40mm W 65.00mm L x 16.00mm W 65.00mm L x 25.60mm W 65.80mm L x 26.00mm W 66.00mm L x 16.00mm W 66.00mm L x 25.20mm W 70.00mm L x 18.50mm W 70.00mm L x 25.20mm W 70.08mm L x 52.56mm W 70.40mm L x 20.80mm W 70.80mm L x 11.50mm W 70.80mm L x 20.90mm W 71.10mm L x 53.50mm W 71.20mm L x 89.00mm W 71.45mm L x 27.03mm W 72.42mm L x 22.82mm W 72.88mm L x 54.96mm W 73.00mm L x 66.00mm W 73.50mm L x 11.50mm W 73.50mm L x 25.00mm W 75.52mm L x 13.52mm W 75.90mm L x 25.30mm W 76.00mm L x 25.00mm W 76.00mm L x 25.20mm W 76.00mm L x 26.00mm W 76.20mm L x 109.22mm W 76.30mm L x 25.00mm W 77.00mm L x 25.20mm W 77.00mm L x 26.30mm W 77.92mm L x 16.28mm W 78.00mm L x 25.20mm W 79.00mm L x 27.00mm W 8.40 mm L x 25.57 mm W 80.90mm L x 25.50mm H 82.00mm L x 28.40mm W 83.00mm L x 18.60mm W 85.00mm L x 16.80mm W 85.00mm L x 18.60mm W 85.00mm L x 18.80mm W 86.36mm L x 24.13mm W 87.63mm L x 19.05mm W 88.30mm L x 11.50mm W 88.65mm L x 25.40mm W 88.77mm L x 17.78mm W 89.00mm L x 10.00mm W 89.00mm L x 17.70mm W 93.50mm L x 15.80mm W 93.50mm L x 16.00mm W 94.50mm L x 16.00mm W 94.50mm L x 18.00mm W 95.04mm L x 53.86mm W 96.04mm L x 54.86mm W 96.04mm L x 64.84mm W 97.00mm L x 27.00mm W 97.04mm L x 55.86mm W 98.00mm L x 21.00mm W 99.00mm L x 13.00mm W 99.00mm L x 23.00mm W 99.00mm L x 24.00mm W 99.50mm L x 36.00mm W	- LED LED - Amber LED - Blue LED - Green LED - Green/Orange/Red LED - Orange LED - Pink/Red/White LED - Red LED - Red/Green/Blue LED - White LED - White/Gray LED - Yellow LED - Yellow/Green Without Backlight	- 12V 12V ~ 24V 2.3V ~ 3.6V 2.4V ~ 3.6V 2.4V ~ 3.6V, 4.4V ~ 5.5V 2.4V ~ 5.5V 2.7V 2.7V ~ 3.3V 2.7V ~ 3.45V 2.7V ~ 3.5V 2.7V ~ 4.5V 2.7V ~ 5.25V 2.7V ~ 5.3V 2.7V ~ 5.5V 2.85V ~ 3.15V 2.8V ~ 3.4V 220V 22V 24V 250V 3.1V ~ 3.3V 3.1V ~ 3.5V 3.1V ~ 3.6V 3.2V ~ 3.4V 3.2V ~ 5.2V 3.3V 3.3V ~ 5.5V 3.3V ~ 5V 3.6V 3.9V ~ 7.5V 3.9V ~ 7.7V 3V 3V ~ 3.3V 3V ~ 3.5V 3V ~ 3.6V 3V ~ 4.6V 3V ~ 5.3V 3V ~ 5.5V 3V ~ 5V 4.3V 4.5V 4.5V ~ 5.5V 4.75V ~ 5.25V 4.7V 4.7V ~ 5.2V 4.7V ~ 5.3V 4.7V ~ 5.5V 4.8V 4.8V ~ 5.2V 4.8V ~ 5.3V 4.8V ~ 6V 4V 5.25V 5.5V 5.7V ~ 6V 5V 5V ~ 15V 5V ~ 24V 5V ~ 9V 5V, 15V 5VAC 7.7V ~ 10V 7V 9V ~ 15V 9V ~ 35V	- 0.06mm W x 0.17mm H 0.30mm W x 0.32mm H 0.32mm W x 0.45mm H 0.33mm W x 0.35mm H 0.33mm W x 0.36mm H 0.34mm W x 0.49mm H 0.34mm W x 0.53mm H 0.35mm W x 0.35mm H 0.36mm W x 0.43mm H 0.36mm W x 0.58mm H 0.37mm W x 0.51mm H 0.38mm W x 0.38mm H 0.39mm W x 0.60mm H 0.40mm W x 0.40mm H 0.40mm W x 0.50mm H 0.41mm W x 0.55mm H 0.42mm W x 0.46mm H 0.43mm W x 0.36mm H 0.43mm W x 0.60mm H 0.44mm W x 0.44mm H 0.44mm W x 0.46mm H 0.45mm W x 0.50mm H 0.45mm W x 0.60mm H 0.45mm W x 0.65mm H 0.45mm W x 0.78mm H 0.46mm W x 0.42mm H 0.46mm W x 0.43mm H 0.46mm W x 0.53mm H 0.46mm W x 0.66mm H 0.47mm W x 0.43mm H 0.47mm W x 0.58mm H 0.47mm W x 0.67mm H 0.48mm W x 0.48mm H 0.48mm W x 0.54mm H 0.48mm W x 0.56mm H 0.48mm W x 0.59mm H 0.49mm W x 0.31mm H 0.50mm W x 0.50mm H 0.50mm W x 0.55mm H 0.50mm W x 0.65mm H 0.50mm W x 0.75mm H 0.52mm W x 0.52mm H 0.53mm W x 0.59mm H 0.53mm W x 0.60mm H 0.54mm W x 0.45mm H 0.54mm W x 0.48mm H 0.54mm W x 0.55mm H 0.54mm W x 0.59mm H 0.54mm W x 0.60mm H 0.55mm W x 0.50mm H 0.55mm W x 0.55mm H 0.55mm W x 0.57mm H 0.55mm W x 0.60mm H 0.55mm W x 0.65mm H 0.55mm W x 0.70mm H 0.55mm W x 0.75mm H 0.56mm W x 0.56mm H 0.56mm W x 0.61mm H 0.56mm W x 0.65mm H 0.56mm W x 0.66mm H 0.56mm W x 0.80mm H 0.57mm W x 0.57mm H 0.57mm W x 0.58mm H 0.57mm W x 0.65mm H 0.57mm W x 0.67mm H 0.58mm W x 0.60mm H 0.60mm W x 0.43mm H 0.60mm W x 0.60mm H 0.60mm W x 0.65mm H 0.60mm W x 0.70mm H 0.60mm W x 0.80mm H 0.61mm W x 0.56mm H 0.62mm W x 0.67mm H 0.62mm W x 0.68mm H 0.63mm W x 0.68mm H 0.65mm W x 0.60mm H 0.80mm W x 0.92mm H 0.90mm W x 1.06mm H 0.91mm W x 1.10mm H 0.92mm W x 1.10mm H 0.93mm W x 1.11mm H 0.94mm W x 0.84mm H 0.97mm W x 1.47mm H 1.00mm W x 1.00mm H 1.00mm W x 1.15mm H 1.00mm W x 1.24mm H 1.00mm W x 1.77mm H 1.10mm W x 1.50mm H 1.12mm W x 1.12mm H 1.15mm W x 1.36mm H 1.15mm W x 1.76mm H 1.15mm W x 1.77mm H 1.16mm W x 1.16mm H 1.16mm W x 1.40mm H 1.25mm W x 1.30mm H 1.27mm W x 1.27mm H 1.30mm W x 1.30mm H 1.90mm W x 8.30mm H	- I²C I²C, Parallel, Serial I²C, Parallel, SPI I²C, RS-232 I²C, RS-232, SPI I²C, RS-232, TTL I²C, RS-232, TTL, USB I²C, Serial, SPI I²C, SPI Parallel Parallel, 4/8-Bit Parallel, 8-Bit Parallel, 8-Bit, I²C, SPI Parallel, 8-Bit, SPI Parallel/Serial RS-232 RS-232, RS-422 RS-232C RS-422 RS-422/285 RS232, TTL Serial Serial, USB SPI TTL USB	- AC780S AiP31032 AIP31066 AIP31066L-001 AiP31066LC, ST7066U-0A FT5826QSL FT5826SWL GC9A01 GT9270 GT9271 HD44780 HX8238 HX8282-A+HX867-C HX8282A01 HX8347A ILI6122+ILI5960 ILI6126+ILI5960 ILI9488 ILI9806E KS0066 KS0066U NT-7605 OTA5180A PIC16F690 PIC16F691 PIC16F692 PIC16F693 PIC16F694 PIC16F695 PIC16F696 PIC16F697 PIC16F698 PIC16F699 RW1063 RW1063-0A S6A0069 S6A0069X01-COCX SPLC780 SPLC780D SPLC780D OR ST7066U SPLC780D1 ST-7032 ST7032 ST7032I ST7036 ST7036I ST7065 ST7066 ST7066-0A ST7066U ST7066U-0A ST7066U-0B ST7066U-OA ST7066Uv22 ST7262 ST7262E43-G4 ST7272A ST7282 ST7282-G4 ST7701SI ST7735S ST7789V STM32 SY7789V US2066	- -10°C ~ 50°C -10°C ~ 60°C -10°C ~ 70°C -20°C ~ 60°C -20°C ~ 70°C -20°C ~ 80°C -20°C ~ 85°C -30°C ~ 75°C -30°C ~ 80°C -30°C ~ 85°C -40°C ~ 105°C -40°C ~ 70°C -40°C ~ 80°C -40°C ~ 85°C -5°C ~ 50°C 0°C ~ 50°C 0°C ~ 55°C 0°C ~ 60°C 0°C ~ 70°C	- Amber Black Blue Blue/Green Dark Dark Blue Gray Green Orange Pink Red Red/Green/Blue White Yellow Yellow/Green

Reset All

Apply All

Results:

Mfr. Part #	Availability	Quantity	Datasheet	Packaging	Series	ProductStatus	NumberofCharacters	DisplayFormat	CharacterFormat	DisplayType	DisplayMode	CharacterSize	OutlineLxWxH	ViewingArea	Backlight	Voltage-Supply	DotSize	Interface	ControllerType	OperatingTemperature	TextColor
O016N002CWPP5N0000 OLED MODULE 32DIG 16 X 2 PASSIVE Vishay Dale	14,227	RFQ	Datasheet	Tray	-	Active	32	16 x 2	5 x 8 Dots	OLED	Passive	5.55mm H x 2.95mm W	85.00mm x 36.00mm x 10.00mm	66.00mm L x 16.00mm W	-	5V	0.55mm W x 0.65mm H	SPI	-	-	White
O016N002DBPP5N0000 OLED MODULE 32DIG 16 X 2 PASSIVE Vishay Dale	11,702	RFQ	Datasheet	Tray	-	Active	32	16 x 2	5 x 8 Dots	OLED	Passive	2.95mm H x 5.55mm W	85.00mm x 30.00mm x 10.00mm	66.00mm L x 16.00mm W	-	4.8V ~ 5.3V	0.55mm W x 0.65mm H	Parallel, 8-Bit	-	-40°C ~ 80°C	Blue
O016N002DGPP5N0000 OLED MODULE 32DIG 16 X 2 PASSIVE Vishay Dale	2,215	RFQ	Datasheet	Tray	-	Obsolete	32	16 x 2	5 x 8 Dots	OLED	Passive	2.95mm H x 5.55mm W	85.00mm x 30.00mm x 10.00mm	66.00mm L x 16.00mm W	-	4.8V ~ 5.3V	0.55mm W x 0.65mm H	Parallel, 8-Bit	-	-40°C ~ 80°C	Green
O016N002DRPP5N0000 OLED MODULE 32DIG 16 X 2 PASSIVE Vishay Dale	3,199	RFQ	Datasheet	Tray	-	Obsolete	32	16 x 2	5 x 8 Dots	OLED	Passive	2.95mm H x 5.55mm W	85.00mm x 30.00mm x 10.00mm	66.00mm L x 16.00mm W	-	4.8V ~ 5.3V	0.55mm W x 0.65mm H	Parallel, 8-Bit	-	-40°C ~ 80°C	Red
O016N002DWPP5N0000 OLED MODULE 32DIG 16 X 2 PASSIVE Vishay Dale	10,829	RFQ	Datasheet	Tray	-	Active	32	16 x 2	5 x 8 Dots	OLED	Passive	2.95mm H x 5.55mm W	85.00mm x 30.00mm x 10.00mm	66.00mm L x 16.00mm W	-	4.8V ~ 5.3V	0.55mm W x 0.65mm H	Parallel, 8-Bit	-	-40°C ~ 80°C	White
O016N002EBPP5N0000 OLED MODULE 32DIG 16 X 2 PASSIVE Vishay Dale	14,039	RFQ	Datasheet	Tray	-	Active	32	16 x 2	5 x 8 Dots	OLED	Passive	5.55mm H x 2.95mm W	84.00mm x 44.00mm x 10.00mm	66.00mm L x 16.00mm W	-	5V	0.55mm W x 0.65mm H	SPI	-	-	Blue
O016N002EGPP5N0000 OLED MODULE 32DIG 16 X 2 PASSIVE Vishay Dale	12,710	RFQ	Datasheet	Tray	-	Active	32	16 x 2	5 x 8 Dots	OLED	Passive	5.55mm H x 2.95mm W	84.00mm x 44.00mm x 10.00mm	66.00mm L x 16.00mm W	-	5V	0.55mm W x 0.65mm H	SPI	-	-	Green
O016N002ELPP5N0000 OLED MODULE 32DIG 16 X 2 PASSIVE Vishay Dale	11,432	RFQ	Datasheet	Tray	-	Active	32	16 x 2	5 x 8 Dots	OLED	Passive	5.55mm H x 2.95mm W	84.00mm x 44.00mm x 10.00mm	66.00mm L x 16.00mm W	-	5V	0.55mm W x 0.65mm H	SPI	-	-	Yellow

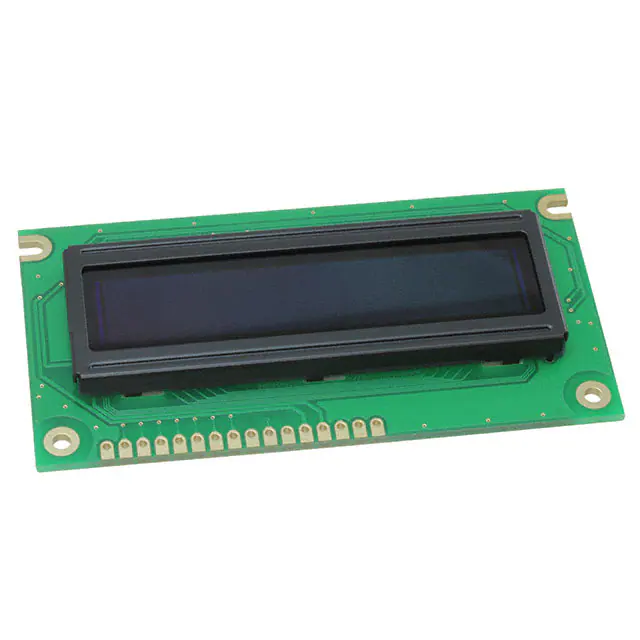

O016N002ERPP5N0000 OLED MODULE 32DIG 16 X 2 PASSIVE Vishay Dale	3,867	RFQ	Datasheet	Tray	-	Obsolete	32	16 x 2	5 x 8 Dots	OLED	Passive	5.55mm H x 2.95mm W	84.00mm x 44.00mm x 10.00mm	66.00mm L x 16.00mm W	-	5V	0.55mm W x 0.65mm H	SPI	-	-	Red
O016N002EWPP5N0000 OLED MODULE 32DIG 16 X 2 PASSIVE Vishay Dale	2,384	RFQ	Datasheet	Tray	-	Obsolete	32	16 x 2	5 x 8 Dots	OLED	Passive	5.55mm H x 2.95mm W	84.00mm x 44.00mm x 10.00mm	66.00mm L x 16.00mm W	-	5V	0.55mm W x 0.65mm H	SPI	-	-	White
O016N002HLPP5N0000 OLED MODULE 32DIG 16 X 2 PASSIVE Vishay Dale	14,032	RFQ		Tray	-	Active	32	16 x 2	5 x 8 Dots	OLED	Passive	4.74mm H x 8.90mm W	122.00mm x 44.00mm x 10.00mm	98.00mm L x 21.00mm W	-	4.8V ~ 5.3V	0.90mm W x 1.06mm H	Parallel, 8-Bit	-	-40°C ~ 80°C	Yellow
O016N002HRPP5N0000 OLED MODULE 32DIG 16 X 2 PASSIVE Vishay Dale	2,431	RFQ		Tray	-	Obsolete	32	16 x 2	5 x 8 Dots	OLED	Passive	4.74mm H x 8.90mm W	122.00mm x 44.00mm x 10.00mm	98.00mm L x 21.00mm W	-	4.8V ~ 5.3V	0.90mm W x 1.06mm H	Parallel, 8-Bit	-	-40°C ~ 80°C	Red
O016N002HWPP5N0000 OLED MODULE 32DIG 16 X 2 PASSIVE Vishay Dale	3,206	RFQ		Tray	-	Obsolete	32	16 x 2	5 x 8 Dots	OLED	Passive	4.74mm H x 8.90mm W	122.00mm x 44.00mm x 10.00mm	98.00mm L x 21.00mm W	-	4.8V ~ 5.3V	0.90mm W x 1.06mm H	Parallel, 8-Bit	-	-40°C ~ 80°C	White

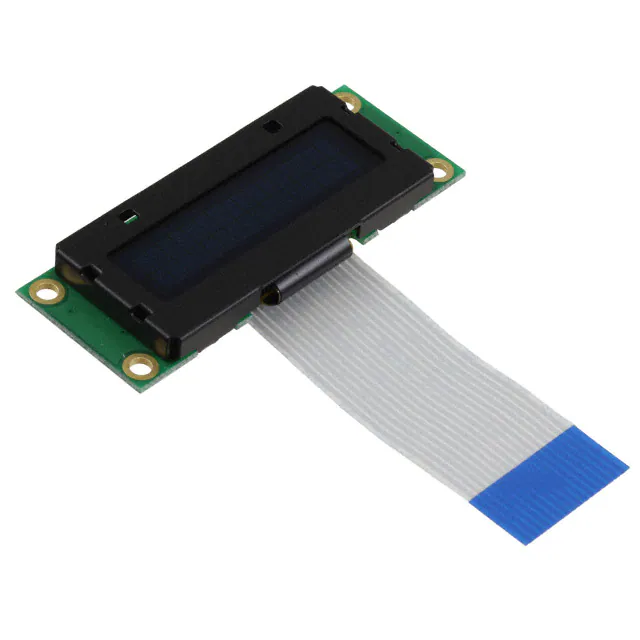

O016O002BBPP5N0000 OLED MODULE 32DIG 16 X 2 PASSIVE Vishay Dale	10,865	RFQ		Tray	-	Active	32	16 x 2	5 x 8 Dots	OLED	Passive	1.66mm H x 2.84mm W	53.00mm x 20.00mm x 7.60mm	36.00mm L x 10.00mm W	-	4.8V ~ 5.3V	0.30mm W x 0.32mm H	Parallel, 8-Bit	-	-40°C ~ 80°C	Blue
O016O002BLPP5N0000 OLED MODULE 32DIG 16 X 2 PASSIVE Vishay Dale	12,229	RFQ		Tray	-	Active	32	16 x 2	5 x 8 Dots	OLED	Passive	1.66mm H x 2.84mm W	53.00mm x 20.00mm x 7.60mm	36.00mm L x 10.00mm W	-	4.8V ~ 5.3V	0.30mm W x 0.32mm H	Parallel, 8-Bit	-	-40°C ~ 80°C	Yellow
O016O002CWPP5N0000 OLED MODULE 32DIG 16 X 2 PASSIVE Vishay Dale	13,552	RFQ		Tray	-	Active	32	16 x 2	5 x 8 Dots	OLED	Passive	2.97mm H x 5.57mm W	68.50mm x 17.50mm x 2.05mm	58.22mm L x 13.52mm W	-	4.8V ~ 5.3V	0.57mm W x 0.67mm H	Parallel, 8-Bit	-	-40°C ~ 80°C	White
O020N002ABPP5N0000 OLED MODULE 40DIG 20 X 2 PASSIVE Vishay Dale	11,071	RFQ		Tray	-	Active	40	20 x 2	5 x 8 Dots	OLED	Passive	3.20mm H x 5.55mm W	116.00mm x 37.00mm x 9.80mm	85.00mm L x 18.60mm W	-	4.8V ~ 5.3V	0.60mm W x 0.65mm H	Parallel, 8-Bit	-	-40°C ~ 80°C	Blue
O020N002ALPP5N000A OLED MODULE 40DIG 20 X 2 PASSIVE Vishay Dale	3,931	RFQ		Tray	-	Obsolete	40	20 x 2	5 x 8 Dots	OLED	Passive	3.20mm H x 5.55mm W	116.00mm x 37.00mm x 9.80mm	85.00mm L x 18.60mm W	-	4.8V ~ 5.3V	0.60mm W x 0.65mm H	Parallel, 8-Bit	-	-40°C ~ 80°C	Yellow
O020N002AWPP5N0000 OLED MODULE 40DIG 20 X 2 PASSIVE Vishay Dale	2,253	RFQ		Tray	-	Obsolete	40	20 x 2	5 x 8 Dots	OLED	Passive	3.20mm H x 5.55mm W	116.00mm x 37.00mm x 9.80mm	85.00mm L x 18.60mm W	-	4.8V ~ 5.3V	0.60mm W x 0.65mm H	Parallel, 8-Bit	-	-40°C ~ 80°C	White
O020N002BLPP5N0000 OLED MODULE 40DIG 20 X 2 PASSIVE Vishay Dale	3,472	RFQ	Datasheet	Tray	-	Obsolete	40	20 x 2	5 x 8 Dots	OLED	Passive	9.66mm H x 6.00mm W	180.00mm x 40.00mm x 9.30mm	149.00mm L x 23.00mm W	-	5V	1.12mm W x 1.12mm H	SPI	-	-	Yellow
