Electric Double Layer Capacitors (EDLC), Supercapacitors

Manufacturer	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	Termination	MountingType	LeadSpacing	Size/Dimension	Height-Seated(Max)

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	Termination	MountingType	LeadSpacing	Size/Dimension	Height-Seated(Max)

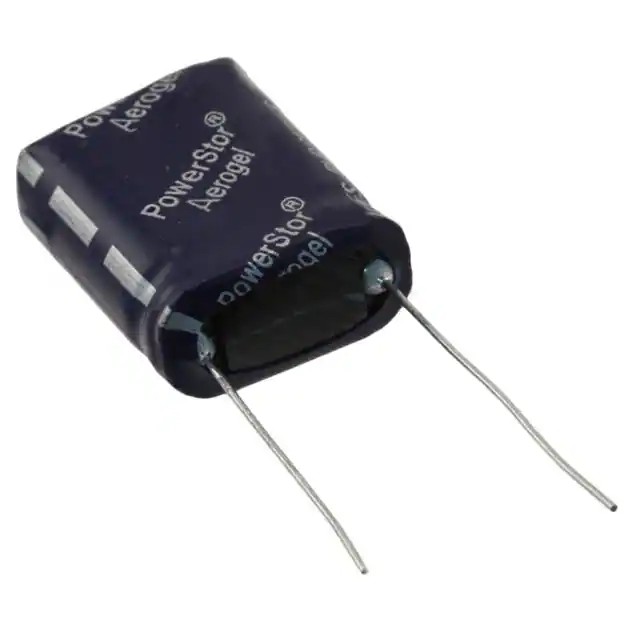

PHB-5R0H155-R CAP 1.5F -10% +30% 5V T/H Eaton - Electronics Division	6,500	6.91	RFQ	Datasheet	Radial, Can, Horizontal	Bulk	PHB	Active	1.5 F	-10%, +30%	5 V	330mOhm @ 100Hz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.465 (11.80mm)	0.866 L x 0.681 W (22.00mm x 17.30mm)	0.354 (9.00mm)
TPLH-3R0/100SS22X46 CAP 100F 3V THROUGH HOLE Tecate Group	7,427	8.75	RFQ	Datasheet	Radial, Can - Snap-In	Bulk	TPLH-Snap-In	Active	100 F	-	3 V	12mOhm	1500 Hrs @ 65°C	PC Pins	Through Hole	0.315 (8.00mm)	0.866 Dia (22.00mm)	1.890 (48.00mm)

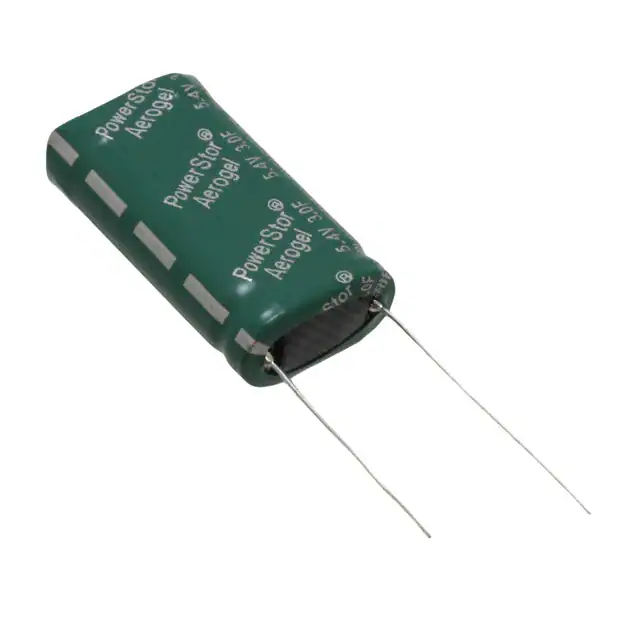

PHV-5R4V305-R CAP 3F -10% +30% 5.4V T/H Eaton - Electronics Division	7,633	9.07	RFQ	Datasheet	Radial, Can	Bulk	PHV	Active	3 F	-10%, +30%	5.4 V	80mOhm @ 100Hz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.465 (11.80mm)	0.681 L x 0.354 W (17.30mm x 9.00mm)	1.280 (32.50mm)

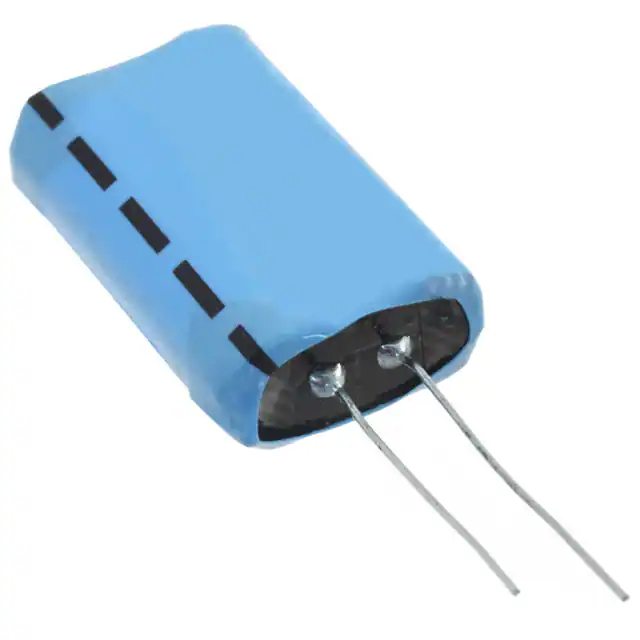

PM-5R0H305-R CAP 3F -20% +80% 5V T/H Eaton - Electronics Division	5,886	9.31	RFQ	Datasheet	Radial, Can, Horizontal	Bulk	PM	Active	3 F	-20%, +80%	5 V	70mOhm	1000 Hrs @ 60°C	PC Pins	Through Hole	0.209 (5.30mm)	1.280 L x 0.839 W (32.50mm x 21.30mm)	0.433 (11.00mm)

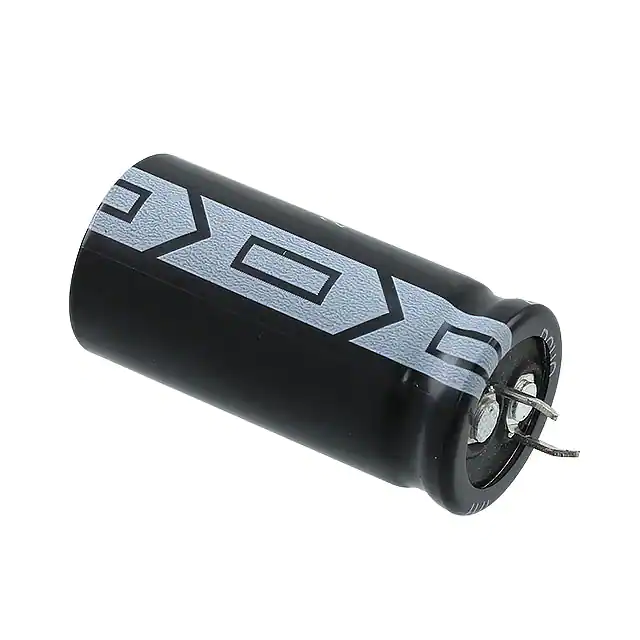

DGH107Q2R7 CAPACITOR 100F -10% +30% 2.7V TH Cornell Dubilier / Illinois Capacitor	6,530	9.47	RFQ	Datasheet	Radial, Can - Snap-In	Bulk	DGH	Active	100 F	-10%, +30%	2.7 V	8mOhm @ 1kHz	1500 Hrs @ 85°C	PC Pins	Through Hole	0.394 (10.00mm)	0.866 Dia (22.00mm)	1.850 (47.00mm)

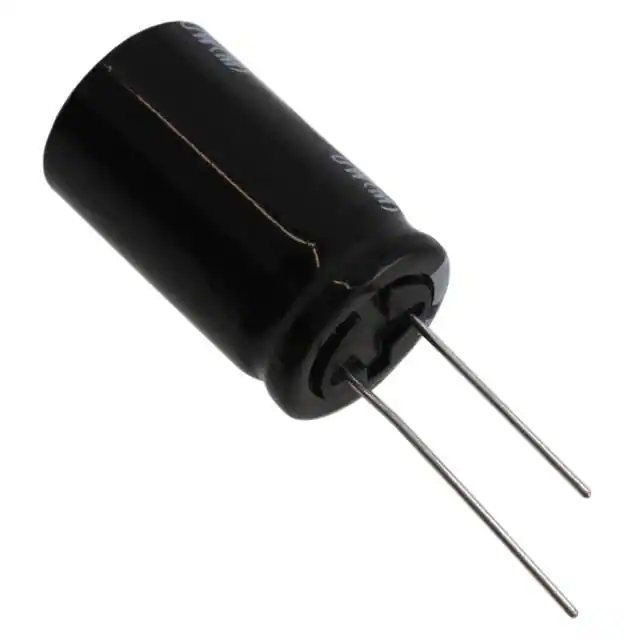

JUWT1476MHD CAP 47F 20% 2.7V T/H Nichicon	9,993	9.95	RFQ	Datasheet	Radial, Can	Bulk	EVerCAP® JUW	Active	47 F	±20%	2.7 V	200mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.319 (33.50mm)

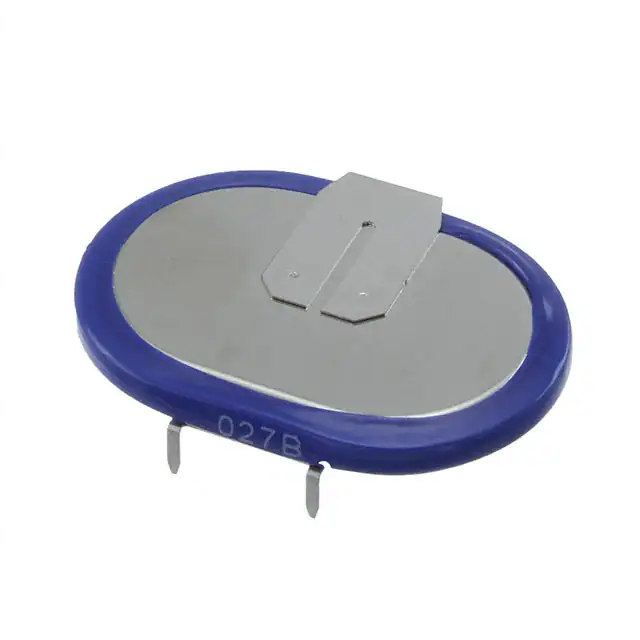

MAL219690116E3 CAPACITOR 90F -20% +80% 1.4V T/H Vishay Beyschlag/Draloric/BC Components	3,054	10.09	RFQ	Datasheet	Coin, Stacked Horizontal	Tray	ENYCAP™ 196HVC	Active	90 F	-20%, +80%	1.4 V	15mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	0.394 (10.00mm)	1.378 L x 0.984 W (35.00mm x 25.00mm)	0.197 (5.00mm)
TV1860-3R0107-R CAP 100F -10% +30% 3V T/H Eaton - Electronics Division	2,694	10.91	RFQ	Datasheet	Radial, Can	Bulk	TV	Active	100 F	-10%, +30%	3 V	11mOhm	1000 Hrs @ 85°C	PC Pins	Through Hole	0.295 (7.50mm)	0.728 Dia (18.50mm)	2.382 (60.50mm)

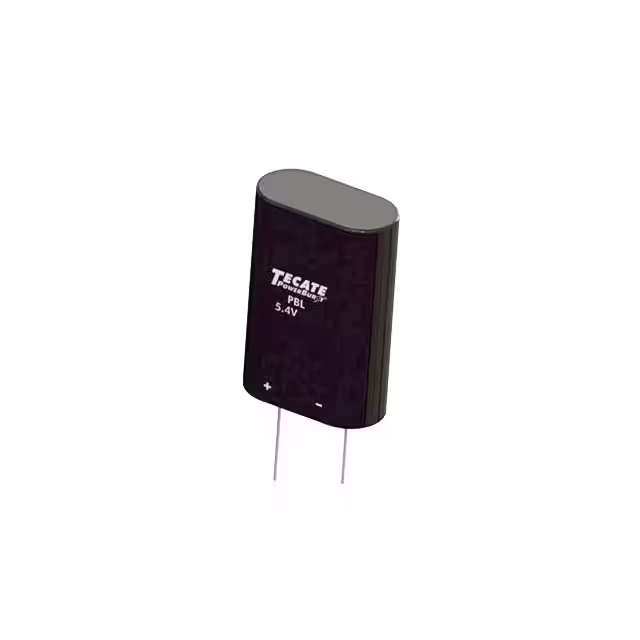

SCAP,PBL-15.0/5.4 CAP 15F 5.4V THROUGH HOLE UCAP Tecate Group	3,309	11.15	RFQ	Datasheet	Radial, Can	Bulk	PBL	Active	15 F	-	5.4 V	50mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	0.949 (24.10mm)	1.339 L x 0.689 W (34.00mm x 17.50mm)	1.358 (34.50mm)
SCAP,PBLL-15.0/5.4 CAP 15F -10% +20% 5.4V UCAP PACK Tecate Group	3,465	11.55	RFQ	Datasheet	Radial, Can	Bulk	PBLL	Active	15 F	-10%, +20%	5.4 V	115mOhm @ 1kHz	1000 Hrs @ 85°C	Wire Leads with Connector	User Defined	-	1.358 L x 1.339 W (34.50mm x 34.00mm)	0.689 (17.50mm)

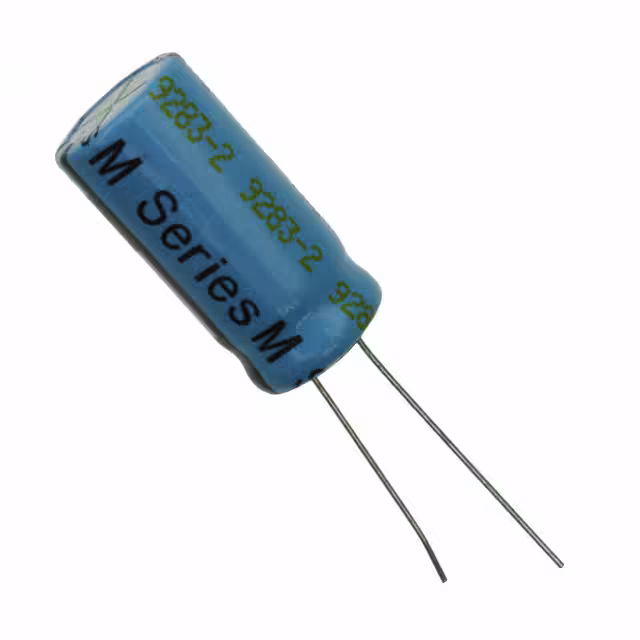

M1325-2R5905-R CAP 9F -20% +80% 2.5V T/H Eaton - Electronics Division	2,398	11.97	RFQ	Datasheet	Radial, Can	Bulk	M	Active	9 F	-20%, +80%	2.5 V	30mOhm @ 100Hz	1000 Hrs @ 60°C	PC Pins	Through Hole	0.197 (5.00mm)	0.531 Dia (13.50mm)	1.118 (28.40mm)

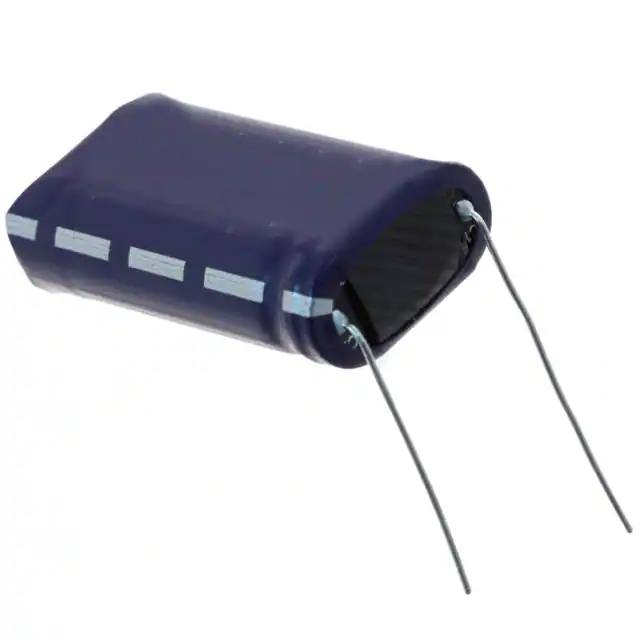

PHB-5R0H305-R CAP 3F -10% +30% 5V T/H Eaton - Electronics Division	4,594	12.49	RFQ	Datasheet	Radial, Can, Horizontal	Bulk	PHB	Active	3 F	-10%, +30%	5 V	200mOhm @ 100Hz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.465 (11.80mm)	1.280 L x 0.681 W (32.50mm x 17.30mm)	0.354 (9.00mm)

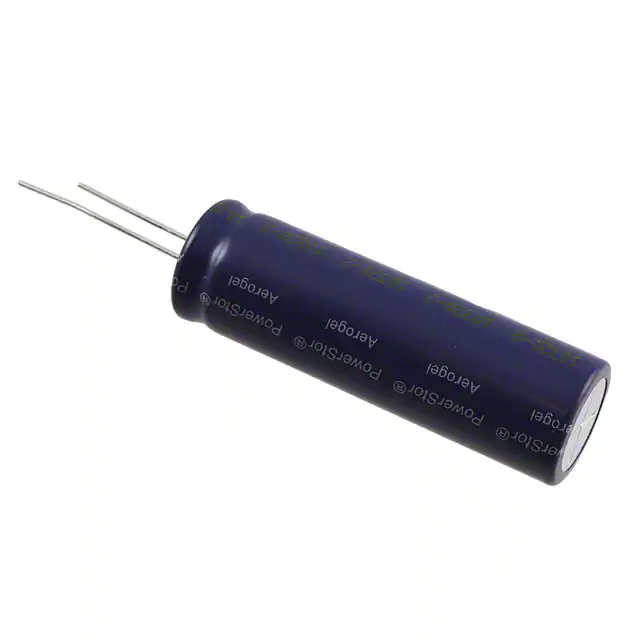

HB1860-2R5117-R CAP 110F -10% +30% 2.5V T/H Eaton - Electronics Division	2,778	14.24	RFQ	Datasheet	Radial, Can	Bulk	HB	Active	110 F	-10%, +30%	2.5 V	20mOhm @ 100Hz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.295 (7.50mm)	0.728 Dia (18.50mm)	2.362 (60.00mm)

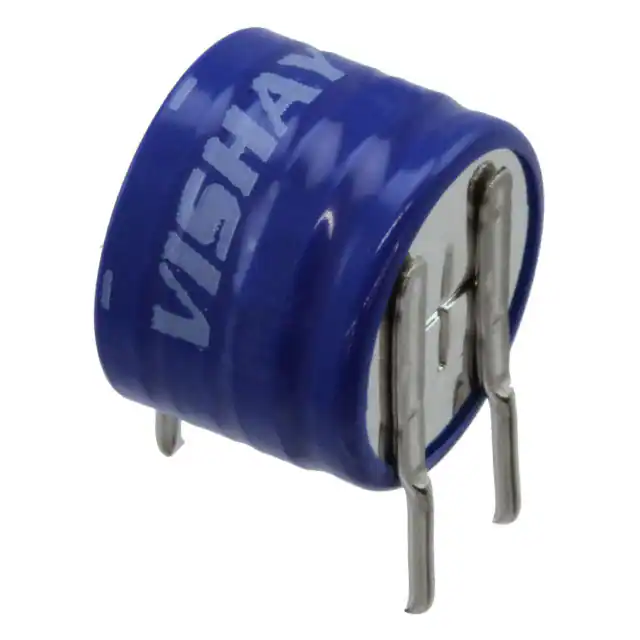

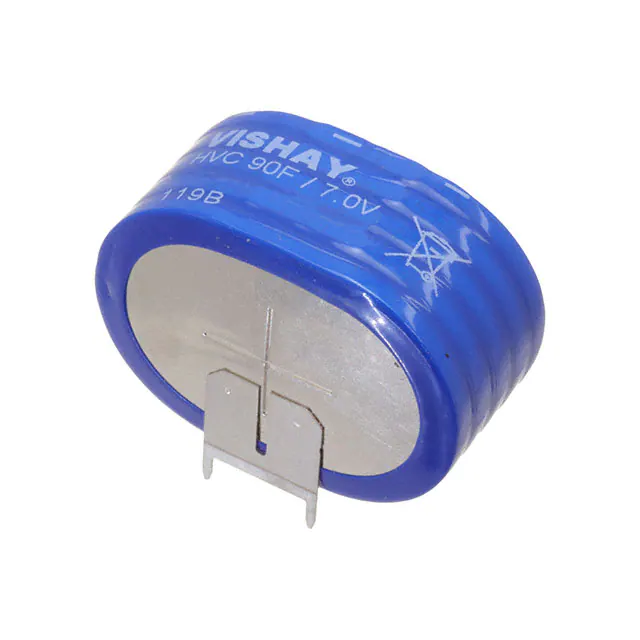

MAL219690107E3 CAPACITOR 90F -20% +80% 7V T/H Vishay Beyschlag/Draloric/BC Components	3,108	26.27	RFQ	Datasheet	Coin, Stacked Vertical	Tray	ENYCAP™ 196HVC	Active	90 F	-20%, +80%	7 V	75mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	0.394 (10.00mm)	1.378 L x 0.984 W (35.00mm x 25.00mm)	0.689 (17.50mm)
MAL219690108E3 CAPACITOR 90F -20% +80% 8.4V T/H Vishay Beyschlag/Draloric/BC Components	2,207	30.09	RFQ	Datasheet	Coin, Stacked Vertical	Tray	ENYCAP™ 196HVC	Active	90 F	-20%, +80%	8.4 V	90mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	0.394 (10.00mm)	1.378 L x 0.984 W (35.00mm x 25.00mm)	0.787 (20.00mm)
TPLH-2R7/650SL60X51 CAP 650F 2.7V CHASSIS STUD MOUNT Tecate Group	4,710	42.09	RFQ		Axial, Can - Screw Terminals	Bulk	TPLH-2.7V Threaded	Active	650 F	-	2.7 V	0.35mOhm	1500 Hrs @ 65°C	Screw Terminals	Chassis, Stud Mount	-	2.362 Dia (60.00mm)	2.047 (52.00mm)

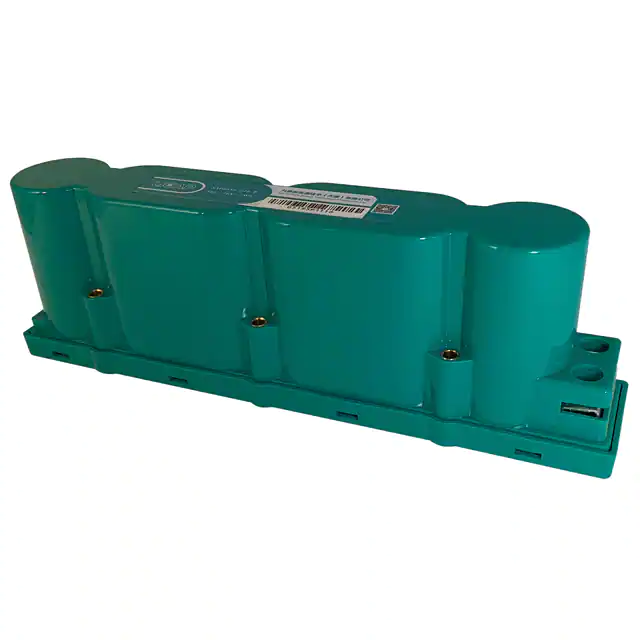

SM0058-016-P CAP LITH HYB 58F 0%/20% 16V CHAS LICAP Technologies, Inc.	3,931	91.30	RFQ	Datasheet	Module	Box	-	Active	58 F	0%, +20%	16 V	22mOhm	1500 Hrs @ 65°C	Screw Terminals	Chassis Mount	-	9.449 L x 1.850 W (240.00mm x 47.00mm)	2.992 (76.00mm)
DGH705Q2R7 CAPACITOR 7F -10% +30% 2.7V TH Cornell Dubilier / Illinois Capacitor	5,376	2.51	RFQ	Datasheet	Radial, Can	Bulk	DGH	Active	7 F	-10%, +30%	2.7 V	55mOhm @ 1kHz	1500 Hrs @ 85°C	PC Pins	Through Hole	0.197 (5.00mm)	0.394 Dia (10.00mm)	1.063 (27.00mm)
HVZ0E275NF CAP 2.7F 30% 2.7V T/H KEMET	6,902	2.53	RFQ	Datasheet	Radial, Can	Bulk	HVZ	Active	2.7 F	±30%	2.7 V	300mOhm @ 1kHz	-	PC Pins	Through Hole	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.945 (24.00mm)

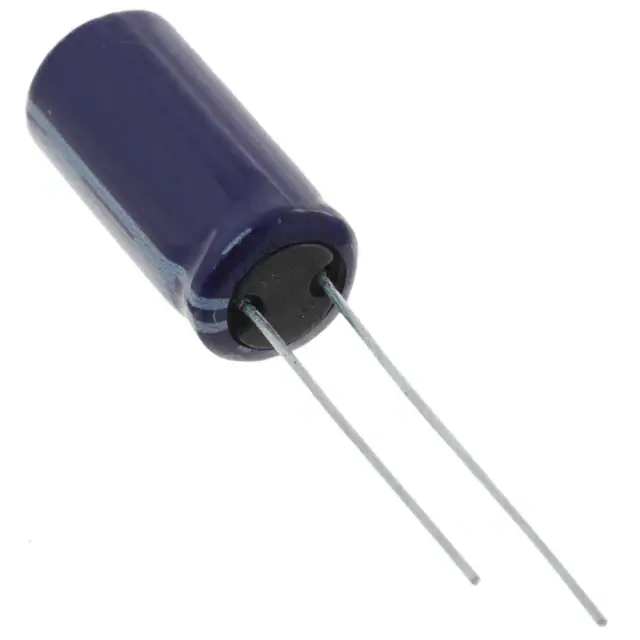

HB1020-2R5505-R CAP 5F -10% +30% 2.5V T/H Eaton - Electronics Division	8,380	3.23	RFQ	Datasheet	Radial, Can	Bulk	HB	Active	5 F	-10%, +30%	2.5 V	100mOhm @ 100Hz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.413 Dia (10.50mm)	0.878 (22.30mm)
