Electric Double Layer Capacitors (EDLC), Supercapacitors

Manufacturer	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	Termination	MountingType	LeadSpacing	Size/Dimension	Height-Seated(Max)

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	Termination	MountingType	LeadSpacing	Size/Dimension	Height-Seated(Max)

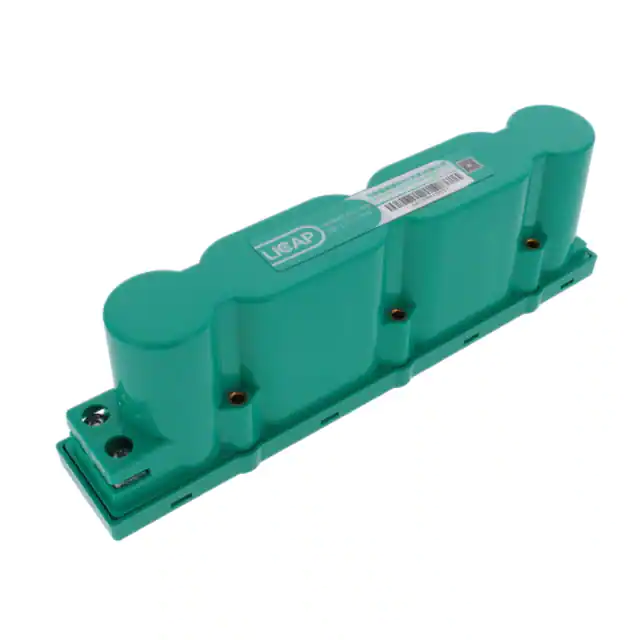

SM0062-017-NB CAP LITH HYB 62F 0%/20% 17V CHAS LICAP Technologies, Inc.	3,575	90.80	RFQ	Datasheet	Module	Bulk	-	Active	62 F	-0%, +20%	17 V	22mOhm	1500 Hrs @ 65°C	Screw Terminals	Chassis Mount	-	9.449 L x 1.732 W (240.00mm x 44.00mm)	2.992 (76.00mm)

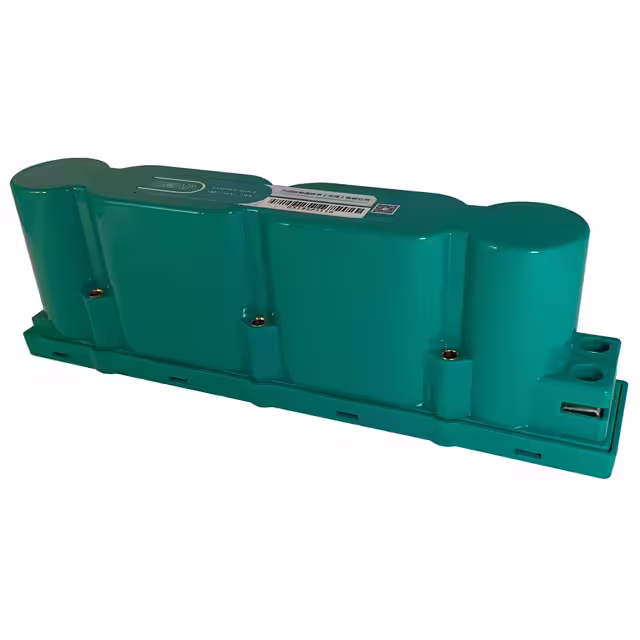

SM0058-015-NB CAP LITH HYB 58F 0%/20% 15V CHAS LICAP Technologies, Inc.	3,630	91.30	RFQ	Datasheet	Module	Box	-	Active	58 F	0%, +20%	15 V	22mOhm	1500 Hrs @ 65°C	Screw Terminals	Chassis Mount	-	9.449 L x 1.850 W (240.00mm x 47.00mm)	2.992 (76.00mm)

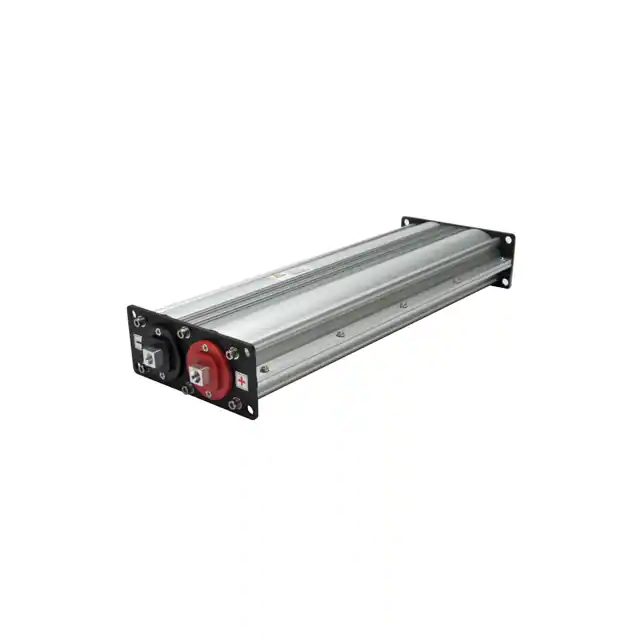

PBLH-18R0/500SD SCAP,PBLH-166/54 Tecate Group	780	638.07	RFQ	Datasheet	Module	Box	PBLH	Active	500 F	-	18 V	1.7mOhm	1500 Hrs @ 65°C	-	Chassis Mount	-	18.504 L x 6.535 W (470.00mm x 166.00mm)	2.795 (71.00mm)

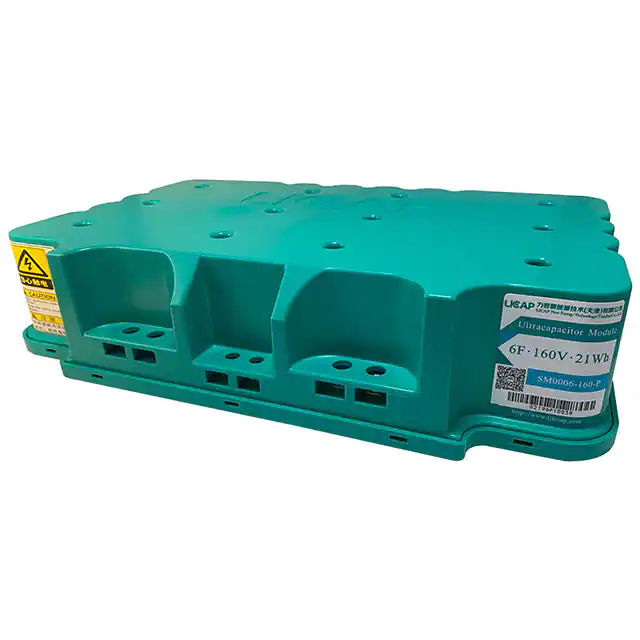

SM0006-160-P CAP LITH HYB 6F 0%/20% 160V CHAS LICAP Technologies, Inc.	999	738.82	RFQ	Datasheet	Module	Box	-	Active	6 F	0%, +20%	160 V	200mOhm	1500 Hrs @ 65°C	Screw Terminals	Chassis Mount	-	14.528 L x 9.449 W (369.00mm x 240.00mm)	3.110 (79.00mm)
SM0006-150-NB CAP LITH HYB 6F 0%/20% 150V CHAS LICAP Technologies, Inc.	956	738.82	RFQ	Datasheet	Module	Box	-	Active	6 F	0%, +20%	150 V	200mOhm	1500 Hrs @ 65°C	Screw Terminals	Chassis Mount	-	14.528 L x 9.449 W (369.00mm x 240.00mm)	3.110 (79.00mm)

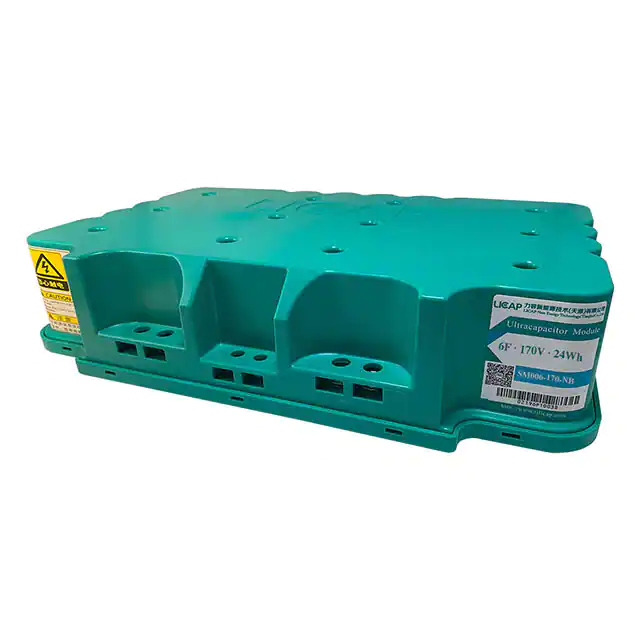

SM0006-170-NB CAP LITH HYB 6F 0%/20% 170V CHAS LICAP Technologies, Inc.	782	805.98	RFQ	Datasheet	Module	Box	-	Active	6 F	0%, +20%	170 V	200mOhm	1500 Hrs @ 65°C	Screw Terminals	Chassis Mount	-	14.528 L x 9.449 W (369.00mm x 240.00mm)	3.110 (79.00mm)

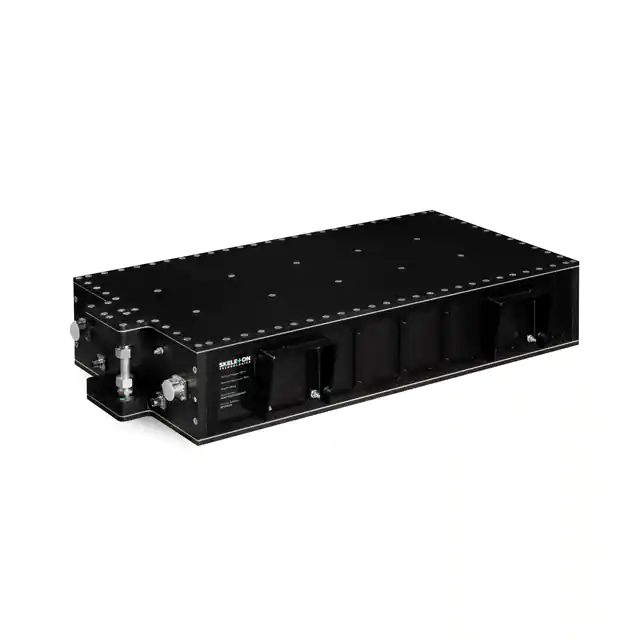

SKELMOD 170V SKELMOD 170V MODULE 53F 170V Skeleton Technologies GmbH	743	7321.97	RFQ	Datasheet	Module	Box	-	Active	53 F	-	170 V	12.7mOhm	1500 Hrs @ 65°C	-	Chassis Mount	-	36.220 L x 24.803 W (920.00mm x 630.00mm)	14.567 (370.00mm)

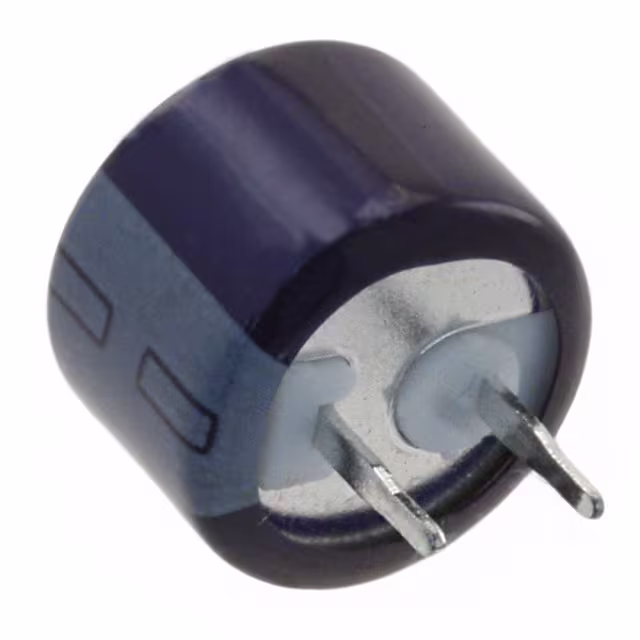

DK-6R3D473T CAP 47MF -20% +80% 6.3V T/H Elna America	393	2.07	RFQ	Datasheet	Radial, Can	Bulk	DK	Obsolete	47 mF	-20%, +80%	6.3 V	300Ohm	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.531 Dia (13.50mm)	0.374 (9.50mm)
EEC-HL0E405 CAP 4F 20% 2.7V T/H Panasonic Electronic Components	3,240	4.30	RFQ	Datasheet	Radial, Can	Bulk	HL	Obsolete	4 F	±20%	2.7 V	50mOhm @ 1kHz	2000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.866 (22.00mm)

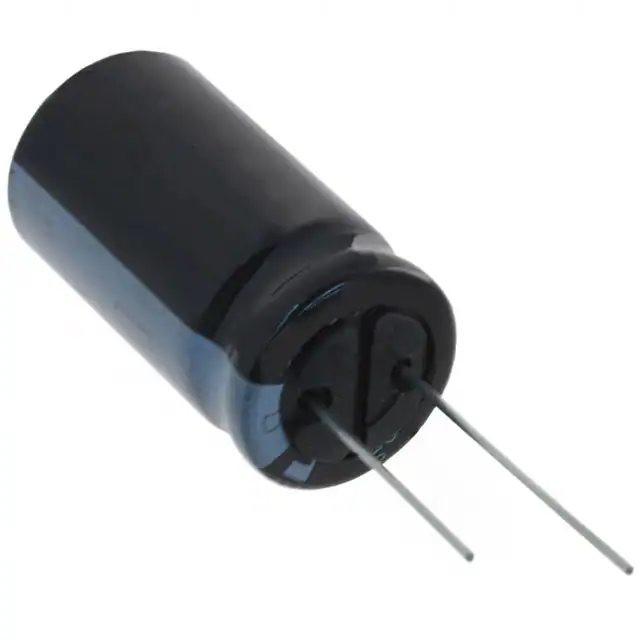

DZ-2R5D106T CAP 10F -20% +80% 2.5V T/H Elna America	6,408	7.45	RFQ	Datasheet	Radial, Can	Bulk	DZ	Active	10 F	-20%, +80%	2.5 V	200mOhm	1000 Hrs @ 70°C	PC Pins	Through Hole	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.457 (37.00mm)
BZ013A703ZSB CAP 70MF -20% +80% 3.6V SMD KYOCERA AVX	3,286	12.60	RFQ	Datasheet	BZ01, 3 Lead	Bulk	BestCap® BZ	Obsolete	70 mF	-20%, +80%	3.6 V	140mOhm	1000 Hrs @ 70°C	SMD (SMT) Tabs	Surface Mount	-	1.102 L x 0.669 W (28.00mm x 17.00mm)	0.157 (4.00mm)
DZH-2R5D307S57T CAP 300F -20% +80% 2.5V T/H Elna America	2,427	59.92	RFQ	Datasheet	Radial, Can - Snap-In	Bulk	DZH	Active	300 F	-20%, +80%	2.5 V	80mOhm	2000 Hrs @ 60°C	PC Pins	Through Hole	0.394 (10.00mm)	1.378 Dia (35.00mm)	2.047 (52.00mm)
DRL105Q0TF12RR CAP 1F 2.7V T/H ANGA POW	11,477	0.55	RFQ	Datasheet	Radial, Can	Bulk	DRL	Active	1 F	-10%, +30%	2.7 V	200mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.531 (13.50mm)
DRL205Q0TF16RR CAP 2F 2.7V T/H ANGA POW	11,999	0.70	RFQ	Datasheet	Radial, Can	Bulk	DRL	Active	2 F	-10%, +30%	2.7 V	150mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.689 (17.50mm)
DRL305Q0TF20RR CAP 3F 2.7V T/H ANGA POW	10,564	0.86	RFQ	Datasheet	Radial, Can	Bulk	DRL	Active	3 F	-10%, +30%	2.7 V	100mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.945 (22.00mm)
DRL505Q0TG20RR CAP 5F 2.7V T/H ANGA POW	11,825	0.90	RFQ	Datasheet	Radial, Can	Bulk	DRL	Active	5 F	-10%, +30%	2.7 V	90mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.945 (22.00mm)
LM055224A MAXCAP 220MF 5.5V Ohmite	12,433	0.95	RFQ	Datasheet	Radial, Can - SMD	Bulk	Maxcap®	Active	220 mF	-20%, +80%	5.5 V	25Ohm @ 1kHz	1000 Hrs @ 70°C	-	Surface Mount	-	0.413 Dia (10.50mm)	0.343 (8.70mm)
LT055223A MAXCAP 22MF 5.5V Ohmite	9,666	1.07	RFQ	Datasheet	Radial, Can	Bulk	Maxcap®	Active	22 mF	-20%, +80%	5.5 V	220Ohm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	0.201 (5.10mm)	0.453 Dia (11.50mm)	0.551 (14.00mm)

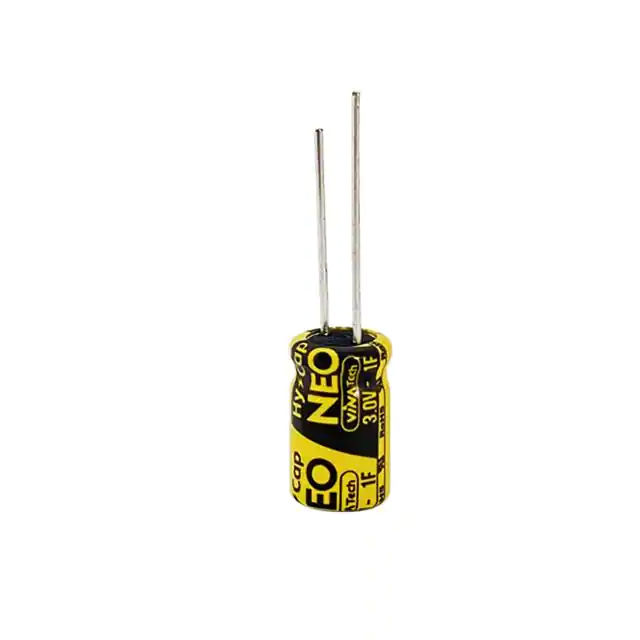

WEC3R0105QG 1F 3.0V 08*13 EDLC VINATech Co LTD	9,106	1.92	RFQ	Datasheet	Radial, Can	Bag	-	Active	1 F	-10%, +30%	3 V	175mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.571 (14.50mm)
JUK0E186MHD CAP 18F 20% 2.5V THROUGH HOLE Nichicon	6,532	8.08	RFQ	Datasheet	Radial, Can	Bulk	EVerCAP® JUK	Active	18 F	±20%	2.5 V	55mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.319 (33.50mm)
