Electric Double Layer Capacitors (EDLC), Supercapacitors

Manufacturer	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	Termination	MountingType	LeadSpacing	Size/Dimension	Height-Seated(Max)

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	Termination	MountingType	LeadSpacing	Size/Dimension	Height-Seated(Max)

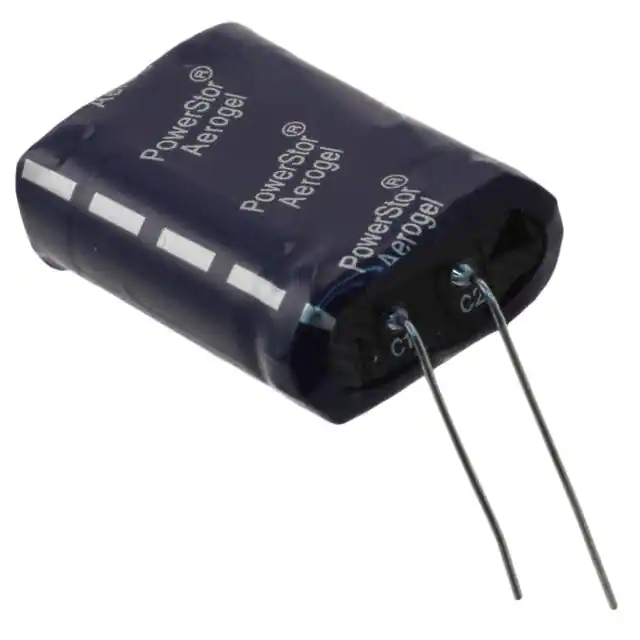

PHB-5R0H505-R CAP 5F -10% +30% 5V T/H Eaton - Electronics Division	7,217	6.57	RFQ	Datasheet	Radial, Can, Horizontal	Bulk	PHB	Active	5 F	-10%, +30%	5 V	130mOhm @ 100Hz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.209 (5.30mm)	1.280 L x 0.839 W (32.50mm x 21.30mm)	0.433 (11.00mm)

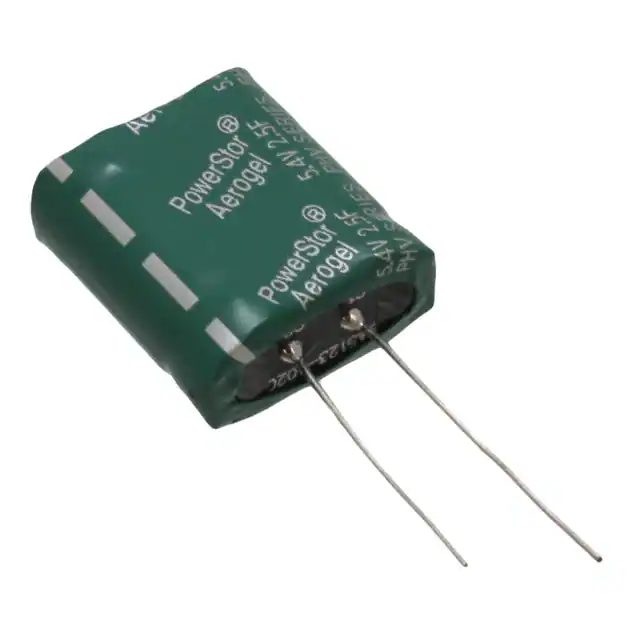

PHV-5R4V255-R CAP 2.5F -10% +30% 5.4V T/H Eaton - Electronics Division	7,700	6.88	RFQ	Datasheet	Radial, Can	Bulk	PHV	Active	2.5 F	-10%, +30%	5.4 V	80mOhm @ 100Hz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.209 (5.30mm)	0.839 L x 0.433 W (21.30mm x 11.00mm)	0.906 (23.00mm)
TPLH-2R7/120WR18X60 CAP 120F 2.7V THROUGH HOLE Tecate Group	6,853	7.82	RFQ	Datasheet	Radial, Can	Bulk	TPLH-Radial	Active	120 F	-	2.7 V	8mOhm @ 1kHz	1500 Hrs @ 85°C	PC Pins	Through Hole	0.295 (7.50mm)	0.709 Dia (18.00mm)	2.441 (62.00mm)

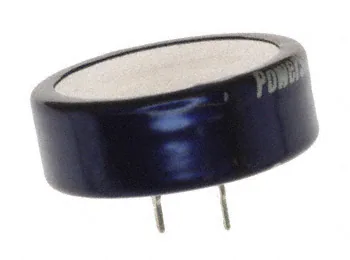

KR-5R5C155-R CAP 1.5F -20% +80% 5.5V T/H Eaton - Electronics Division	6,163	7.31	RFQ	Datasheet	Radial, Can	Bulk	KR	Active	1.5 F	-20%, +80%	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.846 Dia (21.50mm)	0.280 (7.10mm)

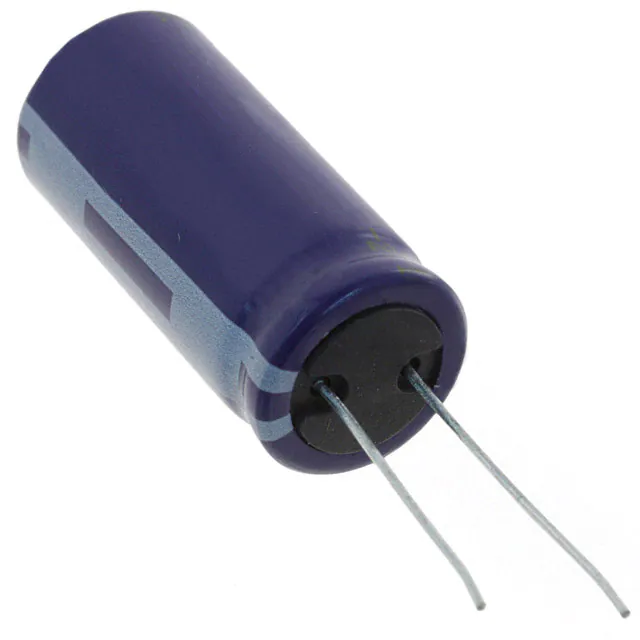

HB1840-2R5606-R CAP 60F -10% +30% 2.5V T/H Eaton - Electronics Division	5,258	8.05	RFQ	Datasheet	Radial, Can	Bulk	HB	Active	60 F	-10%, +30%	2.5 V	25mOhm @ 100Hz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.295 (7.50mm)	0.728 Dia (18.50mm)	1.654 (42.00mm)

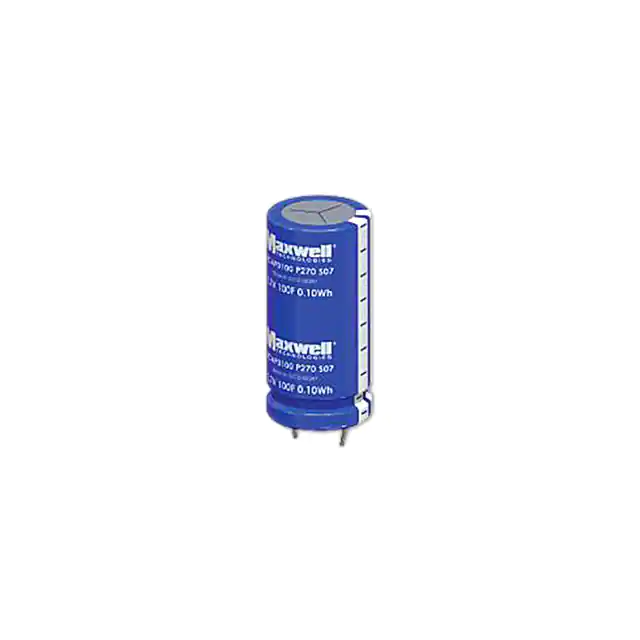

BCAP0100 P270 S07 CAP 100F 0% +20% 2.7V T/H Maxwell Technologies Korea Co., Ltd.	7,802	9.45	RFQ	Datasheet	Radial, Can	Bulk	HC	Active	100 F	0%, +20%	2.7 V	12mOhm	1000 Hrs @ 65°C	PC Pins	Through Hole	0.394 (10.00mm)	0.866 Dia (22.00mm)	1.850 (47.00mm)

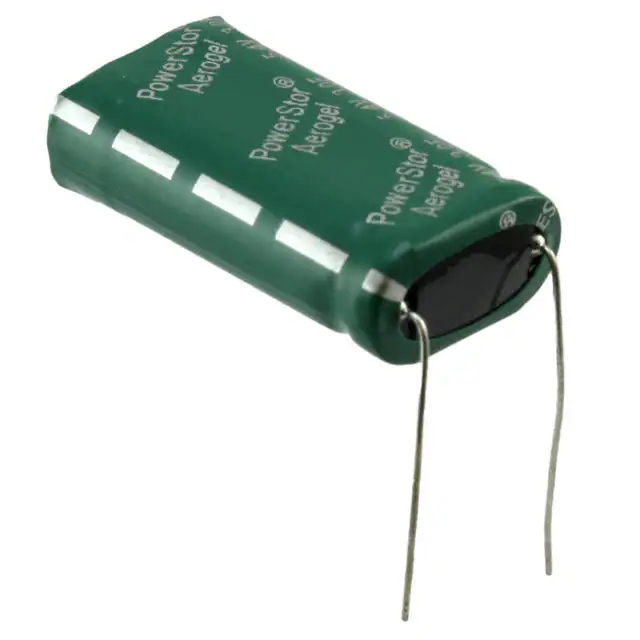

PHV-5R4H305-R CAP 3F -10% +30% 5.4V T/H Eaton - Electronics Division	8,236	9.46	RFQ	Datasheet	Radial, Can, Horizontal	Bulk	PHV	Active	3 F	-10%, +30%	5.4 V	80mOhm @ 100Hz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.465 (11.80mm)	1.280 L x 0.681 W (32.50mm x 17.30mm)	0.354 (9.00mm)

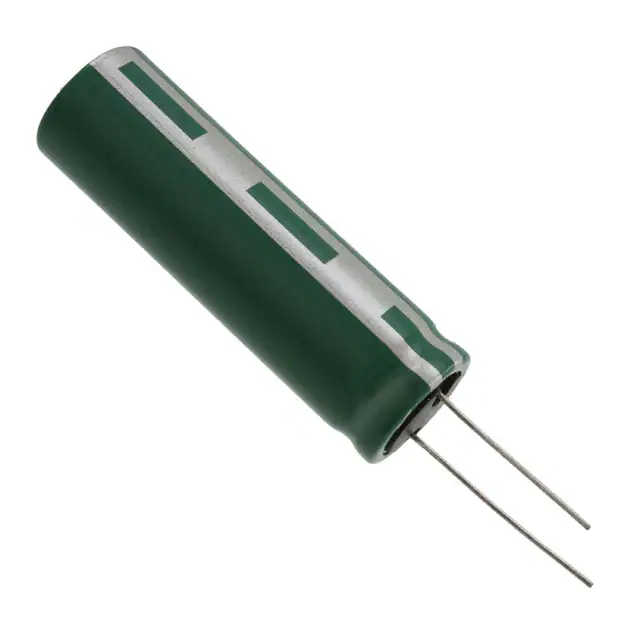

HV1860-2R7107-R CAP 100F -10% +30% 2.7V T/H Eaton - Electronics Division	4,118	10.49	RFQ	Datasheet	Radial, Can	Bulk	HV	Active	100 F	-10%, +30%	2.7 V	12mOhm @ 100Hz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.295 (7.50mm)	0.709 Dia (18.00mm)	2.382 (60.50mm)

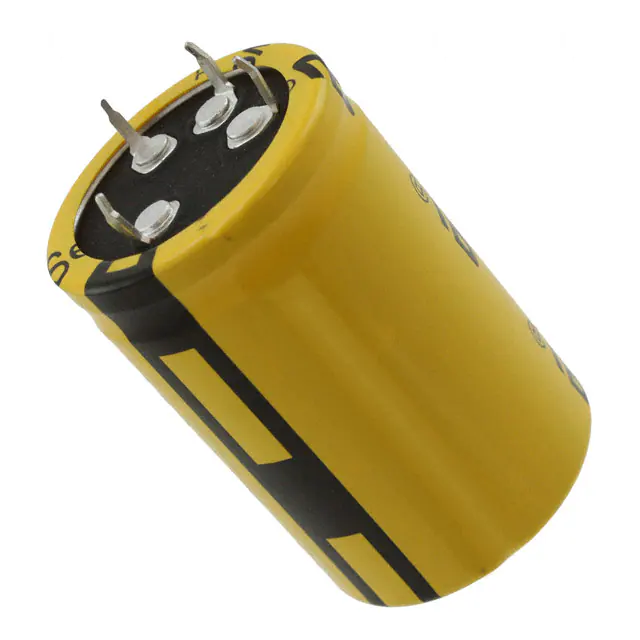

XV3550-2R7307-R CAP 300F -5% +10% 2.7V T/H Eaton - Electronics Division	2,098	11.37	RFQ	Datasheet	Radial, Can - Snap-In	Bulk	XV	Active	300 F	-5%, +10%	2.7 V	4.5mOhm	1500 Hrs @ 65°C	PC Pins	Through Hole	0.886 (22.50mm)	1.378 Dia (35.00mm)	2.047 (52.00mm)
FT0H225ZF CAP 2.2F -20% +80% 5.5V T/H KEMET	1,139	11.78	RFQ	Datasheet	Radial, Can	Bulk	FT	Active	2.2 F	-20%, +80%	5.5 V	1.8Ohm @ 1kHz	-	PC Pins	Through Hole	0.400 (10.16mm)	1.122 Dia (28.50mm)	0.551 (14.00mm)

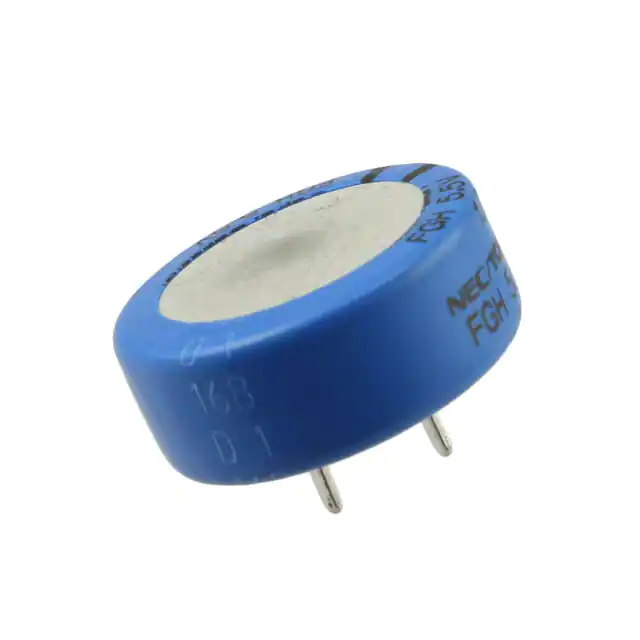

FGR0H225ZF CAP 2.2F -20% +80% 5.5V T/H KEMET	2,399	12.07	RFQ	Datasheet	Radial, Can	Bulk	FGR	Active	2.2 F	-20%, +80%	5.5 V	35Ohm @ 1kHz	-	PC Pins	Through Hole	0.300 (7.62mm)	0.846 Dia (21.50mm)	0.748 (19.00mm)

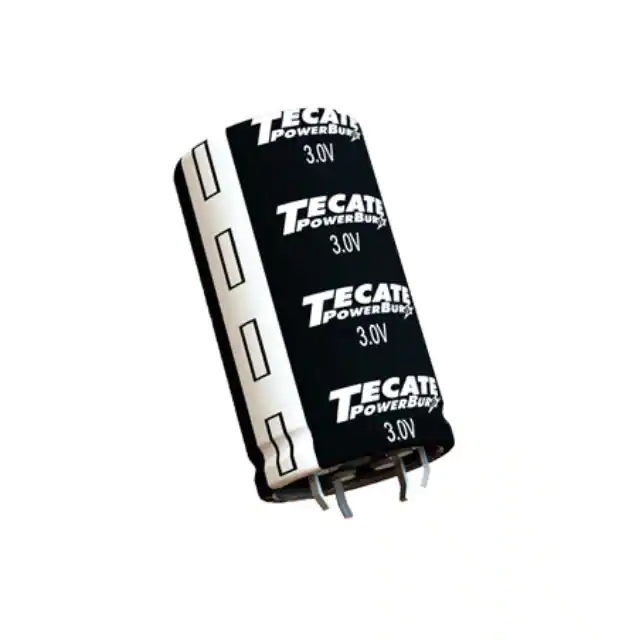

TPLH-3R0/450SS35X71 CAP 450F 3V THROUGH HOLE Tecate Group	3,580	12.32	RFQ	Datasheet	Radial, Can - Snap-In - 4 Lead	Bulk	TPLH-Snap-In	Active	450 F	-	3 V	3.6mOhm	1500 Hrs @ 65°C	PC Pins	Through Hole	0.902 (22.90mm)	1.378 Dia (35.00mm)	2.874 (73.00mm)

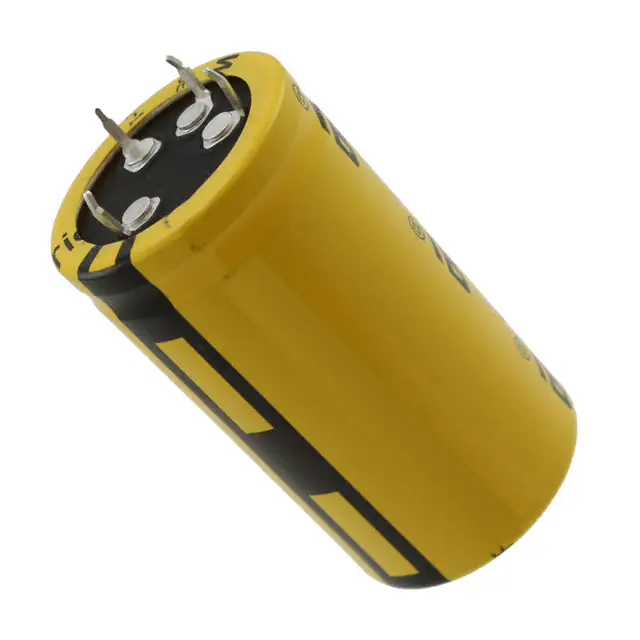

XV3560-2R7407-R CAP 400F -5% +10% 2.7V T/H Eaton - Electronics Division	1,701	12.48	RFQ	Datasheet	Radial, Can - Snap-In	Bulk	XV	Active	400 F	-5%, +10%	2.7 V	3.2mOhm	1500 Hrs @ 65°C	PC Pins	Through Hole	0.886 (22.50mm)	1.378 Dia (35.00mm)	2.480 (63.00mm)

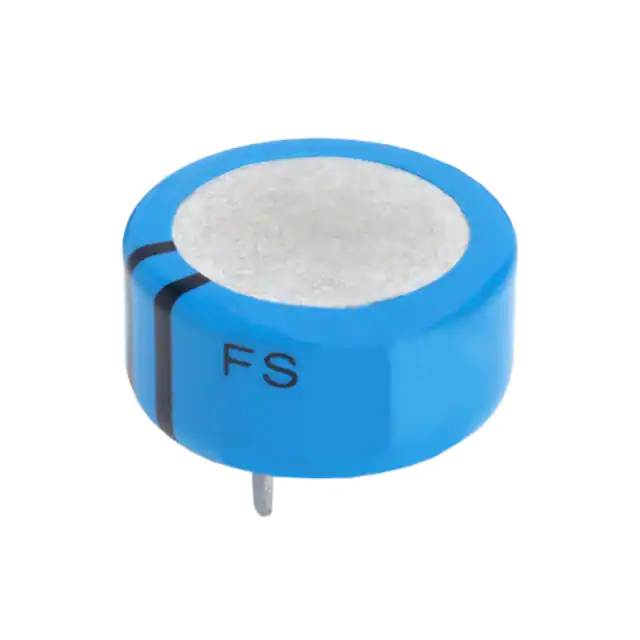

FS1B105ZF CAP 1F -20% +80% 12V T/H KEMET	4,767	24.24	RFQ	Datasheet	Radial, Can	Bulk	FS	Active	1 F	-20%, +80%	12 V	7.5Ohm @ 1kHz	-	PC Pins	Through Hole	0.400 (10.16mm)	1.122 Dia (28.50mm)	1.496 (38.00mm)

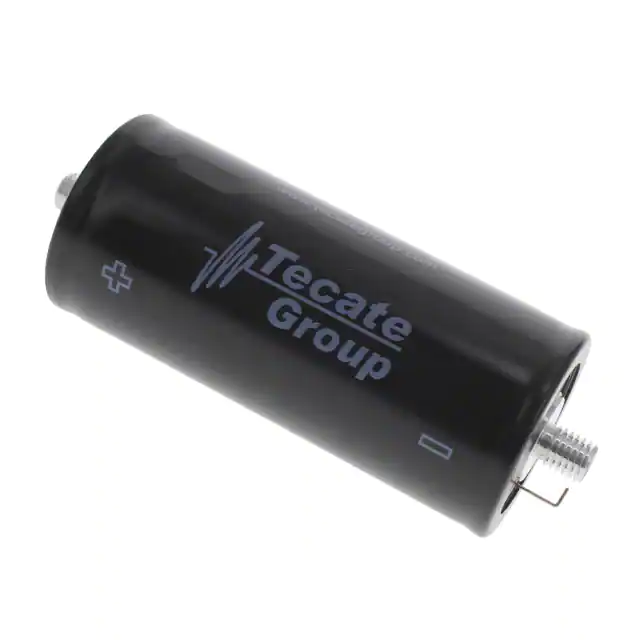

TPLH-3R0/3000SL60138 CAP 3000F 3.0V THREADED Tecate Group	1,733	57.69	RFQ	Datasheet	Axial, Can - Screw Terminals	Bulk	TPLH-3V Threaded	Active	3000 F	-	3 V	0.26mOhm	1500 Hrs @ 65°C	Screw Terminals	Chassis, Stud Mount	-	2.362 Dia (60.00mm)	5.453 (138.50mm)

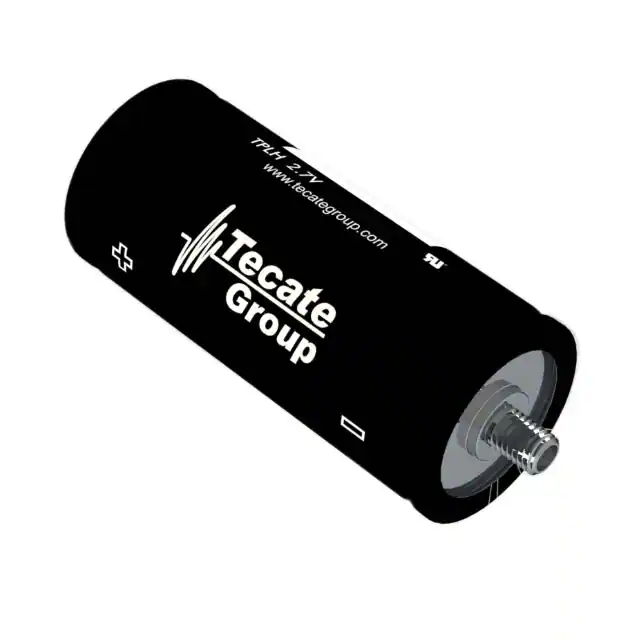

TPLH-2R7/3000SL60138 CAP 3000F 2.7V CHASSIS MOUNT Tecate Group	1,365	57.69	RFQ	Datasheet	Axial, Can - Screw Terminals	Bulk	TPLH-2.7V Threaded	Active	3000 F	-	2.7 V	0.26mOhm	1500 Hrs @ 65°C	Screw Terminals	Chassis, Stud Mount	-	2.362 Dia (60.00mm)	5.374 (136.50mm)

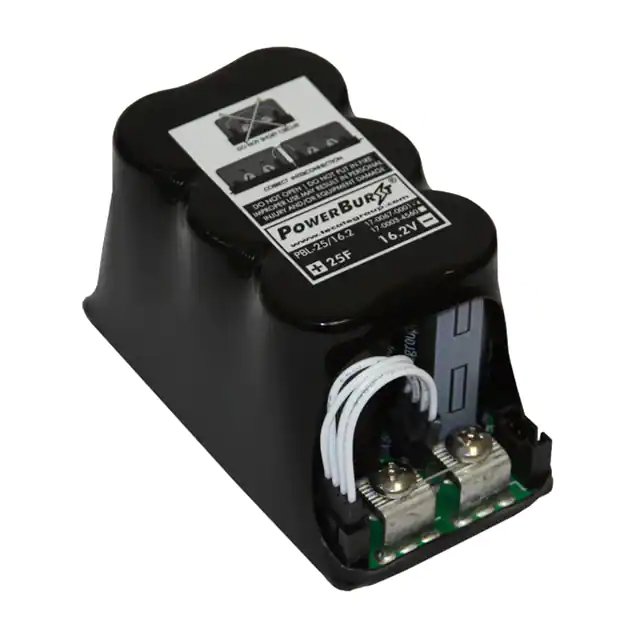

SCAP,PBL-25/16.2 CAP 25F 16.2V CHASSIS MNT Tecate Group	625	131.80	RFQ	Datasheet	Module, Wire Leads	Bulk	PBL	Active	25 F	-	16.2 V	50mOhm	-	Screw Terminals	Chassis Mount	-	3.740 L x 2.047 W (95.00mm x 52.00mm)	2.244 (57.00mm)
XVM-16R2656-R CAP 65F 0% +20% 16.2V CHASSIS MT Eaton - Electronics Division	341	134.89	RFQ	Datasheet	Module	Bulk	XVM	Active	65 F	0%, +20%	16.2 V	22mOhm	1500 Hrs @ 65°C	Screw Terminals	Chassis Mount	0.846 (21.50mm)	9.291 L x 1.803 W (236.00mm x 45.80mm)	3.051 (77.50mm)

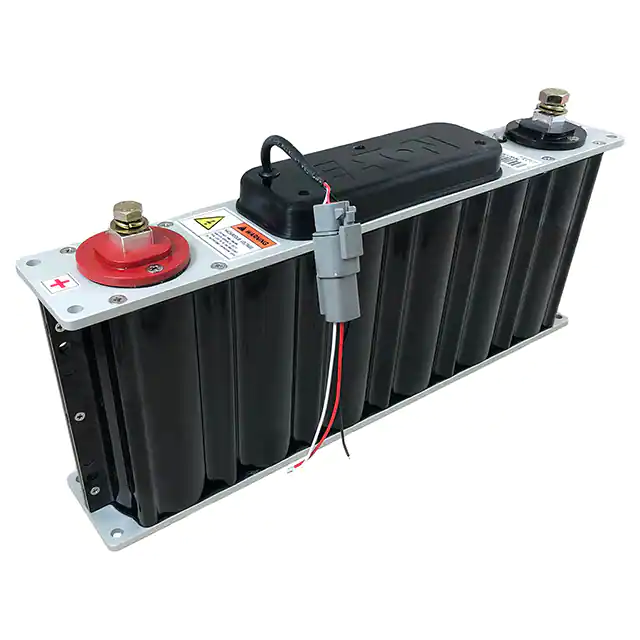

XLR-16R2507-R CAP MODULE 500F 16.2V Eaton - Electronics Division	930	584.34	RFQ	Datasheet	Module, Screw Terminals	Bulk	XLR	Active	500 F	-5%, +20%	16.2 V	1.7mOhm	1500 Hrs @ 65°C	Screw Terminals	Chassis Mount	-	16.386 L x 2.646 W (416.20mm x 67.20mm)	6.925 (175.90mm)

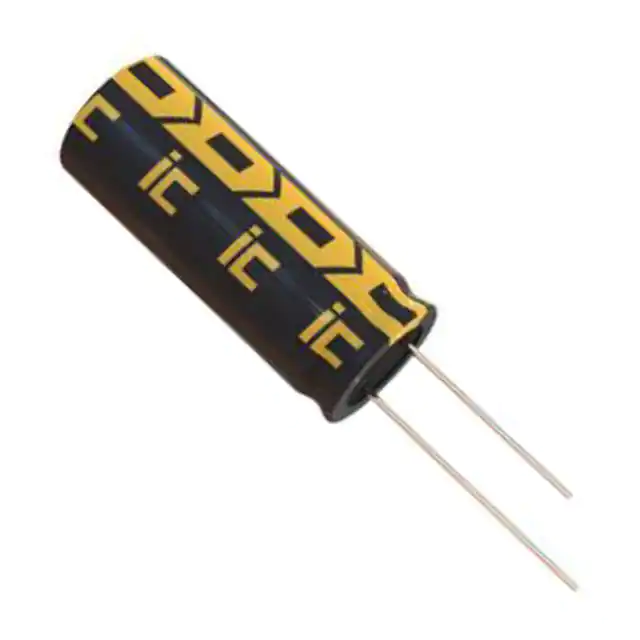

DGH125M2R7 1.2F, 2.7V, 6.3X15MM Cornell Dubilier Electronics (CDE)	7,776	1.16	RFQ	Datasheet	Radial, Can	Bulk	DGH	Active	1.2 F	±20%	2.7 V	300mOhm @ 1kHz	1500 Hrs @ 85°C	PC Pins	Through Hole	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.650 (16.50mm)
