Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
ETD34/17/11-3C94-G500 ER AND ETD CORES Ferroxcube	14,231	0.57	RFQ	Datasheet	Bulk	-	Active	ETD	ETD 34 x 17 x 11	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.681 (17.30mm)
E22/6/16-3C92 PLANAR E CORES Ferroxcube	13,475	0.57	RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E32/16/9-3F36-G200 E CORES Ferroxcube	14,683	0.57	RFQ	Datasheet	Bulk	-	Active	E	E 32 x 16 x 9	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.646 (16.40mm)

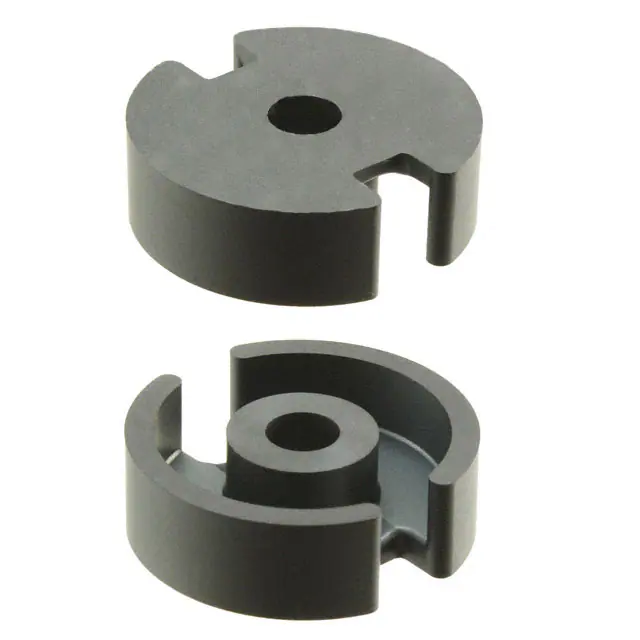

B65661W0000R087 FERRITE CORE P 4.4UH N87 2PCS EPCOS - TDK Electronics	5,210	1.95	RFQ	Datasheet	Box	P22/13	Active	P (Pot Core)	P 22 x 13	N87	0.866 (22.00mm)	4.4 µH	-20%, +30%	Ungapped	1600	2200	0.46	33.2	72.6	58.1	2410	Uncoated	0.268 (6.80mm)
B65811J0000R035 FERRITE CORE EPCOS - TDK Electronics	9,824	1.95	RFQ	Datasheet	Box	RM8	Active	RM	-	-	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	-
6278370121 78 RM CORE SET Fair-Rite Products Corp.	8,489	1.95	RFQ	Datasheet	Bulk	-	Active	RM	-	78	-	-	±25%	Ungapped	-	2300	43	61.3	141	124.7	8675	Uncoated	-
9478114002 78 E CORE SET Fair-Rite Products Corp.	7,975	1.95	RFQ	Datasheet	Bulk	-	Active	E	-	78	-	-	±25%	Ungapped	-	2300	55.3	97.9	177	174	17300	Uncoated	-
RM10/I-3C90-A160 RM CORES 2PC SET Ferroxcube	9,408	1.95	RFQ		Bulk	-	Active	RM	RM 10 x 1	3C90	-	-	±3%	Gapped	59	-	0.462	44.6	96.6	89.1	4310	Uncoated	0.729 (18.60mm)
B65839A0000R057 FERRITE CORE EP 1.5UH T57 2PCS EPCOS - TDK Electronics	12,992	0.57	RFQ	Datasheet	Box	EP7	Active	EP	EP 7	T57	-	1.5 µH	-20%, +30%	Ungapped	1820	4000	1.52	15.7	10.3	8.5	162	Uncoated	0.148 (3.75mm)
B65855B0000R057 FERRITE CORE EP 900NH T57 2PCS EPCOS - TDK Electronics	10,911	0.57	RFQ	Datasheet	Box	EP6	Active	EP	EP 6	T57	-	900 nH	-20%, +30%	Ungapped	2400	4000	3.35	10.28	3.06	2.3	31	Uncoated	0.120 (3.05mm)
PLT25/18/2-3C96 EQ CORES Ferroxcube	10,581	0.57	RFQ	Datasheet	Bulk	-	Active	PLT	PLT 25 x 18 x 2	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	-
B66421G0000X130 FERRITE CORE EPCOS - TDK Electronics	10,170	0.57	RFQ	Datasheet	Box	EFD25/13/9	Active	EFD	EFD 25 x 13 x 9	N30	-	-	-	-	-	4300	0.98	57	58	57	3310	Uncoated	0.492 (12.50mm)
B65523J0100J087 FERRITE CORE EPCOS - TDK Electronics	14,109	0.58	RFQ	Datasheet	Box	ER9.5	Active	ER	ER 9.5 x 5	N87	-	100 nH	±5%	Gapped	-	2200	1.54	13.6	8.81	7.6	120	Uncoated	0.098 (2.50mm)
B65523J0125J087 FERRITE CORE EPCOS - TDK Electronics	10,034	0.58	RFQ	Datasheet	Box	ER9.5	Active	ER	ER 9.5 x 5	N87	-	-	-	Gapped	-	2200	1.54	13.6	8.81	7.6	120	Uncoated	0.098 (2.50mm)
B65523J0160J087 FERRITE CORE EPCOS - TDK Electronics	12,846	0.58	RFQ	Datasheet	Box	ER9.5	Active	ER	ER 9.5 x 5	N87	-	-	-	Gapped	-	2200	1.54	13.6	8.81	7.6	120	Uncoated	0.098 (2.50mm)
B65926A0000X022 FERRITE CORES EPCOS - TDK Electronics	14,125	0.58	RFQ		Box	PS14/5	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
E34/14/9-3C96-G500 E CORES Ferroxcube	12,090	0.58	RFQ	Datasheet	Bulk	-	Active	E	E 34 x 14 x 9	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.555 (14.10mm)
E34/14/9-3F36 E CORES Ferroxcube	13,075	0.58	RFQ	Datasheet	Bulk	-	Active	E	E 34 x 14 x 9	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.555 (14.10mm)
E22/6/16-3C96 PLANAR E CORES Ferroxcube	14,107	0.58	RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
ER35/21/11-3C94 ER AND ETD CORES Ferroxcube	11,309	0.58	RFQ	Datasheet	Bulk	-	Active	ER	ER 35 x 21 x 11	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.815 (20.70mm)
