Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
EFD12/6/3.5-3C90-A40-S EFD CORES 2PC SET Ferroxcube	12,088	0.87	RFQ		Bulk	-	Active	EFD	EFD 12 x 6 x 3.5	3C90	-	-	±5%	Gapped	80	-	2.5	28.5	11.4	10.7	325	Uncoated	0.244 (6.20mm)
EFD12/6/3.5-3C90-A63-S EFD CORES 2PC SET Ferroxcube	11,689	0.87	RFQ		Bulk	-	Active	EFD	EFD 12 x 6 x 3.5	3C90	-	-	±8%	Gapped	290	-	2.5	28.5	11.4	10.7	325	Uncoated	0.244 (6.20mm)
EP5-3F36 EP AND EPX CORES 2PC SET Ferroxcube	12,183	0.87	RFQ	Datasheet	Bulk	-	Active	EP	EP 5	3F36	-	-	±25%	Ungapped	-	-	3.2	9.7	3	2.27	28.7	Uncoated	0.220 (5.60mm)

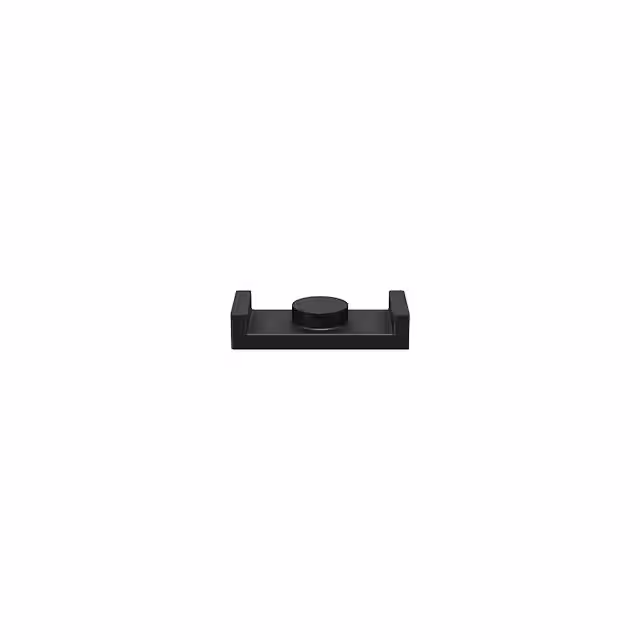

B65513J0100A087 FERRITE CORE EPCOS - TDK Electronics	10,845	0.87	RFQ	Datasheet	Box	ER14.5	Active	ER	ER 14.5 x 6	N87	-	100 nH	±3%	Gapped	-	2200	1.08	19	17.6	17.3	334	Uncoated	0.116 (2.95mm)
ER14.5/3/7-3C95-A160-S PLANAR ER CORES 2PC SET Ferroxcube	12,680	0.87	RFQ	Datasheet	Bulk	-	Active	ER	ER 14.5 x 3 x 7	3C95	-	160 nH	±4%	Gapped	140	-	1.08	19	17.6	17.3	333	Uncoated	0.268 (6.80mm)
ER14.5/3/7-3C95-A63-S PLANAR ER CORES 2PC SET Ferroxcube	10,864	0.87	RFQ	Datasheet	Bulk	-	Active	ER	ER 14.5 x 3 x 7	3C95	-	63 nH	±3%	Gapped	54	-	1.08	19	17.6	17.3	333	Uncoated	0.268 (6.80mm)
5975000501 75 TOROID Fair-Rite Products Corp.	11,280	0.87	RFQ	Datasheet	Bulk	-	Active	Toroid	-	75	0.825 (20.96mm)	-	±20%	Ungapped	-	5000	-	52	46	-	2360	Uncoated	0.468 (11.89mm)
B66229G0000X130 FERRITE CORE E N30 1PC EPCOS - TDK Electronics	13,808	0.87	RFQ	Datasheet	Box	E32/16/9	Active	E	E 32 x 16 x 9	N30	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.646 (16.40mm)
TX26/15/10-3E27-M7 FERRITE CORES ROUND Ferroxcube	10,200	0.87	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 26 x 15 x 10	3E27	1.061 (26.95mm)	-	±25%	Ungapped	7000	-	1.08	60.1	55.9	-	3360	Epoxy	0.429 (10.90mm)
E32/6/20-3C90 PLANAR E CORES Ferroxcube	14,578	0.87	RFQ		Bulk	-	Active	E	E 32 x 6 x 20	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)
E41/17/12-3C91-G200 E CORES Ferroxcube	12,288	0.88	RFQ	Datasheet	Bulk	-	Active	E	E 41 x 17 x 12	3C91	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.654 (16.60mm)
E41/17/12-3C94-G200 E CORES Ferroxcube	12,708	0.88	RFQ	Datasheet	Bulk	-	Active	E	E 41 x 17 x 12	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.654 (16.60mm)
EFD15/8/5-3F36-A100-S EFD CORES 2PC SET Ferroxcube	11,677	0.88	RFQ	Datasheet	Bulk	-	Active	EFD	EFD 15 x 8 x 5	3F36	-	-	±25%	Gapped	-	-	2.27	34	15	12.2	510	Uncoated	0.295 (7.50mm)
EFD15/8/5-3F36-A63-S EFD CORES 2PC SET Ferroxcube	10,260	0.88	RFQ	Datasheet	Bulk	-	Active	EFD	EFD 15 x 8 x 5	3F36	-	63 nH	±4%	Gapped	114	-	2.27	34	15	12.2	510	Uncoated	0.295 (7.50mm)
5977007601 77 TOROID Fair-Rite Products Corp.	11,272	0.88	RFQ	Datasheet	Bulk	-	Active	Toroid	-	77	0.870 (22.10mm)	-	±25%	Ungapped	-	2000	-	54	52	-	2830	Uncoated	0.500 (12.70mm)
B65840F1106T001 FERRITE CORE EPCOS - TDK Electronics	10,578	0.88	RFQ	Datasheet	Box	-	Active	EP	EP 7	K1	-	-	-	-	-	80	-	-	-	-	-	Uncoated	-
ETD39/20/13-3C97-G200 ER AND ETD CORES Ferroxcube	14,077	0.88	RFQ	Datasheet	Bulk	-	Active	ETD	ETD 39 x 20 x 13	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.780 (19.80mm)
ETD39/20/13-3F36-G200 ER AND ETD CORES Ferroxcube	13,652	0.88	RFQ	Datasheet	Bulk	-	Active	ETD	ETD 39 x 20 x 13	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.780 (19.80mm)
ETD39/20/13-3F46-G200 ER AND ETD CORES Ferroxcube	11,028	0.88	RFQ	Datasheet	Bulk	-	Active	ETD	ETD 39 x 20 x 13	3F46	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.780 (19.80mm)
EFD10/5/3-3C96-A63-S EFD CORES 2PC SET Ferroxcube	14,183	0.88	RFQ	Datasheet	Bulk	-	Active	EFD	EFD 10 x 5 x 3	3C96	-	63 nH	±8%	Gapped	165	-	3.29	23.7	7.2	6.5	171	Uncoated	0.205 (5.20mm)
