Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
EQ13-3C95 FERRITE CORE Ferroxcube	6,056	1.02	RFQ	Datasheet	Bulk	-	Active	EQ	EQ 13	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.112 (2.85mm)
TX16/9.6/6.3-3C94 FERRITE CORES ROUND Ferroxcube	6,837	1.03	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 16 x 9.6 x 6.3	3C94	0.640 (16.25mm)	-	±30%	Ungapped	-	-	1.95	38.5	19.7	-	760	Epoxy	0.258 (6.55mm)

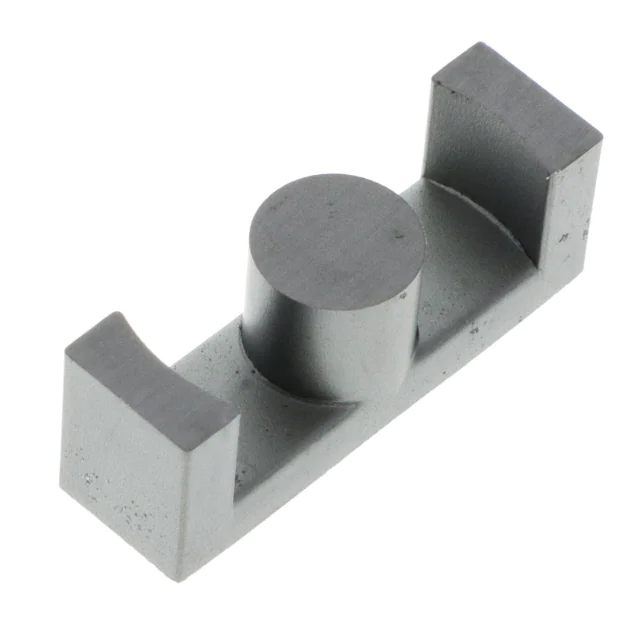

9578261802 78 EER CORE SET Fair-Rite Products Corp.	6,019	1.03	RFQ	Datasheet	Bulk	-	Active	EER	-	78	-	-	±25%	Ungapped	-	2300	111	48	43.4	42.5	2083	Uncoated	0.366 (9.30mm)
E32/16/9-3C94 FERRITE CORE Ferroxcube	9,582	1.05	RFQ	Datasheet	Bulk	-	Active	E	E 32 x 16 x 9	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.646 (16.40mm)

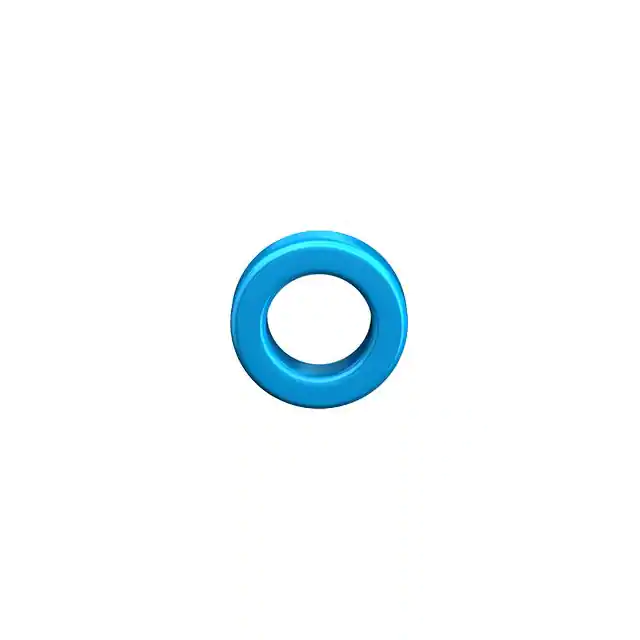

B64290L0045X049 FERRITE CORE EPCOS - TDK Electronics	9,853	1.08	RFQ	Datasheet	Box	TX16/9.6/6.3	Active	Toroid	-	N49	0.677 (17.20mm)	-	-	Ungapped	-	-	1.95	38.52	19.73	-	760	Epoxy	0.287 (7.30mm)
T60006L2012W803 NANOCRYSTALLINE CORE, 12.8X9.5X3 VACUUMSCHMELZE	5,522	1.10	RFQ	Datasheet	Box	-	Active	Toroid	-	-	0.579 (14.70mm)	-	-	Ungapped	-	-	-	35	4.2	-	-	Epoxy	0.189 (4.80mm)

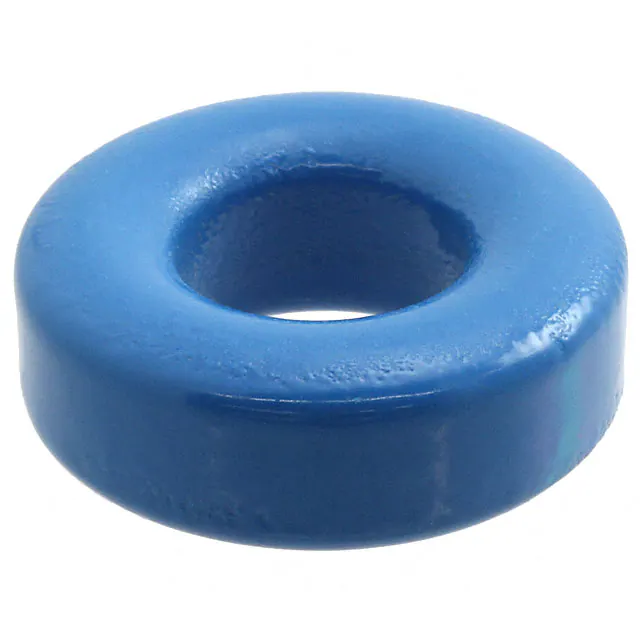

B64290L0632X027 FERRITE CORE TOROID 1.94UH N27 EPCOS - TDK Electronics	8,049	1.11	RFQ	Datasheet	Box	TX20/10/7	Active	Toroid	-	N27	0.835 (21.20mm)	1.94 µH	±25%	Ungapped	-	2000	1.3	43.55	33.63	33.63	1465	Epoxy	0.319 (8.10mm)
TX16/9.6/6.3-3E27 FERRITE CORES ROUND Ferroxcube	8,680	1.13	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 16 x 9.6 x 6.3	3E27	0.640 (16.25mm)	-	±30%	Ungapped	-	-	1.95	38.5	19.7	-	760	Epoxy	0.258 (6.55mm)
E32/16/9-3C92 FERRITE CORE Ferroxcube	9,253	1.13	RFQ	Datasheet	Bulk	-	Active	E	E 32 x 16 x 9	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.646 (16.40mm)
TX22/14/6.4-3C90 FERRITE CORES ROUND Ferroxcube	5,225	1.14	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 22 x 14 x 6.4	3C90	0.880 (22.35mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.265 (6.75mm)
B65839A0000R087 FERRITE CORE EP 1.1UH N87 2PCS EPCOS - TDK Electronics	8,368	1.14	RFQ	Datasheet	Box	EP7	Active	EP	EP 7	N87	-	1.1 µH	-20%, +30%	Ungapped	1330	2200	1.52	15.7	10.3	8.5	162	Uncoated	0.148 (3.75mm)
B66302G0000X138 FERRITE CORE E T38 1PC EPCOS - TDK Electronics	6,165	1.17	RFQ	Datasheet	Box	E8.8/4/2	Active	E	E 8 x 8	T38	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.161 (4.10mm)
TX16/9.6/6.3-3E6 FERRITE CORES ROUND Ferroxcube	5,719	1.19	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 16 x 9.6 x 6.3	-	0.640 (16.25mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.258 (6.55mm)
ETD34/17/11-3C94 FERRITE CORE Ferroxcube	5,104	1.22	RFQ	Datasheet	Bulk	-	Active	ETD	ETD 34 x 17 x 11	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.681 (17.30mm)
B66302G0000X130 FERRITE CORE E N30 1PC EPCOS - TDK Electronics	8,363	1.23	RFQ	Datasheet	Box	E8.8/4/2	Active	E	E 8 x 8	N30	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.161 (4.10mm)
B65839A0000R030 FERRITE CORE EP 2UH N30 2PCS EPCOS - TDK Electronics	6,504	1.25	RFQ	Datasheet	Box	EP7	Active	EP	EP 7	N30	-	2 µH	-20%, +30%	Ungapped	2430	4300	1.52	15.7	10.3	8.5	162	Uncoated	0.148 (3.75mm)

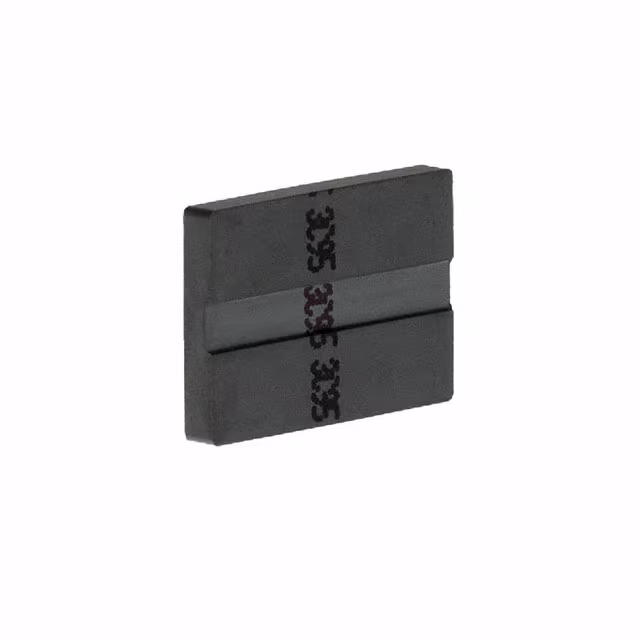

PLT20/14/2/S-3C95 FERRITE CORE Ferroxcube	7,430	1.25	RFQ	Datasheet	Bulk	-	Active	PLT	PLT 20 x 14 x 2	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.091 (2.30mm)
B66281G0000X608 ELP14/3.5/5-PC200 EPCOS - TDK Electronics	7,639	1.25	RFQ	Datasheet	Bulk	ELP14/3.5/5	Active	ELP	ELP 14 x 3.5 x 5	PC200	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)
B65935E0000X022 FERRITE CORE EPCOS - TDK Electronics	5,906	1.25	RFQ	Datasheet	Box	PS9.4/4.6	Active	PS	PS 9 x 3.5	N22	-	-	-	-	-	2300	-	-	-	-	-	Uncoated	0.138 (3.50mm)

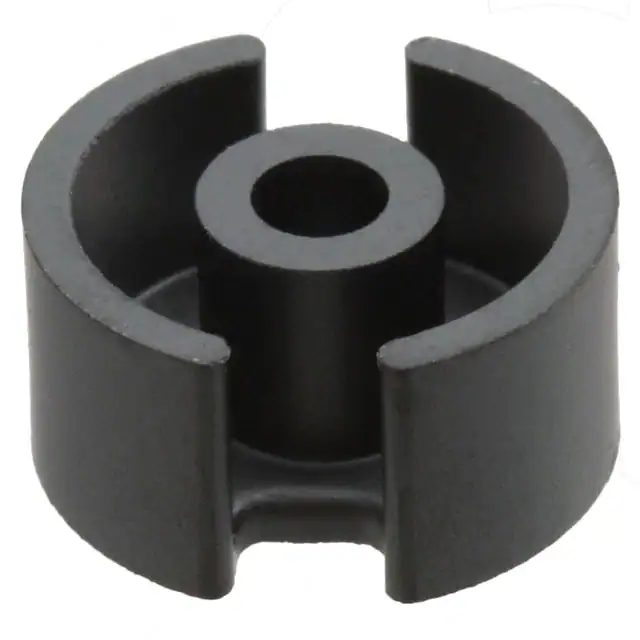

B65935A0000X022 FERRITE CORE P N22 1PC EPCOS - TDK Electronics	6,615	1.26	RFQ	Datasheet	Box	PS9.4/4.6	Active	P (Pot Core)	PCH 9.4 x 4.6	N22	0.370 (9.40mm)	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.181 (4.60mm)
