Results:

Mfr. Part #	Availability	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B65887E0160A095 FERRITE CORE EPCOS - TDK Electronics	10,861	RFQ	Datasheet	Box	RM14	Active	RM	RM 14	N95	-	-	-	Gapped	-	3000	0.35	70	200	170	14000	Uncoated	0.594 (15.10mm)
B66233GX172 FERRITE CORE EPCOS - TDK Electronics	12,428	RFQ	Datasheet	Box	-	Active	E	E 32 x 16 x 11	N72	-	-	-	-	-	2500	0.76	74	97	95	7187	Uncoated	0.646 (16.40mm)
B66281P0000X149 FERRITE CORE EPCOS - TDK Electronics	2,859	RFQ	Datasheet	Box	-	Obsolete	ELP	-	N49	-	-	±25%	Ungapped	820	-	-	16.7	14.5	13.9	242	Uncoated	0.059 (1.50mm)
B66281P0000X187 FERRITE CORE EPCOS - TDK Electronics	3,901	RFQ	Datasheet	Box	-	Obsolete	ELP	-	N87	-	-	±25%	Ungapped	1140	-	-	16.7	14.5	13.9	242	Uncoated	0.059 (1.50mm)
B66281P0000X192 FERRITE CORE EPCOS - TDK Electronics	2,931	RFQ	Datasheet	Box	-	Obsolete	ELP	-	N92	-	-	±25%	Ungapped	820	-	-	16.7	14.5	13.9	242	Uncoated	0.059 (1.50mm)
B66281P0000X197 FERRITE CORE EPCOS - TDK Electronics	2,950	RFQ	Datasheet	Box	-	Obsolete	ELP	-	N97	-	-	±25%	Ungapped	1190	-	-	16.7	14.5	13.9	242	Uncoated	0.059 (1.50mm)
B66283P0000X149 FERRITE CORE EPCOS - TDK Electronics	3,958	RFQ	Datasheet	Box	-	Obsolete	I	I 18 x 2 x 10	N49	-	2.1 µH	±25%	Ungapped	860	1500	0.51	20.3	39.5	38.9	802	Uncoated	0.079 (2.00mm)
B66283P0000X187 FERRITE CORE I N87 1PC EPCOS - TDK Electronics	2,941	RFQ	Datasheet	Box	B66283	Obsolete	I	I 18 x 2 x 10	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)
B66283P0000X192 FERRITE CORE EPCOS - TDK Electronics	2,831	RFQ	Datasheet	Box	-	Obsolete	I	I 18 x 2 x 10	N92	-	2.3 µH	±25%	Ungapped	930	1500	0.51	20.3	39.5	38.9	802	Uncoated	0.079 (2.00mm)
B66285P0000X149 FERRITE CORE I N49 1PC EPCOS - TDK Electronics	3,330	RFQ	Datasheet	Box	B66285	Obsolete	I	I 22 x 2.5 x 16	N49	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.098 (2.50mm)
B66285P0000X187 FERRITE CORE I N87 1PC EPCOS - TDK Electronics	2,158	RFQ	Datasheet	Box	B66285	Obsolete	I	I 22 x 2.5 x 16	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.098 (2.50mm)
B66285P0000X192 FERRITE CORE EPCOS - TDK Electronics	2,798	RFQ	Datasheet	Box	-	Obsolete	I	I 22 x 2.5 x 16	N92	-	4 µH	±25%	Ungapped	1050	1500	0.33	26.1	78.5	77.9	2050	Uncoated	0.098 (2.50mm)
B66285P0000X197 FERRITE CORE EPCOS - TDK Electronics	3,519	RFQ	Datasheet	Box	-	Obsolete	I	I 22 x 2.5 x 16	N97	-	5.25 µH	±25%	Ungapped	1390	2300	0.33	26.1	78.5	77.9	2050	Uncoated	0.098 (2.50mm)
B66287P0000X149 FERRITE CORE EPCOS - TDK Electronics	3,198	RFQ	Datasheet	Box	-	Obsolete	-	-	N49	-	-	-	-	-	1500	-	-	-	-	-	Uncoated	-
B66287P0000X187 FERRITE CORE I N87 1PC EPCOS - TDK Electronics	3,436	RFQ	Datasheet	Box	B66287	Obsolete	I	I 32 x 3 x 20	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.124 (3.15mm)
B66287P0000X192 FERRITE CORE EPCOS - TDK Electronics	3,583	RFQ	Datasheet	Box	-	Obsolete	-	-	N92	-	-	-	-	-	1500	-	-	-	-	-	Uncoated	-
B66287P0000X197 FERRITE CORE EPCOS - TDK Electronics	3,609	RFQ	Datasheet	Box	-	Obsolete	-	-	N97	-	-	-	-	-	2300	-	-	-	-	-	Uncoated	-
B66289P0000X149 FERRITE CORE EPCOS - TDK Electronics	3,297	RFQ	Datasheet	Box	-	Obsolete	I	I 38 x 4 x 25	N49	-	5.7 µH	±25%	Ungapped	1000	1500	0.22	43.6	194	192	8440	Uncoated	0.150 (3.81mm)
B66289P0000X187 FERRITE CORE I N87 1PC EPCOS - TDK Electronics	3,657	RFQ	Datasheet	Box	B66289	Obsolete	I	I 38 x 4 x 25	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.150 (3.81mm)

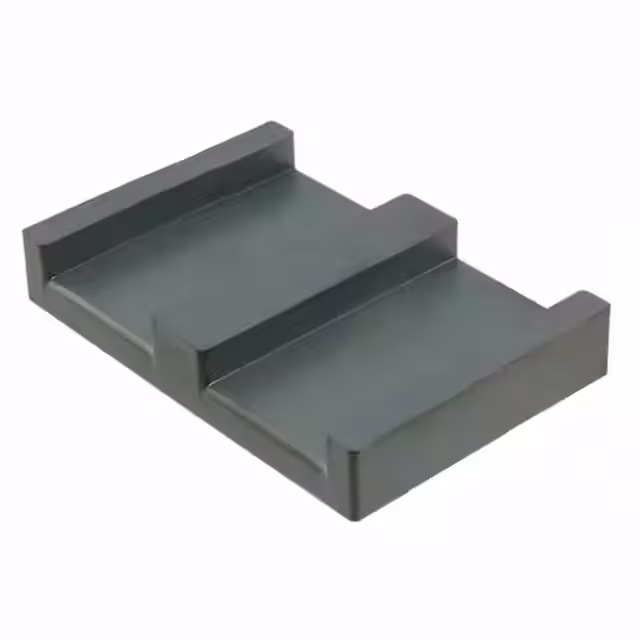

B66291P0000X149 FERRITE CORE EPCOS - TDK Electronics	2,394	RFQ	Datasheet	Box	-	Obsolete	I	I 43 x 4 x 28	N49	-	-	±25%	Ungapped	1030	1500	0.22	50.4	229	225	11500	Uncoated	0.161 (4.10mm)
