Film Capacitors

Manufacturer	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings
F861AP104M310C CAP FILM 0.1UF 20% 630VDC RADIAL KEMET	10,530	0.67	RFQ	Datasheet	Radial	Bulk	F861	Active	0.1 µF	±20%	310V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	0.512 L x 0.236 W (13.00mm x 6.00mm)	0.472 (12.00mm)	PC Pins	0.394 (10.00mm)	EMI, RFI Suppression	X2

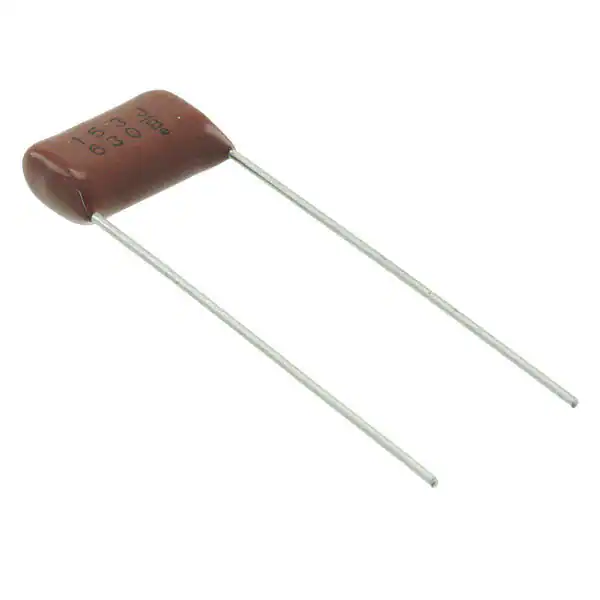

ECQ-E6153JF CAP FILM 0.015UF 5% 630VDC RAD Panasonic Electronic Components	14,476	0.68	RFQ	Datasheet	Radial	Bulk	ECQ-E(F)	Active	0.015 µF	±5%	250V	630V	Polyester, Metallized	-	-40°C ~ 105°C	Through Hole	0.472 L x 0.197 W (12.00mm x 5.00mm)	0.362 (9.20mm)	PC Pins	0.394 (10.00mm)	General Purpose	-
890324025039 CAP FILM 0.47UF 10% 275VAC RAD Würth Elektronik	10,792	0.68	RFQ	Datasheet	Radial	Bulk	WCAP-FTX2	Active	0.47 µF	±10%	275V	-	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.709 L x 0.315 W (18.00mm x 8.00mm)	0.571 (14.50mm)	PC Pins	0.591 (15.00mm)	EMI, RFI Suppression	X2
R413F11005000K CAP FILM 1000PF 10% 1KVDC RADIAL KEMET	10,529	0.68	RFQ	Datasheet	Radial	Bag	R41	Active	1000 pF	±10%	300V	1000V (1kV)	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	0.512 L x 0.157 W (13.00mm x 4.00mm)	0.358 (9.10mm)	PC Pins	0.394 (10.00mm)	Automotive; EMI, RFI Suppression	AEC-Q200, X1, Y2
PHE426HJ6100JR05 CAP FILM 0.1UF 5% 250VDC RADIAL KEMET	10,273	0.70	RFQ	Datasheet	Radial	Bulk	PHE426	Active	0.1 µF	±5%	160V	250V	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	0.283 L x 0.236 W (7.20mm x 6.00mm)	0.433 (11.00mm)	PC Pins	0.197 (5.00mm)	DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT	-

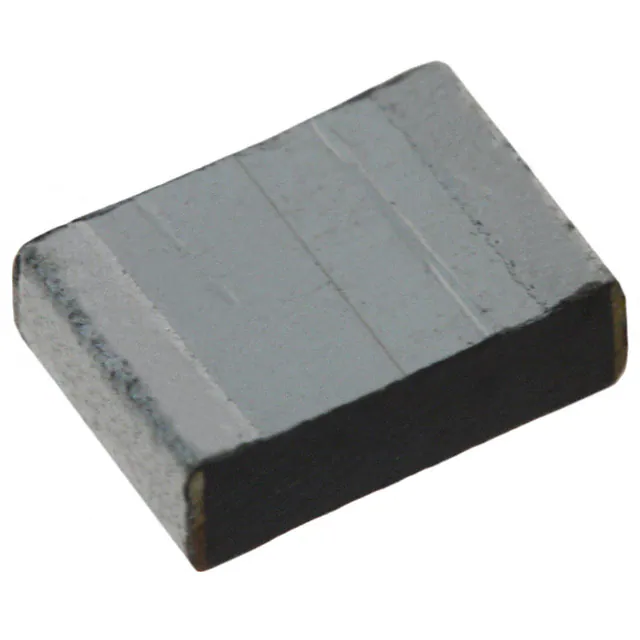

ECH-U1H224GX9 CAP FILM 0.22UF 2% 50VDC 2416 Panasonic Electronic Components	8,770	1.91	RFQ	Datasheet	2416 (6041 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECH-U(X)	Active	0.22 µF	±2%	30V	50V	Polyphenylene Sulfide (PPS), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.236 L x 0.161 W (6.00mm x 4.10mm)	0.118 (3.00mm)	Solder Pads	-	General Purpose	-
ECH-U1H224JX9 CAP FILM 0.22UF 5% 50VDC 2416 Panasonic Electronic Components	7,375	1.91	RFQ	Datasheet	2416 (6041 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECH-U(X)	Active	0.22 µF	±5%	30V	50V	Polyphenylene Sulfide (PPS), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.236 L x 0.161 W (6.00mm x 4.10mm)	0.118 (3.00mm)	Solder Pads	-	General Purpose	-
LDEID3100KA0N00 CAP FILM 0.1UF 10% 250VDC 2220 KEMET	5,563	1.79	RFQ	Datasheet	2220 (5750 Metric)	Tape & Reel (TR),Cut Tape (CT)	LDE	Active	0.1 µF	±10%	120V	250V	Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.236 L x 0.197 W (6.00mm x 5.00mm)	0.161 (4.10mm)	Solder Pads	-	Automotive	AEC-Q200
R76MI31005050J FILM, RADIAL, PULSE, DOUBLE META KEMET	14,777	0.71	RFQ	Datasheet	Radial	Bulk	R76	Active	0.1 µF	±5%	250V	400V	Polypropylene (PP), Metallized	11 mOhms	-55°C ~ 110°C	Through Hole	0.709 L x 0.236 W (18.00mm x 6.00mm)	0.476 (12.10mm)	PC Pins	0.591 (15.00mm)	Automotive; High Frequency, Switching; High Pulse, DV/DT	AEC-Q200
MMK5474J63J02L4BULK CAP FILM 0.47UF 5% 63VDC RADIAL KEMET	13,068	0.72	RFQ	Datasheet	Radial	Box	MMK	Active	0.47 µF	±5%	40V	63V	Polyester, Metallized	-	-55°C ~ 100°C	Through Hole	0.283 L x 0.138 W (7.20mm x 3.50mm)	0.315 (8.00mm)	PC Pins	0.197 (5.00mm)	General Purpose	-
LDEDD3680KA5N00 CAP FILM 0.68UF 10% 63VDC 2220 KEMET	5,694	1.85	RFQ	Datasheet	2220 (5750 Metric)	Tape & Reel (TR),Cut Tape (CT)	LDE	Active	0.68 µF	±10%	40V	63V	Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.236 L x 0.197 W (6.00mm x 5.00mm)	0.130 (3.30mm)	Solder Pads	-	Automotive	AEC-Q200
B32923C3155M189 CAP FILM 1.5UF 20% 630VDC RADIAL EPCOS - TDK Electronics	6,779	1.40	RFQ	Datasheet	Radial	Tape & Reel (TR),Cut Tape (CT)	B3292*C/D - X2 Standard	Active	1.5 µF	±20%	305V	630V	Polypropylene (PP)	-	-40°C ~ 110°C	Through Hole	1.043 L x 0.472 W (26.50mm x 12.00mm)	0.866 (22.00mm)	PC Pins	0.886 (22.50mm)	EMI, RFI Suppression	X2
224MKP275K CAP FILM 0.22UF 10% 310VAC RAD Cornell Dubilier / Illinois Capacitor	11,009	0.74	RFQ	Datasheet	Radial	Bulk	MKP	Active	0.22 µF	±10%	310V	-	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	1.024 L x 0.236 W (26.00mm x 6.00mm)	0.583 (14.80mm)	PC Pins	0.886 (22.50mm)	EMI, RFI Suppression	X2
R75PF21004030J CAP FILM 10000PF 5% 630VDC RAD KEMET	10,842	0.76	RFQ	Datasheet	Radial	Bulk	R75	Active	10000 pF	±5%	250V	630V	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	0.512 L x 0.157 W (13.00mm x 4.00mm)	0.358 (9.10mm)	PC Pins	0.394 (10.00mm)	Automotive; High Frequency, Switching; High Pulse, DV/DT	AEC-Q200

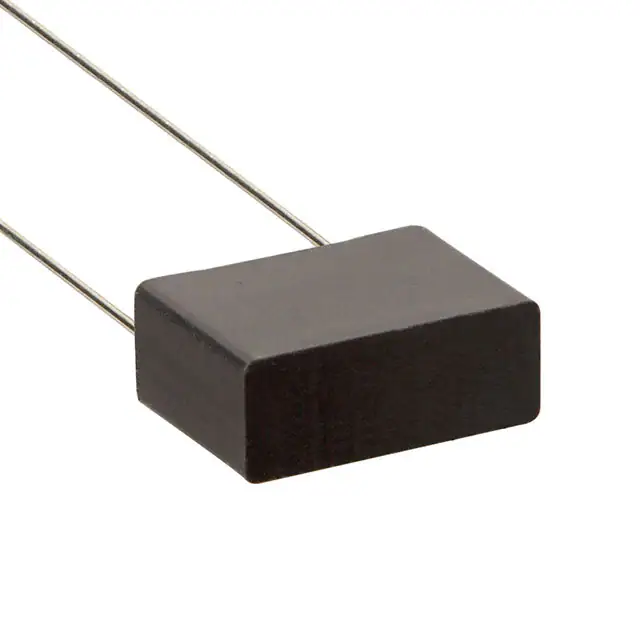

ECW-FE2W105K CAP FILM 1UF 10% 450VDC RADIAL Panasonic Electronic Components	11,183	0.77	RFQ	Datasheet	Radial	Bulk	ECWFE	Active	1 µF	±10%	84V	450V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.689 L x 0.276 W (17.50mm x 7.00mm)	0.512 (13.00mm)	PC Pins	0.591 (15.00mm)	EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT	-
B32621A6103J000 CAP FILM 10000PF 5% 630VDC RAD EPCOS - TDK Electronics	13,388	0.77	RFQ	Datasheet	Radial	Bulk	B3262* - MKP High Pulse (stacked)	Active	10000 pF	±5%	400V	630V	Polypropylene (PP), Metallized - Stacked	-	-55°C ~ 105°C	Through Hole	0.512 L x 0.157 W (13.00mm x 4.00mm)	0.354 (9.00mm)	PC Pins	0.394 (10.00mm)	High Pulse, DV/DT	-
ECW-U2473V16 CAP FILM 0.047UF 5% 250VDC 2416 Panasonic Electronic Components	6,814	2.10	RFQ	Datasheet	2416 (6041 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECW-U(V16)	Active	0.047 µF	±5%	125V	250V	Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked	-	-55°C ~ 85°C	Surface Mount	0.236 L x 0.161 W (6.00mm x 4.10mm)	0.106 (2.70mm)	Solder Pads	-	High Frequency, Switching; High Pulse, DV/DT	-
F861BG254M310Z CAP FILM 0.25UF 20% 630VDC RAD KEMET	13,391	0.79	RFQ	Datasheet	Radial	Bulk	F861	Active	0.25 µF	±20%	310V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	0.709 L x 0.236 W (18.00mm x 6.00mm)	0.472 (12.00mm)	PC Pins	0.591 (15.00mm)	EMI, RFI Suppression	X2
PHE426DJ6150JR05 CAP FILM 0.15UF 5% 100VDC RADIAL KEMET	11,795	0.79	RFQ	Datasheet	Radial	Bag	PHE426	Active	0.15 µF	±5%	63V	100V	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	0.283 L x 0.283 W (7.20mm x 7.20mm)	0.512 (13.00mm)	PC Pins	0.197 (5.00mm)	DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT	-
SMR5103J50J01L16.5CBULK CAP FILM 10000PF 5% 50VDC RADIAL KEMET	13,799	0.79	RFQ	Datasheet	Radial	Bulk	SMR	Active	10000 pF	±5%	30V	50V	Polyphenylene Sulfide (PPS), Metallized	-	-55°C ~ 150°C	Through Hole	0.283 L x 0.098 W (7.20mm x 2.50mm)	0.256 (6.50mm)	PC Pins	0.197 (5.00mm)	General Purpose	-
