Film Capacitors

Manufacturer	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

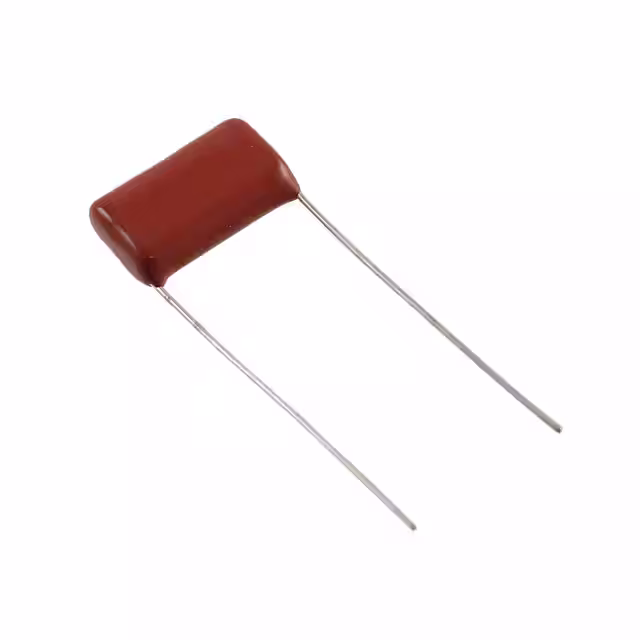

DMT2P47K-F CAP FILM 0.47UF 10% 250VDC RAD Cornell Dubilier Electronics (CDE)	5,678	6.09	RFQ	Datasheet	Radial	Bulk	DMT	Active	0.47 µF	±10%	125V	250V	Polyester, Metallized	-	-55°C ~ 125°C	Through Hole	1.110 L x 0.531 W (28.20mm x 13.50mm)	0.822 (20.87mm)	PC Pins	0.921 (23.40mm)	General Purpose	-
FFB16L0155K-- CAP FILM 1.5UF 10% 1.1KVDC RAD KYOCERA AVX	7,013	6.09	RFQ	Datasheet	Radial	Bulk	FFB	Active	1.5 µF	±10%	180V	1100V (1.1kV)	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	1.224 L x 0.512 W (31.10mm x 13.00mm)	0.882 (22.40mm)	PC Pins	1.083 (27.50mm)	DC Link, DC Filtering	-
FFB16A0335K-- CAP FILM 3.3UF 10% 720VDC RADIAL KYOCERA AVX	8,032	6.09	RFQ	Datasheet	Radial	Bulk	FFB	Active	3.3 µF	±10%	120V	720V	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	1.224 L x 0.512 W (31.10mm x 13.00mm)	0.882 (22.40mm)	PC Pins	1.083 (27.50mm)	DC Link, DC Filtering	-
C274AC34400SA0J CAP FILM 4UF 5% 470VAC RADIAL KEMET	9,120	6.09	RFQ	Datasheet	Radial, Can	Bulk	C274	Active	4 µF	±5%	470V	-	Polypropylene (PP), Metallized	-	-25°C ~ 85°C	Chassis, Stud Mount	1.181 Dia (30.00mm)	2.303 (58.50mm)	Quick Connect - 0.250 (6.3mm)	-	Motor Run; Motor Start	-
715P223516MD3 CAP FILM 0.022UF 5% 1.6KVDC RAD Cornell Dubilier Electronics (CDE)	6,507	6.16	RFQ	Datasheet	Radial	Bulk	Orange Drop® 715P	Active	0.022 µF	±5%	500V	1600V (1.6kV)	Polypropylene (PP), Metallized	-	-55°C ~ 85°C	Through Hole	0.689 Dia x 1.650 L (17.50mm x 41.90mm)	0.980 (24.90mm)	PC Pins	1.094 (27.80mm)	Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber	-
R463W510040M1M CAP FILM 10UF 20% 630VDC RAD KEMET	5,173	6.17	RFQ	Datasheet	Radial	Bulk	R46	Active	10 µF	±20%	310V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	1.634 L x 1.181 W (41.50mm x 30.00mm)	1.776 (45.10mm)	PC Pins	1.476 (37.50mm)	EMI, RFI Suppression	X2
EZP-V1B475LTB CAP FILM 4.7UF 10% 1100V RADIAL Panasonic Electronic Components	6,344	6.18	RFQ	Datasheet	Radial	Bulk	EZPV	Active	4.7 µF	±10%	-	1100V (1.1kV)	Polypropylene (PP), Metallized	21.7 mOhms	-40°C ~ 105°C	Through Hole	1.614 L x 0.669 W (41.00mm x 17.00mm)	1.398 (35.50mm)	PC Pins	1.476 (37.50mm)	Automotive; DC Link, DC Filtering	AEC-Q200
715P333516MD3 CAP FILM 0.033UF 5% 1.6KVDC RAD Cornell Dubilier Electronics (CDE)	6,203	6.20	RFQ	Datasheet	Radial	Bulk	Orange Drop® 715P	Active	0.033 µF	±5%	500V	1600V (1.6kV)	Polypropylene (PP), Metallized	-	-55°C ~ 85°C	Through Hole	0.811 Dia x 1.650 L (20.60mm x 41.90mm)	1.102 (28.00mm)	PC Pins	1.094 (27.80mm)	Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber	-
715P33454MD3 CAP FILM 0.33UF 5% 400VDC RADIAL Cornell Dubilier Electronics (CDE)	6,982	6.20	RFQ	Datasheet	Radial	Bulk	Orange Drop® 715P	Active	0.33 µF	±5%	200V	400V	Polypropylene (PP), Metallized	-	-55°C ~ 85°C	Through Hole	0.701 Dia x 1.650 L (17.80mm x 41.90mm)	1.012 (25.70mm)	PC Pins	1.094 (27.80mm)	Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber	-
C4GAMUC4100AA1J CAP FILM 1UF 5% 850VDC AXIAL KEMET	6,304	6.21	RFQ	Datasheet	Axial	Bulk	C4G	Active	1 µF	±5%	450V	850V	Polypropylene (PP), Metallized	4.7 mOhms	-40°C ~ 85°C	Through Hole	0.807 Dia x 1.732 L (20.50mm x 44.00mm)	-	PC Pins	-	High Frequency, Switching	-
940C16P15K-F CAP FILM 0.15UF 1.6KVDC AXIAL Cornell Dubilier Electronics (CDE)	5,574	6.23	RFQ	Datasheet	Axial	Bulk	940C	Active	0.15 µF	±10%	500V	1600V (1.6kV)	Polypropylene (PP), Metallized	5 mOhms	-55°C ~ 105°C	Through Hole	0.846 Dia x 1.339 L (21.50mm x 34.00mm)	-	PC Pins	-	High Pulse, DV/DT	-

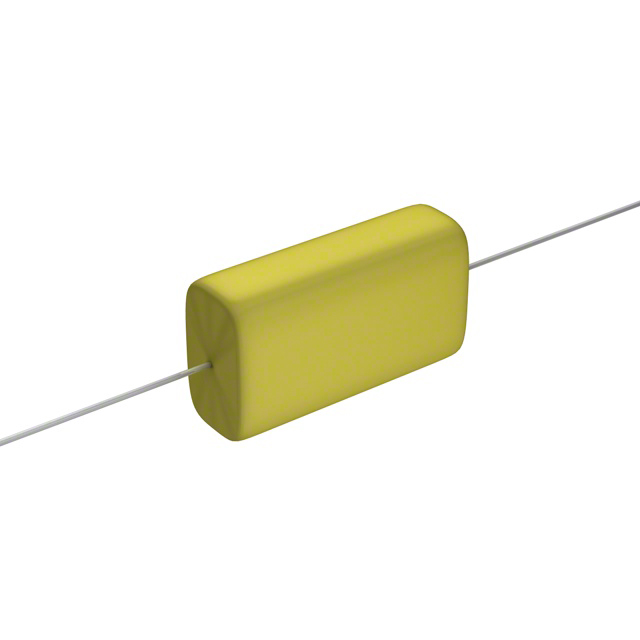

MMP6W1K-F CAP FILM 1UF 10% 630VDC AXIAL Cornell Dubilier Electronics (CDE)	8,959	6.23	RFQ	Datasheet	Axial	Bulk	MMP	Active	1 µF	±10%	250V	630V	Polyester, Metallized	-	-55°C ~ 125°C	Through Hole	0.866 W, 0.512 T x 1.535 L (22.00mm, 13.00mm x 39.00mm)	-	PC Pins	-	General Purpose	-
715P15456MD3 CAP FILM 0.15UF 5% 600VDC RADIAL Cornell Dubilier Electronics (CDE)	8,074	6.27	RFQ	Datasheet	Radial	Bulk	Orange Drop® 715P	Active	0.15 µF	±5%	200V	600V	Polypropylene (PP), Metallized	-	-55°C ~ 85°C	Through Hole	0.709 Dia x 1.650 L (18.00mm x 41.90mm)	1.004 (25.50mm)	PC Pins	1.094 (27.80mm)	Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber	-
QAP2J105JRP CAP FILM 1UF 5% 630VDC AXIAL Nichicon	8,492	6.29	RFQ	Datasheet	Axial	Bulk	QAP	Active	1 µF	±5%	-	630V	Polypropylene (PP), Metallized	-	-40°C ~ 85°C	Through Hole	0.850 W, 0.469 T x 1.575 L (21.60mm, 11.90mm x 40.00mm)	-	PC Pins	-	High Frequency, Switching	-
473PPA302KD23 CAP FILM 0.047UF 10% 3KVDC AXIAL Cornell Dubilier / Illinois Capacitor	8,241	6.29	RFQ	Datasheet	Axial	Bulk	PPA	Active	0.047 µF	±10%	750V	3000V (3kV)	Polypropylene (PP), Metallized	14 mOhms	-55°C ~ 85°C	Through Hole	0.886 Dia x 1.339 L (22.50mm x 34.00mm)	-	PC Pins	-	DC Link, DC Filtering; High Frequency, Switching; Snubber	-
C4CAPUC3470AA1J CAP FILM 0.47UF 5% 1.2KVDC AXIAL KEMET	5,726	6.30	RFQ	Datasheet	Axial	Bulk	C4C	Active	0.47 µF	±5%	500V	1200V (1.2kV)	Polypropylene (PP), Metallized	5.6 mOhms	-40°C ~ 85°C	Through Hole	0.906 Dia x 1.732 L (23.00mm x 44.00mm)	-	PC Pins	-	DC Link, DC Filtering; High Frequency, Switching; Snubber	-

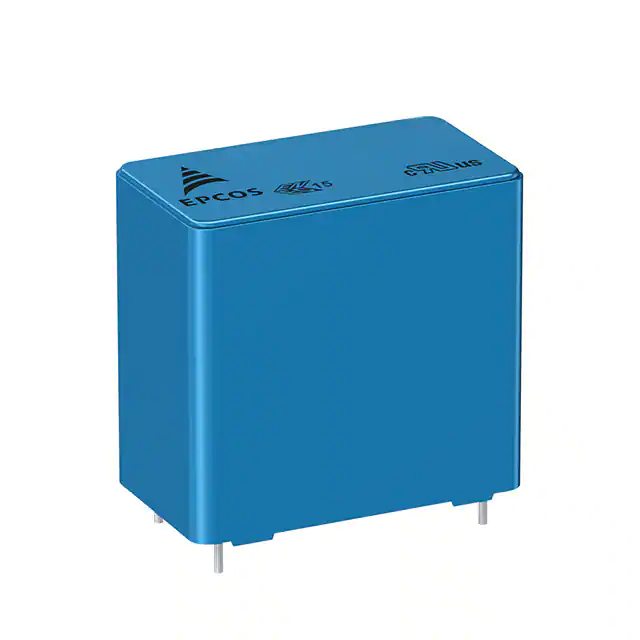

B32924B4225K000 CAP FILM 2.2UF 10% 650VDC RADIAL EPCOS - TDK Electronics	8,909	6.72	RFQ	Datasheet	Radial	Bulk	B3292*A/B - X2 High Current	Active	2.2 µF	±10%	350V	650V	Polypropylene (PP)	-	-40°C ~ 110°C	Through Hole	1.240 L x 0.827 W (31.50mm x 21.00mm)	1.220 (31.00mm)	PC Pins	1.083 (27.50mm)	EMI, RFI Suppression	X2
C878AF35120AA0J CAP FILM 12UF 5% 470VAC RADIAL KEMET	7,369	6.72	RFQ	Datasheet	Radial, Can	Box	C87	Active	12 µF	±5%	470V	-	Polypropylene (PP), Metallized	-	-25°C ~ 85°C	Chassis Mount	1.181 Dia (30.00mm)	3.150 (80.00mm)	Quick Connect, Disconnect	0.528 (13.40mm)	Motor Run	-
SMC10.2334J50A31TR16 CAP FILM 0.33UF 5% 50VDC SMD KEMET	2,909	10.36	RFQ	Datasheet	Nonstandard	Tape & Reel (TR),Cut Tape (CT)	SMC	Active	0.33 µF	±5%	30V	50V	Polyphenylene Sulfide (PPS), Metallized	-	-55°C ~ 125°C	Surface Mount	0.402 L x 0.358 W (10.20mm x 9.10mm)	0.224 (5.70mm)	Solder Pads	-	General Purpose	-
DS371306-CA CAP FILM 30UF 10% 370VAC RADIAL Panasonic Electronic Components	5,119	6.75	RFQ	Datasheet	Radial, Can	Bulk	DMF	Not For New Designs	30 µF	±10%	370V	-	Polypropylene (PP), Metallized	-	-25°C ~ 70°C	Chassis Mount, Requires Holder/Bracket	1.614 Dia (41.00mm)	4.409 (112.00mm)	Quick Connect, Disconnect	0.630 (16.00mm)	Motor Run	-
