Film Capacitors

Manufacturer	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

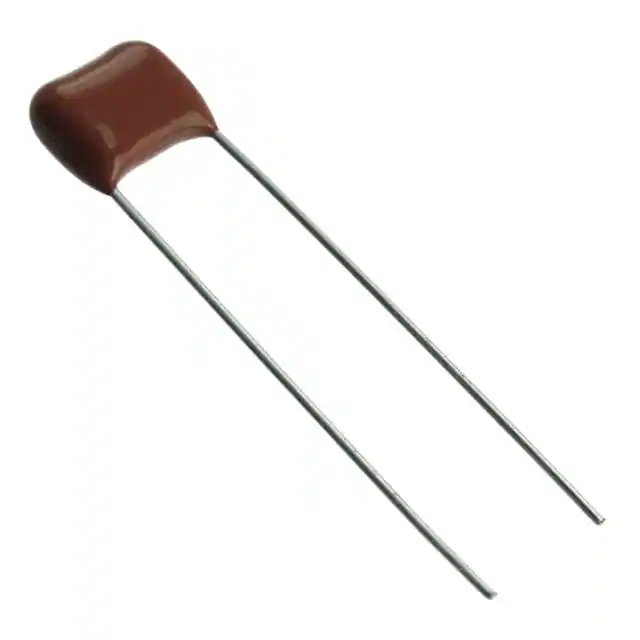

ECQ-E2563JF CAP FILM 0.056UF 5% 250VDC RAD Panasonic Electronic Components	11,316	0.50	RFQ	Datasheet	Radial	Bulk	ECQ-E(F)	Active	0.056 µF	±5%	150V	250V	Polyester, Metallized	-	-40°C ~ 105°C	Through Hole	0.406 L x 0.189 W (10.30mm x 4.80mm)	0.350 (8.90mm)	PC Pins	0.295 (7.50mm)	General Purpose	-
R82DC2820AA50J CAP FILM 0.082UF 5% 63VDC RADIAL KEMET	10,638	0.41	RFQ	Datasheet	Radial	Box	R82	Active	0.082 µF	±5%	40V	63V	Polyester, Metallized	-	-55°C ~ 105°C	Through Hole	-	-	PC Pins	0.197 (5.00mm)	Automotive	AEC-Q200
R82IC2150Z350J CAP FILM 0.015UF 5% 250VDC RAD KEMET	14,243	0.41	RFQ	Datasheet	Radial	Box	R82	Active	0.015 µF	±5%	160V	250V	Polyester, Metallized	-	-55°C ~ 105°C	Through Hole	0.283 L x 0.098 W (7.20mm x 2.50mm)	0.260 (6.60mm)	PC Pins	0.197 (5.00mm)	Automotive	AEC-Q200
R82EC2150Z350J CAP FILM 0.015UF 5% 100VDC RAD KEMET	14,302	0.41	RFQ	Datasheet	Radial	Bulk	R82	Active	0.015 µF	±5%	63V	100V	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked	-	-55°C ~ 105°C	Through Hole	0.283 L x 0.098 W (7.20mm x 2.50mm)	0.260 (6.60mm)	PC Pins	0.197 (5.00mm)	Automotive	AEC-Q200
R82MC1100AA50K CAP FILM 1000PF 10% 400VDC RAD KEMET	13,783	0.41	RFQ	Datasheet	Radial	Bag	R82	Active	1000 pF	±10%	200V	400V	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked	-	-55°C ~ 105°C	Through Hole	0.283 L x 0.098 W (7.20mm x 2.50mm)	0.260 (6.60mm)	PC Pins	0.197 (5.00mm)	Automotive	AEC-Q200
ECH-U1H822GB5 CAP FILM 8200PF 2% 50VDC 1206 Panasonic Electronic Components	8,020	1.12	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECH-U(B)	Active	8200 pF	±2%	30V	50V	Polyphenylene Sulfide (PPS), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.047 (1.20mm)	Solder Pads	-	General Purpose	-
B32560J6152K000 CAP FILM 1500PF 10% 400VDC 2DIP EPCOS - TDK Electronics	11,008	0.42	RFQ	Datasheet	2-DIP	Bulk	B3256* - MKT SilverCap™	Not For New Designs	1500 pF	±10%	200V	400V	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked	-	-55°C ~ 125°C	Through Hole	0.354 L x 0.098 W (9.00mm x 2.50mm)	0.217 (5.50mm)	PC Pins	0.295 (7.50mm)	General Purpose	-
R82EC2330Z350J CAP FILM 0.033UF 5% 100VDC RAD KEMET	13,692	0.42	RFQ	Datasheet	Radial	Bulk	R82	Active	0.033 µF	±5%	63V	100V	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked	-	-55°C ~ 105°C	Through Hole	0.283 L x 0.098 W (7.20mm x 2.50mm)	0.260 (6.60mm)	PC Pins	0.197 (5.00mm)	Automotive	AEC-Q200
ECH-U1H682GB5 CAP FILM 6800PF 2% 50VDC 1206 Panasonic Electronic Components	6,296	1.15	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECH-U(B)	Active	6800 pF	±2%	30V	50V	Polyphenylene Sulfide (PPS), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.039 (1.00mm)	Solder Pads	-	General Purpose	-
ECH-U1H123GB5 CAP FILM 0.012UF 2% 50VDC 1210 Panasonic Electronic Components	7,418	1.15	RFQ	Datasheet	1210 (3225 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECH-U(B)	Active	0.012 µF	±2%	30V	50V	Polyphenylene Sulfide (PPS), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.126 L x 0.098 W (3.20mm x 2.50mm)	0.047 (1.20mm)	Solder Pads	-	General Purpose	-
ECH-U1123JC9 CAP FILM 0.012UF 5% 100VDC 1913 Panasonic Electronic Components	8,205	1.17	RFQ	Datasheet	1913 (4833 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECH-U(C)	Active	0.012 µF	±5%	40V	100V	Polyphenylene Sulfide (PPS), Metallized - Stacked	-	-55°C ~ 105°C	Surface Mount	0.189 L x 0.130 W (4.80mm x 3.30mm)	0.063 (1.60mm)	Solder Pads	-	General Purpose	-
MPX683K305D CAP FILM 0.068UF 10% 305VAC RAD Cornell Dubilier / Illinois Capacitor	10,436	0.43	RFQ	Datasheet	Radial	Tray	MPX	Active	0.068 µF	±10%	305V	-	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	0.512 L x 0.236 W (13.00mm x 6.00mm)	0.492 (12.50mm)	PC Pins	0.394 (10.00mm)	EMI, RFI Suppression	X2
RSBEC2470Z300K CAP FILM 0.047UF 10% 100VDC RAD KEMET	11,103	0.43	RFQ	Datasheet	Radial	Bulk	RSB	Active	0.047 µF	±10%	63V	100V	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked	-	-55°C ~ 125°C	Through Hole	0.283 L x 0.098 W (7.20mm x 2.50mm)	0.260 (6.60mm)	PC Pins	0.197 (5.00mm)	Automotive	AEC-Q200
ECQ-E4183KF CAP FILM 0.018UF 10% 400VDC RAD Panasonic Electronic Components	14,211	0.43	RFQ	Datasheet	Radial	Bulk	ECQ-E(F)	Active	0.018 µF	±10%	200V	400V	Polyester, Metallized	-	-40°C ~ 105°C	Through Hole	0.406 L x 0.173 W (10.30mm x 4.40mm)	0.335 (8.50mm)	PC Pins	0.295 (7.50mm)	General Purpose	-
ECQ-E2183KB CAP FILM 0.018UF 10% 250VDC RAD Panasonic Electronic Components	12,744	0.43	RFQ	Datasheet	Radial	Bulk	ECQ-E(B)	Active	0.018 µF	±10%	125V	250V	Polyester, Metallized	-	-40°C ~ 105°C	Through Hole	0.311 L x 0.169 W (7.90mm x 4.30mm)	0.323 (8.20mm)	PC Pins	0.197 (5.00mm)	General Purpose	-
890334025015CS CAP FILM 0.082UF 10% 310VAC RAD Würth Elektronik	11,088	0.43	RFQ	Datasheet	Radial	Bulk	WCAP-FTXX	Active	0.082 µF	±10%	310V	-	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.709 L x 0.315 W (18.00mm x 8.00mm)	0.492 (12.50mm)	PC Pins	0.591 (15.00mm)	EMI, RFI Suppression	X2
ECW-U4153V17 CAP FILM 0.015UF 5% 400VDC 2416 Panasonic Electronic Components	8,769	1.19	RFQ	Datasheet	2416 (6041 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECW-UC(V17)	Active	0.015 µF	±5%	157V	400V	Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked	-	-55°C ~ 85°C	Surface Mount	0.236 L x 0.161 W (6.00mm x 4.10mm)	0.102 (2.60mm)	Solder Pads	-	DC Link, DC Filtering	-
B32521C3473K000 CAP FILM 0.047UF 10% 250VDC RAD EPCOS - TDK Electronics	12,210	0.44	RFQ	Datasheet	Radial	Bulk	B3252* - MKT General Purpose	Active	0.047 µF	±10%	160V	250V	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked	-	-55°C ~ 125°C	Through Hole	0.512 L x 0.157 W (13.00mm x 4.00mm)	0.276 (7.00mm)	PC Pins	0.394 (10.00mm)	Automotive; EMI, RFI Suppression	AEC-Q200
ECQ-E2273KF CAP FILM 0.027UF 10% 250VDC RAD Panasonic Electronic Components	12,786	0.44	RFQ	Datasheet	Radial	Bulk	ECQ-E(F)	Active	0.027 µF	±10%	150V	250V	Polyester, Metallized	-	-40°C ~ 105°C	Through Hole	0.406 L x 0.173 W (10.30mm x 4.40mm)	0.335 (8.50mm)	PC Pins	0.295 (7.50mm)	General Purpose	-
R82MC2100Z350J CAP FILM 10000PF 5% 400VDC RAD KEMET	12,298	0.44	RFQ	Datasheet	Radial	Box	R82	Active	10000 pF	±5%	200V	400V	Polyester, Metallized	-	-55°C ~ 105°C	Through Hole	0.283 L x 0.138 W (7.20mm x 3.50mm)	0.299 (7.60mm)	PC Pins	0.197 (5.00mm)	Automotive	AEC-Q200
