Film Capacitors

Manufacturer	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings
R76QW41004030J CAP FILM 1UF 5% 1KVDC RADIAL KEMET	8,615	8.96	RFQ	Datasheet	Radial	Tray	R76	Active	1 µF	±5%	600V	1000V (1kV)	Polypropylene (PP), Metallized	-	-55°C ~ 110°C	Through Hole	1.634 L x 0.787 W (41.50mm x 20.00mm)	1.579 (40.10mm)	PC Pins	1.476 (37.50mm)	High Frequency, Switching; High Pulse, DV/DT	-

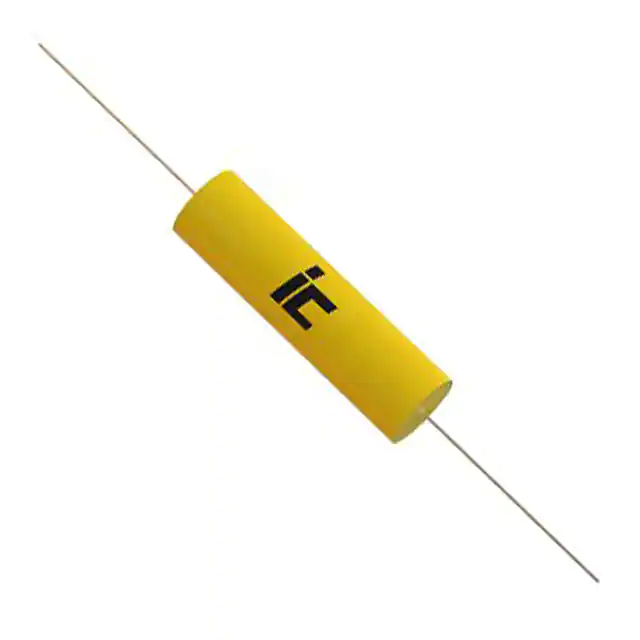

106PHC400K CAP FILM 10UF 10% 400VDC AXIAL Cornell Dubilier / Illinois Capacitor	7,081	9.44	RFQ	Datasheet	Axial	Bulk	PHC	Active	10 µF	±10%	250V	400V	Polypropylene (PP), Metallized	6.3 mOhms	-40°C ~ 85°C	Through Hole	1.063 Dia x 2.165 L (27.00mm x 55.00mm)	-	PC Pins	-	DC Link, DC Filtering; High Frequency, Switching	-
942C20P15K-F CAP FILM 0.15UF 10% 2KVDC AXIAL Cornell Dubilier Electronics (CDE)	9,559	9.52	RFQ	Datasheet	Axial	Bulk	942C	Active	0.15 µF	±10%	500V	2000V (2kV)	Polypropylene (PP), Metallized	5 mOhms	-55°C ~ 105°C	Through Hole	1.161 Dia x 1.811 L (29.50mm x 46.00mm)	-	PC Pins	-	High Pulse, DV/DT	-
C4ATGBW4680A3GJ CAP FILM 6.8UF 5% 450VDC RADIAL KEMET	6,551	9.99	RFQ	Datasheet	Radial - 4 Leads	Bulk	C4AT	Active	6.8 µF	±5%	275V	450V	Polypropylene (PP), Metallized	2.7 mOhms	-40°C ~ 85°C	Through Hole	1.260 L x 0.866 W (32.00mm x 22.00mm)	1.457 (37.00mm)	PC Pins	1.083 (27.50mm)	DC Link, DC Filtering; High Frequency, Switching	-

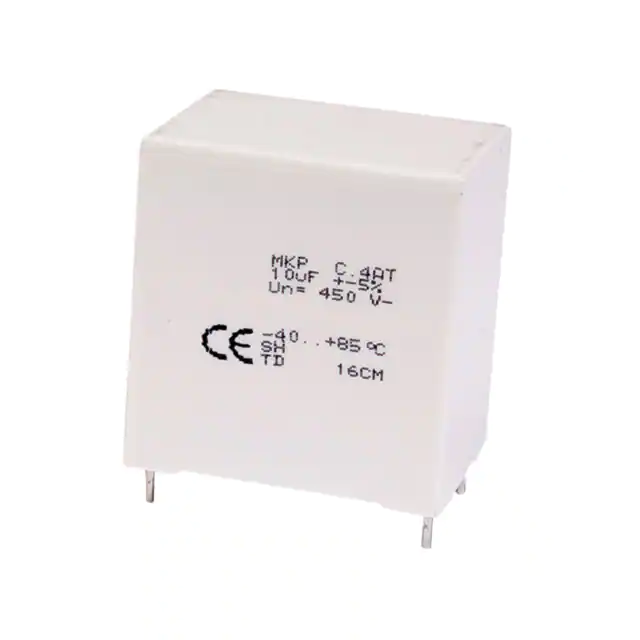

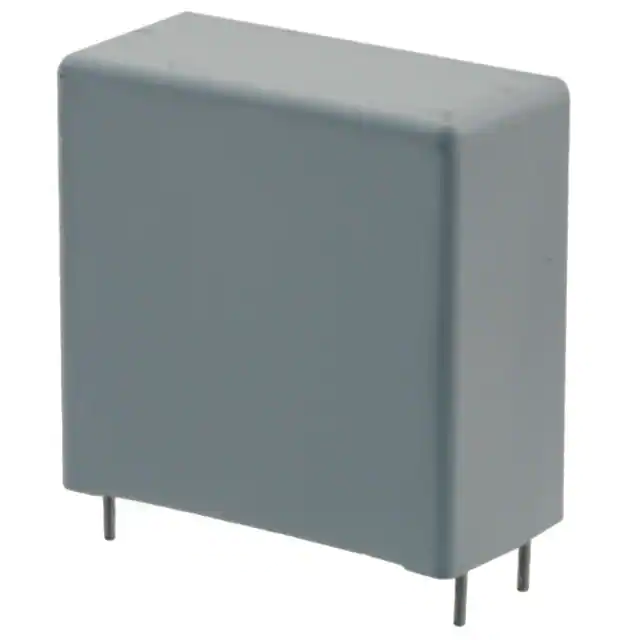

C4ATGBW5100A3FJ CAP FILM 10UF 5% 450VDC RADIAL KEMET	4,349	10.25	RFQ	Datasheet	Radial - 4 Leads	Bulk	C4AT	Active	10 µF	±5%	275V	450V	Polypropylene (PP), Metallized	2.1 mOhms	-40°C ~ 85°C	Through Hole	1.634 L x 0.787 W (41.50mm x 20.00mm)	1.575 (40.00mm)	PC Pins	1.476 (37.50mm)	DC Link, DC Filtering; High Frequency, Switching	-
C4AQCBW5500A3OJ CAP FILM 50UF 5% 650VDC RADIAL KEMET	2,870	10.74	RFQ	Datasheet	Radial - 4 Leads	Bulk	C4AQ	Active	50 µF	±5%	-	650V	Polypropylene (PP), Metallized	2 mOhms	-40°C ~ 105°C	Through Hole	1.654 L x 1.378 W (42.00mm x 35.00mm)	1.976 (50.20mm)	PC Pins	1.476 (37.50mm)	Automotive; DC Link, DC Filtering	AEC-Q200

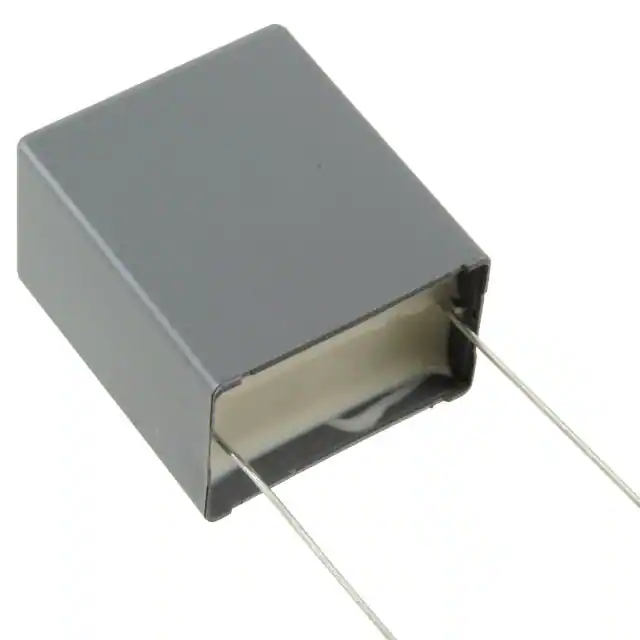

R60DR54705050K CAP FILM 47UF 10% 63VDC RADIAL KEMET	4,300	10.87	RFQ	Datasheet	Radial	Bulk	R60	Active	47 µF	±10%	40V	63V	Polyester, Polyethylene Terephthalate (PET), Metallized	-	-55°C ~ 105°C	Through Hole	1.260 L x 0.866 W (32.00mm x 22.00mm)	1.461 (37.10mm)	PC Pins	1.083 (27.50mm)	General Purpose	-
DCP4N053007ID4KSSD CAP FILM 30UF 10% 900VDC RADIAL WIMA	3,894	11.07	RFQ	Datasheet	Radial - 4 Leads	Bulk	-	Active	30 µF	±10%	-	900V	Polypropylene (PP), Metallized	3.7 mOhms	-55°C ~ 105°C	Through Hole	1.634 L x 1.220 W (41.50mm x 31.00mm)	1.811 (46.00mm)	PC Pins	1.476 (37.50mm)	Automotive; DC Link, DC Filtering	AEC-Q200
C4ATDBW5200A30J CAP FILM 20UF 5% 250VDC RADIAL KEMET	1,567	11.27	RFQ	Datasheet	Radial - 4 Leads	Bulk	C4AT	Active	20 µF	±5%	160V	250V	Polypropylene (PP), Metallized	4.2 mOhms	-40°C ~ 85°C	Through Hole	1.673 L x 1.102 W (42.50mm x 28.00mm)	1.457 (37.00mm)	PC Pins	1.476 (37.50mm)	DC Link, DC Filtering; High Frequency, Switching	-
C4ASMBW4200A3HJ CAP FILM 2UF 5% 850VDC RADIAL KEMET	3,155	11.87	RFQ	Datasheet	Radial - 4 Leads	Bulk	C4AS	Active	2 µF	±5%	500V	850V	Polypropylene (PP), Metallized	2.3 mOhms	-40°C ~ 85°C	Through Hole	1.634 L x 0.945 W (41.50mm x 24.00mm)	1.732 (44.00mm)	PC Pins	1.476 (37.50mm)	Snubber	-
C4BSYBX3220ZAFJ CAP FILM 0.22UF 5% 3KVDC SCREW KEMET	2,076	12.32	RFQ	Datasheet	Rectangular Box	Bulk	C4BS	Active	0.22 µF	±5%	750V	3000V (3kV)	Polypropylene (PP), Metallized	8 mOhms	-40°C ~ 85°C	Chassis Mount	1.634 L x 0.787 W (41.50mm x 20.00mm)	1.575 (40.00mm)	Screw Terminals	1.004 (25.50mm)	DC Link, DC Filtering; Snubber	-
940C20P47K-F CAP FILM 0.47UF 10% 2KVDC AXIAL Cornell Dubilier Electronics (CDE)	3,915	12.36	RFQ	Datasheet	Axial	Bulk	940C	Active	0.47 µF	±10%	500V	2000V (2kV)	Polypropylene (PP), Metallized	6 mOhms	-55°C ~ 105°C	Through Hole	1.260 Dia x 1.811 L (32.00mm x 46.00mm)	-	PC Pins	-	High Pulse, DV/DT	-
MKP1848C62580JP4 CAP FILM 25UF 5% 800VDC RADIAL Vishay Beyschlag/Draloric/BC Components	4,347	13.11	RFQ	Datasheet	Radial - 4 Leads	Bulk	MKP1848C DC-Link	Active	25 µF	±5%	-	800V	Polypropylene (PP), Metallized	5 mOhms	-55°C ~ 105°C	Through Hole	1.654 L x 0.945 W (42.00mm x 24.00mm)	1.732 (44.00mm)	PC Pins	1.476 (37.50mm)	DC Link, DC Filtering	-
DCP4L054007ID4KSSD CAP FILM 40UF 10% 800VDC RAD WIMA	4,990	13.51	RFQ	Datasheet	Radial - 4 Leads	Bulk	-	Active	40 µF	±10%	-	800V	Polypropylene (PP), Metallized	3.3 mOhms	-55°C ~ 105°C	Through Hole	1.634 L x 1.220 W (41.50mm x 31.00mm)	1.811 (46.00mm)	PC Pins	1.476 (37.50mm)	Automotive; DC Link, DC Filtering	AEC-Q200

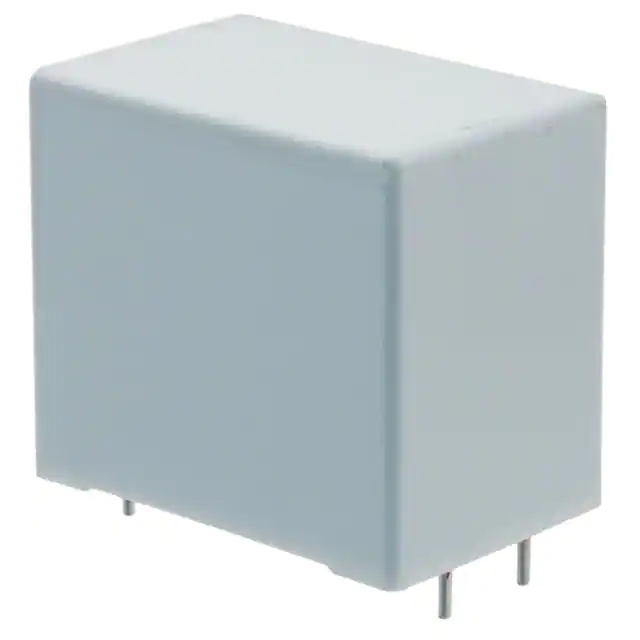

C4AEJBW5200A3JJ CAP FILM 20UF 5% 700VDC RADIAL KEMET	2,909	13.70	RFQ	Datasheet	Radial - 4 Leads	Bulk	C4AE	Active	20 µF	±5%	-	700V	Polypropylene (PP), Metallized	4.8 mOhms	-40°C ~ 85°C	Through Hole	1.673 L x 1.102 W (42.50mm x 28.00mm)	1.465 (37.20mm)	PC Pins	1.476 (37.50mm)	DC Link, DC Filtering; High Frequency, Switching	-
C4BSPBX4150ZALJ CAP FILM 1.5UF 5% 1.2KVDC SCREW KEMET	2,574	14.56	RFQ	Datasheet	Rectangular Box	Bulk	C4BS	Active	1.5 µF	±5%	630V	1200V (1.2kV)	Polypropylene (PP), Metallized	2.3 mOhms	-40°C ~ 85°C	Chassis Mount	1.654 L x 1.181 W (42.00mm x 30.00mm)	1.772 (45.00mm)	Screw Terminals	1.004 (25.50mm)	DC Link, DC Filtering; Snubber	-
C4ASPBW4250A3MJ CAP FILM 2.5UF 5% 1.2KVDC RADIAL KEMET	3,147	15.96	RFQ	Datasheet	Radial - 4 Leads	Bulk	C4AS	Active	2.5 µF	±5%	630V	1200V (1.2kV)	Polypropylene (PP), Metallized	3.1 mOhms	-40°C ~ 85°C	Through Hole	2.264 L x 1.181 W (57.50mm x 30.00mm)	1.772 (45.00mm)	PC Pins	2.067 (52.50mm)	Snubber	-
R82DC3220AA60J CAP FILM 0.22UF 5% 63VDC RADIAL KEMET	10,849	0.30	RFQ	Datasheet	Radial	Bulk	R82	Active	0.22 µF	±5%	40V	63V	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked	-	-55°C ~ 105°C	Through Hole	0.283 L x 0.098 W (7.20mm x 2.50mm)	0.256 (6.50mm)	PC Pins	0.197 (5.00mm)	Automotive	AEC-Q200
R82EC1470AA50J CAP FILM 4700PF 5% 100VDC RADIAL KEMET	14,279	0.30	RFQ	Datasheet	Radial	Bulk	R82	Active	4700 pF	±5%	63V	100V	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked	-	-55°C ~ 105°C	Through Hole	0.283 L x 0.098 W (7.20mm x 2.50mm)	0.260 (6.60mm)	PC Pins	0.197 (5.00mm)	Automotive	AEC-Q200
R82EC1150AA50J CAP FILM 1500PF 5% 100VDC RADIAL KEMET	13,850	0.30	RFQ	Datasheet	Radial	Bulk	R82	Active	1500 pF	±5%	63V	100V	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked	-	-55°C ~ 105°C	Through Hole	0.283 L x 0.098 W (7.20mm x 2.50mm)	0.260 (6.60mm)	PC Pins	0.197 (5.00mm)	Automotive	AEC-Q200
