Film Capacitors

Manufacturer	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings
EZP-V80136LTU CAP FILM 13UF 10% 800V RADIAL Panasonic Electronic Components	5,646	7.70	RFQ	Datasheet	Radial	Bulk	EZPV	Active	13 µF	±10%	-	800V	Polypropylene (PP), Metallized	9.2 mOhms	-40°C ~ 105°C	Through Hole	1.220 L x 1.024 W (31.00mm x 26.00mm)	1.654 (42.00mm)	PC Pins	1.083 (27.50mm)	Automotive; DC Link, DC Filtering	AEC-Q200
PMB2123470KSR 1200V,0.47UF,10 PERCENT, LUG MOU Nichicon	7,218	7.82	RFQ	Datasheet	Rectangular Box	Bulk	PMB	Active	0.47 µF	±10%	630V	1200V (1.2kV)	Polypropylene (PP), Metallized	4.1 mOhms	-40°C ~ 85°C	Chassis Mount	1.673 L x 0.965 W (42.50mm x 24.50mm)	1.083 (27.50mm)	Screw Terminals	-	High Frequency, Switching; High Pulse, DV/DT; Snubber	-
105PPB630K CAP FILM 1UF 10% 630VDC RADIAL Cornell Dubilier / Illinois Capacitor	9,152	7.83	RFQ	Datasheet	Radial	Bulk	PPB	Active	1 µF	±10%	400V	630V	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	1.673 L x 0.866 W (42.50mm x 22.00mm)	1.181 (30.00mm)	PC Pins	1.476 (37.50mm)	Commutation; High Pulse, DV/DT; Snubber	-

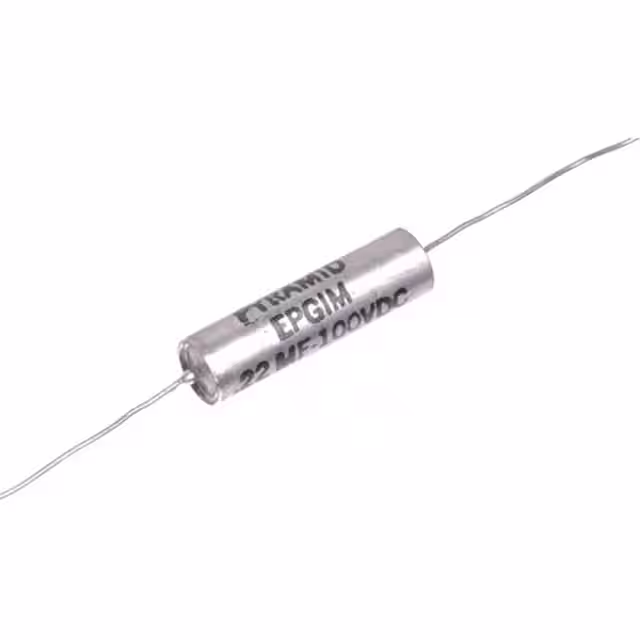

CP-VO-PY-22-100V CAP FILM .22UF 100V OIL Pyramid	9,107	7.95	RFQ		-	Bulk	-	Active	0.22 µF	-	-	100V	-	-	-	-	-	-	-	-	-	-
PMB2123330KSP 1200V,0.33UF,10 PERCENT, LUG MOU Nichicon	8,080	7.97	RFQ	Datasheet	Rectangular Box	Bulk	PMB	Active	0.33 µF	±10%	630V	1200V (1.2kV)	Polypropylene (PP), Metallized	5.1 mOhms	-40°C ~ 85°C	Chassis Mount	1.673 L x 0.965 W (42.50mm x 24.50mm)	1.083 (27.50mm)	Screw Terminals	-	High Frequency, Switching; High Pulse, DV/DT; Snubber	-
MKT1813610255 CAP FILM 10UF 10% 250VDC AXIAL Vishay Beyschlag/Draloric/BC Components	8,080	7.99	RFQ	Datasheet	Axial	Bulk	MKT1813	Active	10 µF	±10%	160V	250V	Polyester, Metallized	-	-55°C ~ 100°C	Through Hole	0.827 Dia x 1.634 L (21.00mm x 41.50mm)	-	PC Pins	-	General Purpose	-
PMB2153330KSR 1500V,0.33UF,10 PERCENT, LUG MOU Nichicon	6,161	8.02	RFQ	Datasheet	Rectangular Box	Bulk	PMB	Active	0.33 µF	±10%	650V	1500V (1.5kV)	Polypropylene (PP), Metallized	4.6 mOhms	-40°C ~ 85°C	Chassis Mount	1.673 L x 0.965 W (42.50mm x 24.50mm)	1.083 (27.50mm)	Screw Terminals	-	High Frequency, Switching; High Pulse, DV/DT; Snubber	-
PMB2203220KSR 2000V,0.22UF,10 PERCENT, LUG MOU Nichicon	6,565	8.02	RFQ	Datasheet	Rectangular Box	Bulk	PMB	Active	0.22 µF	±10%	700V	2000V (2kV)	Polypropylene (PP), Metallized	5.1 mOhms	-40°C ~ 85°C	Chassis Mount	1.673 L x 0.965 W (42.50mm x 24.50mm)	1.083 (27.50mm)	Screw Terminals	-	High Frequency, Switching; High Pulse, DV/DT; Snubber	-
SFA66T2K156B-F CAP FILM 2UF 10% 660VAC RADIAL Cornell Dubilier Electronics (CDE)	9,342	8.18	RFQ	Datasheet	Radial, Can	Bulk	SF	Active	2 µF	±10%	660V	-	Polypropylene (PP), Metallized	-	-40°C ~ 70°C	Chassis Mount, Requires Holder/Bracket	2.160 L x 1.310 W (54.86mm x 33.27mm), Lip	1.680 (42.67mm)	Quick Connect, Disconnect	0.810 (20.57mm)	Motor Run	-
SFA37T4K156B-F CAP FILM 4UF 10% 370VAC RADIAL Cornell Dubilier Electronics (CDE)	7,014	8.18	RFQ	Datasheet	Radial, Can	Bulk	SF	Active	4 µF	±10%	370V	-	Polypropylene (PP), Metallized	-	-40°C ~ 70°C	Chassis Mount, Requires Holder/Bracket	2.160 L x 1.310 W (54.86mm x 33.27mm), Lip	1.680 (42.67mm)	Quick Connect, Disconnect	0.810 (20.57mm)	Motor Run	-
PMB2103470KSR 1000V,0.47UF,10 PERCENT, LUG MOU Nichicon	7,044	8.48	RFQ	Datasheet	Rectangular Box	Bulk	PMB	Active	0.47 µF	±10%	575V	1000V (1kV)	Polypropylene (PP), Metallized	3.9 mOhms	-40°C ~ 85°C	Chassis Mount	1.673 L x 0.669 W (42.50mm x 17.00mm)	1.102 (28.00mm)	Screw Terminals	-	High Frequency, Switching; High Pulse, DV/DT; Snubber	-
PMB1853820KSR 850V,0.82UF,10 PERCENT, LUG MOUN Nichicon	9,181	8.48	RFQ	Datasheet	Rectangular Box	Bulk	PMB	Active	0.82 µF	±10%	500V	850V	Polypropylene (PP), Metallized	3.1 mOhms	-40°C ~ 85°C	Chassis Mount	1.673 L x 0.965 W (42.50mm x 24.50mm)	1.083 (27.50mm)	Screw Terminals	-	High Frequency, Switching; High Pulse, DV/DT; Snubber	-
PMB2203100KSP 2000V,0.1UF,10 PERCENT, LUG MOUN Nichicon	9,774	8.48	RFQ	Datasheet	Rectangular Box	Bulk	PMB	Active	0.1 µF	±10%	700V	2000V (2kV)	Polypropylene (PP), Metallized	12.5 mOhms	-40°C ~ 85°C	Chassis Mount	1.673 L x 0.965 W (42.50mm x 24.50mm)	1.083 (27.50mm)	Screw Terminals	-	High Frequency, Switching; High Pulse, DV/DT; Snubber	-
PHB1604500KJS 600V,5UF,10 PERCENT, RADIAL SWIT Nichicon	6,325	8.48	RFQ	Datasheet	Radial	Bulk	PHB	Active	5 µF	±10%	350V	600V	Polypropylene (PP), Metallized	3.3 mOhms	-40°C ~ 85°C	Through Hole	1.673 L x 1.102 W (42.50mm x 28.00mm)	1.457 (37.00mm)	PC Pins	1.476 (37.50mm)	High Frequency, Switching	-
PMB2123470KSP 1200V,0.47UF,10 PERCENT, LUG MOU Nichicon	7,305	8.76	RFQ	Datasheet	Rectangular Box	Bulk	PMB	Active	0.47 µF	±10%	630V	1200V (1.2kV)	Polypropylene (PP), Metallized	4.1 mOhms	-40°C ~ 85°C	Chassis Mount	1.673 L x 0.965 W (42.50mm x 24.50mm)	1.083 (27.50mm)	Screw Terminals	-	High Frequency, Switching; High Pulse, DV/DT; Snubber	-
EZP-Q60225LTA CAP FILM 2.2UF 10% 600VAC RADIAL Panasonic Electronic Components	7,549	8.82	RFQ	Datasheet	Radial	Bulk	EZPQ	Active	2.2 µF	±10%	600V	-	Polypropylene (PP), Metallized	13.3 mOhms	-40°C ~ 105°C	Through Hole	1.634 L x 1.024 W (41.50mm x 26.00mm)	1.614 (41.00mm)	PC Pins	1.476 (37.50mm)	General Purpose	-
MKP1847C580355P2 MKP 8F 10% 350VAC PITCH 37,5 Vishay Beyschlag/Draloric/BC Components	5,831	8.82	RFQ	Datasheet	Radial	Tray	MKP1847C	Active	8 µF	±10%	350V	700V	Polypropylene (PP), Metallized	-	-40°C ~ 85°C	Through Hole	1.693 L x 0.846 W (43.00mm x 21.50mm)	1.555 (39.50mm)	PC Pins	1.476 (37.50mm)	EMI, RFI Suppression	-
EZP-V80186LTA CAP FILM 18UF 10% 800V RADIAL Panasonic Electronic Components	6,508	8.85	RFQ	Datasheet	Radial	Bulk	EZPV	Active	18 µF	±10%	-	800V	Polypropylene (PP), Metallized	7.8 mOhms	-40°C ~ 105°C	Through Hole	1.220 L x 0.866 W (31.00mm x 22.00mm)	2.146 (54.50mm)	PC Pins	1.083 (27.50mm)	DC Link, DC Filtering	-
EZP-V80186LTU CAP FILM 18UF 10% 800V RADIAL Panasonic Electronic Components	5,049	8.92	RFQ	Datasheet	Radial	Bulk	EZPV	Active	18 µF	±10%	-	800V	Polypropylene (PP), Metallized	7.8 mOhms	-40°C ~ 105°C	Through Hole	1.220 L x 0.866 W (31.00mm x 22.00mm)	2.146 (54.50mm)	PC Pins	1.083 (27.50mm)	Automotive; DC Link, DC Filtering	AEC-Q200
PMB2203220KSP 2000V,0.22UF,10 PERCENT, LUG MOU Nichicon	5,720	8.98	RFQ	Datasheet	Rectangular Box	Bulk	PMB	Active	0.22 µF	±10%	700V	2000V (2kV)	Polypropylene (PP), Metallized	5.1 mOhms	-40°C ~ 85°C	Chassis Mount	1.673 L x 0.965 W (42.50mm x 24.50mm)	1.083 (27.50mm)	Screw Terminals	-	High Frequency, Switching; High Pulse, DV/DT; Snubber	-
