Film Capacitors

Manufacturer	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings
ECH-U1H183JX5 CAP FILM 0.018UF 5% 50VDC 1210 Panasonic Electronic Components	13,228	0.76	RFQ	Datasheet	1210 (3225 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECH-U(X)	Active	0.018 µF	±5%	30V	50V	Polyphenylene Sulfide (PPS), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.126 L x 0.098 W (3.20mm x 2.50mm)	0.067 (1.70mm)	Solder Pads	-	General Purpose	-
LDEEC2220JA5N00 CAP FILM 0.022UF 5% 100VDC 1812 KEMET	11,182	0.77	RFQ	Datasheet	1812 (4532 Metric)	Tape & Reel (TR),Cut Tape (CT)	LDE	Active	0.022 µF	±5%	63V	100V	Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.185 L x 0.130 W (4.70mm x 3.30mm)	0.067 (1.70mm)	Solder Pads	-	Automotive	AEC-Q200
F612JM684J063A CAP FILM 0.68UF 5% 63VDC RADIAL KEMET	11,227	0.77	RFQ	Datasheet	Radial	Bag	F612	Active	0.68 µF	±5%	40V	63V	Polyester, Metallized - Stacked	-	-55°C ~ 105°C	Through Hole	0.283 L x 0.177 W (7.20mm x 4.50mm)	0.374 (9.50mm)	PC Pins	0.197 (5.00mm)	General Purpose	-
FKP1T006804B00JSC9 CAP FILM 680PF 5% 1.6KVDC RADIAL WIMA	12,590	0.78	RFQ	Datasheet	Radial	Bulk	-	Active	680 pF	±5%	650V	1600V (1.6kV)	Polypropylene (PP), Metallized	-	-55°C ~ 100°C	Through Hole	0.709 L x 0.197 W (18.00mm x 5.00mm)	0.433 (11.00mm)	PC Pins	0.591 (15.00mm)	High Frequency, Switching; High Pulse, DV/DT	-
ECW-U1472JX5 CAP FILM 4700PF 5% 100VDC 1206 Panasonic Electronic Components	14,271	0.80	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECW-U(X)	Active	4700 pF	±5%	40V	100V	Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked	-	-55°C ~ 105°C	Surface Mount	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.067 (1.70mm)	Solder Pads	-	General Purpose	-

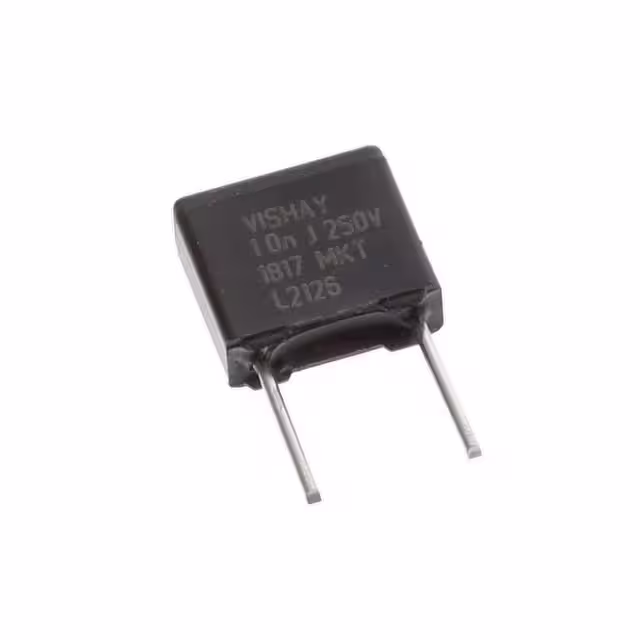

MKT1817310254 CAP FILM 10000PF 5% 250VDC RAD Vishay Beyschlag/Draloric/BC Components	13,586	0.82	RFQ	Datasheet	Radial	Bulk	MKT1817	Active	10000 pF	±5%	160V	250V	Polyester, Metallized	-	-55°C ~ 105°C	Through Hole	0.283 L x 0.098 W (7.20mm x 2.50mm)	0.256 (6.50mm)	PC Pins	0.197 (5.00mm)	General Purpose	-
ECW-F2274JB CAP FILM 0.27UF 5% 250VDC RADIAL Panasonic Electronic Components	1,175	0.82	RFQ	Datasheet	Radial	Bulk	ECW-F(B)	Obsolete	0.27 µF	±5%	-	250V	Polypropylene (PP), Metallized	-	-25°C ~ 85°C	Through Hole	0.709 L x 0.315 W (18.00mm x 8.00mm)	0.630 (16.00mm)	PC Pins	0.591 (15.00mm)	High Frequency, Switching	-
FCP0805H222J-J1 CAP FILM 2200PF 5% 50VDC 0805 Cornell Dubilier Electronics (CDE)	10,115	0.83	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	FCP	Active	2200 pF	±5%	-	50V	Polyphenylene Sulfide (PPS)	-	-55°C ~ 125°C	Surface Mount	0.079 L x 0.049 W (2.00mm x 1.25mm)	0.043 (1.09mm)	Solder Pads	-	High Frequency, Switching	-
FCP0805H471J-J1 CAP FILM 470PF 5% 50VDC 0805 Cornell Dubilier Electronics (CDE)	14,818	0.83	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	FCP	Active	470 pF	±5%	-	50V	Polyphenylene Sulfide (PPS), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.079 L x 0.049 W (2.00mm x 1.25mm)	0.043 (1.09mm)	Solder Pads	-	High Frequency, Switching	-
ECH-U1H561JB5 CAP FILM 560PF 5% 50VDC 0805 Panasonic Electronic Components	13,746	0.84	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECH-U(B)	Active	560 pF	±5%	30V	50V	Polyphenylene Sulfide (PPS), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.079 L x 0.049 W (2.00mm x 1.25mm)	0.039 (1.00mm)	Solder Pads	-	General Purpose	-
LDECC3180JA5N00 CAP FILM 0.18UF 5% 50VDC 1812 KEMET	14,276	0.84	RFQ	Datasheet	1812 (4532 Metric)	Tape & Reel (TR),Cut Tape (CT)	LDE	Active	0.18 µF	±5%	40V	50V	Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.185 L x 0.130 W (4.70mm x 3.30mm)	0.087 (2.20mm)	Solder Pads	-	Automotive	AEC-Q200
ECH-U1H391JB5 CAP FILM 390PF 5% 50VDC 0805 Panasonic Electronic Components	10,142	0.84	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECH-U(B)	Active	390 pF	±5%	30V	50V	Polyphenylene Sulfide (PPS), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.079 L x 0.049 W (2.00mm x 1.25mm)	0.039 (1.00mm)	Solder Pads	-	General Purpose	-
R75UI1150DQ40J CAP FILM 1500PF 5% 2KVDC RAD KEMET	12,884	0.84	RFQ	Datasheet	Radial	Cut Tape (CT),Tape & Box (TB)	R75	Active	1500 pF	±5%	700V	2000V (2kV)	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	0.709 L x 0.157 W (18.00mm x 4.00mm)	0.398 (10.10mm)	PC Pins	0.591 (15.00mm)	Automotive; High Frequency, Switching; High Pulse, DV/DT	AEC-Q200
MKT1817410065 CAP FILM 0.1UF 10% 63VDC RADIAL Vishay Beyschlag/Draloric/BC Components	13,993	0.84	RFQ	Datasheet	Radial	Bulk	MKT1817	Active	0.1 µF	±10%	40V	63V	Polyester, Metallized	-	-55°C ~ 100°C	Through Hole	0.283 L x 0.098 W (7.20mm x 2.50mm)	0.256 (6.50mm)	PC Pins	0.197 (5.00mm)	General Purpose	-
ECH-U1H101JB5 CAP FILM 100PF 5% 50VDC 0805 Panasonic Electronic Components	11,315	0.84	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECH-U(B)	Active	100 pF	±5%	30V	50V	Polyphenylene Sulfide (PPS), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.079 L x 0.049 W (2.00mm x 1.25mm)	0.039 (1.00mm)	Solder Pads	-	General Purpose	-
MMK5684J63J03L16.5TR18 CAP FILM 0.68UF 5% 63VDC RADIAL KEMET	14,594	0.84	RFQ	Datasheet	Radial	Tape & Reel (TR),Cut Tape (CT)	MMK	Active	0.68 µF	±5%	40V	63V	Polyester, Metallized	-	-55°C ~ 100°C	Through Hole	0.283 L x 0.177 W (7.20mm x 4.50mm)	0.354 (9.00mm)	PC Pins	0.197 (5.00mm)	General Purpose	-
B32620A6153K289 CAP FILM 0.015UF 10% 630VDC RAD EPCOS - TDK Electronics	14,027	0.85	RFQ	Datasheet	Radial	Cut Tape (CT),Tape & Box (TB)	B3262* - MKP High Pulse (stacked)	Active	0.015 µF	±10%	400V	630V	Polypropylene (PP), Metallized - Stacked	-	-55°C ~ 105°C	Through Hole	0.406 L x 0.236 W (10.30mm x 6.00mm)	0.472 (12.00mm)	PC Pins	0.295 (7.50mm)	High Pulse, DV/DT	-
ECH-U1C682JB5 CAP FILM 6800PF 5% 16VDC 0805 Panasonic Electronic Components	11,353	0.86	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECH-U(B)	Active	6800 pF	±5%	11V	16V	Polyphenylene Sulfide (PPS), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.079 L x 0.049 W (2.00mm x 1.25mm)	0.039 (1.00mm)	Solder Pads	-	General Purpose	-
MMK5823J50J01L16.5TR18 CAP FILM 0.082UF 5% 50VDC RADIAL KEMET	14,684	0.86	RFQ	Datasheet	Radial	Tape & Reel (TR),Cut Tape (CT)	MMK	Active	0.082 µF	±5%	30V	50V	Polyester, Metallized	-	-55°C ~ 100°C	Through Hole	0.283 L x 0.098 W (7.20mm x 2.50mm)	0.256 (6.50mm)	PC Pins	0.197 (5.00mm)	General Purpose	-
B32522C3474K189 CAP FILM 0.47UF 10% 250VDC RAD EPCOS - TDK Electronics	14,363	0.87	RFQ	Datasheet	Radial	Tape & Reel (TR),Cut Tape (CT)	B3252* - MKT General Purpose	Active	0.47 µF	±10%	160V	250V	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked	-	-55°C ~ 125°C	Through Hole	0.709 L x 0.236 W (18.00mm x 6.00mm)	0.433 (11.00mm)	PC Pins	0.591 (15.00mm)	Automotive; EMI, RFI Suppression	AEC-Q200
