Film Capacitors

Manufacturer	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings
PMB2203560KAPA FILM CAP BOXED LUGS Nichicon	4,018	12.30	RFQ	Datasheet	Rectangular Box	Bulk	PMB	Active	0.56 µF	±10%	700V	2000V (2kV)	Polypropylene (PP), Metallized	3 mOhms	-40°C ~ 85°C	Chassis Mount	1.673 L x 1.181 W (42.50mm x 30.00mm)	1.772 (45.00mm)	Screw Terminals	2.293 (58.25mm)	High Frequency, Switching; High Pulse, DV/DT; Snubber	-
PMB1854200KAP FILM CAP BOXED LUGS Nichicon	3,694	12.30	RFQ	Datasheet	Rectangular Box	Bulk	PMB	Active	2 µF	±10%	500V	850V	Polypropylene (PP), Metallized	2 mOhms	-40°C ~ 85°C	Chassis Mount	1.673 L x 1.299 W (42.50mm x 33.00mm)	1.772 (45.00mm)	Screw Terminals	2.293 (58.25mm)	High Frequency, Switching; High Pulse, DV/DT; Snubber	-
PMB1854200KAPA FILM CAP BOXED LUGS Nichicon	1,415	12.30	RFQ	Datasheet	Rectangular Box	Bulk	PMB	Active	2 µF	±10%	500V	850V	Polypropylene (PP), Metallized	2 mOhms	-40°C ~ 85°C	Chassis Mount	1.673 L x 1.181 W (42.50mm x 30.00mm)	1.772 (45.00mm)	Screw Terminals	2.293 (58.25mm)	High Frequency, Switching; High Pulse, DV/DT; Snubber	-
PSB1854330KRL FILM CAP BOXED RADIAL Nichicon	2,995	12.30	RFQ	Datasheet	Radial	Bulk	PSB	Active	3.3 µF	±10%	500V	850V	Polypropylene (PP), Metallized	2.6 mOhms	-40°C ~ 85°C	Through Hole	2.264 L x 1.181 W (57.50mm x 30.00mm)	1.772 (45.00mm)	PC Pins	2.067 (52.50mm)	High Frequency, Switching; High Pulse, DV/DT; Snubber	-
PSB2303330KRL FILM CAP BOXED RADIAL Nichicon	1,729	12.30	RFQ	Datasheet	Radial	Bulk	PSB	Active	0.33 µF	±10%	750V	3000V (3kV)	Polypropylene (PP), Metallized	5.1 mOhms	-40°C ~ 85°C	Through Hole	2.264 L x 1.181 W (57.50mm x 30.00mm)	1.772 (45.00mm)	PC Pins	2.067 (52.50mm)	High Frequency, Switching; High Pulse, DV/DT; Snubber	-
PSB2303330KRS FILM CAP BOXED RADIAL Nichicon	2,663	12.30	RFQ	Datasheet	Radial	Bulk	PSB	Active	0.33 µF	±10%	750V	3000V (3kV)	Polypropylene (PP), Metallized	5.1 mOhms	-40°C ~ 85°C	Through Hole	2.264 L x 1.181 W (57.50mm x 30.00mm)	1.772 (45.00mm)	PC Pins	2.067 (52.50mm)	High Frequency, Switching; High Pulse, DV/DT; Snubber	-
PSB1854330KRS FILM CAP BOXED RADIAL Nichicon	3,128	12.30	RFQ	Datasheet	Radial	Bulk	PSB	Active	3.3 µF	±10%	500V	850V	Polypropylene (PP), Metallized	2.6 mOhms	-40°C ~ 85°C	Through Hole	2.264 L x 1.181 W (57.50mm x 30.00mm)	1.772 (45.00mm)	PC Pins	2.067 (52.50mm)	High Frequency, Switching; High Pulse, DV/DT; Snubber	-
MKP1848625094Y2 CAP FILM 25UF 5% 900VDC RADIAL Vishay Beyschlag/Draloric/BC Components	2,651	12.31	RFQ	Datasheet	Radial	Bulk	MKP1848 DC-Link	Active	25 µF	±5%	-	900V	Polypropylene (PP), Metallized	10 mOhms	-40°C ~ 105°C	Through Hole	2.264 L x 1.181 W (57.50mm x 30.00mm)	1.772 (45.00mm)	PC Pins	2.067 (52.50mm)	Automotive; DC Link, DC Filtering	AEC-Q200
MKP1848622094Y5 CAP FILM 22UF 5% 900VDC RADIAL Vishay Beyschlag/Draloric/BC Components	2,872	12.31	RFQ	Datasheet	Radial	Bulk	MKP1848 DC-Link	Active	22 µF	±5%	-	900V	Polypropylene (PP), Metallized	10 mOhms	-40°C ~ 105°C	Through Hole	2.264 L x 0.984 W (57.50mm x 25.00mm)	1.772 (45.00mm)	PC Pins	2.067 (52.50mm)	Automotive; DC Link, DC Filtering	AEC-Q200
MKP1848H63580JY5 CAP FILM 35UF 5% 800VDC RADIAL Vishay Beyschlag/Draloric/BC Components	1,407	12.31	RFQ	Datasheet	Radial - 4 Leads	Tray	MKP1848H DC-Link	Active	35 µF	±5%	-	800V	Polypropylene (PP), Metallized	4.5 mOhms	-40°C ~ 85°C	Through Hole	2.264 L x 1.181 W (57.50mm x 30.00mm)	1.811 (46.00mm)	PC Pins	2.067 (52.50mm)	Automotive; DC Link, DC Filtering	AEC-Q200
105PMB122KBP1 CAP FILM 1UF 10% 1.2KVDC CHAS MT Cornell Dubilier / Illinois Capacitor	1,421	12.33	RFQ	Datasheet	Rectangular Box	Bulk	PMB	Active	1 µF	±10%	630V	1200V (1.2kV)	Polypropylene (PP), Metallized	2.7 mOhms	-40°C ~ 85°C	Chassis Mount	1.673 L x 1.319 W (42.50mm x 33.50mm)	1.398 (35.50mm)	-	-	DC Link, DC Filtering; High Frequency, Switching; Snubber	-
PSB2104220KRSD FILM CAP BOXED RADIAL Nichicon	1,885	12.34	RFQ	Datasheet	Radial - 4 Leads	Bulk	PSB	Active	2.2 µF	±10%	575V	1000V (1kV)	Polypropylene (PP), Metallized	2.6 mOhms	-40°C ~ 85°C	Through Hole	1.654 L x 1.378 W (42.00mm x 35.00mm)	1.969 (50.00mm)	PC Pins	1.476 (37.50mm)	High Frequency, Switching; High Pulse, DV/DT; Snubber	-
MKP1848C63060JP4 CAP FILM 30UF 5% 600VDC RADIAL Vishay Beyschlag/Draloric/BC Components	4,162	12.34	RFQ	Datasheet	Radial - 4 Leads	Bulk	MKP1848C DC-Link	Active	30 µF	±5%	-	600V	Polypropylene (PP), Metallized	5 mOhms	-55°C ~ 105°C	Through Hole	1.654 L x 0.945 W (42.00mm x 24.00mm)	1.732 (44.00mm)	PC Pins	1.476 (37.50mm)	DC Link, DC Filtering	-
B32656S0185J561 CAP FILM 1.8UF 5% 1KVDC SCREW EPCOS - TDK Electronics	2,154	12.34	RFQ	Datasheet	Rectangular Box	Bulk	B3265* - MKP General Purpose	Active	1.8 µF	±5%	480V	1000V (1kV)	Polypropylene (PP), Metallized	4.5 mOhms	-55°C ~ 100°C	Chassis Mount	-	-	Screw Terminals	1.004 (25.50mm)	Snubber	-
MKP1848C62550JP4 CAP FILM 25UF 5% 500VDC RADIAL Vishay Beyschlag/Draloric/BC Components	1,287	12.35	RFQ	Datasheet	Radial - 4 Leads	Bulk	MKP1848C DC-Link	Active	25 µF	±5%	-	500V	Polypropylene (PP), Metallized	6 mOhms	-55°C ~ 105°C	Through Hole	1.693 L x 0.846 W (43.00mm x 21.50mm)	1.516 (38.50mm)	PC Pins	1.476 (37.50mm)	DC Link, DC Filtering	-
23FD3310A-F CAP FILM 10UF 10% 330VAC RADIAL Cornell Dubilier Electronics (CDE)	2,974	12.35	RFQ	Datasheet	Radial, Can	Bulk	MPF	Active	10 µF	±10%	330V	-	Polypropylene (PP), Metallized	-	-40°C ~ 70°C	Chassis Mount, Requires Holder/Bracket	2.125 Dia (53.98mm), Lip	2.630 (66.80mm)	Quick Connect, Disconnect	0.813 (20.64mm)	Motor Run; Power Factor Correction (PFC)	-
37FB44075A-F CAP FILM 7.5UF 10% 440VAC RADIAL Cornell Dubilier Electronics (CDE)	2,009	12.35	RFQ	Datasheet	Radial, Can	Bulk	MPF	Active	7.5 µF	±10%	440V	-	Polypropylene (PP), Metallized	-	-40°C ~ 70°C	Chassis Mount, Requires Holder/Bracket	2.906 L x 1.906 W (73.81mm x 48.41mm), Lip	2.630 (66.80mm)	Quick Connect, Disconnect	0.813 (20.64mm)	Motor Run; Power Factor Correction (PFC)	-

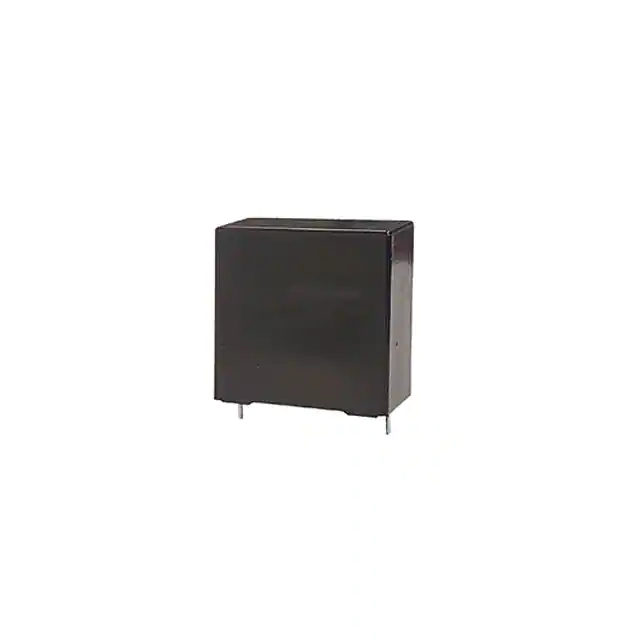

BLH606K451B104 DC LINK, THB, 85/85, AEC-Q200 Cornell Dubilier Electronics (CDE)	4,123	12.37	RFQ	Datasheet	Radial - 4 Leads	Bulk	BLH	Active	60 µF	±10%	-	450V	Polypropylene (PP), Metallized	4 mOhms	-40°C ~ 105°C	Through Hole	1.673 L x 1.181 W (42.50mm x 30.00mm)	1.772 (45.00mm)	PC Pins	1.476 (37.50mm)	Automotive; DC Link, DC Filtering	AEC-Q200
MHBS705120KRSD FILM CAP RADIAL Nichicon	1,590	12.37	RFQ	Datasheet	Radial - 4 Leads	Bulk	MHBS	Active	12 µF	±10%	440V	1275V (1.275kV)	Polypropylene (PP), Metallized	5.4 mOhms	-40°C ~ 85°C	Through Hole	2.264 L x 1.181 W (57.50mm x 30.00mm)	1.772 (45.00mm)	PC Pins	2.067 (52.50mm)	DC Link, DC Filtering; High Frequency, Switching	-
21FB4415A-F CAP FILM 15UF 10% 440VAC RADIAL Cornell Dubilier Electronics (CDE)	2,580	12.38	RFQ	Datasheet	Radial, Can	Bulk	MPF	Active	15 µF	±10%	440V	-	Polypropylene (PP), Metallized	-	-40°C ~ 70°C	Chassis Mount, Requires Holder/Bracket	1.875 Dia (47.63mm), Lip	2.630 (66.80mm)	Quick Connect, Disconnect	0.813 (20.64mm)	Motor Run; Power Factor Correction (PFC)	-
