Film Capacitors

Manufacturer	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings
PHE450TD5100JR06L2 CAP FILM 10000PF 5% 2.5KVDC RAD KEMET	8,589	2.68	RFQ		Radial	Tray	PHE450	Active	10000 pF	±5%	900V	2500V (2.5kV)	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	1.024 L x 0.276 W (26.00mm x 7.00mm)	0.650 (16.50mm)	PC Pins	0.886 (22.50mm)	High Frequency, Switching	-
225P68291WD3 CAP FILM 6800PF 10% 100VDC RAD Cornell Dubilier Electronics (CDE)	7,476	2.68	RFQ	Datasheet	Radial	Bulk	Orange Drop® 225P	Active	6800 pF	±10%	70V	100V	Polyester	-	-55°C ~ 85°C	Through Hole	0.700 L x 0.252 W (17.78mm x 6.40mm)	0.350 (8.90mm)	PC Pins	0.375 (9.52mm)	Audio; DC Link, DC Filtering	-
ECW-F4115JL CAP FILM 1.1UF 5% 400VDC RADIAL Panasonic Electronic Components	6,613	2.69	RFQ	Datasheet	Radial	Bulk	ECW-F(L)	Active	1.1 µF	±5%	141V	400V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.906 L x 0.535 W (23.00mm x 13.60mm)	0.866 (22.00mm)	PC Pins	0.787 (20.00mm)	High Frequency, Switching	-
MKS4D044706A00JSSD CAP FILM 4.7UF 5% 100VDC RAD WIMA	5,640	2.70	RFQ	Datasheet	Radial	Bulk	-	Active	4.7 µF	±5%	63V	100V	Polyester, Polyethylene Terephthalate (PET), Metallized	-	-55°C ~ 125°C	Through Hole	1.240 L x 0.354 W (31.50mm x 9.00mm)	0.748 (19.00mm)	PC Pins	1.083 (27.50mm)	General Purpose	-
ECQ-E6155JF CAP FILM 1.5UF 5% 630VDC RADIAL Panasonic Electronic Components	8,360	2.71	RFQ	Datasheet	Radial	Bulk	ECQ-E(F)	Active	1.5 µF	±5%	250V	630V	Polyester, Metallized	-	-40°C ~ 105°C	Through Hole	1.220 L x 0.602 W (31.00mm x 15.30mm)	1.032 (26.20mm)	PC Pins	1.083 (27.50mm)	General Purpose	-
DPPM20D1K-F CAP FILM 1000PF 10% 2KVDC RADIAL Cornell Dubilier Electronics (CDE)	9,883	2.71	RFQ	Datasheet	Radial	Bulk	DPPM	Active	1000 pF	±10%	500V	2000V (2kV)	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.984 L x 0.276 W (25.00mm x 7.00mm)	0.551 (14.00mm)	PC Pins	0.827 (21.00mm)	High Frequency, Switching; High Pulse, DV/DT; Snubber	-
150104K400EC CAP FILM 0.1UF 10% 400VDC AXIAL Cornell Dubilier Electronics (CDE)	9,333	2.71	RFQ	Datasheet	Axial	Bulk	150	Active	0.1 µF	±10%	200V	400V	Polyester, Metallized	-	-55°C ~ 125°C	Through Hole	0.315 Dia x 0.807 L (8.00mm x 20.50mm)	-	PC Pins	-	General Purpose	-
158X103 CAP FILM 10000PF 20% 275VAC RAD Cornell Dubilier Electronics (CDE)	7,015	2.71	RFQ	Datasheet	Radial	Bulk	158X	Active	10000 pF	±20%	275V	-	Polyester, Metallized	-	-40°C ~ 100°C	Through Hole	0.669 L x 0.197 W (17.00mm x 5.00mm)	0.492 (12.50mm)	PC Pins	0.591 (15.00mm)	EMI, RFI Suppression	X2
R60DI4470AA30J CAP FILM 4.7UF 5% 63VDC RADIAL KEMET	7,079	2.72	RFQ	Datasheet	Radial	Bulk	R60	Active	4.7 µF	±5%	40V	63V	Polyester, Polyethylene Terephthalate (PET), Metallized	-	-55°C ~ 105°C	Through Hole	0.709 L x 0.335 W (18.00mm x 8.50mm)	0.575 (14.60mm)	PC Pins	0.591 (15.00mm)	Automotive	AEC-Q200
ECQ-E2685JF CAP FILM 6.8UF 5% 250VDC RADIAL Panasonic Electronic Components	9,350	2.72	RFQ	Datasheet	Radial	Bulk	ECQ-E(F)	Active	6.8 µF	±5%	150V	250V	Polyester, Metallized	-	-40°C ~ 105°C	Through Hole	1.220 L x 0.512 W (31.00mm x 13.00mm)	0.941 (23.90mm)	PC Pins	1.083 (27.50mm)	General Purpose	-
MKP4O134706D00KSSD CAP FILM 0.47UF 10% 1KVDC RAD WIMA	5,513	2.73	RFQ	Datasheet	Radial	Bulk	-	Active	0.47 µF	±10%	400V	1000V (1kV)	Polypropylene (PP), Metallized	-	-55°C ~ 100°C	Through Hole	1.240 L x 0.512 W (31.50mm x 13.00mm)	0.945 (24.00mm)	PC Pins	1.083 (27.50mm)	High Frequency, Switching	-
F17724222000 CAP FILM 0.22UF 10% 630VDC RAD Vishay Beyschlag/Draloric/BC Components	9,514	2.74	RFQ	Datasheet	Radial	Bulk	F1772	Active	0.22 µF	±10%	310V	630V	Polyester, Metallized	-	-40°C ~ 110°C	Through Hole	1.043 L x 0.335 W (26.50mm x 8.50mm)	0.650 (16.50mm)	PC Pins	0.886 (22.50mm)	EMI, RFI Suppression	X2
WMC08S22K-F CAP FILM 0.022UF 10% 80VDC AXIAL Cornell Dubilier Electronics (CDE)	6,034	2.75	RFQ	Datasheet	Axial	Bulk	WMC	Active	0.022 µF	±10%	50V	80V	Polyester	-	-55°C ~ 125°C	Through Hole	0.185 Dia x 0.531 L (4.70mm x 13.50mm)	-	PC Pins	-	High Pulse, DV/DT	-
FKP1Y021006F00MSSD CAP FILM 10000PF 20% 6KVDC RAD WIMA	6,629	2.76	RFQ	Datasheet	Radial	Bulk	-	Active	10000 pF	±20%	700V	6000V (6kV)	Polypropylene (PP), Metallized	-	-55°C ~ 100°C	Through Hole	1.240 L x 0.591 W (31.50mm x 15.00mm)	1.024 (26.00mm)	PC Pins	1.083 (27.50mm)	High Frequency, Switching; High Pulse, DV/DT	-

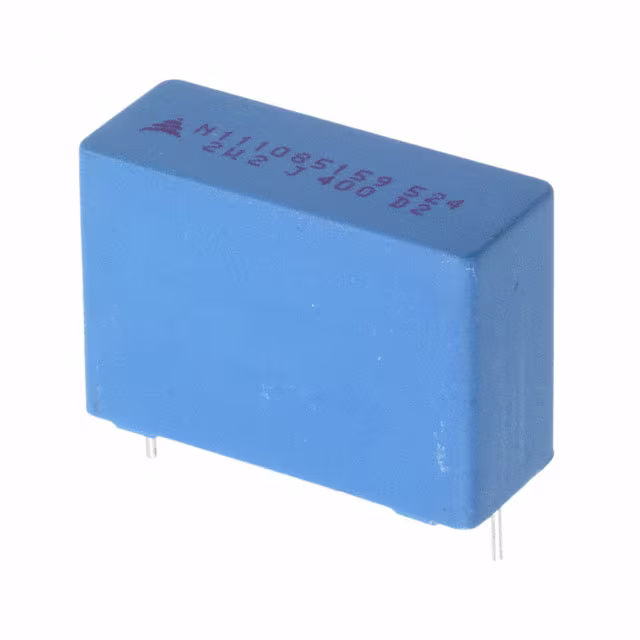

B32524Q6225J CAP FILM 2.2UF 5% 400VDC RADIAL EPCOS - TDK Electronics	5,042	2.77	RFQ	Datasheet	Radial	Bulk	B3252* - MKT General Purpose	Not For New Designs	2.2 µF	±5%	200V	400V	Polyester, Polyethylene Terephthalate (PET), Metallized	-	-55°C ~ 125°C	Through Hole	-	-	PC Pins	1.083 (27.50mm)	Automotive; EMI, RFI Suppression	-
ECW-F6105JL CAP FILM 1UF 5% 630VDC RADIAL Panasonic Electronic Components	5,323	2.78	RFQ	Datasheet	Radial	Bulk	ECW-F(L)	Active	1 µF	±5%	223V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	1.102 L x 0.610 W (28.00mm x 15.50mm)	0.937 (23.80mm)	PC Pins	0.984 (25.00mm)	High Frequency, Switching	-

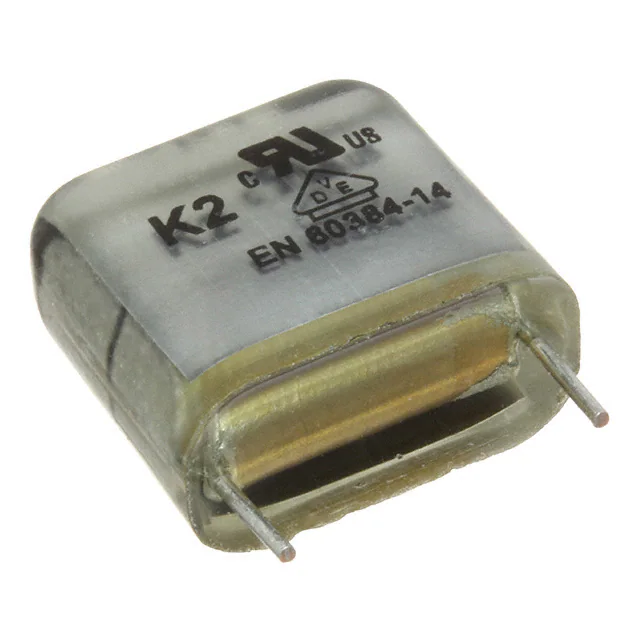

MPX21W3100FH00MSSD CAP FILM 0.1UF 20% 275VAC RAD WIMA	6,490	2.78	RFQ	Datasheet	Radial	Bulk	-	Active	0.1 µF	±20%	275V	-	Paper, Metallized	-	-40°C ~ 110°C	Through Hole	1.102 L x 0.315 W (28.00mm x 8.00mm)	0.787 (20.00mm)	PC Pins	0.886 (22.50mm)	EMI, RFI Suppression	X2
ECW-F4684HL CAP FILM 0.68UF 3% 400VDC RADIAL Panasonic Electronic Components	6,482	2.78	RFQ	Datasheet	Radial	Bulk	ECW-F(L)	Active	0.68 µF	±3%	141V	400V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.807 L x 0.465 W (20.50mm x 11.80mm)	0.787 (20.00mm)	PC Pins	0.689 (17.50mm)	High Frequency, Switching	-
ECW-H12563JV CAP FILM 0.056UF 5% 1.25KVDC RAD Panasonic Electronic Components	7,942	2.78	RFQ	Datasheet	Radial	Bulk	ECW-H(V)	Active	0.056 µF	±5%	354V	1250V (1.25kV)	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	1.102 L x 0.453 W (28.00mm x 11.50mm)	0.846 (21.50mm)	PC Pins	0.984 (25.00mm)	High Frequency, Switching	-

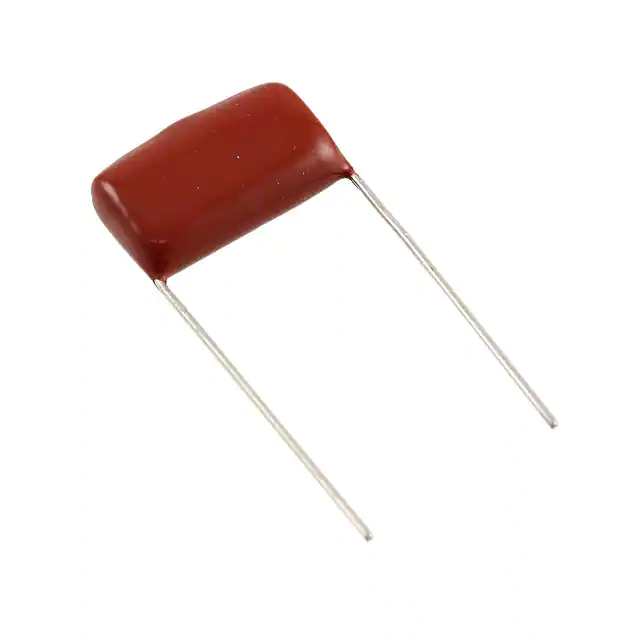

DMT2P22K-F CAP FILM 0.22UF 10% 250VDC RAD Cornell Dubilier Electronics (CDE)	5,263	2.78	RFQ	Datasheet	Radial	Bulk	DMT	Active	0.22 µF	±10%	125V	250V	Polyester, Metallized	-	-55°C ~ 125°C	Through Hole	0.945 L x 0.413 W (24.00mm x 10.50mm)	0.724 (18.38mm)	PC Pins	0.795 (20.20mm)	General Purpose	-
