Film Capacitors

Manufacturer	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings
ECH-U1H154JX9 CAP FILM 0.15UF 5% 50VDC 2416 Panasonic Electronic Components	6,483	1.64	RFQ	Datasheet	2416 (6041 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECH-U(X)	Active	0.15 µF	±5%	30V	50V	Polyphenylene Sulfide (PPS), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.236 L x 0.161 W (6.00mm x 4.10mm)	0.083 (2.10mm)	Solder Pads	-	General Purpose	-
R82DC3680AA60J CAP FILM 0.68UF 5% 63VDC RADIAL KEMET	13,474	0.61	RFQ	Datasheet	Radial	Bulk	R82	Active	0.68 µF	±5%	40V	63V	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked	-	-55°C ~ 105°C	Through Hole	0.283 L x 0.177 W (7.20mm x 4.50mm)	0.378 (9.60mm)	PC Pins	0.197 (5.00mm)	Automotive	AEC-Q200
MKS2D032201C00MSSD CAP FILM 0.22UF 20% 100VDC RAD WIMA	12,919	0.61	RFQ	Datasheet	Radial	Bulk	-	Active	0.22 µF	±20%	63V	100V	Polyester, Polyethylene Terephthalate (PET), Metallized	-	-55°C ~ 100°C	Through Hole	0.283 L x 0.138 W (7.20mm x 3.50mm)	0.335 (8.50mm)	PC Pins	0.197 (5.00mm)	Automotive	AEC-Q200
RSBEC0100ZA00M CAP FILM 100PF 20% 100VDC RADIAL KEMET	14,175	0.61	RFQ		Radial	Box	RSB	Active	100 pF	±20%	63V	100V	Polyester, Metallized	-	-55°C ~ 125°C	Through Hole	-	-	PC Pins	-	Automotive	AEC-Q200
R82EC3390AA70J CAP FILM 0.39UF 5% 100VDC RADIAL KEMET	12,116	0.61	RFQ	Datasheet	Radial	Box	R82	Active	0.39 µF	±5%	63V	100V	Polyester, Metallized	-	-55°C ~ 105°C	Through Hole	-	-	PC Pins	-	Automotive	AEC-Q200
MPX224K305E CAP FILM 0.22UF 10% 305VAC RAD Cornell Dubilier / Illinois Capacitor	13,055	0.62	RFQ	Datasheet	Radial	Tray	MPX	Active	0.22 µF	±10%	305V	-	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	0.709 L x 0.315 W (18.00mm x 8.00mm)	0.571 (14.50mm)	PC Pins	0.591 (15.00mm)	EMI, RFI Suppression	X2
103MSR102K CAP FILM 10000PF 10% 1KVDC RAD Cornell Dubilier / Illinois Capacitor	13,930	0.62	RFQ	Datasheet	Radial	Bulk	MSR	Active	10000 pF	±10%	250V	1000V (1kV)	Polyester, Metallized	176.839 Ohms	-55°C ~ 125°C	Through Hole	0.551 L x 0.276 W (14.00mm x 7.00mm)	0.453 (11.50mm)	PC Pins	0.394 (10.00mm)	General Purpose	-
MKS2D031501C00KSSD CAP FILM 0.15UF 10% 100VDC RAD WIMA	10,486	0.62	RFQ	Datasheet	Radial	Bulk	-	Active	0.15 µF	±10%	63V	100V	Polyester, Polyethylene Terephthalate (PET), Metallized	-	-55°C ~ 100°C	Through Hole	0.283 L x 0.138 W (7.20mm x 3.50mm)	0.335 (8.50mm)	PC Pins	0.197 (5.00mm)	Automotive	AEC-Q200
MKP1G021003C00KSSD CAP FILM 10000PF 10% 400VDC RAD WIMA	10,640	0.62	RFQ	Datasheet	Radial	Bulk	-	Active	10000 pF	±10%	250V	400V	Polypropylene (PP), Metallized	-	-55°C ~ 110°C	Through Hole	0.512 L x 0.157 W (13.00mm x 4.00mm)	0.354 (9.00mm)	PC Pins	0.394 (10.00mm)	High Pulse, DV/DT	-
FKP2J003301D00HSSD CAP FILM 330PF 2.5% 630VDC RAD WIMA	11,742	0.62	RFQ	Datasheet	Radial	Bulk	-	Active	330 pF	±2.5%	250V	630V	Polypropylene (PP)	-	-55°C ~ 100°C	Through Hole	0.283 L x 0.177 W (7.20mm x 4.50mm)	0.236 (6.00mm)	PC Pins	0.197 (5.00mm)	High Frequency, Switching; High Pulse, DV/DT	-
MKX2AW12202C00KSSD CAP FILM 2200PF 10% 630VDC RAD WIMA	11,789	0.62	RFQ	Datasheet	Radial	Bulk	-	Active	2200 pF	±10%	305V	630V	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	0.394 L x 0.157 W (10.00mm x 4.00mm)	0.354 (9.00mm)	PC Pins	0.295 (7.50mm)	EMI, RFI Suppression	X2
FKP2D016801G00JSSD CAP FILM 6800PF 5% 100VDC RAD WIMA	13,722	0.62	RFQ	Datasheet	Radial	Bulk	-	Active	6800 pF	±5%	63V	100V	Polypropylene (PP)	-	-55°C ~ 100°C	Through Hole	0.283 L x 0.217 W (7.20mm x 5.50mm)	0.276 (7.00mm)	PC Pins	0.197 (5.00mm)	High Frequency, Switching; High Pulse, DV/DT	-

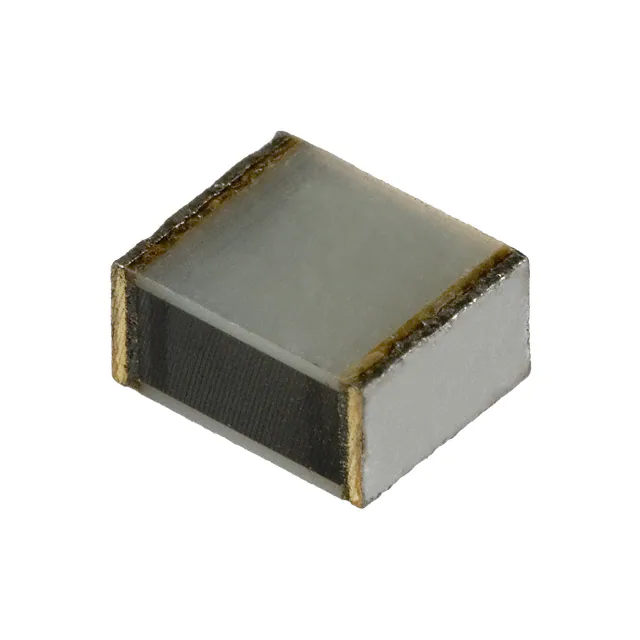

ECW-U4273V17 CAP FILM 0.027UF 5% 400VDC 2420 Panasonic Electronic Components	9,099	1.59	RFQ	Datasheet	2420 (6050 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECW-UC(V17)	Active	0.027 µF	±5%	157V	400V	Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked	-	-55°C ~ 85°C	Surface Mount	0.236 L x 0.197 W (6.00mm x 5.00mm)	0.134 (3.40mm)	Solder Pads	-	DC Link, DC Filtering	-
ECW-U1C184JC9 CAP FILM 0.18UF 5% 16VDC 1913 Panasonic Electronic Components	6,049	1.71	RFQ	Datasheet	1913 (4833 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECW-U(C)	Active	0.18 µF	±5%	8V	16V	Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked	-	-55°C ~ 105°C	Surface Mount	0.189 L x 0.130 W (4.80mm x 3.30mm)	0.087 (2.20mm)	Solder Pads	-	General Purpose	-
MKS2F024701C00MSSD CAP FILM 0.047UF 20% 250VDC RAD WIMA	13,241	0.63	RFQ	Datasheet	Radial	Bulk	-	Active	0.047 µF	±20%	160V	250V	Polyester, Polyethylene Terephthalate (PET), Metallized	-	-55°C ~ 125°C	Through Hole	0.283 L x 0.138 W (7.20mm x 3.50mm)	0.335 (8.50mm)	PC Pins	0.197 (5.00mm)	Automotive	AEC-Q200
890324025034CS CAP FILM 0.33UF 10% 275VAC RAD Würth Elektronik	10,041	0.63	RFQ	Datasheet	Radial	Bulk	WCAP-FTX2	Active	0.33 µF	±10%	275V	-	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.709 L x 0.335 W (18.00mm x 8.50mm)	0.591 (15.00mm)	PC Pins	0.591 (15.00mm)	EMI, RFI Suppression	X2
R82DC4100CK60J CAP FILM 1UF 5% 63VDC RADIAL KEMET	10,483	0.63	RFQ	Datasheet	Radial	Strip	R82	Active	1 µF	±5%	40V	63V	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked	-	-55°C ~ 105°C	Through Hole	0.283 L x 0.197 W (7.20mm x 5.00mm)	0.398 (10.10mm)	PC Pins	0.197 (5.00mm)	Automotive	AEC-Q200
B32529C0684J000 CAP FILM 0.68UF 5% 63VDC RADIAL EPCOS - TDK Electronics	12,292	0.63	RFQ	Datasheet	Radial	Bulk	B3252* - MKT General Purpose	Active	0.68 µF	±5%	40V	63V	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked	-	-55°C ~ 125°C	Through Hole	0.287 L x 0.177 W (7.30mm x 4.50mm)	0.374 (9.50mm)	PC Pins	0.197 (5.00mm)	Automotive; EMI, RFI Suppression	AEC-Q200
MKS4F031003C00JSSD CAP FILM 0.1UF 5% 250VDC RAD WIMA	10,012	0.63	RFQ	Datasheet	Radial	Bulk	-	Active	0.1 µF	±5%	160V	250V	Polyester, Polyethylene Terephthalate (PET), Metallized	-	-55°C ~ 125°C	Through Hole	0.512 L x 0.157 W (13.00mm x 4.00mm)	0.354 (9.00mm)	PC Pins	0.394 (10.00mm)	General Purpose	-
ECQ-E6333KF CAP FILM 0.033UF 10% 630VDC RAD Panasonic Electronic Components	13,182	0.63	RFQ	Datasheet	Radial	Bulk	ECQ-E(F)	Active	0.033 µF	±10%	250V	630V	Polyester, Metallized	-	-40°C ~ 105°C	Through Hole	0.472 L x 0.236 W (12.00mm x 6.00mm)	0.508 (12.90mm)	PC Pins	0.394 (10.00mm)	General Purpose	-
