Film Capacitors

Manufacturer	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

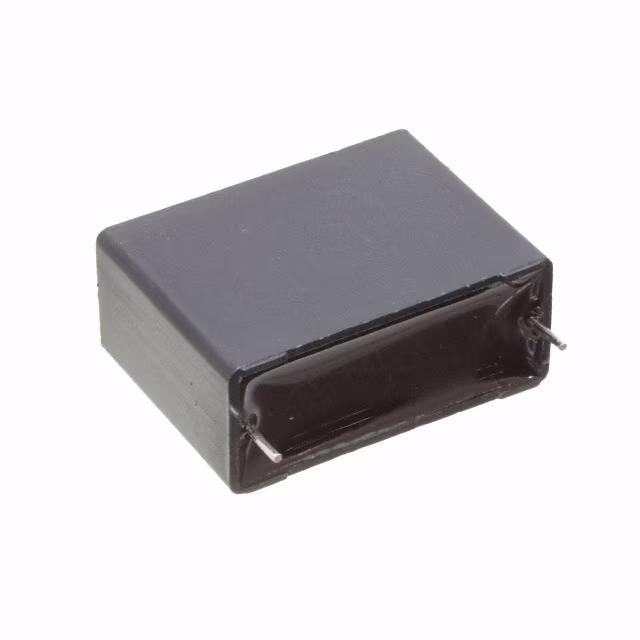

ECW-FE2J225PD CAP FILM 2.2UF 5% 630VDC RAD Panasonic Electronic Components	9,467	1.90	RFQ	Datasheet	Radial	Bulk	ECWFE	Active	2.2 µF	±5%	141V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	1.220 L x 0.512 W (31.00mm x 13.00mm)	0.925 (23.50mm)	PC Pins	1.083 (27.50mm)	EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT	-

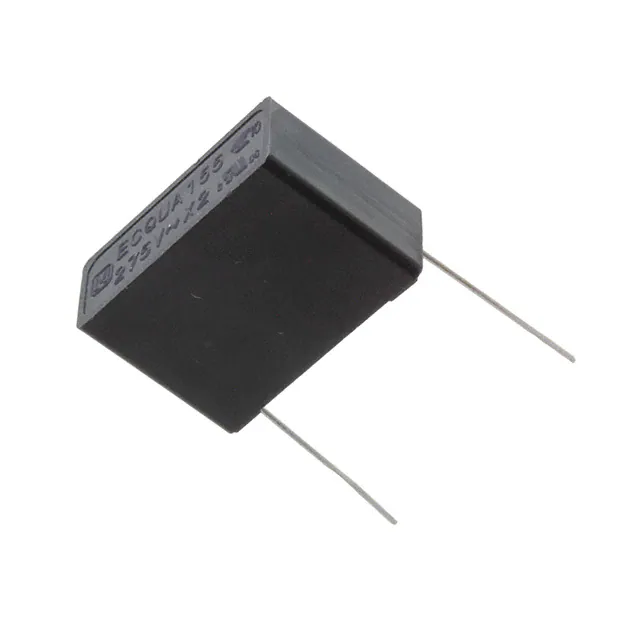

ECQ-UAAF155T1 CAP FILM 1.5UF 10% 275VAC RAD Panasonic Electronic Components	9,821	1.90	RFQ	Datasheet	Radial	Bulk	ECQ-UA	Active	1.5 µF	±10%	275V	-	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	1.220 L x 0.472 W (31.00mm x 12.00mm)	0.886 (22.50mm)	PC Pins	1.083 (27.50mm)	Automotive; EMI, RFI Suppression	AEC-Q200, X2
R76MN38205050J FILM, RADIAL, PULSE, DOUBLE META KEMET	5,702	1.90	RFQ	Datasheet	Radial	Bulk	R76	Active	0.82 µF	±5%	250V	400V	Polypropylene (PP), Metallized	4 mOhms	-55°C ~ 110°C	Through Hole	1.043 L x 0.512 W (26.50mm x 13.00mm)	0.870 (22.10mm)	PC Pins	0.886 (22.50mm)	Automotive; High Frequency, Switching; High Pulse, DV/DT	AEC-Q200
B32683A1223J000 CAP FILM 0.022UF 5% 1.6KVDC RAD EPCOS - TDK Electronics	9,050	1.91	RFQ	Datasheet	Radial	Bulk	B3268* - MFP Very High Pulse	Active	0.022 µF	±5%	500V	1600V (1.6kV)	Polypropylene (PP), Metallized	-	-55°C ~ 100°C	Through Hole	1.043 L x 0.413 W (26.50mm x 10.50mm)	0.728 (18.50mm)	PC Pins	0.886 (22.50mm)	DC Link, DC Filtering; High Pulse, DV/DT; Snubber	-
ECW-FG2J225P1 CAP FILM 2.2UF 5% 630VDC RADIAL Panasonic Electronic Components	8,144	1.91	RFQ	Datasheet	Radial	Bulk	ECWFG	Active	2.2 µF	±5%	141V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	1.063 L x 0.610 W (27.00mm x 15.50mm)	0.965 (24.50mm)	PC Pins	0.886 (22.50mm)	Automotive; High Frequency, Switching	AEC-Q200
ECW-FD2J275K CAP FILM 2.7UF 10% 630VDC RADIAL Panasonic Electronic Components	8,572	1.91	RFQ	Datasheet	Radial	Bulk	ECW-F(D)	Active	2.7 µF	±10%	141V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	-	-	PC Pins	-	EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT	-
C4AF1BU4150T1WK FILM, POWER, METALLIZED POLYPROP KEMET	8,429	1.92	RFQ	Datasheet	Radial	Bulk	C4AF	Active	1.5 µF	±10%	250V	500V	Polypropylene (PP), Metallized	15.6 mOhms	-55°C ~ 105°C	Through Hole	1.240 L x 0.433 W (31.50mm x 11.00mm)	0.795 (20.20mm)	PC Pins	1.083 (27.50mm)	Automotive	AEC-Q200
160474K100F-F CAP FILM 0.47UF 10% 100VDC RAD Cornell Dubilier Electronics (CDE)	6,427	1.92	RFQ	Datasheet	Radial	Bulk	160	Active	0.47 µF	±10%	63V	100V	Polyester, Metallized	-	-55°C ~ 105°C	Through Hole	0.709 L x 0.197 W (18.00mm x 5.00mm)	0.433 (11.00mm)	PC Pins	0.591 (15.00mm)	General Purpose	-
ECW-F6563JL CAP FILM 0.056UF 5% 630VDC RAD Panasonic Electronic Components	6,852	1.93	RFQ	Datasheet	Radial	Bulk	ECW-F(L)	Active	0.056 µF	±5%	223V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.610 L x 0.268 W (15.50mm x 6.80mm)	0.500 (12.70mm)	PC Pins	0.492 (12.50mm)	High Frequency, Switching	-
ECW-FG1B155J CAP FILM 1.5UF 5% 1.1KVDC RAD Panasonic Electronic Components	9,976	1.94	RFQ	Datasheet	Radial	Bulk	ECWFG	Active	1.5 µF	±5%	-	1100V (1.1kV)	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	1.240 L x 0.472 W (31.50mm x 12.00mm)	0.984 (25.00mm)	PC Pins	1.083 (27.50mm)	Automotive; High Frequency, Switching	AEC-Q200
ECW-F4304JL CAP FILM 0.3UF 5% 400VDC RADIAL Panasonic Electronic Components	9,324	1.94	RFQ	Datasheet	Radial	Bulk	ECW-F(L)	Active	0.3 µF	±5%	141V	400V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.709 L x 0.362 W (18.00mm x 9.20mm)	0.606 (15.40mm)	PC Pins	0.591 (15.00mm)	High Frequency, Switching	-
ECW-F4124HL CAP FILM 0.12UF 3% 400VDC RADIAL Panasonic Electronic Components	6,695	1.95	RFQ	Datasheet	Radial	Bulk	ECW-F(L)	Active	0.12 µF	±3%	141V	400V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.610 L x 0.276 W (15.50mm x 7.00mm)	0.512 (13.00mm)	PC Pins	0.492 (12.50mm)	High Frequency, Switching	-
ECW-F4154JB CAP FILM 0.15UF 5% 400VDC RADIAL Panasonic Electronic Components	5,504	1.97	RFQ	Datasheet	Radial	Bulk	ECW-F(B)	Active	0.15 µF	±5%	200V	400V	Polypropylene (PP), Metallized	-	-25°C ~ 85°C	Through Hole	0.709 L x 0.335 W (18.00mm x 8.50mm)	0.669 (17.00mm)	PC Pins	0.591 (15.00mm)	High Frequency, Switching	-
ECW-F4823JB CAP FILM 0.082UF 5% 400VDC RAD Panasonic Electronic Components	7,433	1.98	RFQ	Datasheet	Radial	Bulk	ECW-F(B)	Active	0.082 µF	±5%	200V	400V	Polypropylene (PP), Metallized	-	-25°C ~ 85°C	Through Hole	0.709 L x 0.276 W (18.00mm x 7.00mm)	0.591 (15.00mm)	PC Pins	0.591 (15.00mm)	High Frequency, Switching	-
ECW-F6164JL CAP FILM 0.16UF 5% 630VDC RADIAL Panasonic Electronic Components	5,656	1.99	RFQ	Datasheet	Radial	Bulk	ECW-F(L)	Active	0.16 µF	±5%	223V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.709 L x 0.366 W (18.00mm x 9.30mm)	0.602 (15.30mm)	PC Pins	0.591 (15.00mm)	High Frequency, Switching	-
ECW-F4364JL CAP FILM 0.36UF 5% 400VDC RADIAL Panasonic Electronic Components	5,980	2.00	RFQ	Datasheet	Radial	Bulk	ECW-F(L)	Active	0.36 µF	±5%	141V	400V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.709 L x 0.390 W (18.00mm x 9.90mm)	0.638 (16.20mm)	PC Pins	0.591 (15.00mm)	High Frequency, Switching	-
ECW-F6753JL CAP FILM 0.075UF 5% 630VDC RAD Panasonic Electronic Components	7,934	2.00	RFQ	Datasheet	Radial	Bulk	ECW-F(L)	Active	0.075 µF	±5%	223V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.610 L x 0.303 W (15.50mm x 7.70mm)	0.535 (13.60mm)	PC Pins	0.492 (12.50mm)	High Frequency, Switching	-
ECW-FG2J225J CAP FILM 2.2UF 5% 630VDC RADIAL Panasonic Electronic Components	6,728	2.00	RFQ	Datasheet	Radial	Bulk	ECWFG	Active	2.2 µF	±5%	141V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	1.240 L x 0.472 W (31.50mm x 12.00mm)	0.984 (25.00mm)	PC Pins	1.083 (27.50mm)	Automotive; High Frequency, Switching	AEC-Q200
ECW-F6823JL CAP FILM 0.082UF 5% 630VDC RAD Panasonic Electronic Components	9,840	2.00	RFQ	Datasheet	Radial	Bulk	ECW-F(L)	Active	0.082 µF	±5%	223V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.610 L x 0.315 W (15.50mm x 8.00mm)	0.547 (13.90mm)	PC Pins	0.492 (12.50mm)	High Frequency, Switching	-
ECW-H6214HCC CAP FILM 0.21UF 3% 630VDC RADIAL Panasonic Electronic Components	9,016	2.01	RFQ	Datasheet	Radial	Bulk	ECW-H(C)	Active	0.21 µF	±3%	223V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.815 L x 0.488 W (20.70mm x 12.40mm)	0.736 (18.70mm)	PC Pins	0.689 (17.50mm)	General Purpose	-
